Shop Manual Honda CB500 550
- Repair Procedure

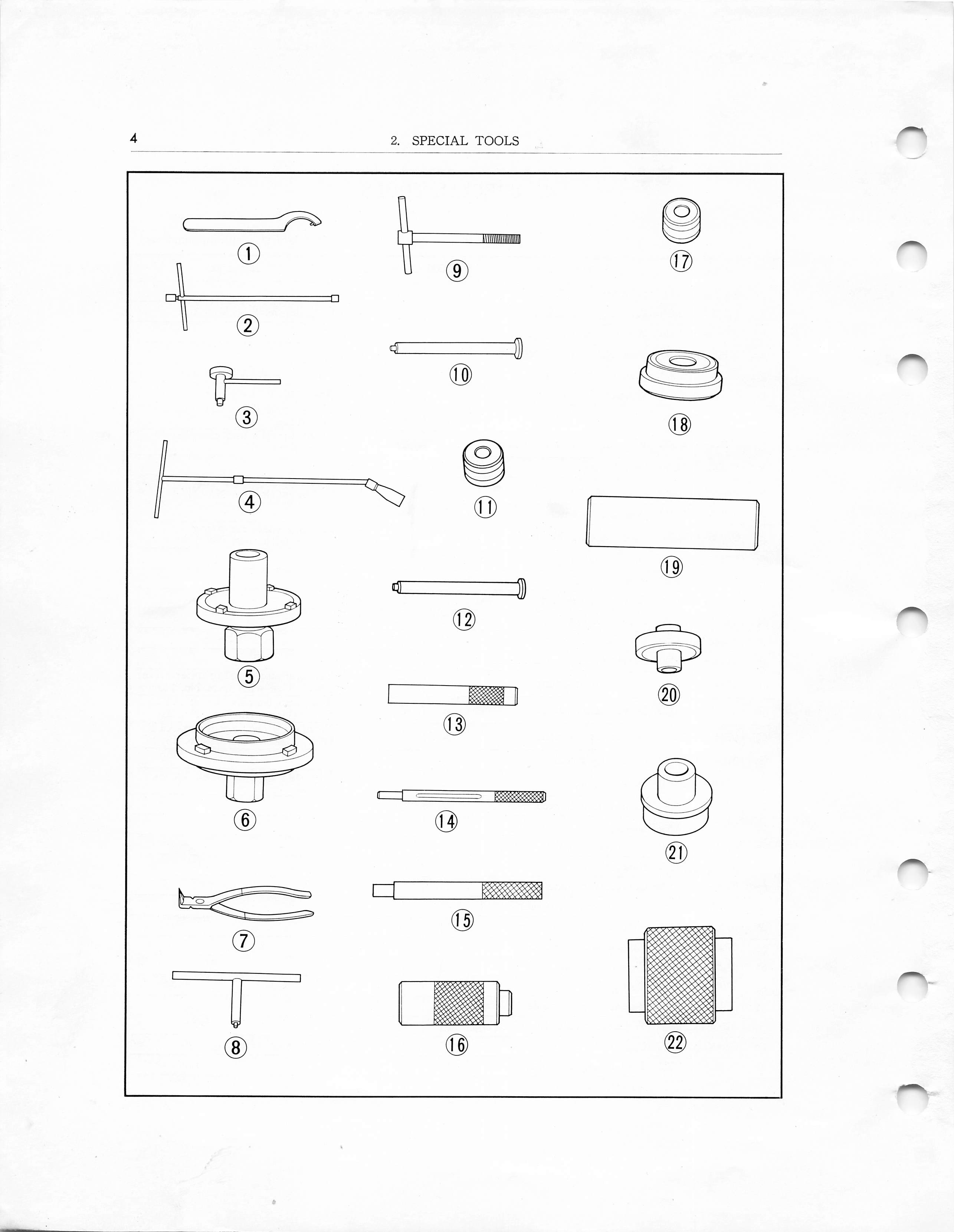

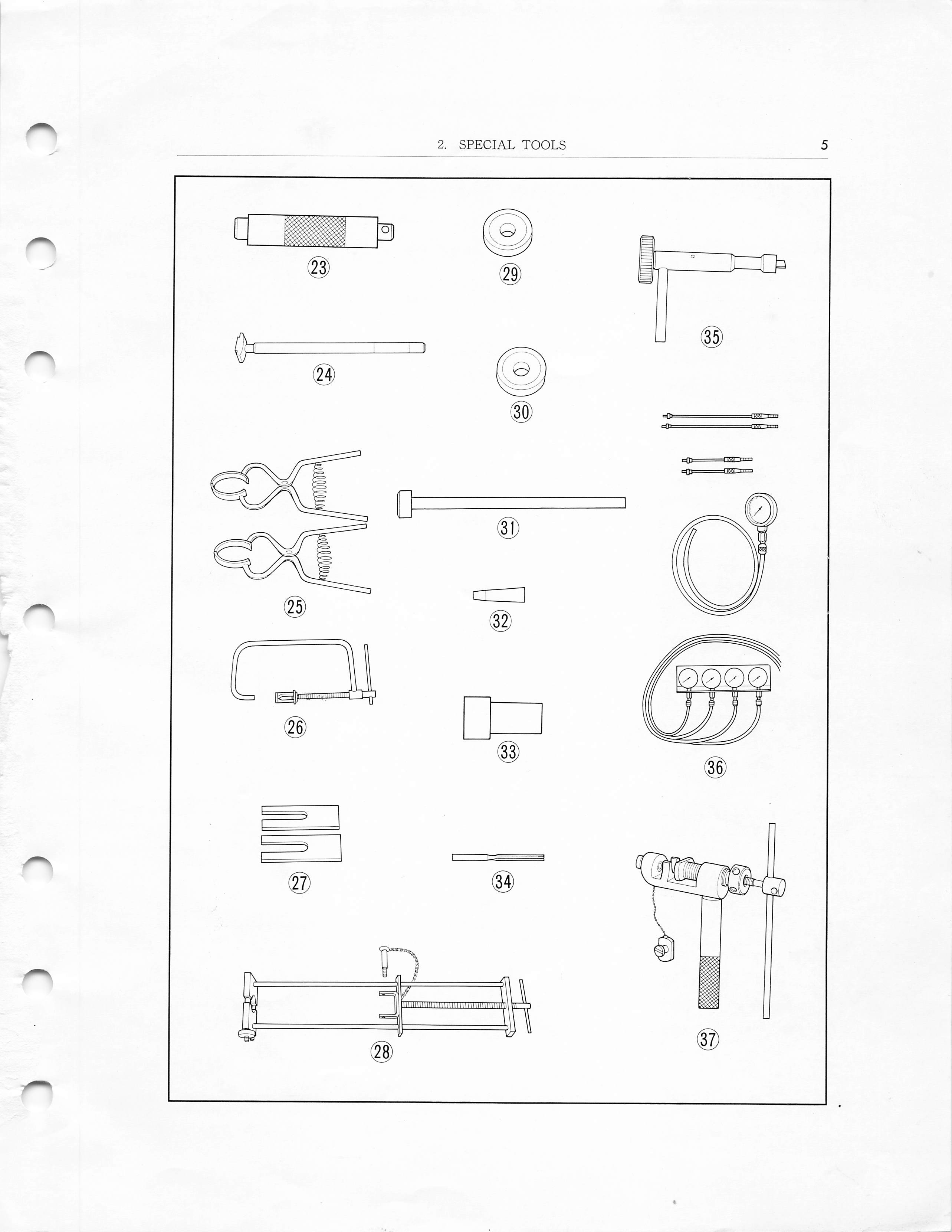

- Special Tools

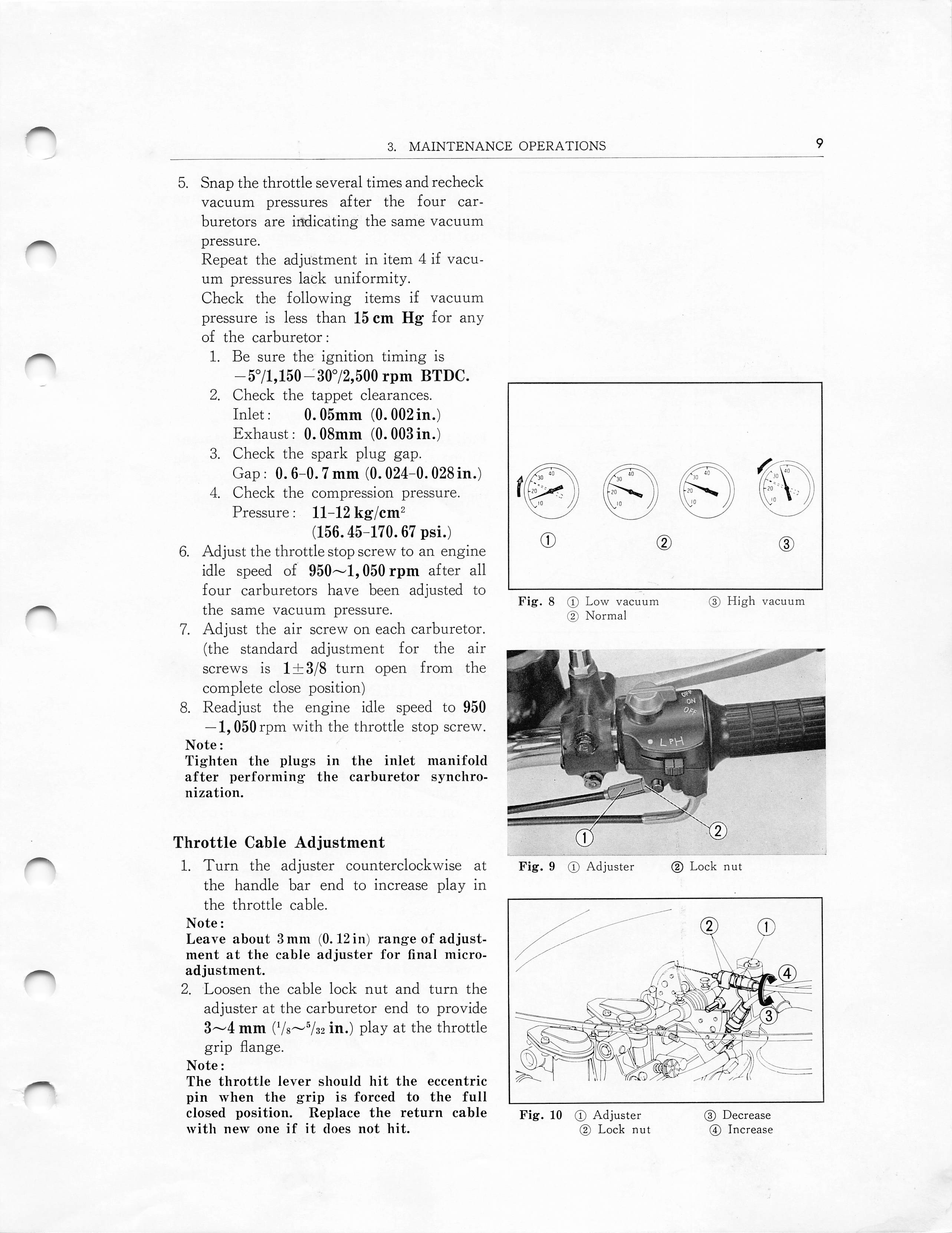

- Maintenance Operations

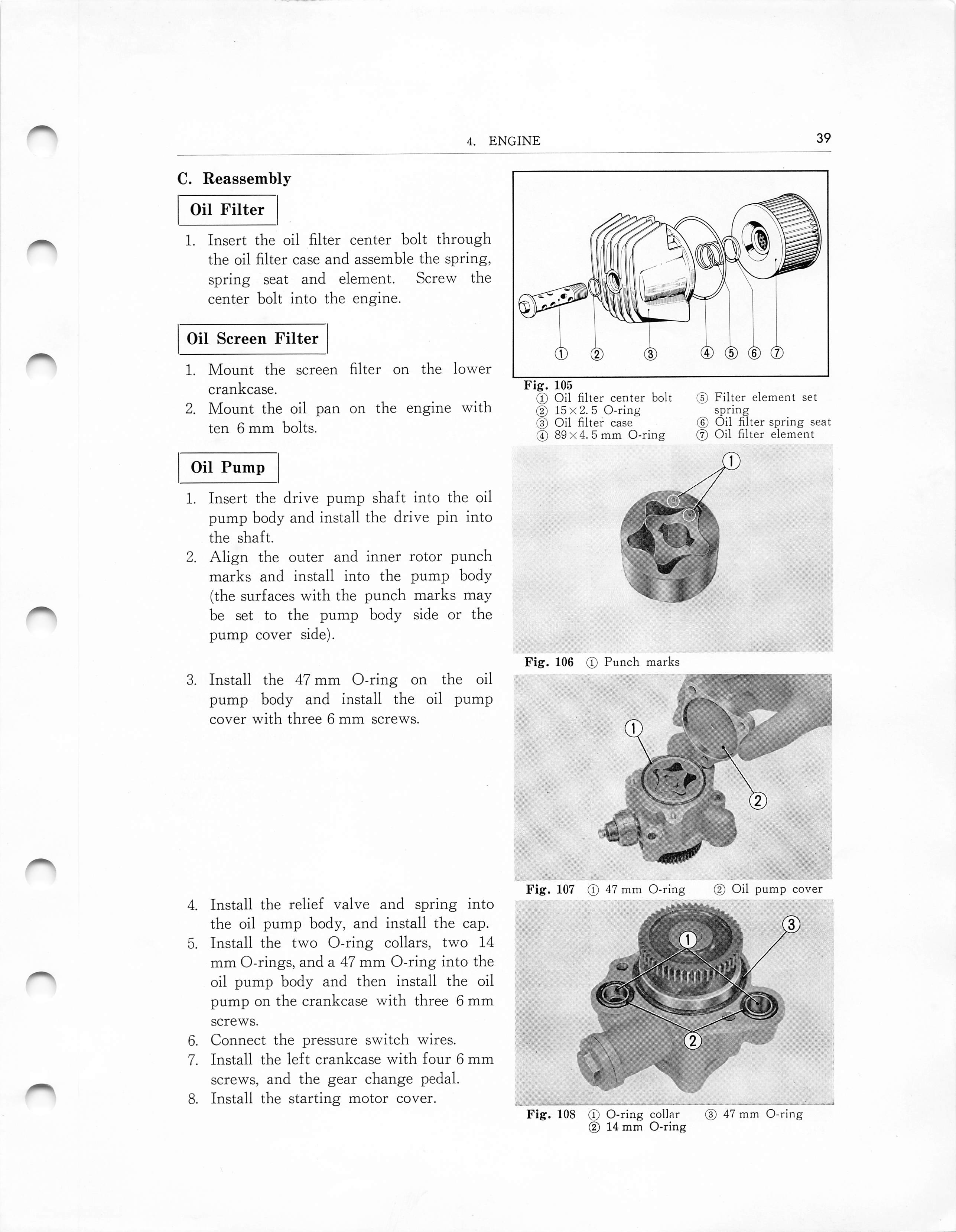

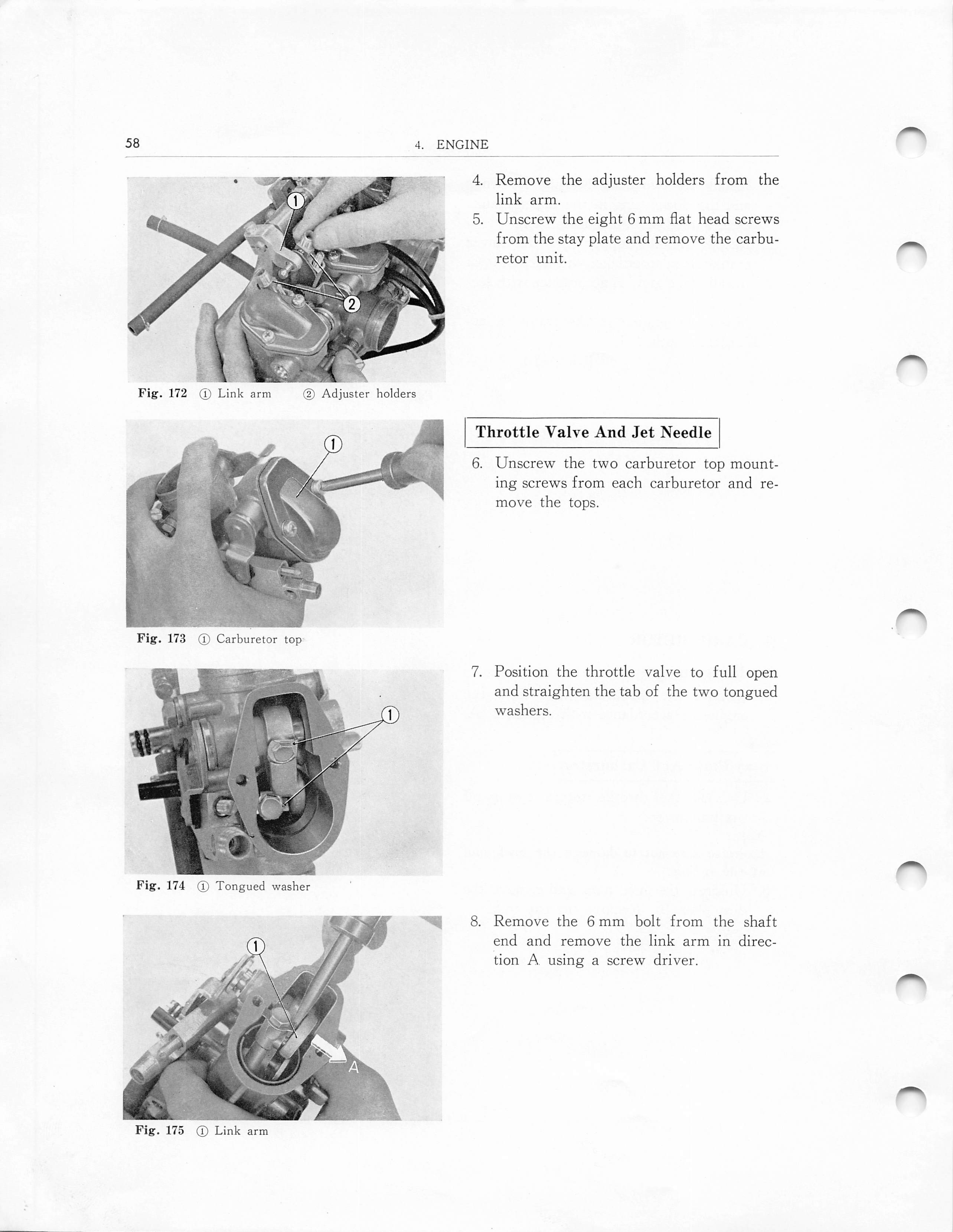

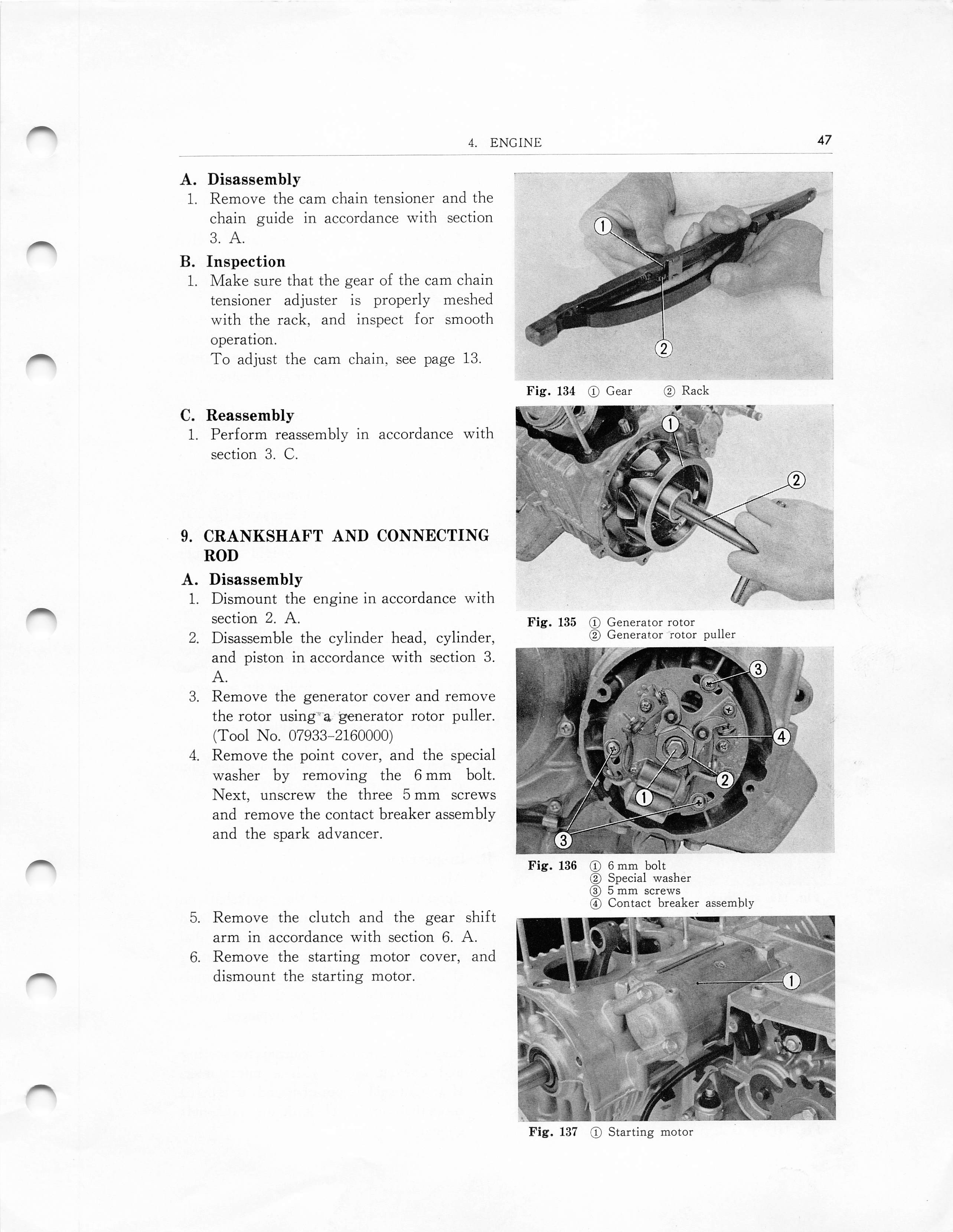

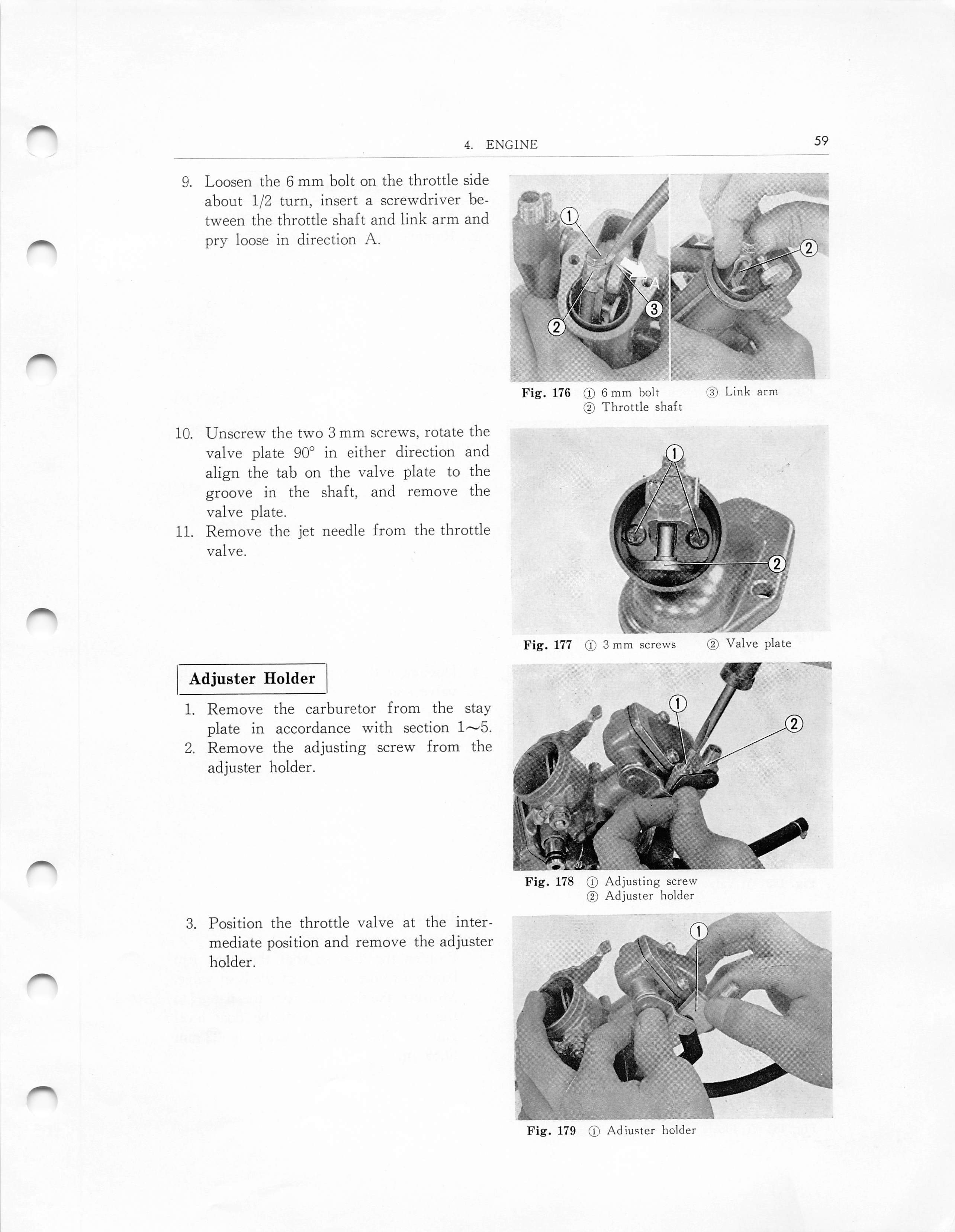

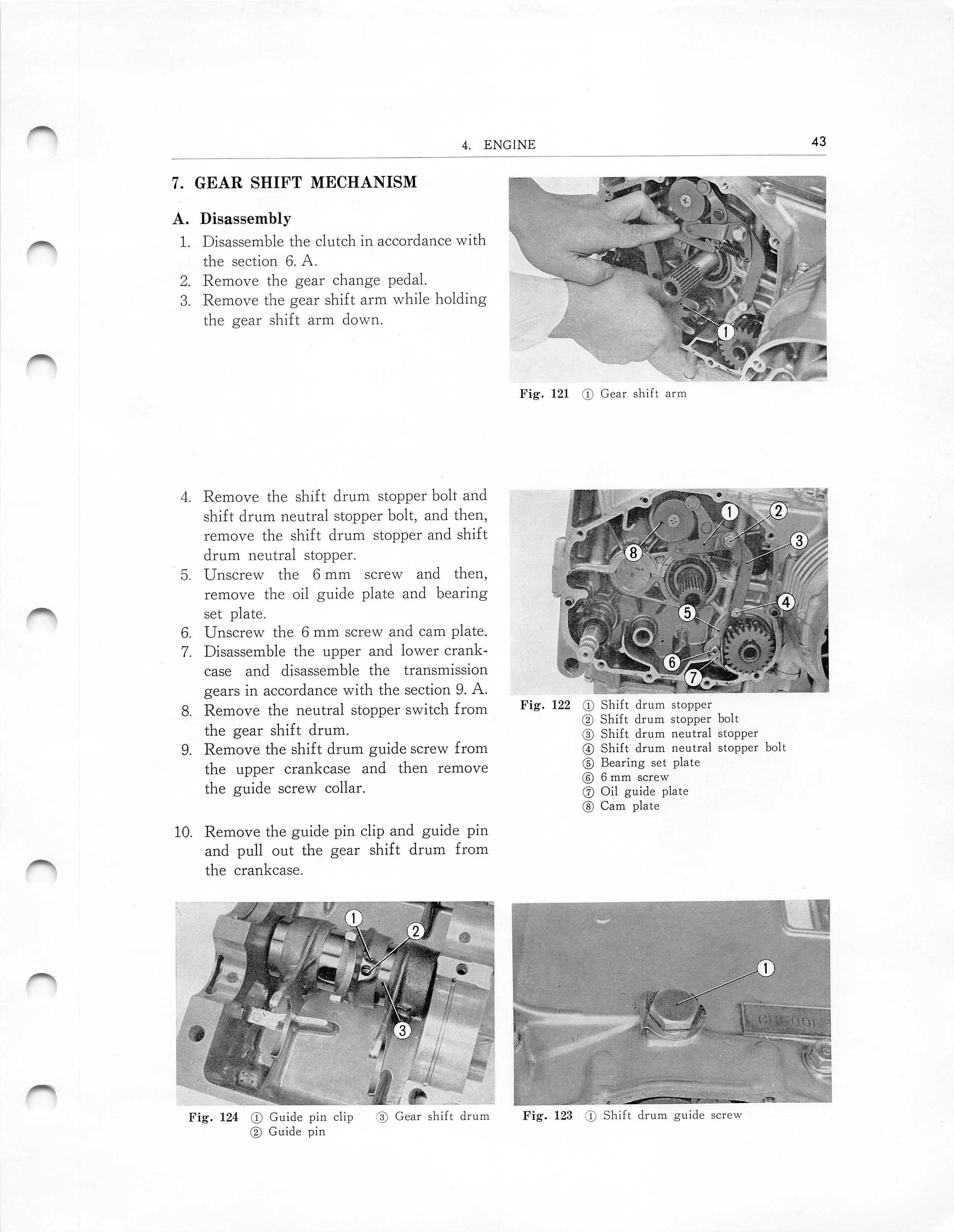

- Engine

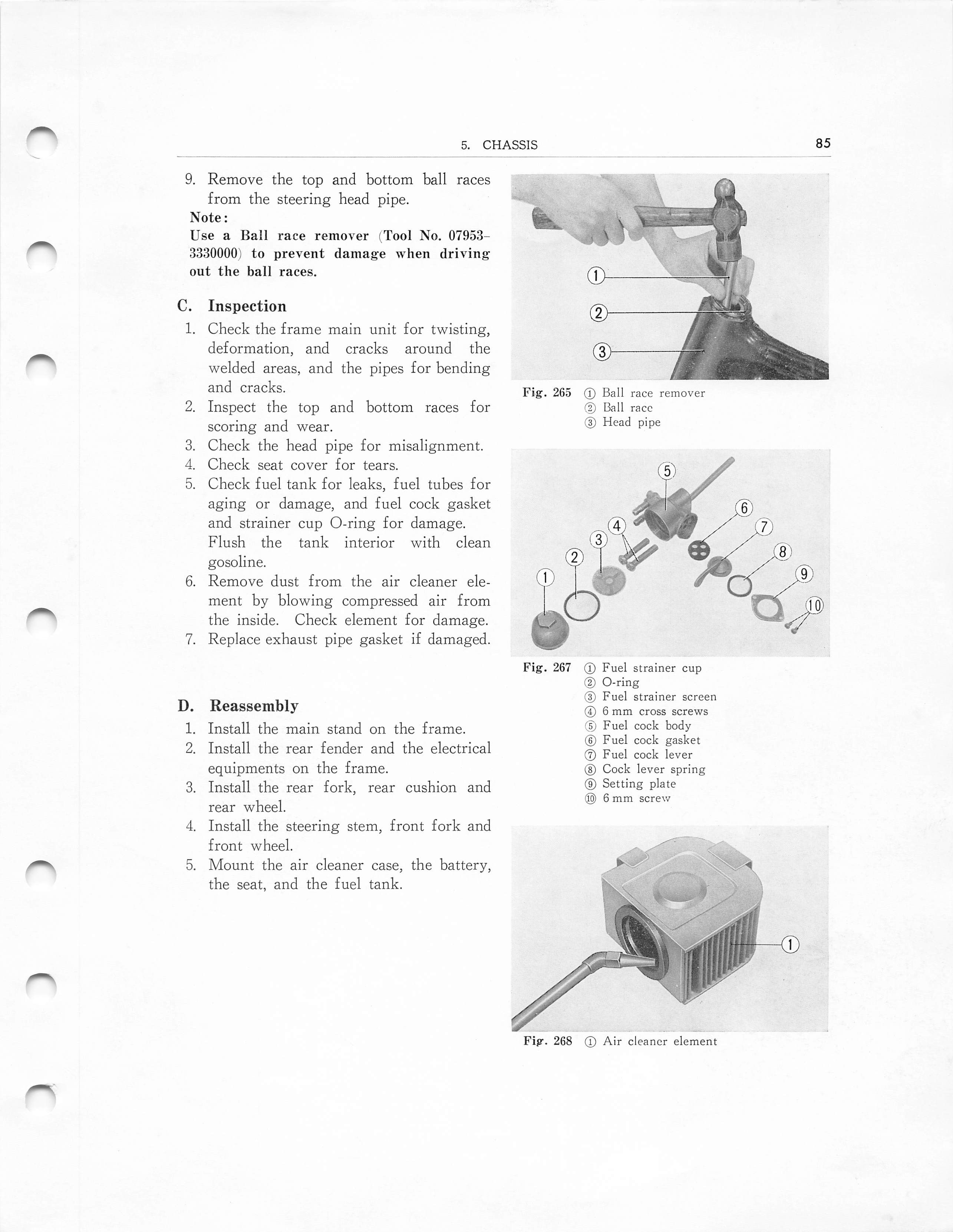

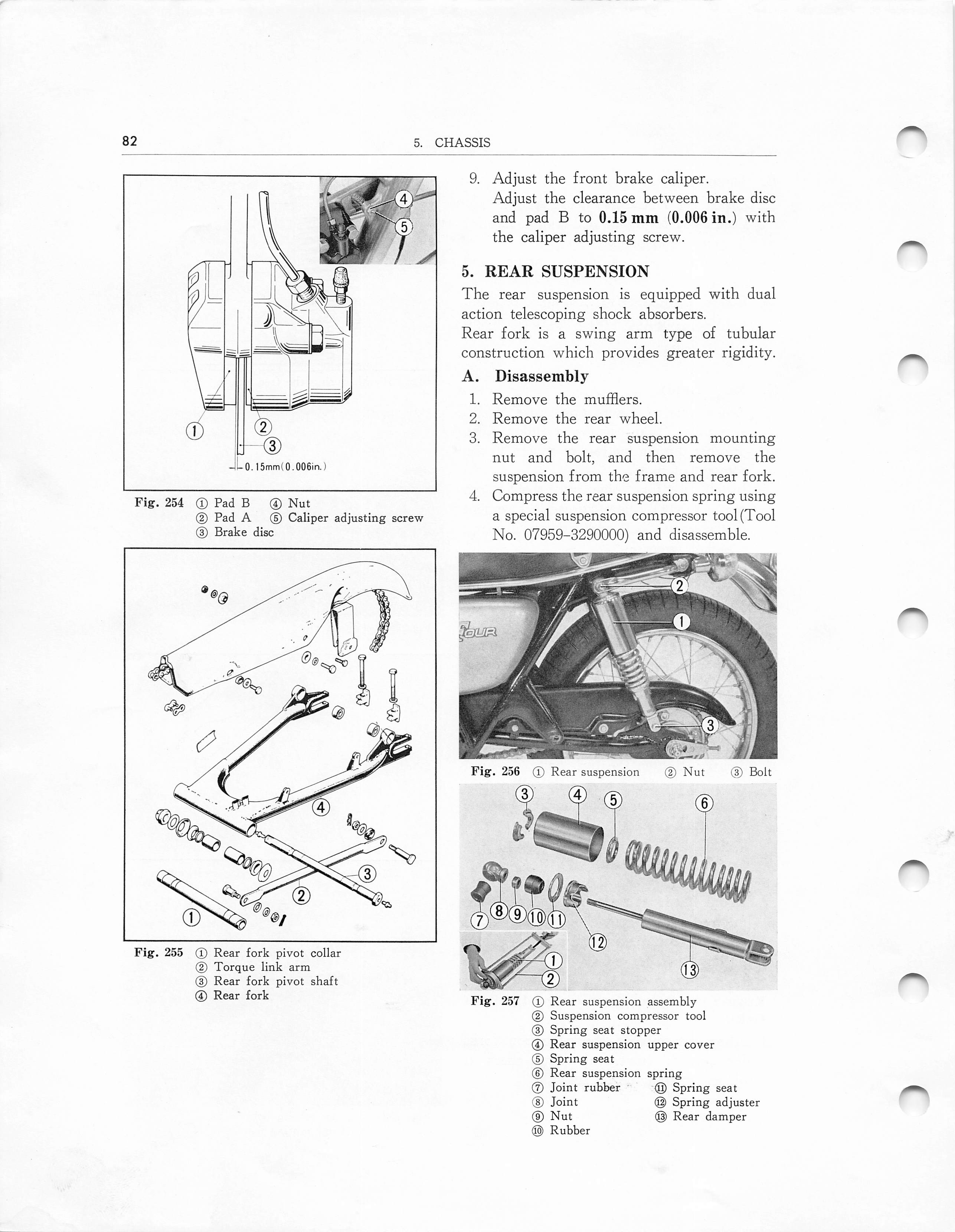

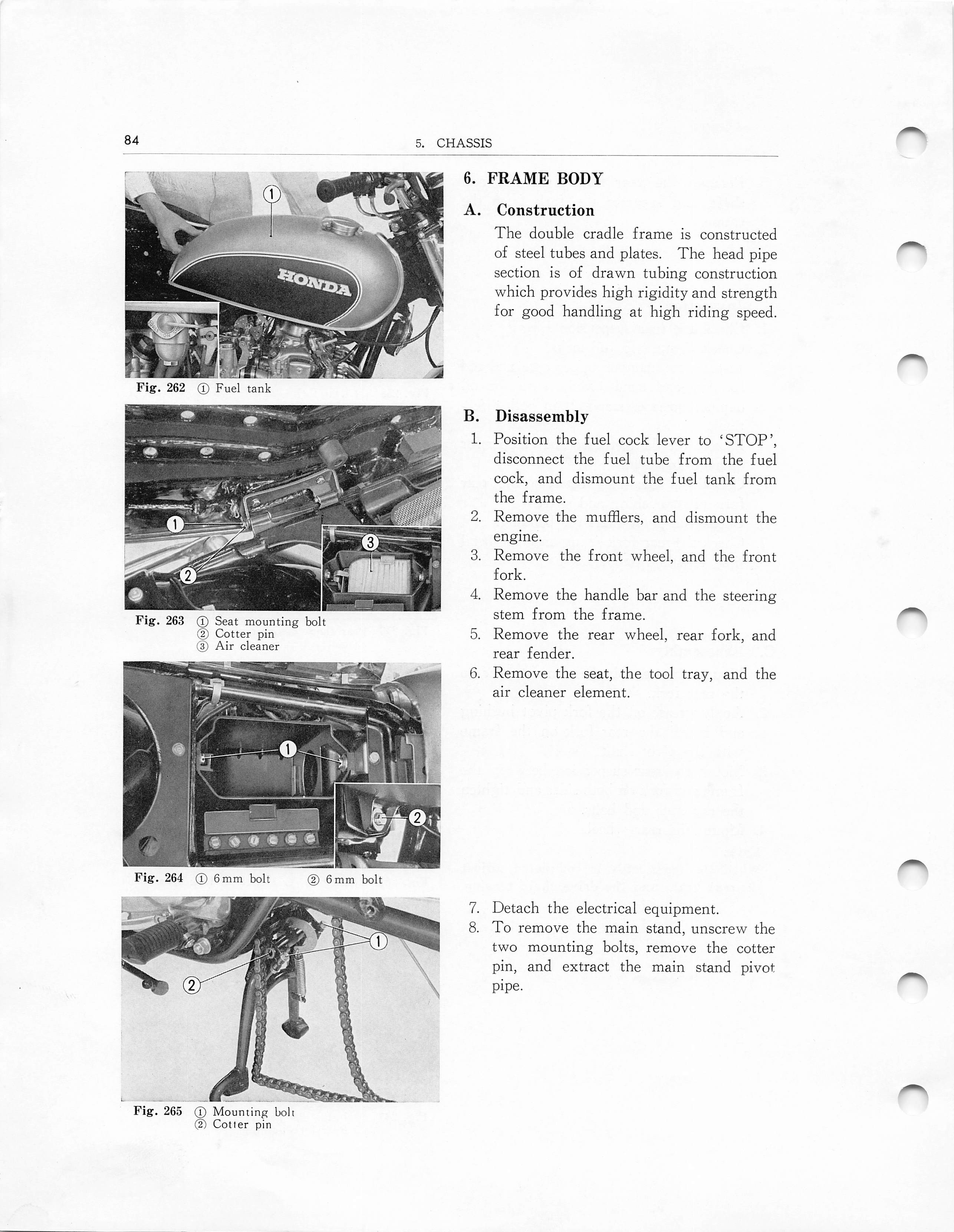

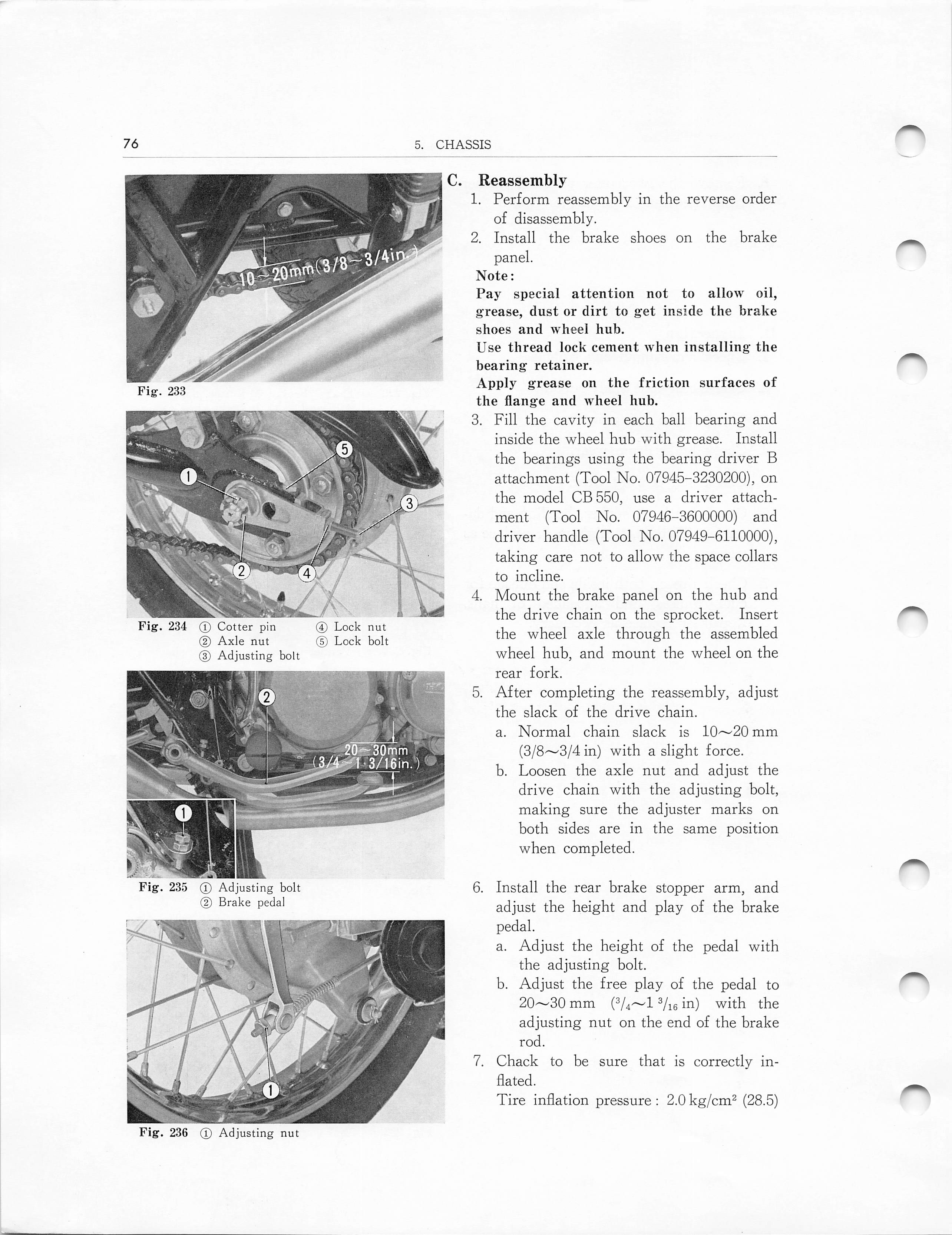

- Chassis

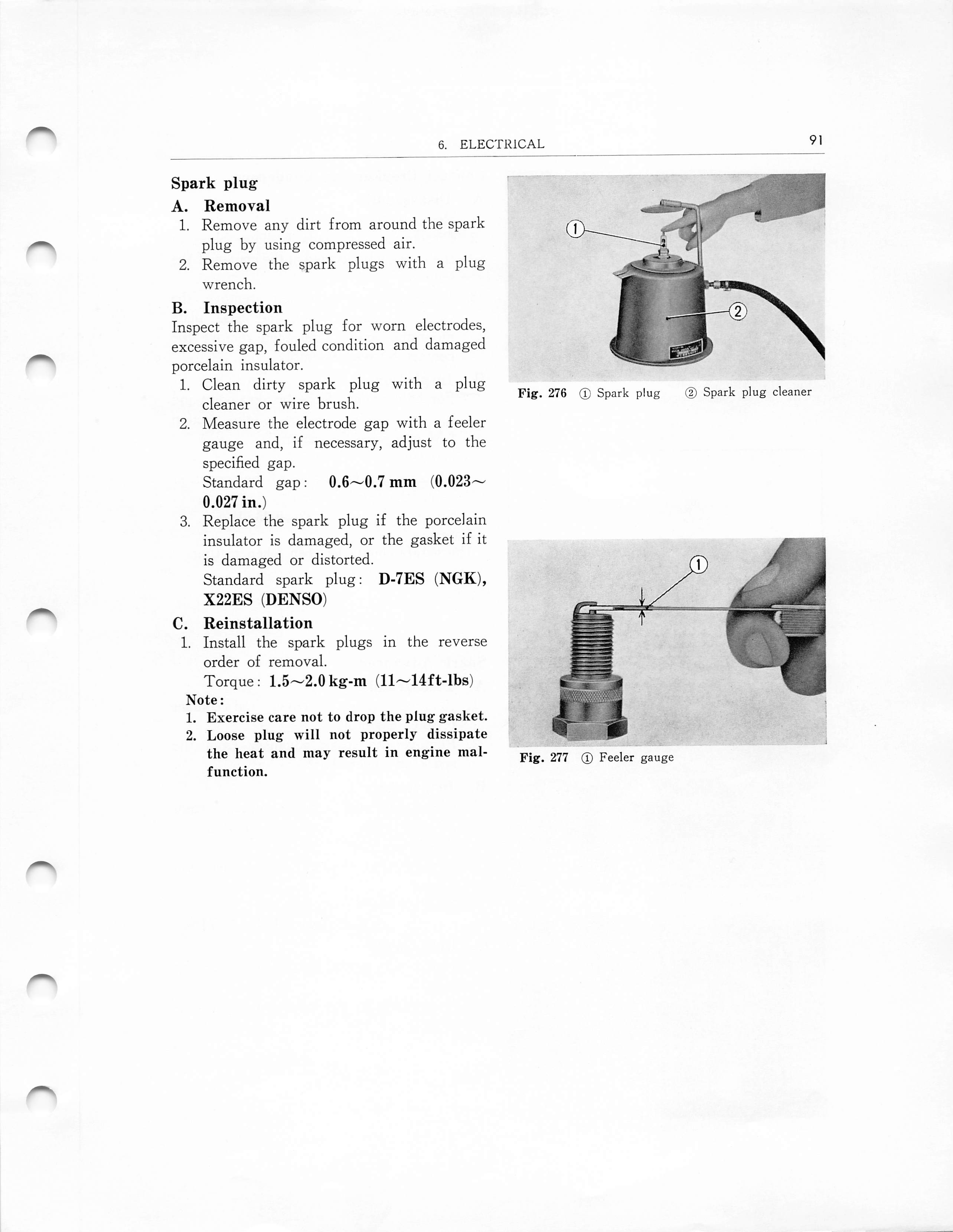

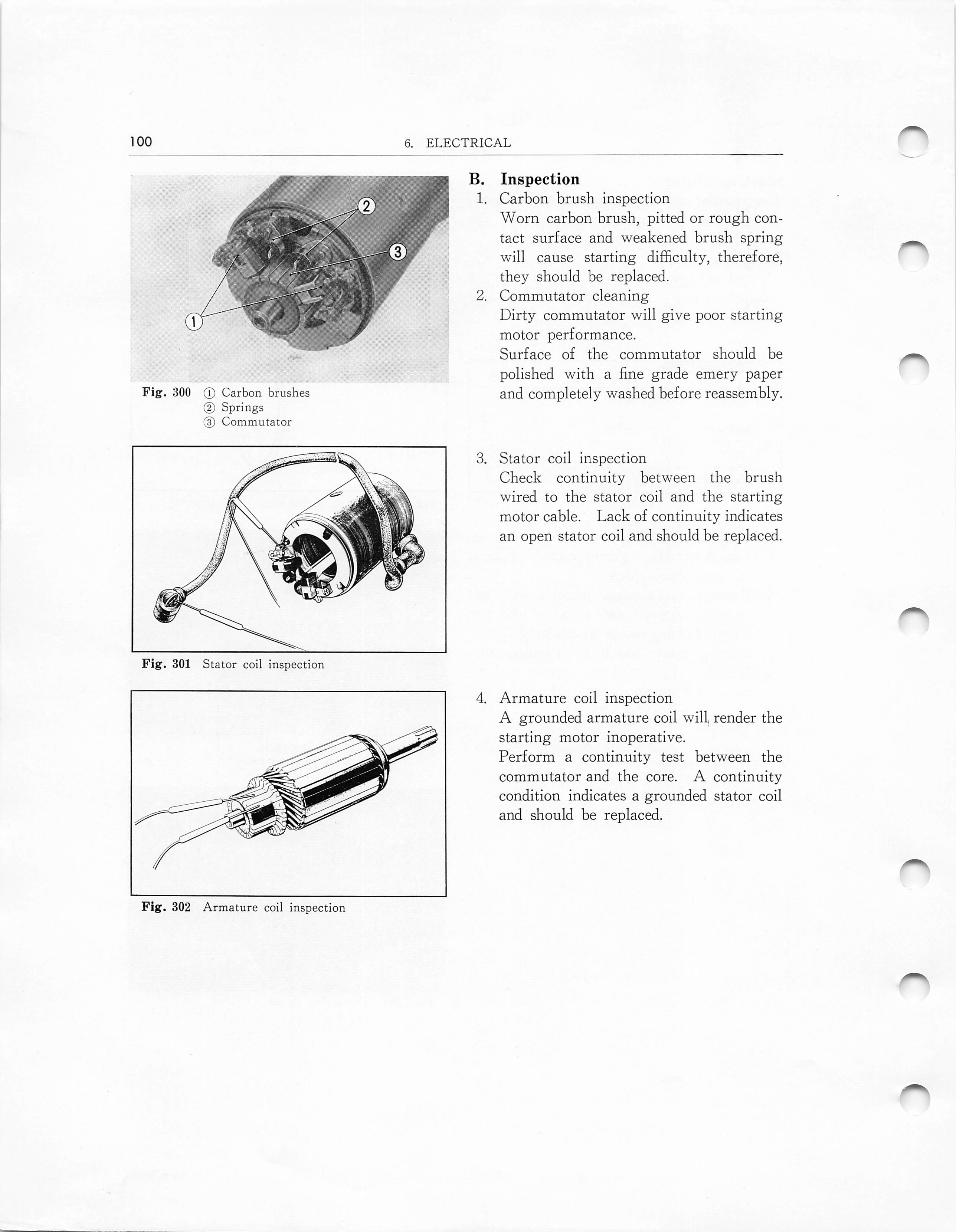

- Electrical
- Inspection and Adjustment of CB550

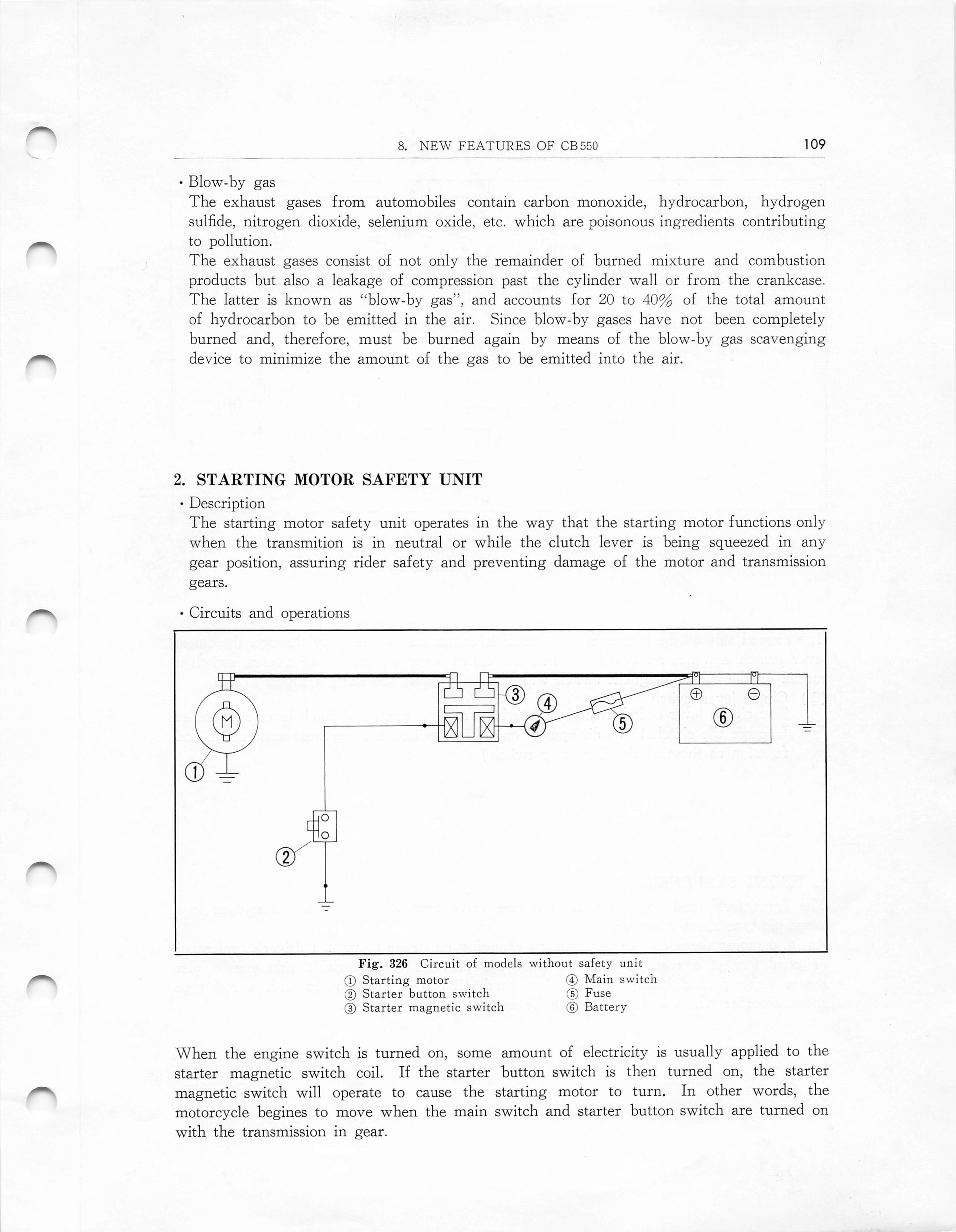

- New Features of CB550

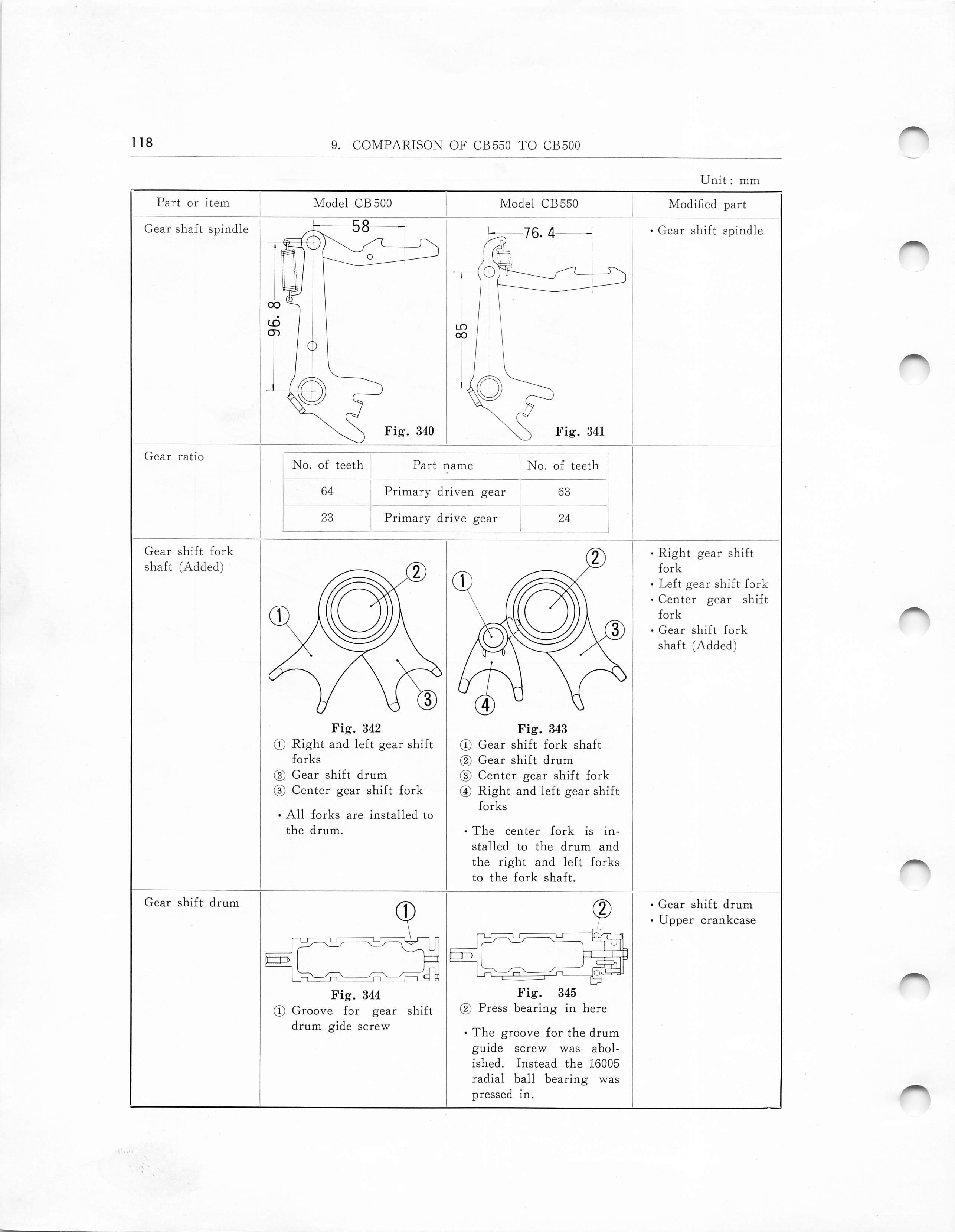

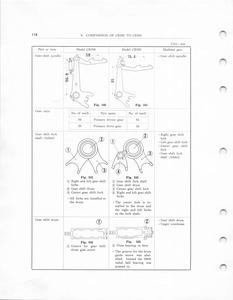

- Comparison of CB550 to CB500
- Engine

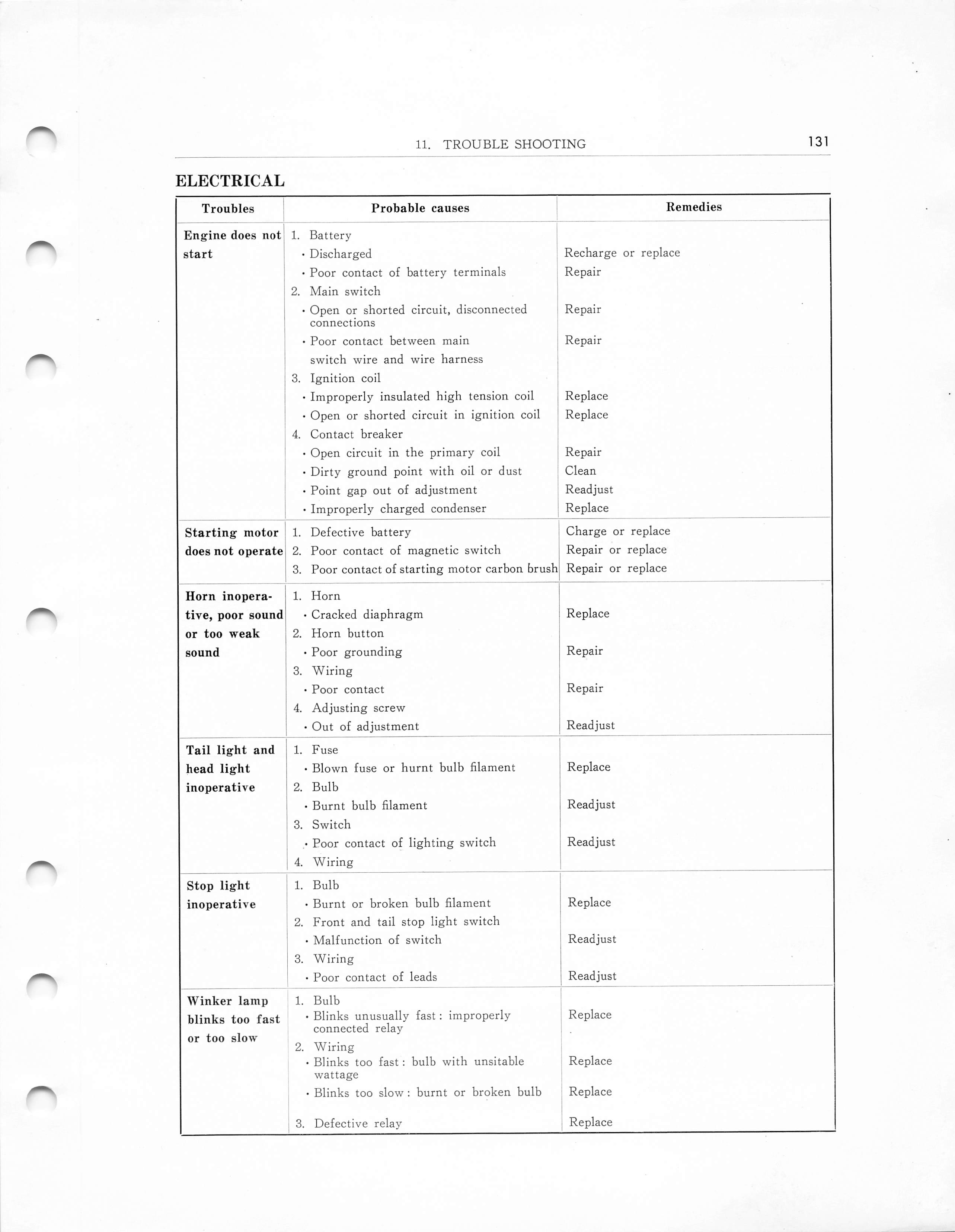

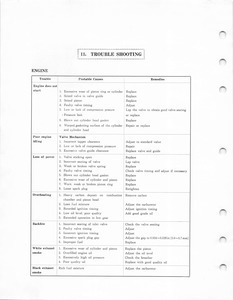

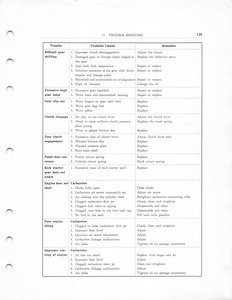

- Trouble Shooting
- Maintenance Schedule
- Technical Data

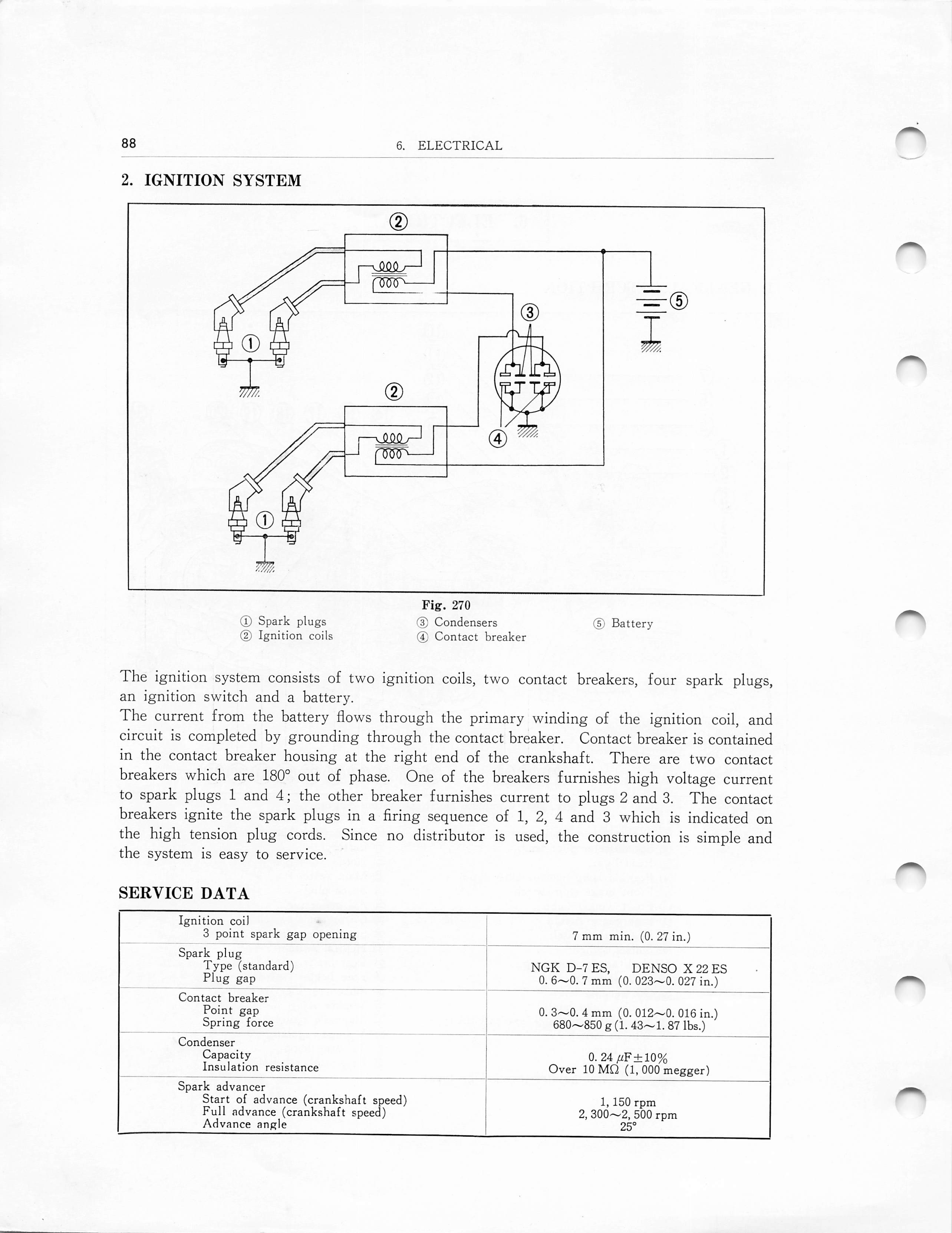

- Wiring Diagram
- Index

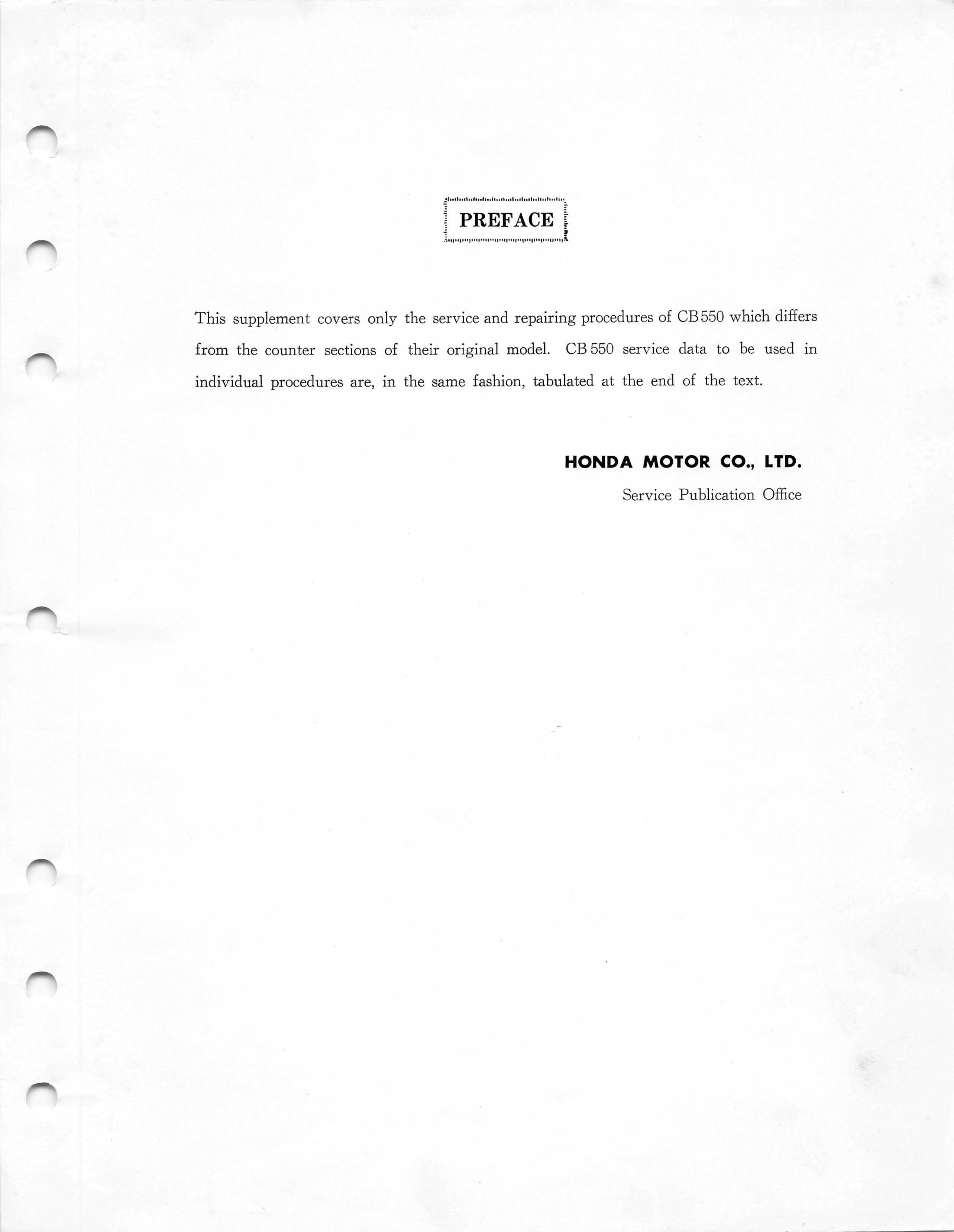

Preface

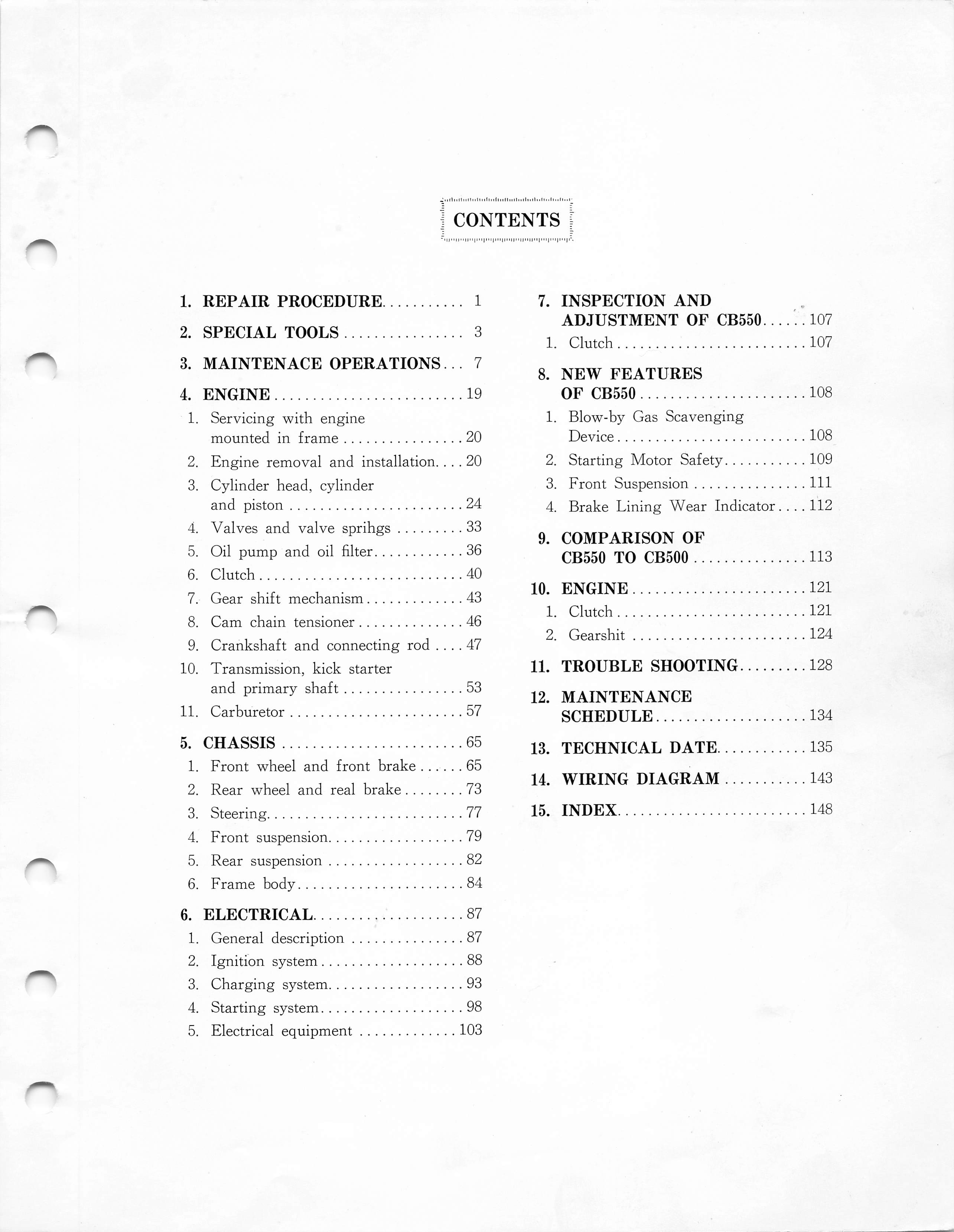

Contents

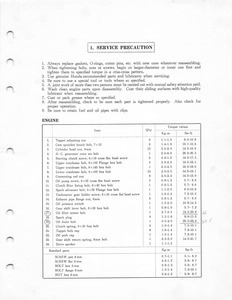

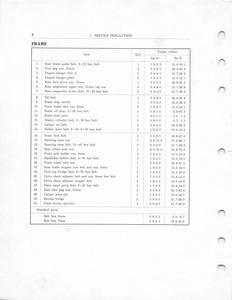

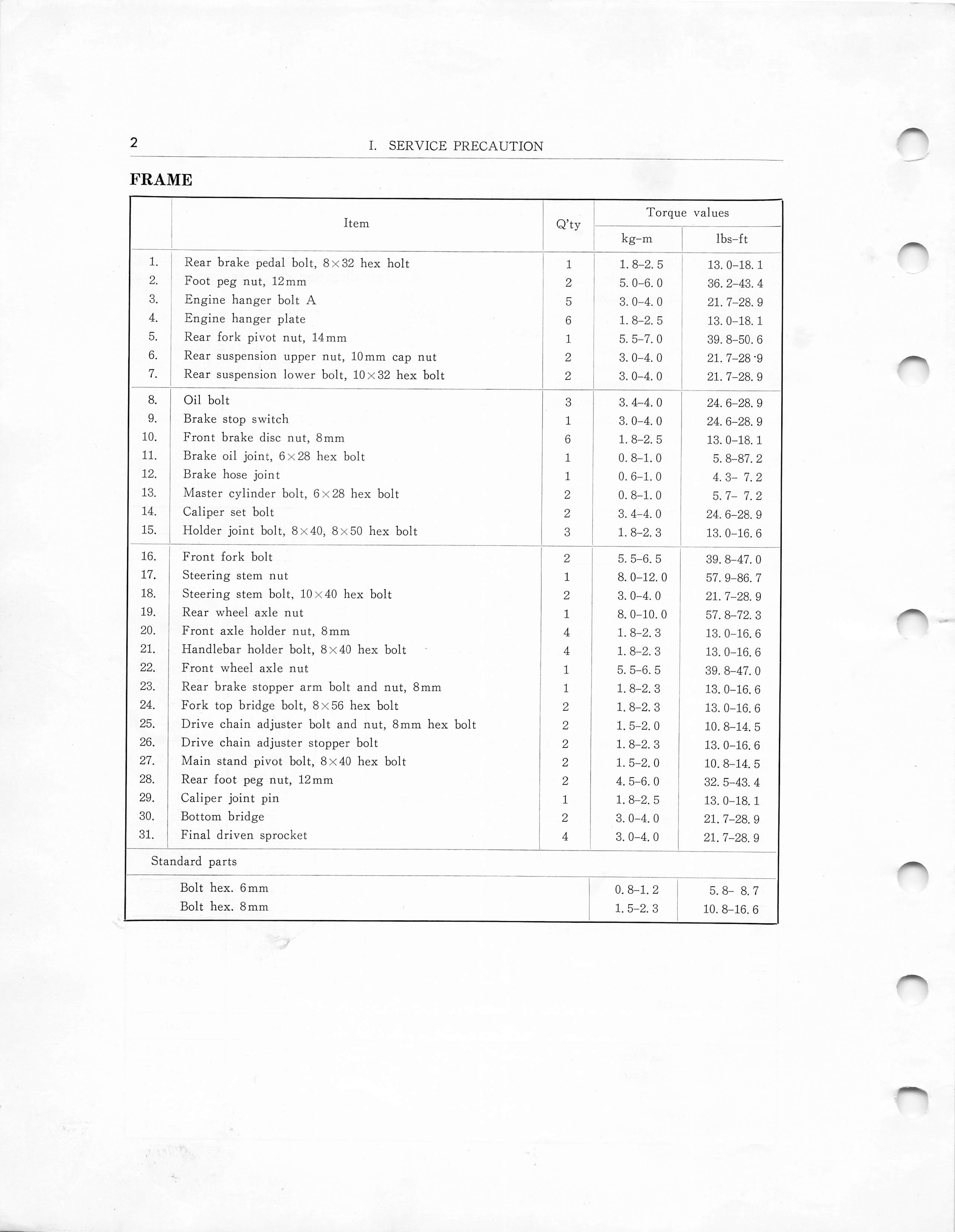

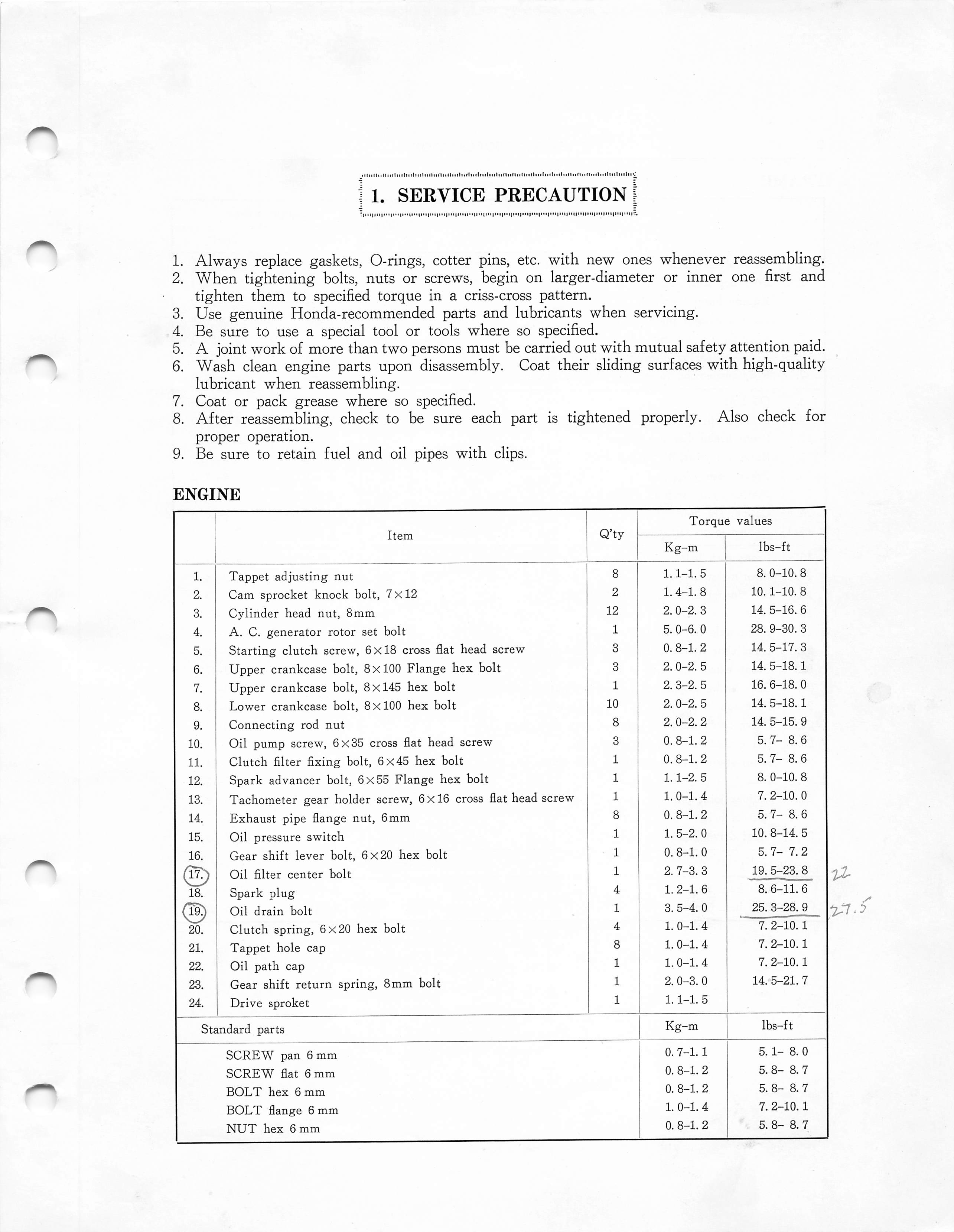

Service Precaution

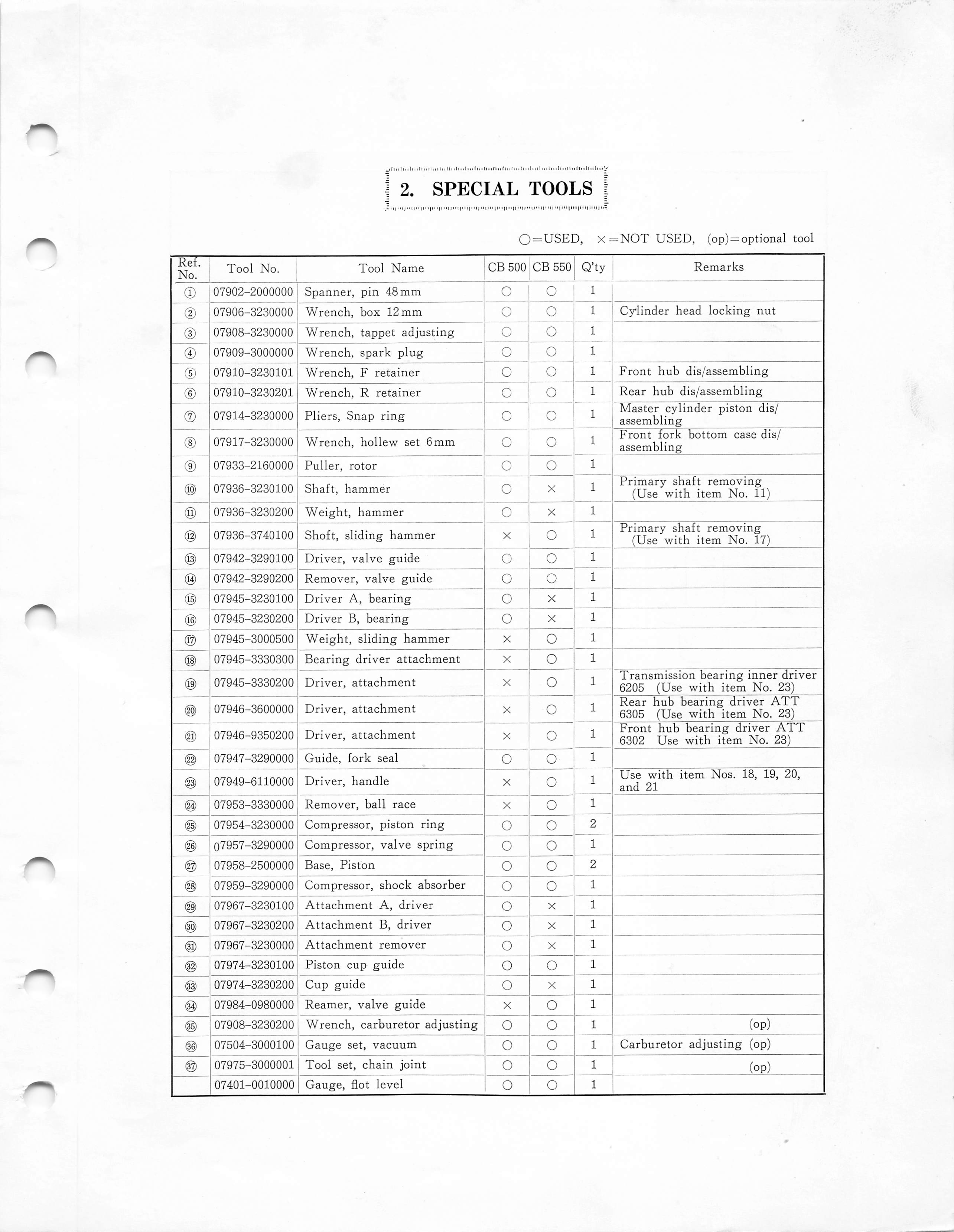

Special Tools

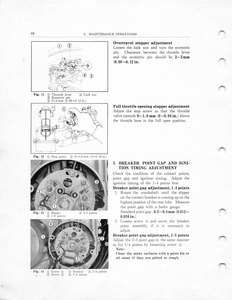

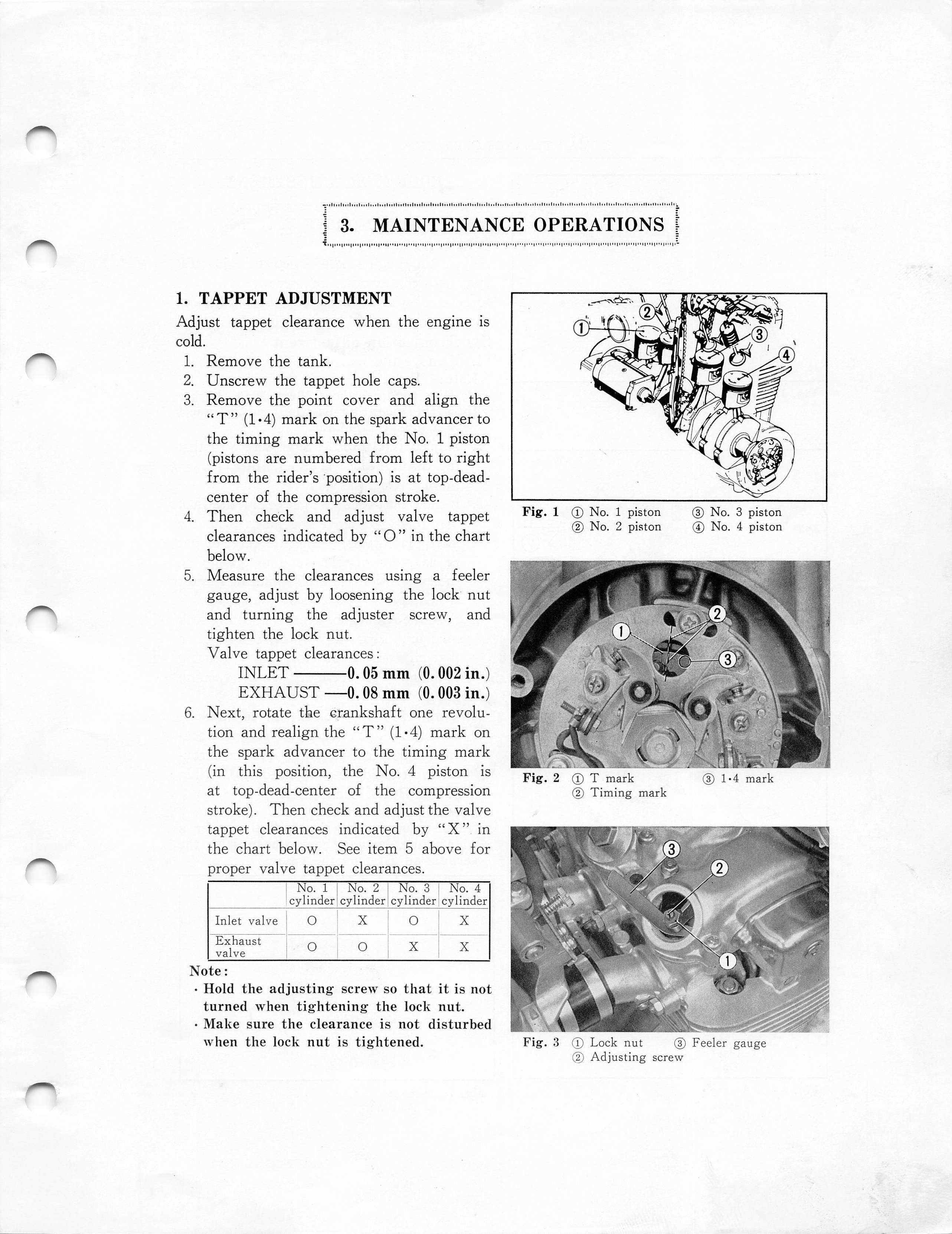

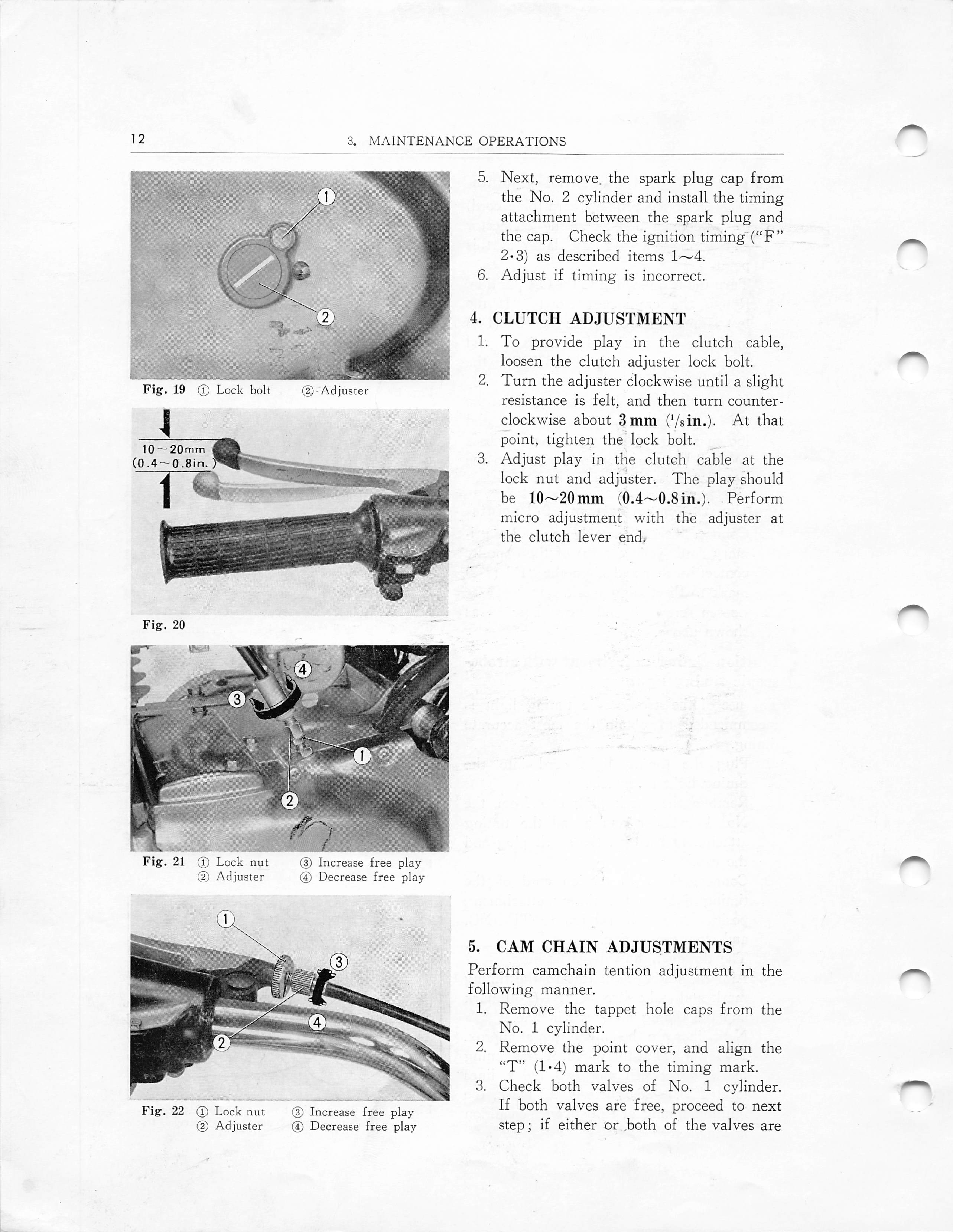

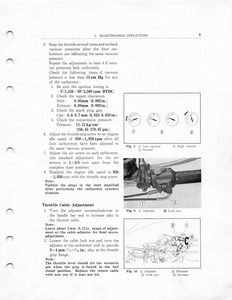

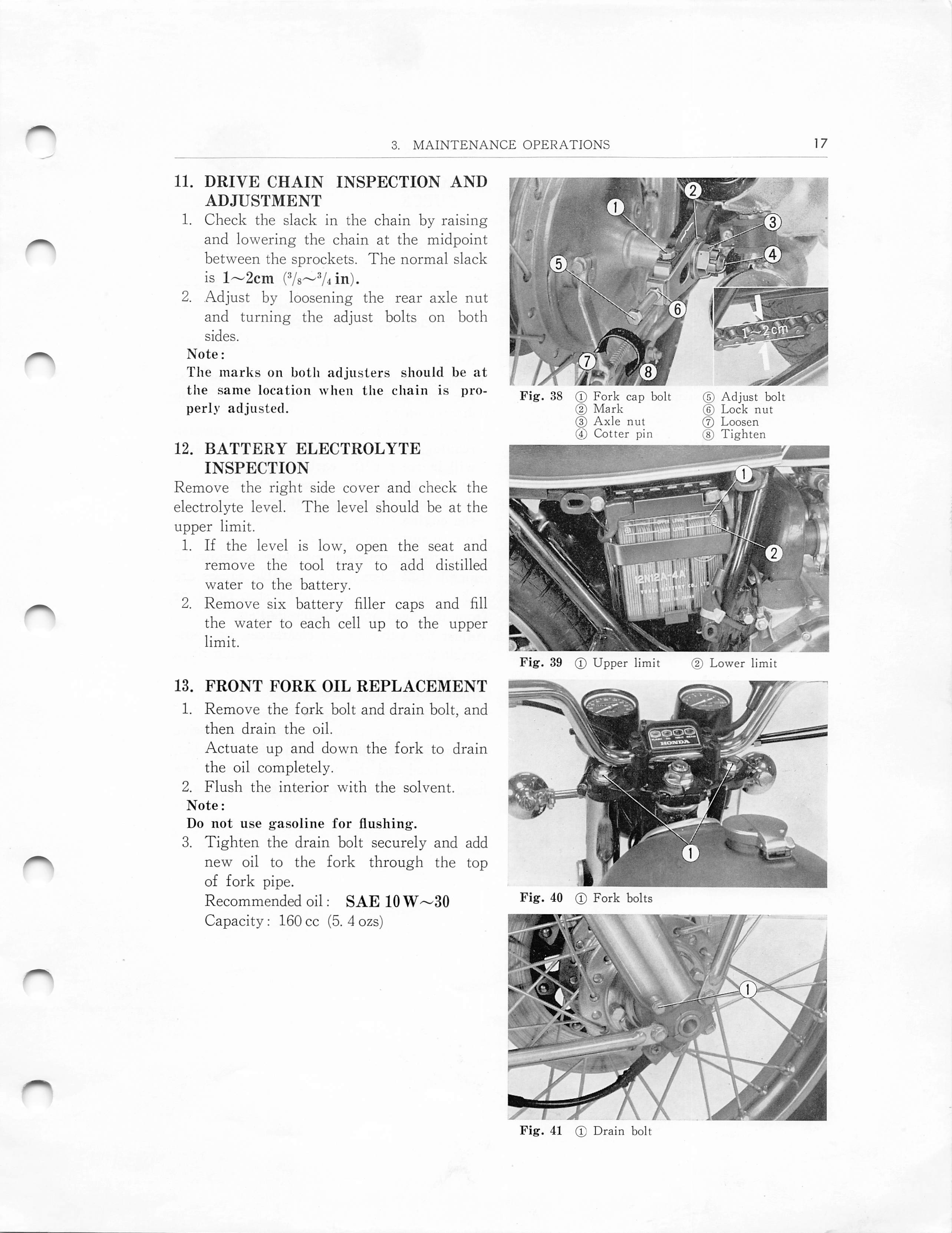

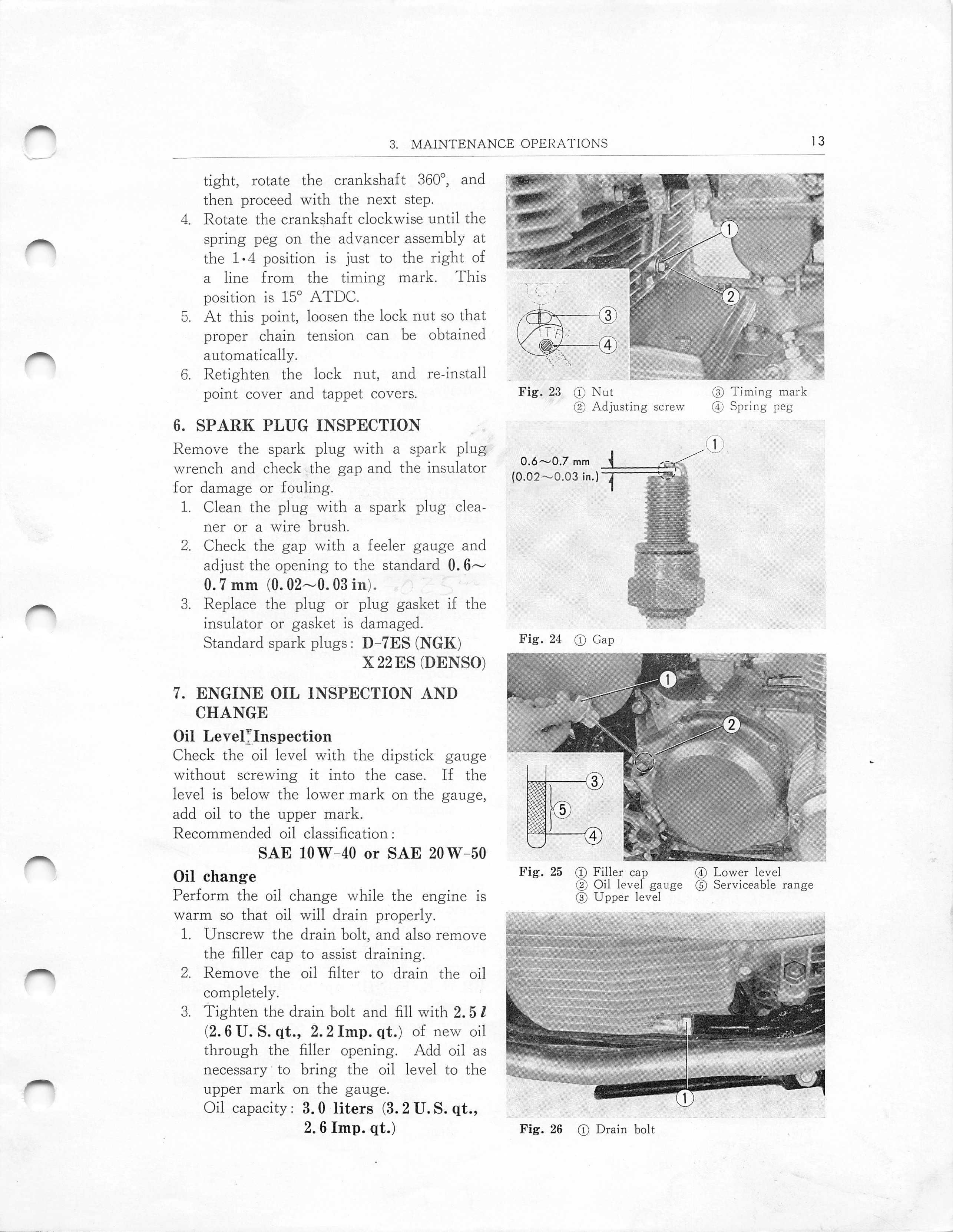

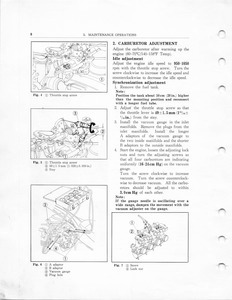

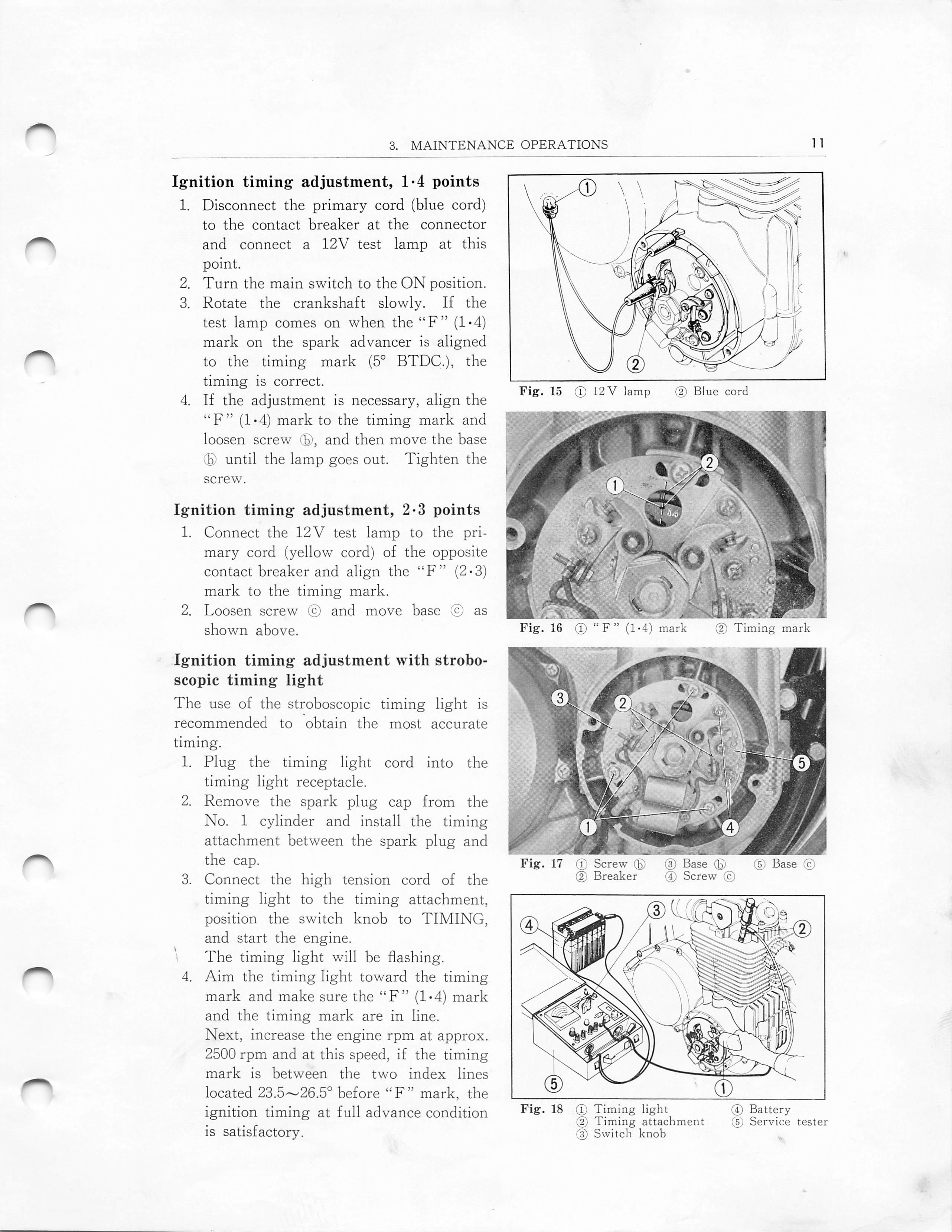

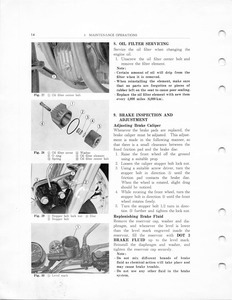

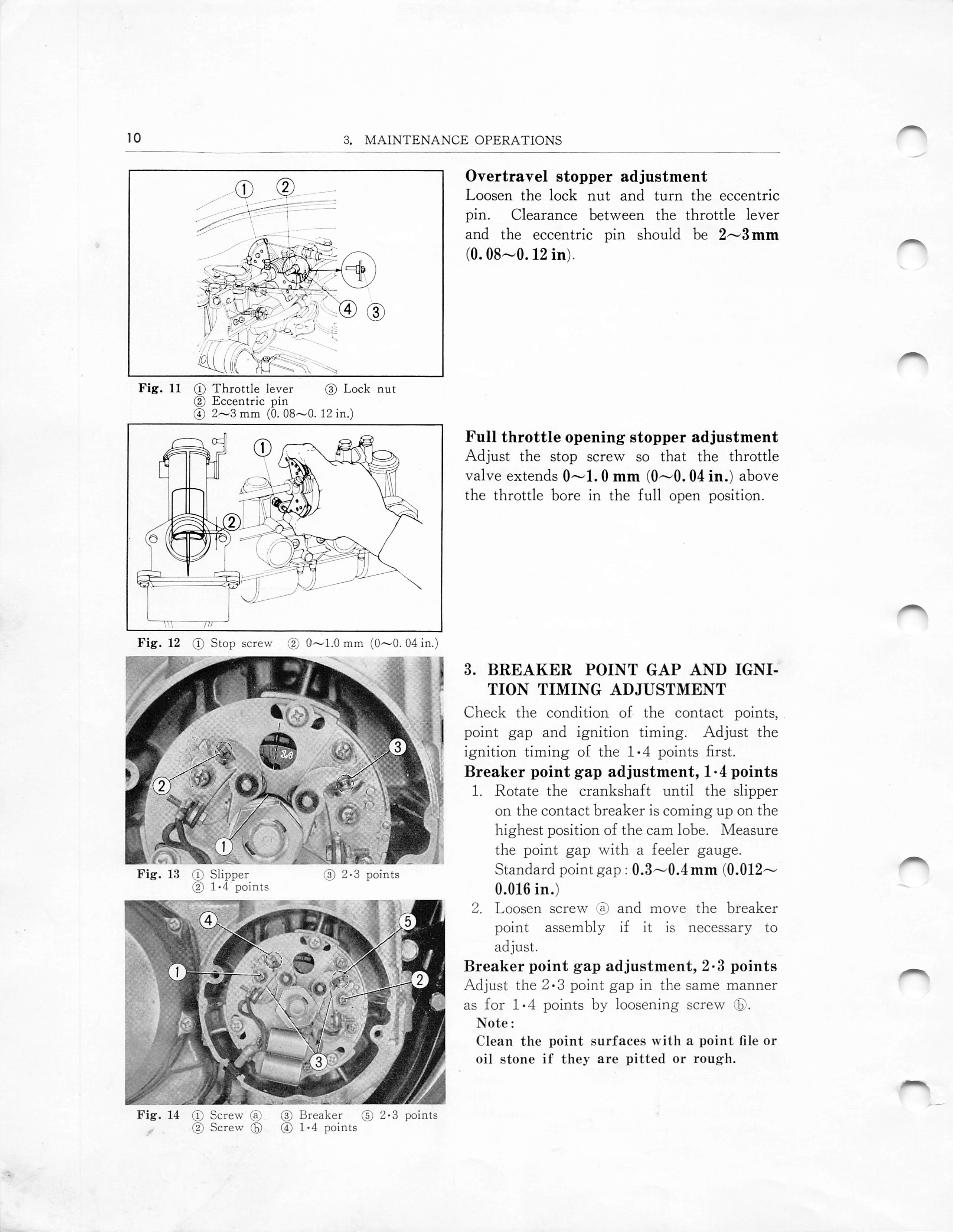

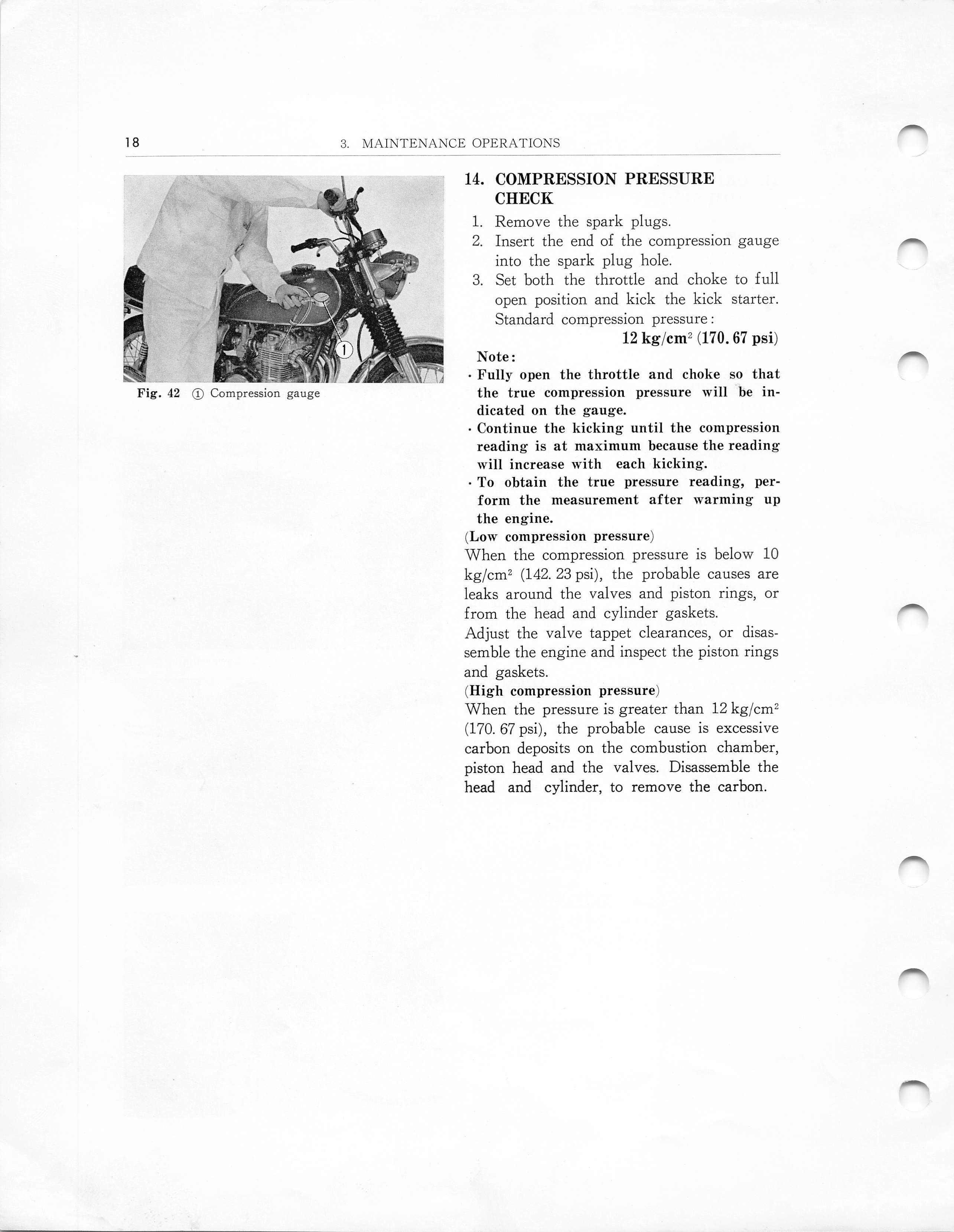

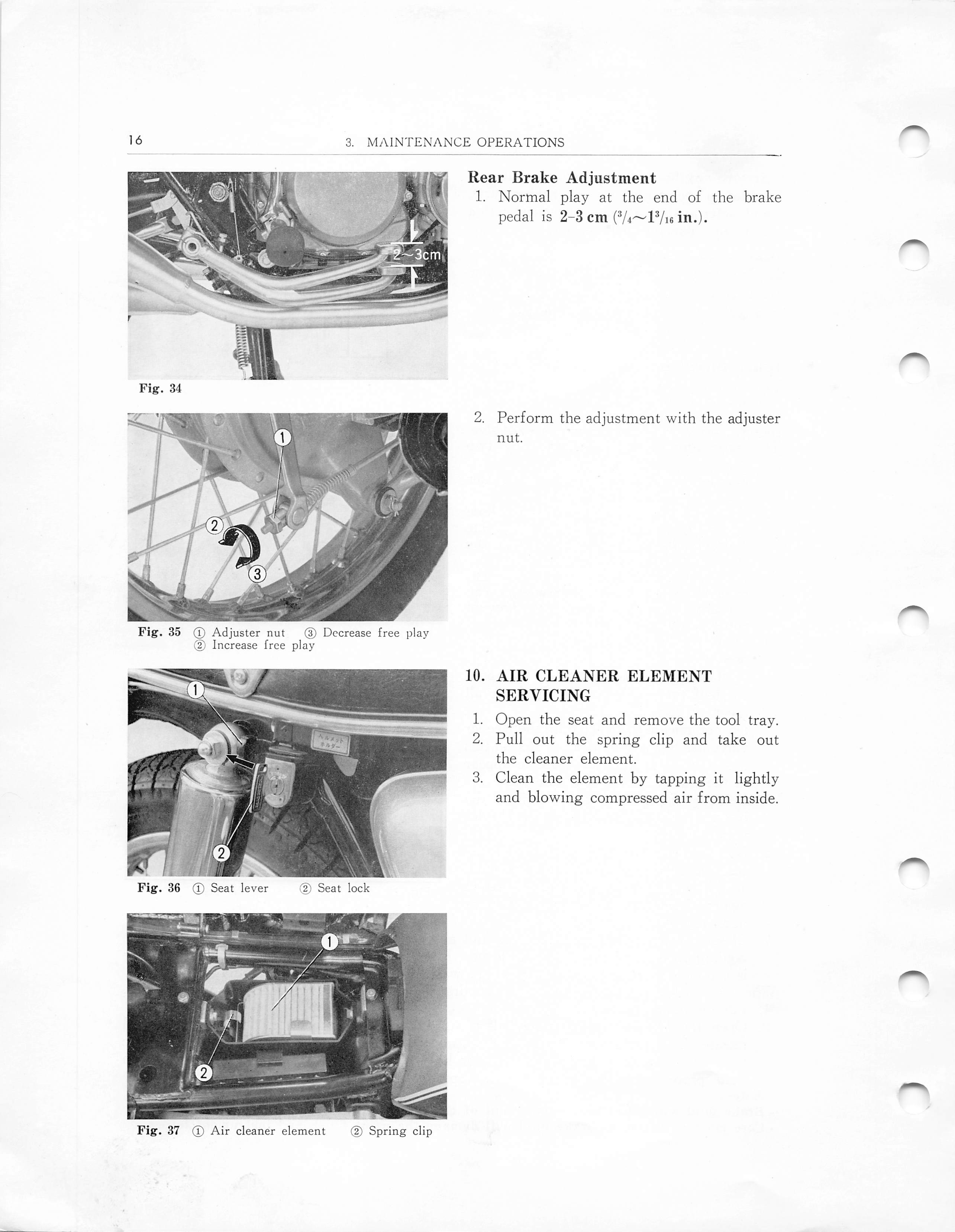

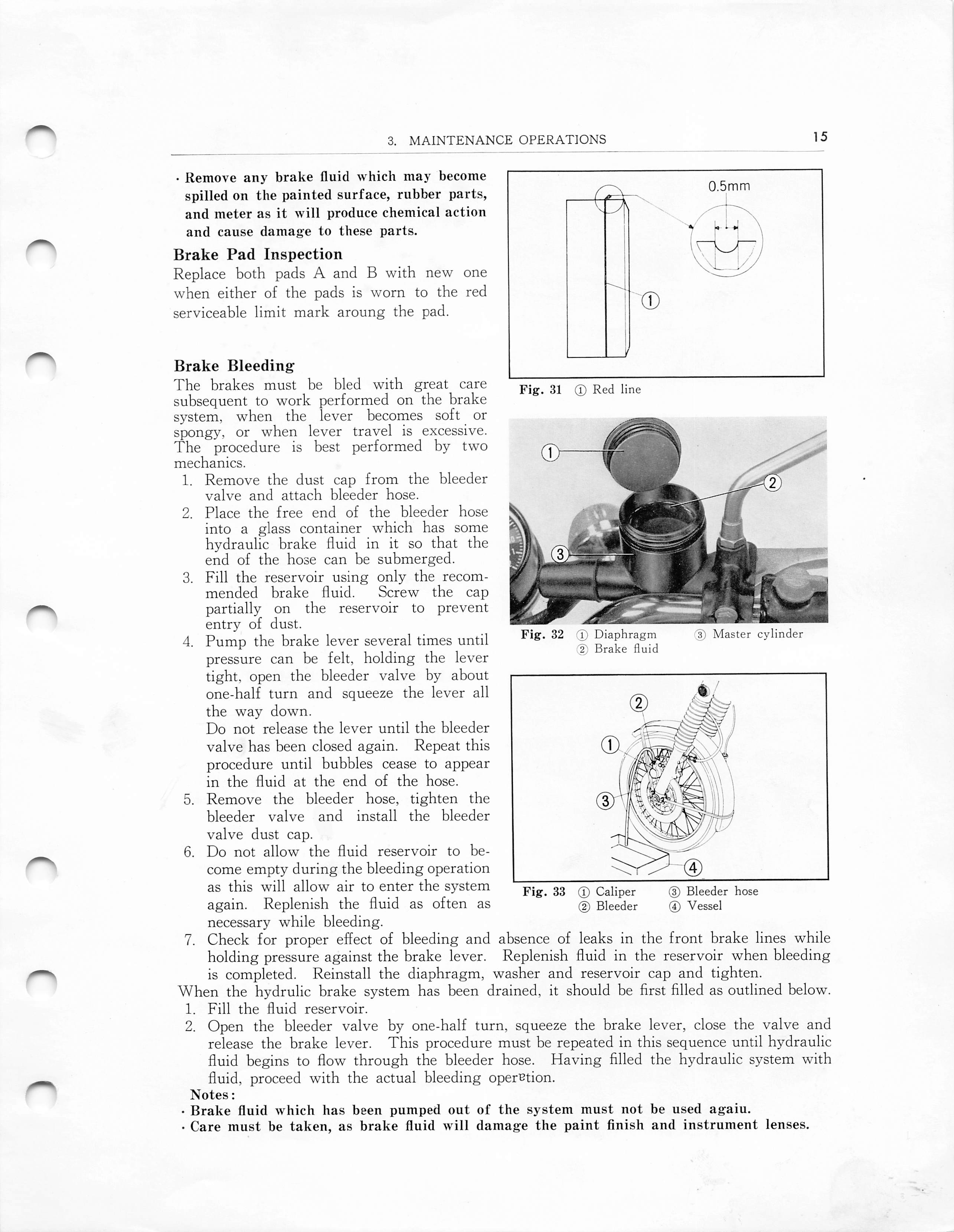

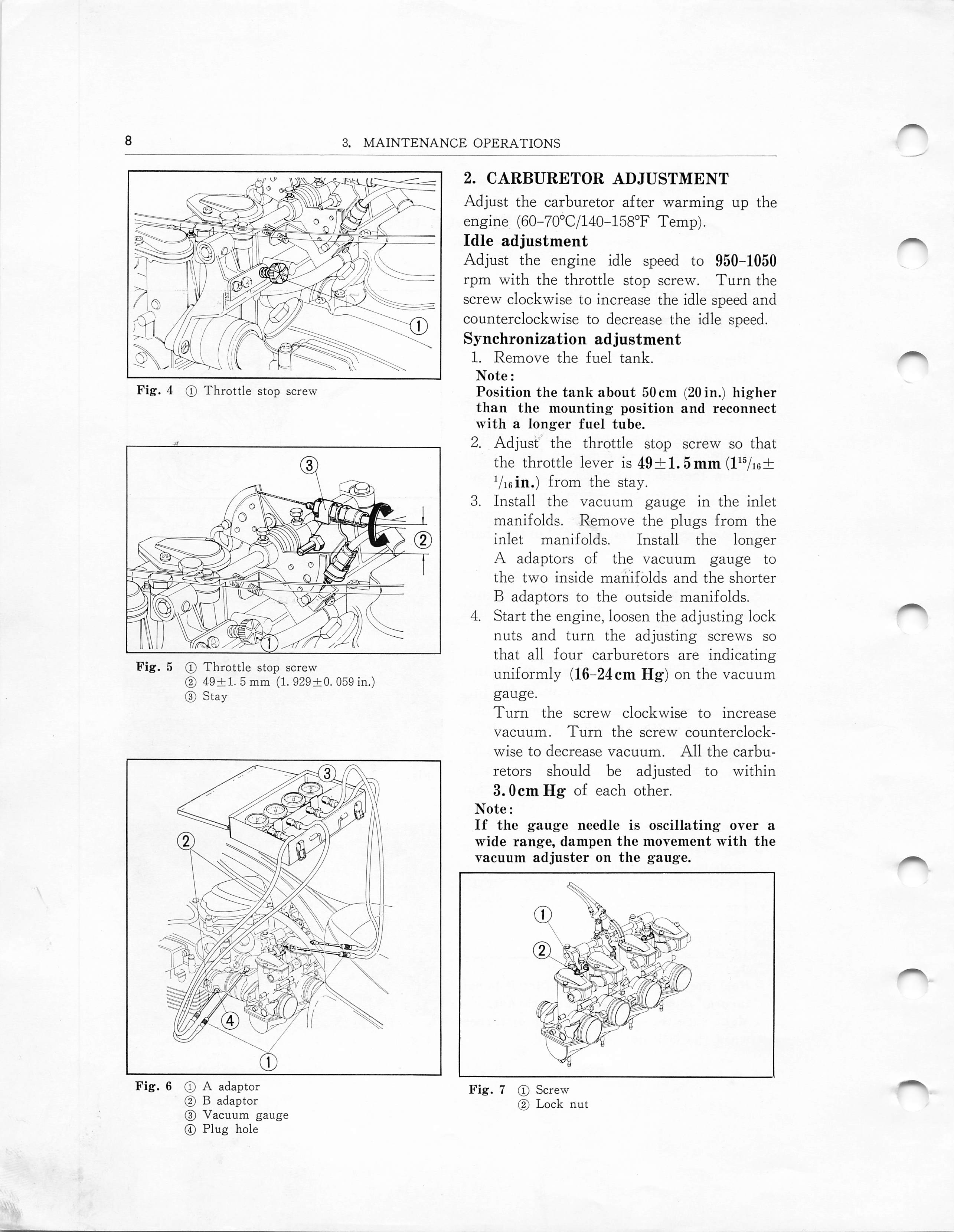

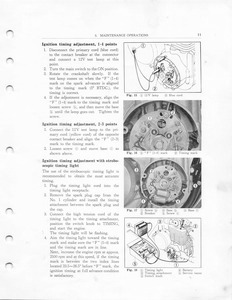

Maintenance Operations

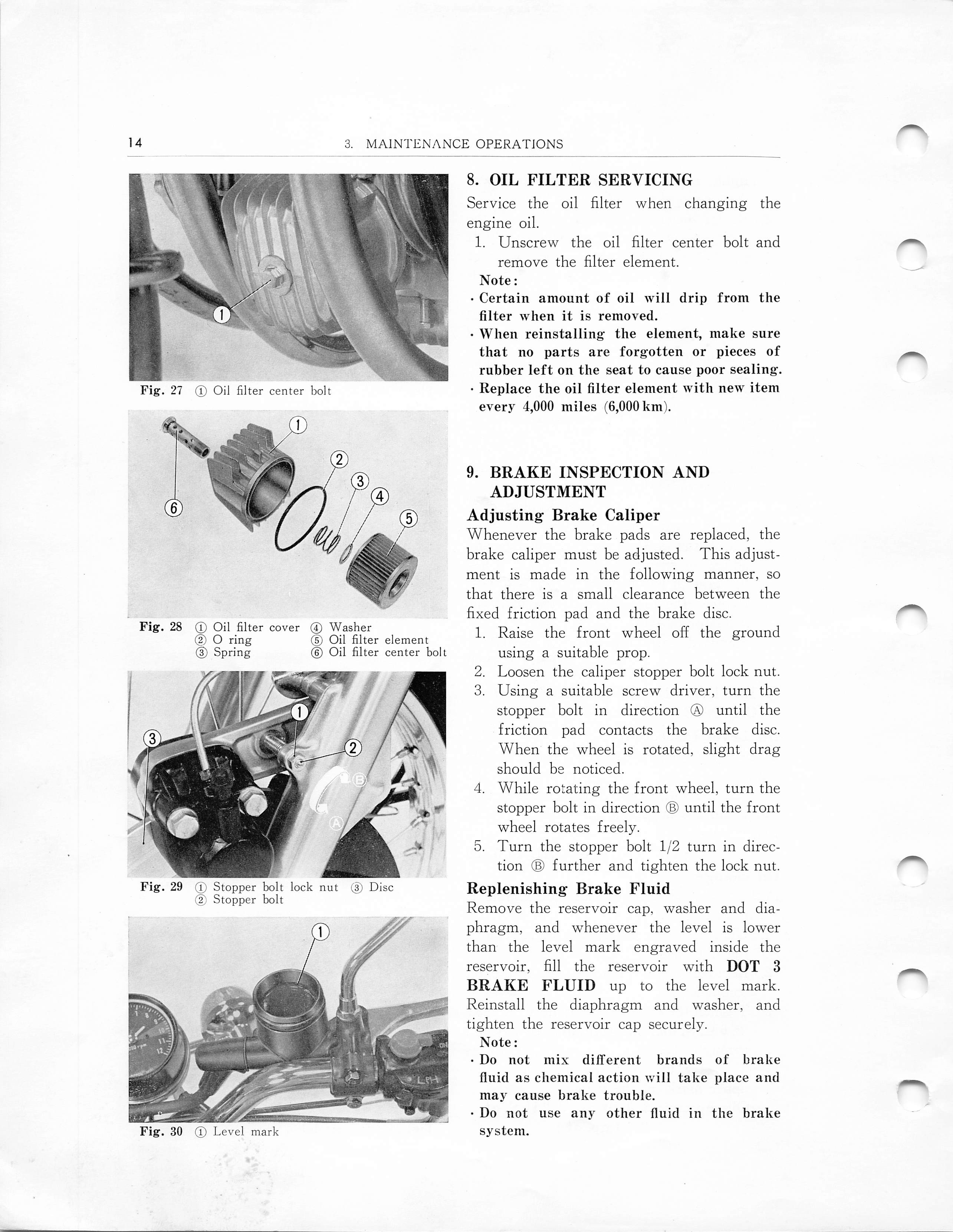

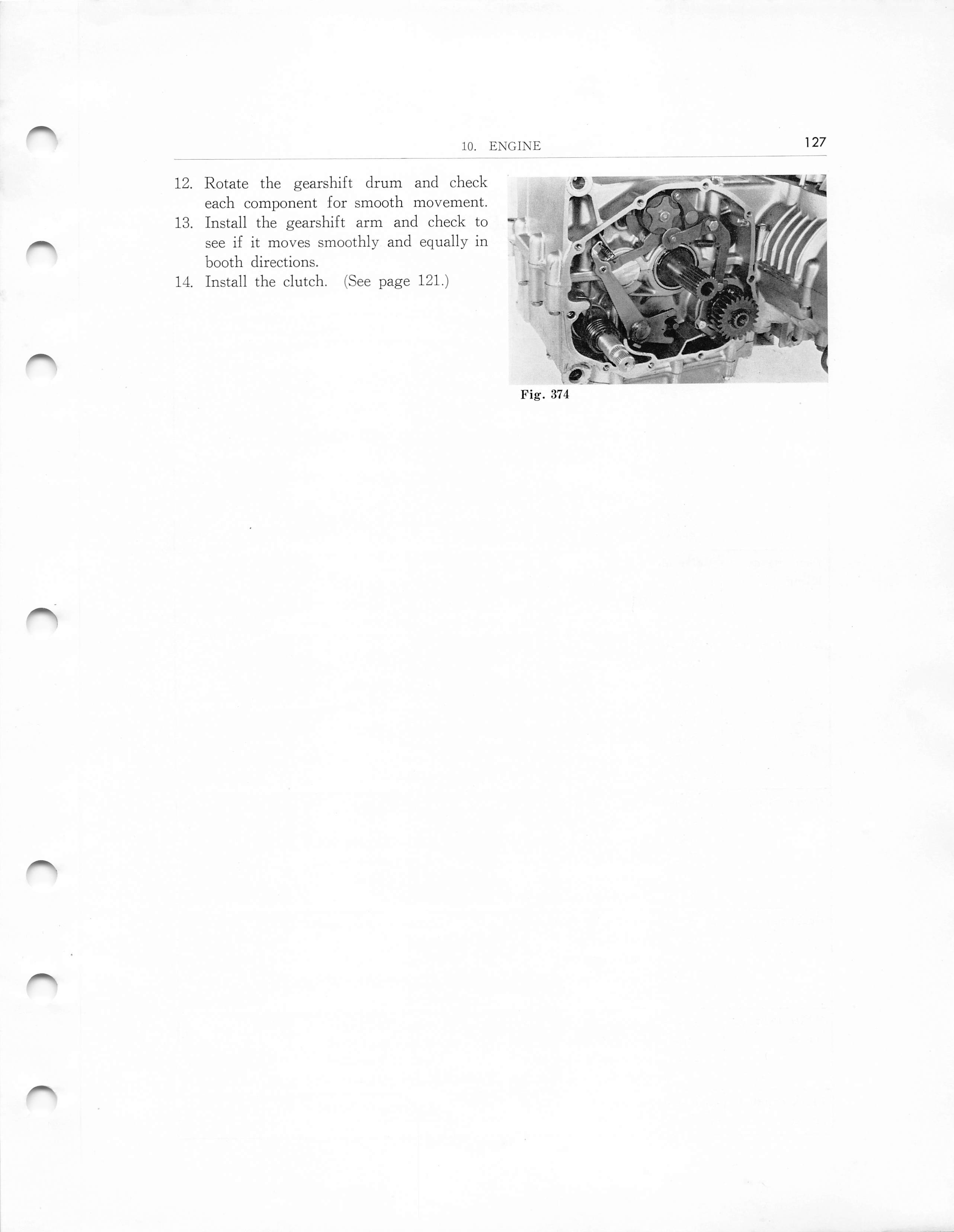

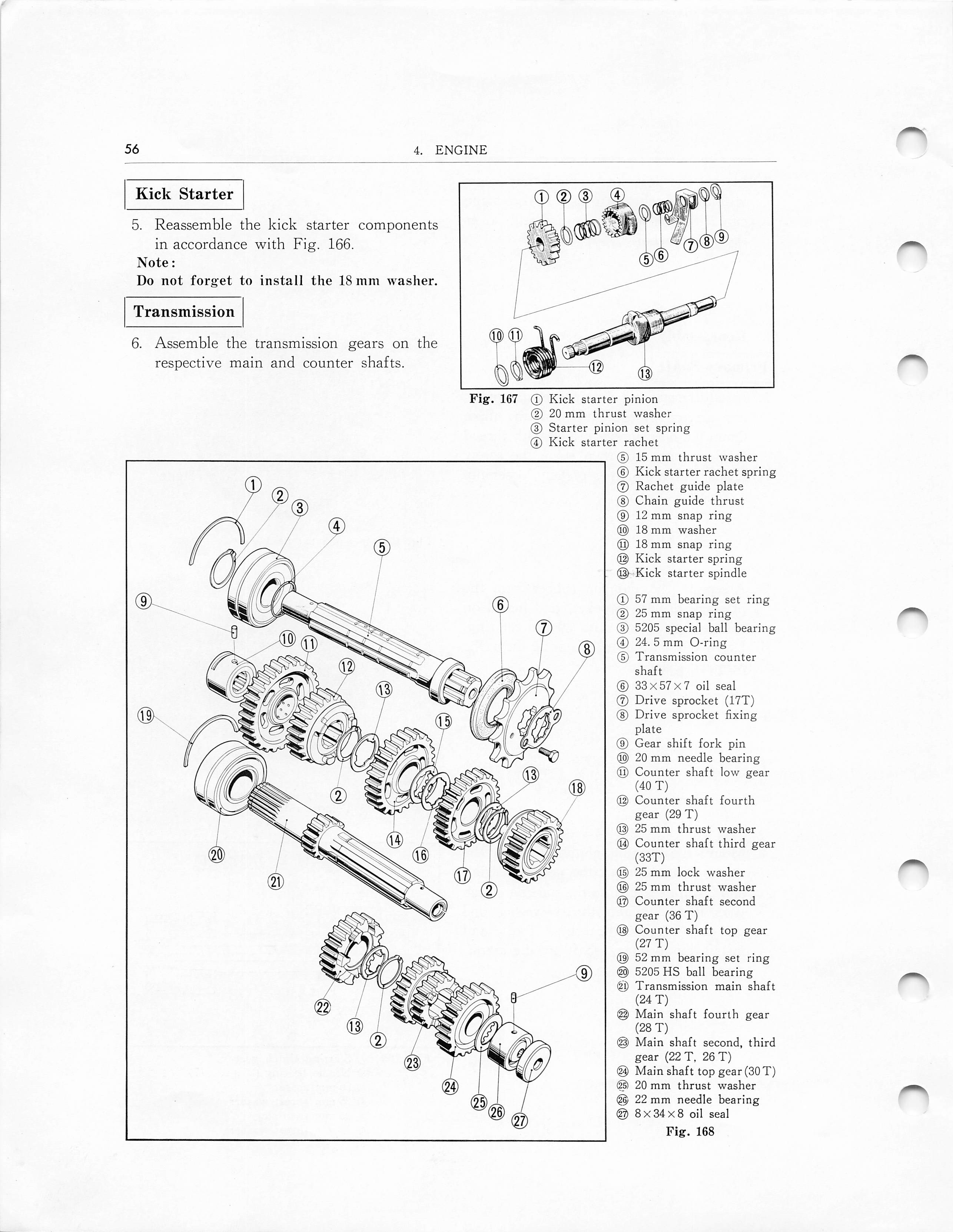

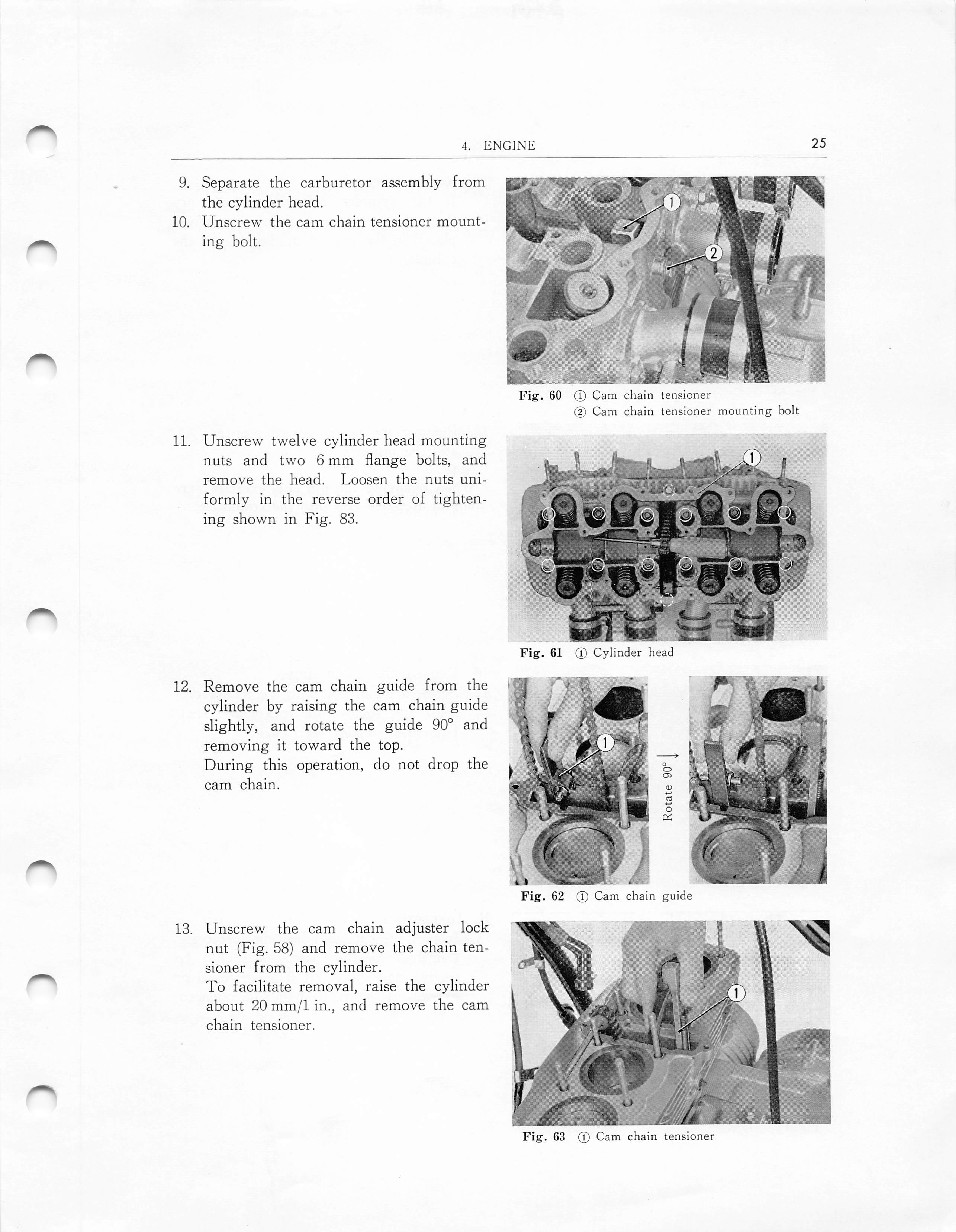

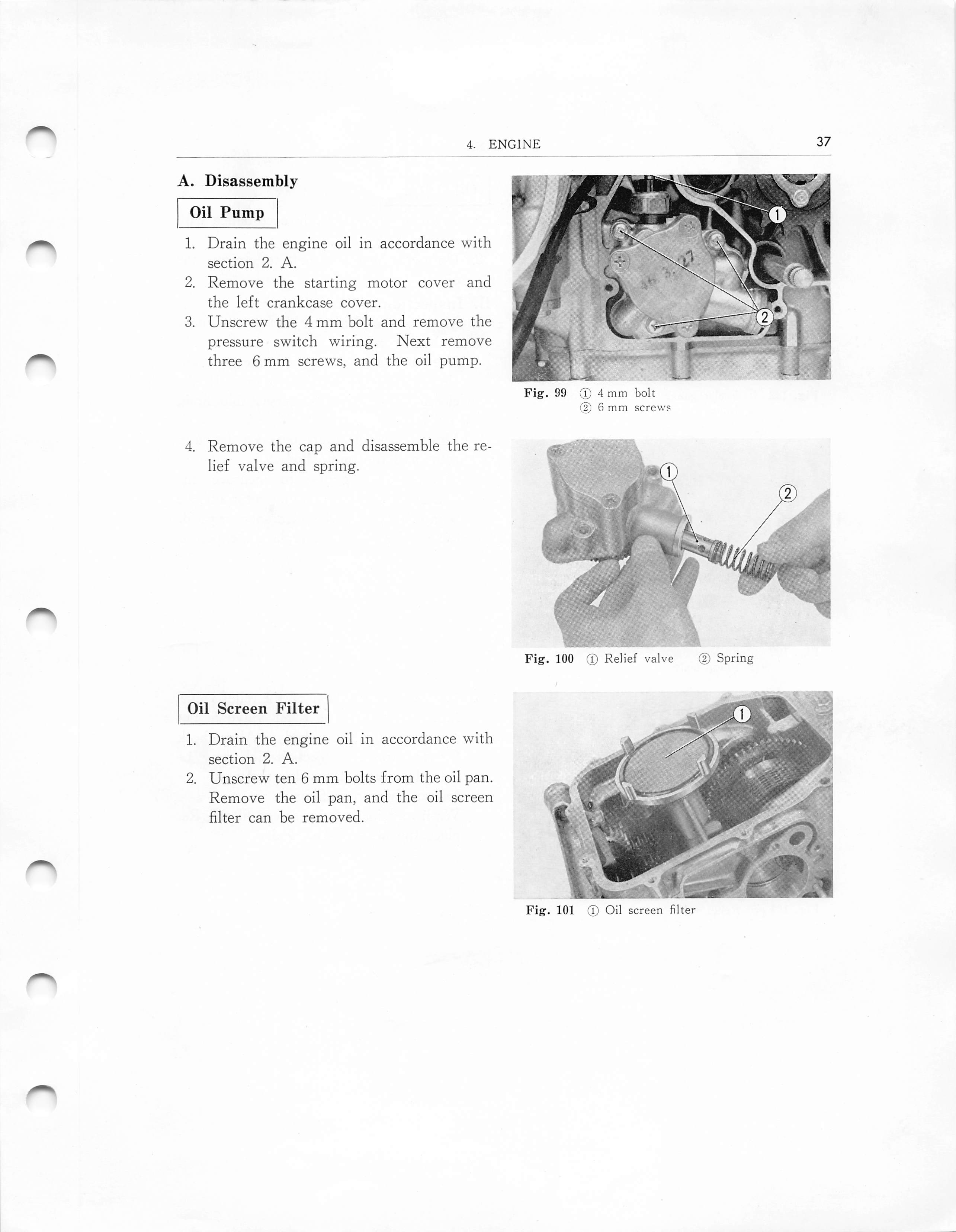

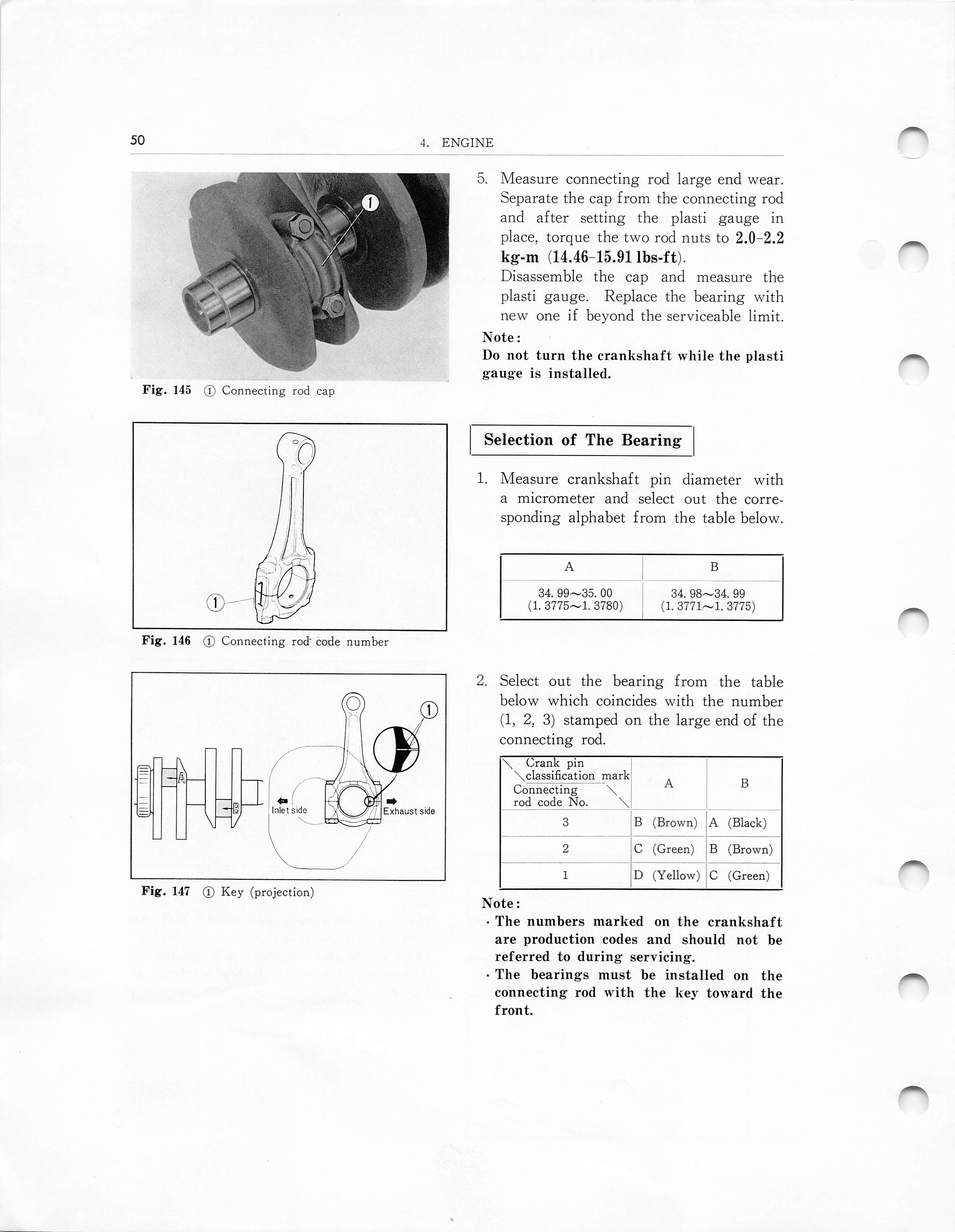

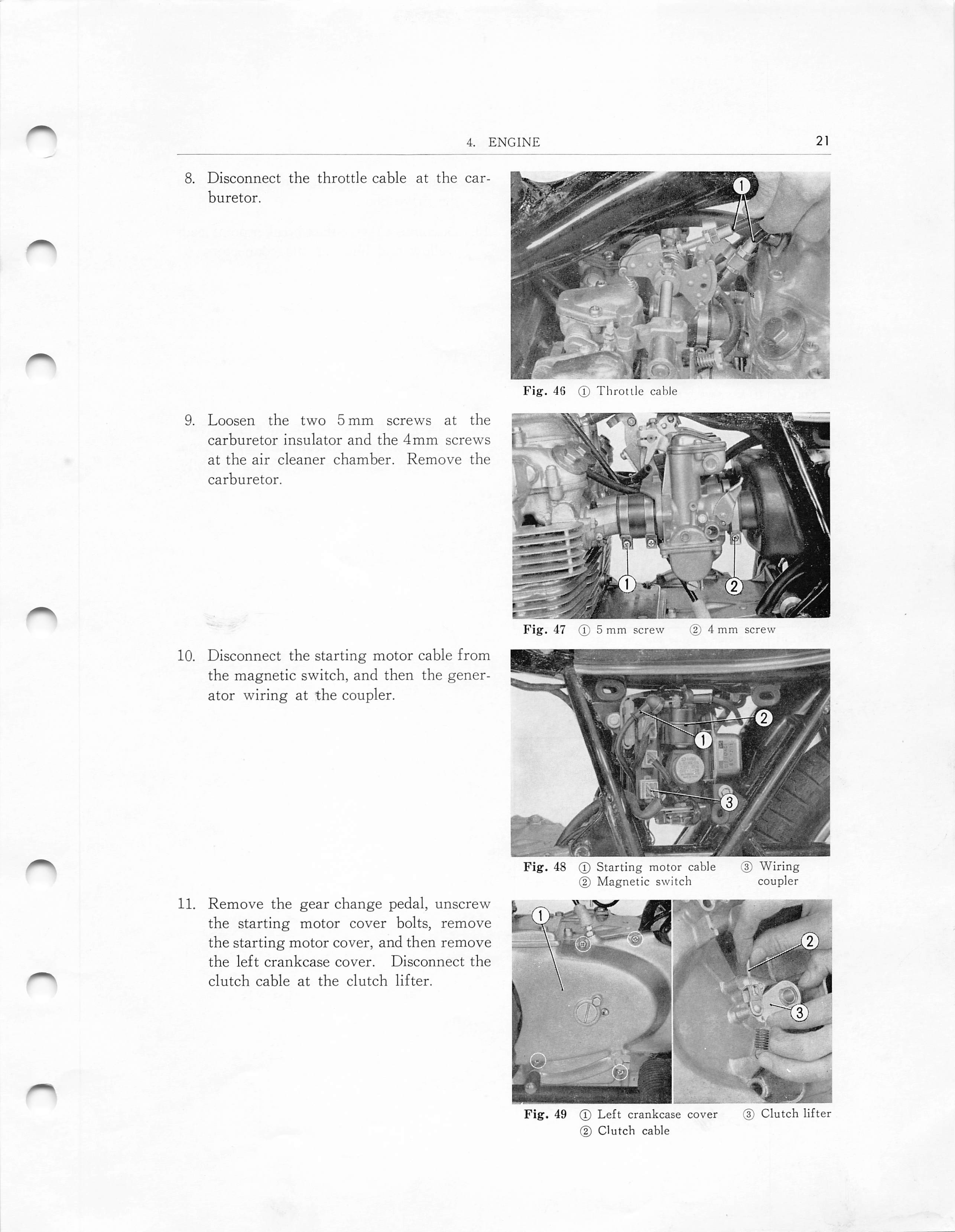

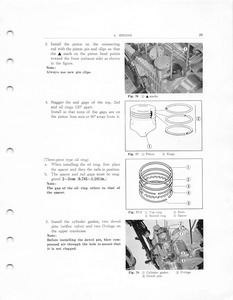

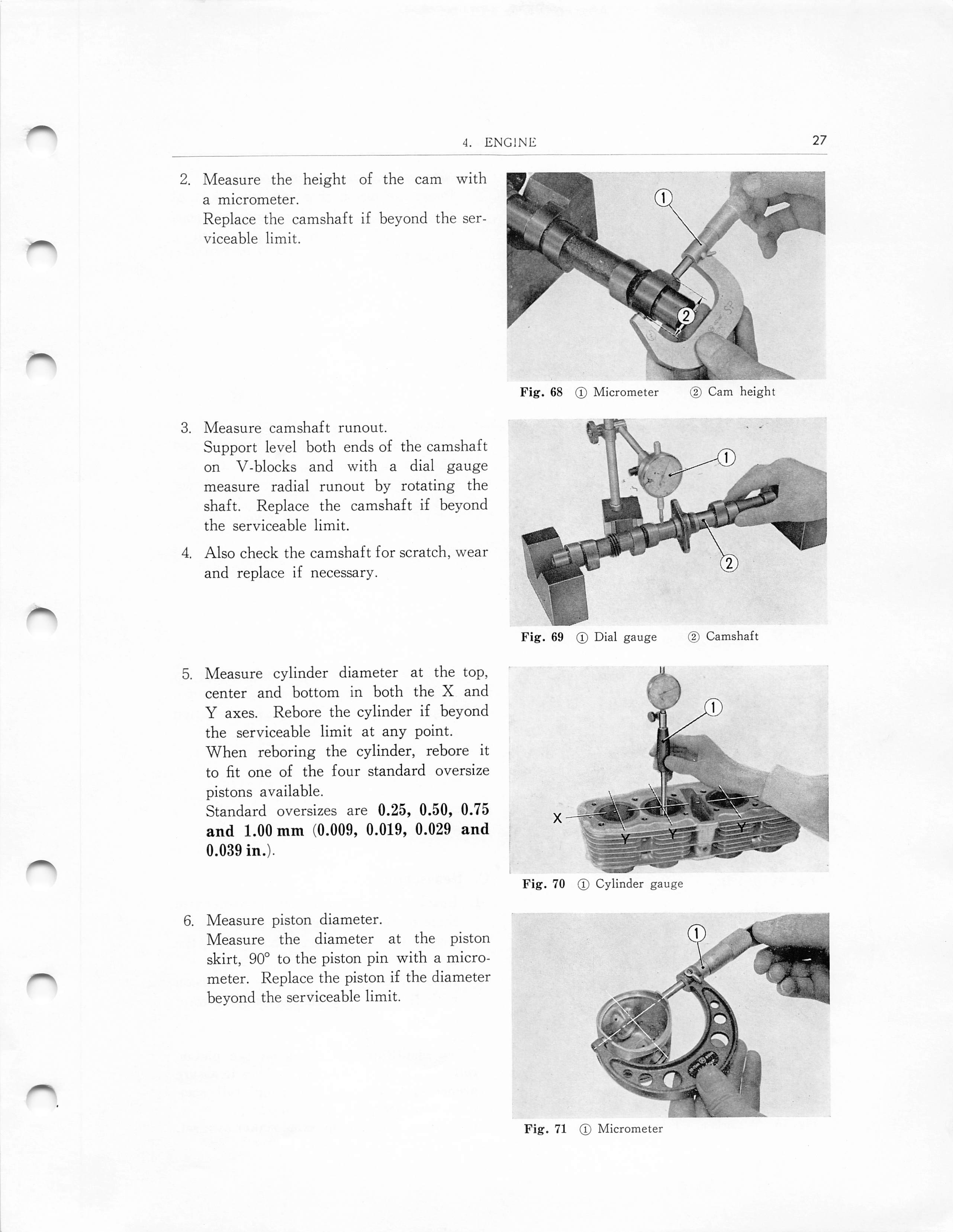

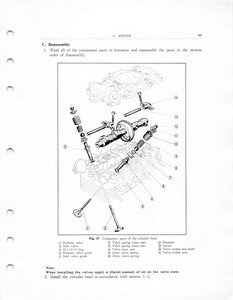

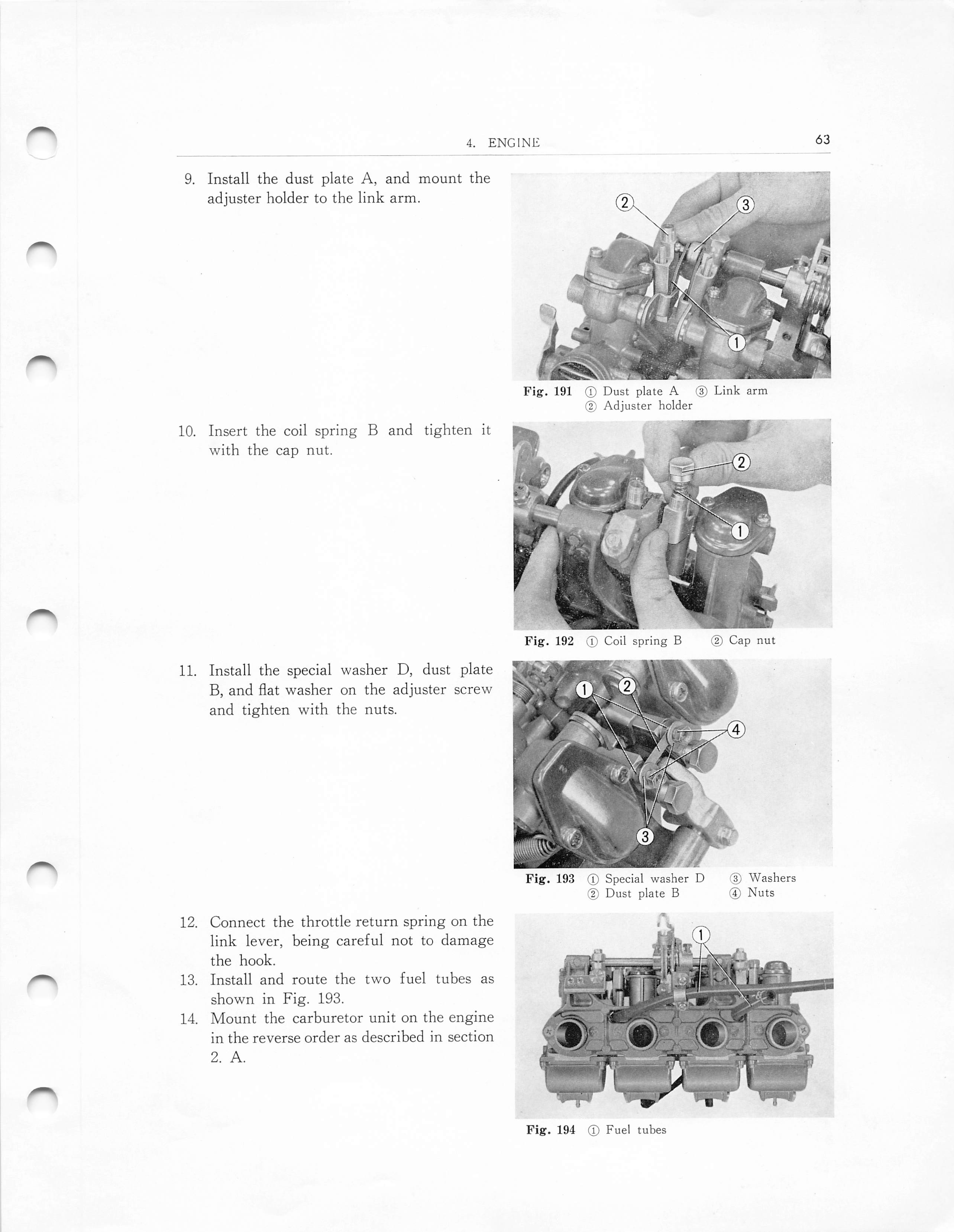

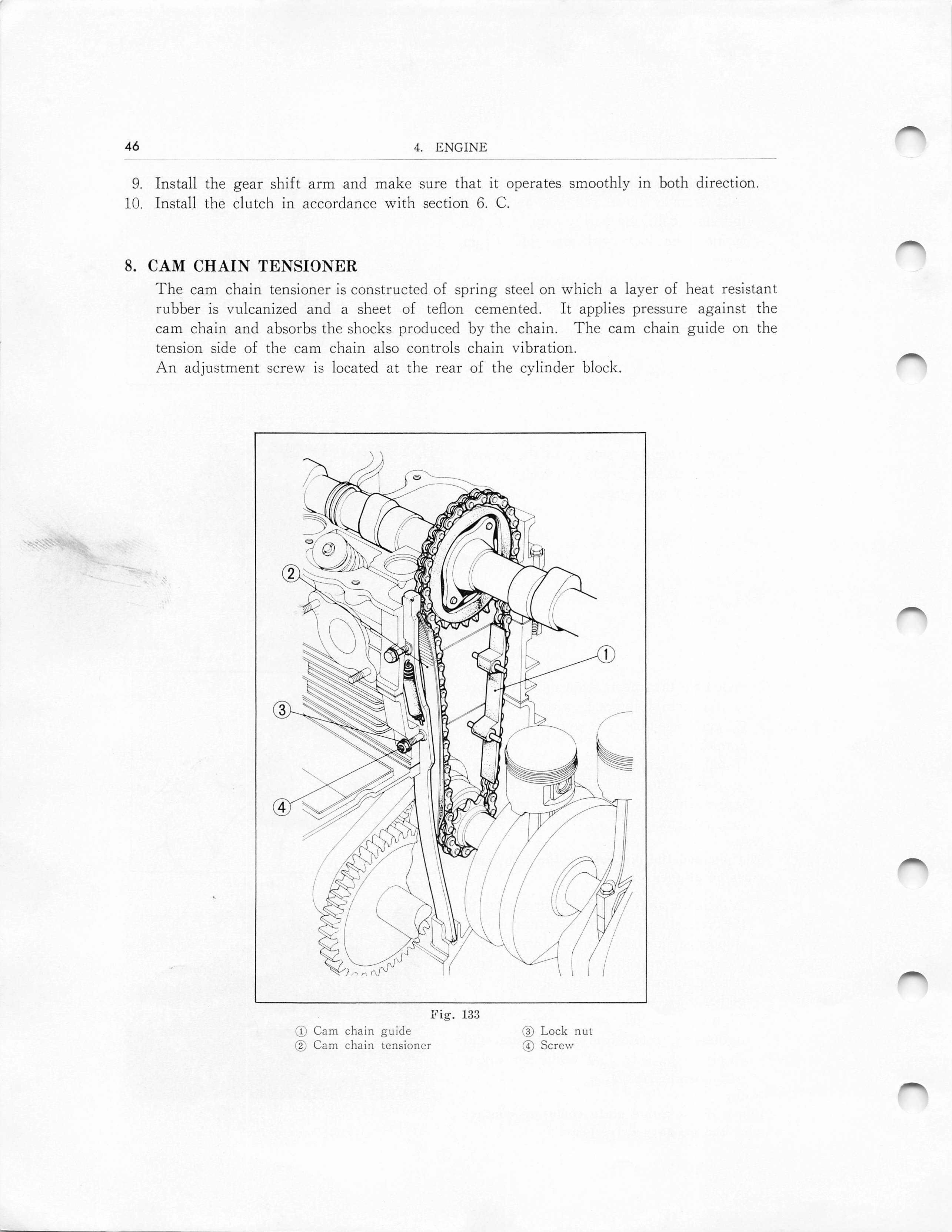

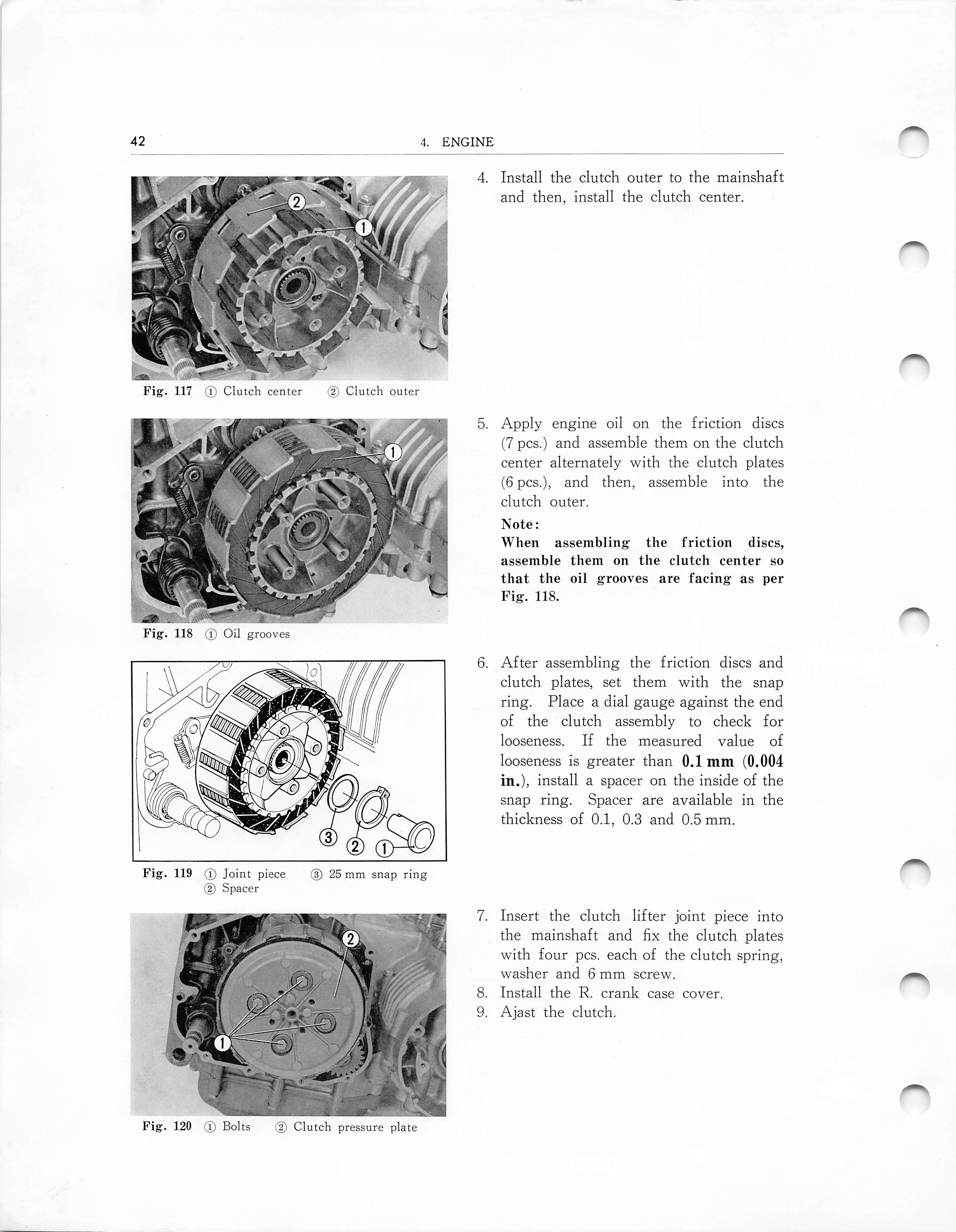

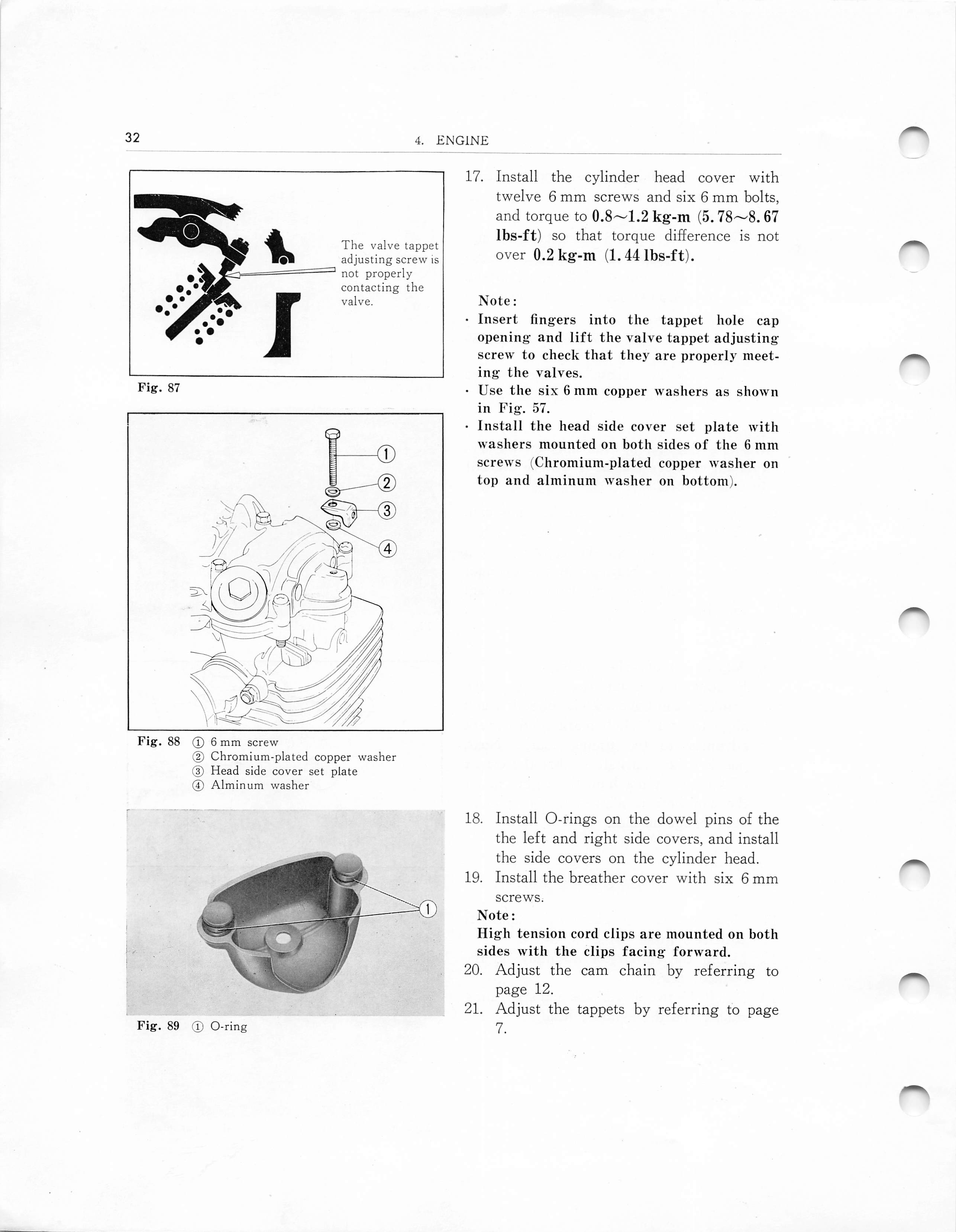

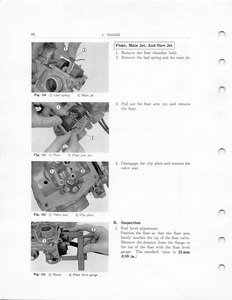

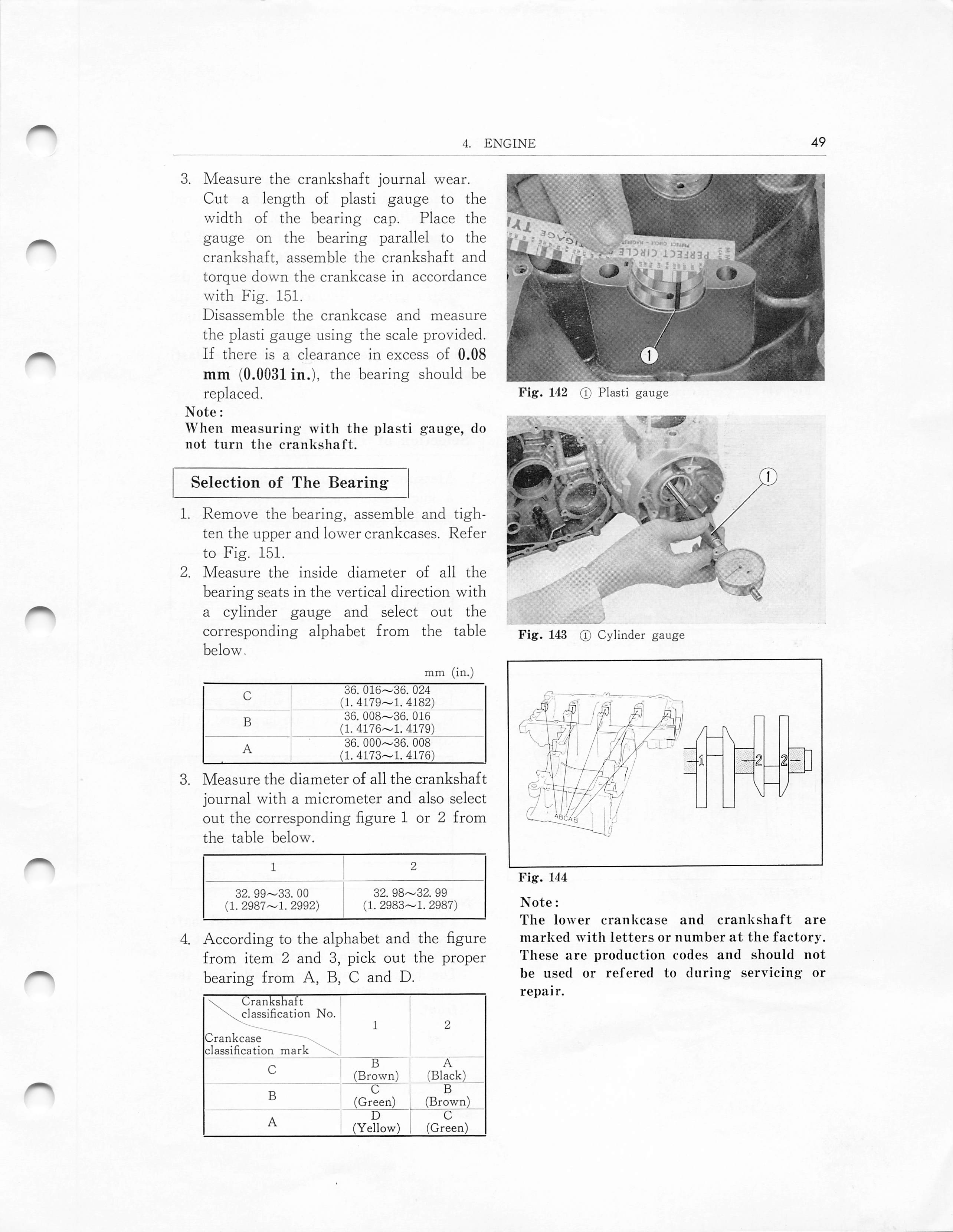

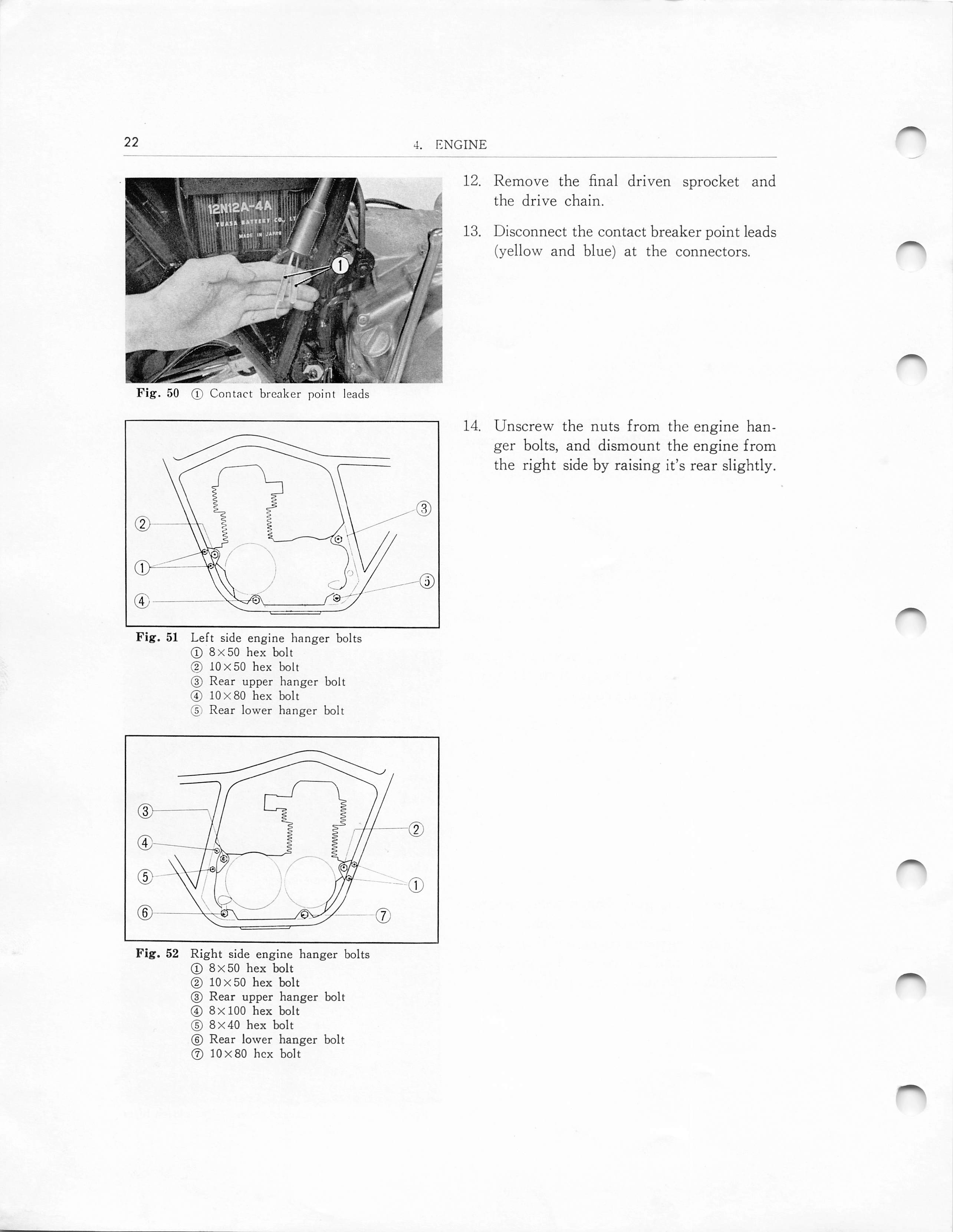

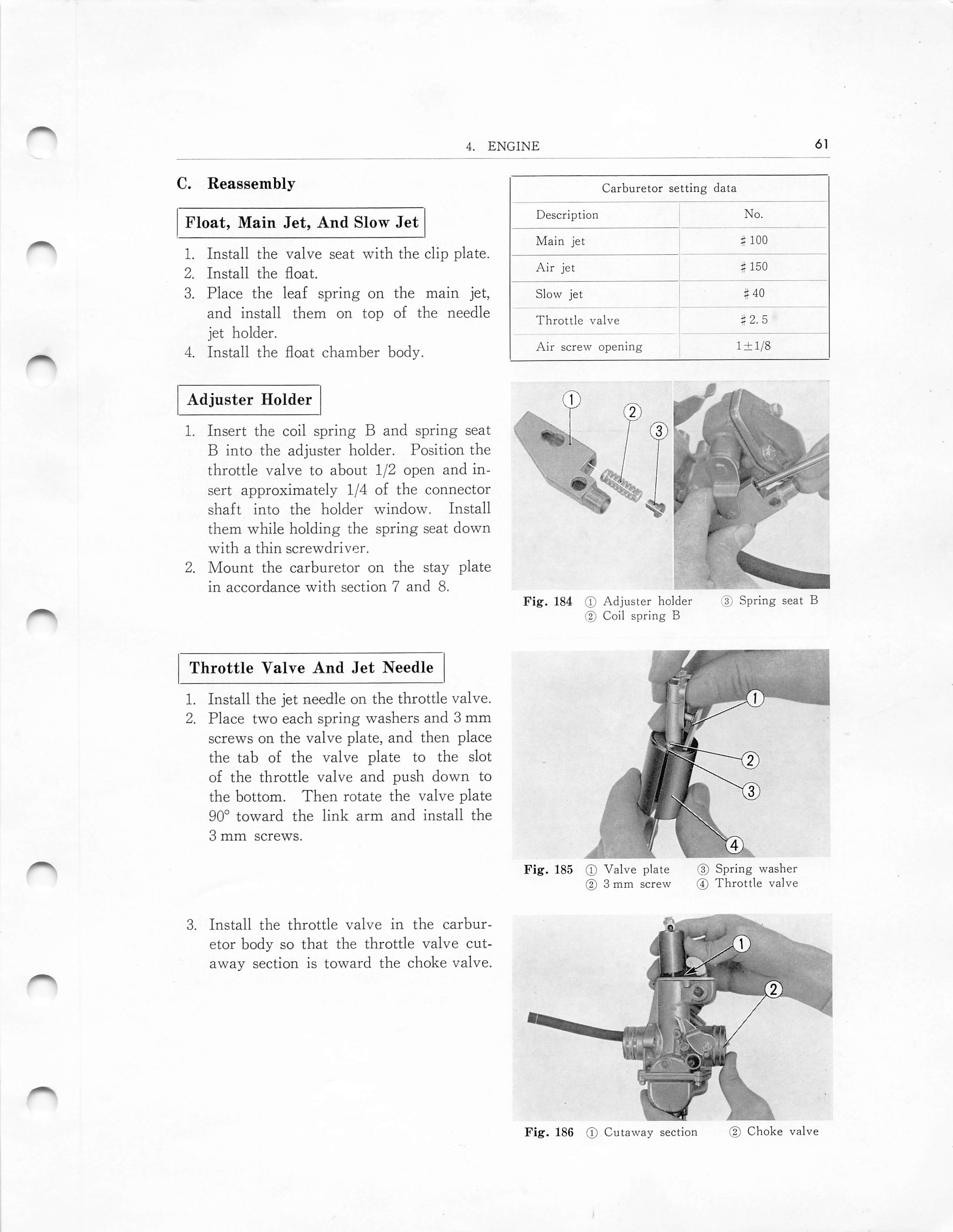

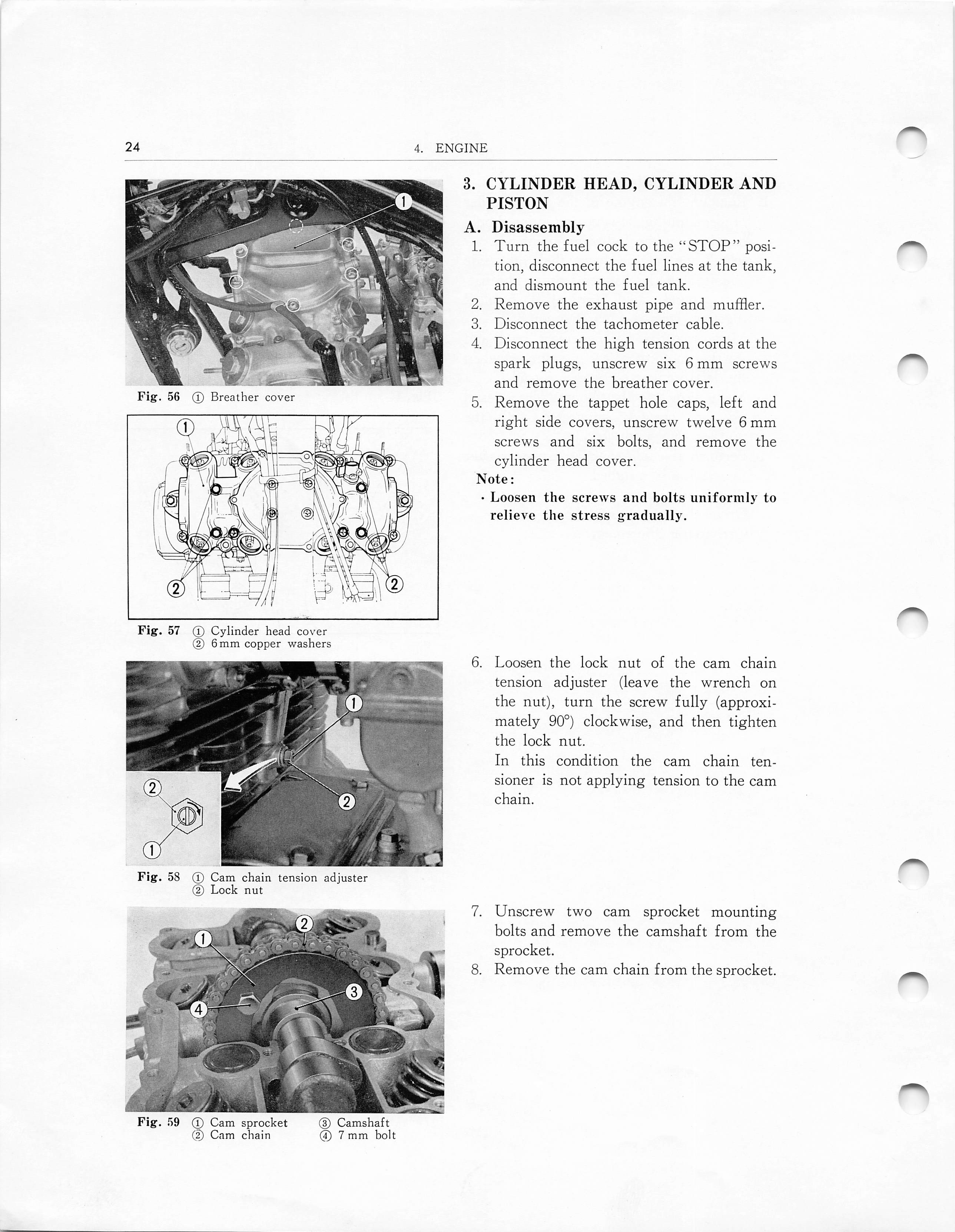

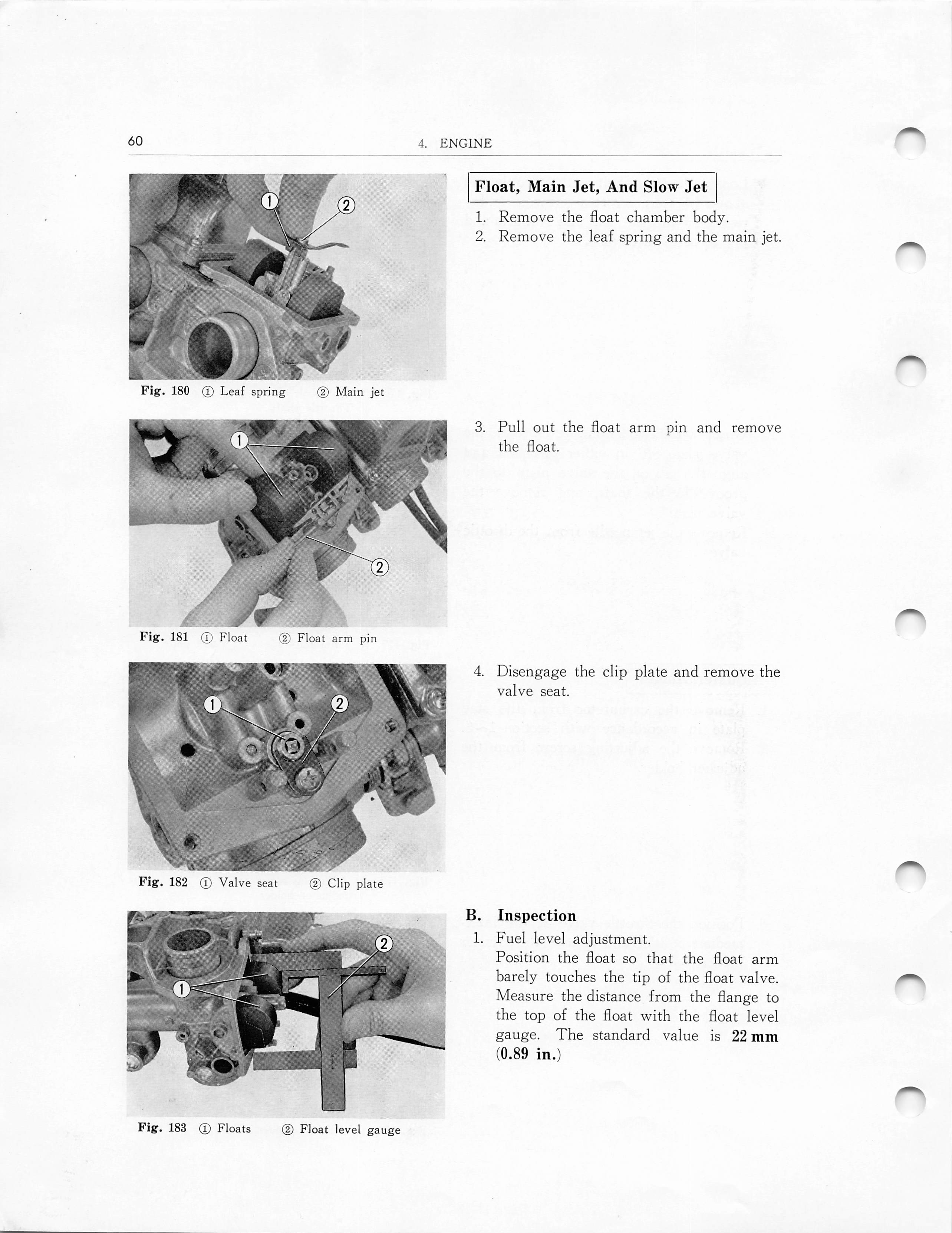

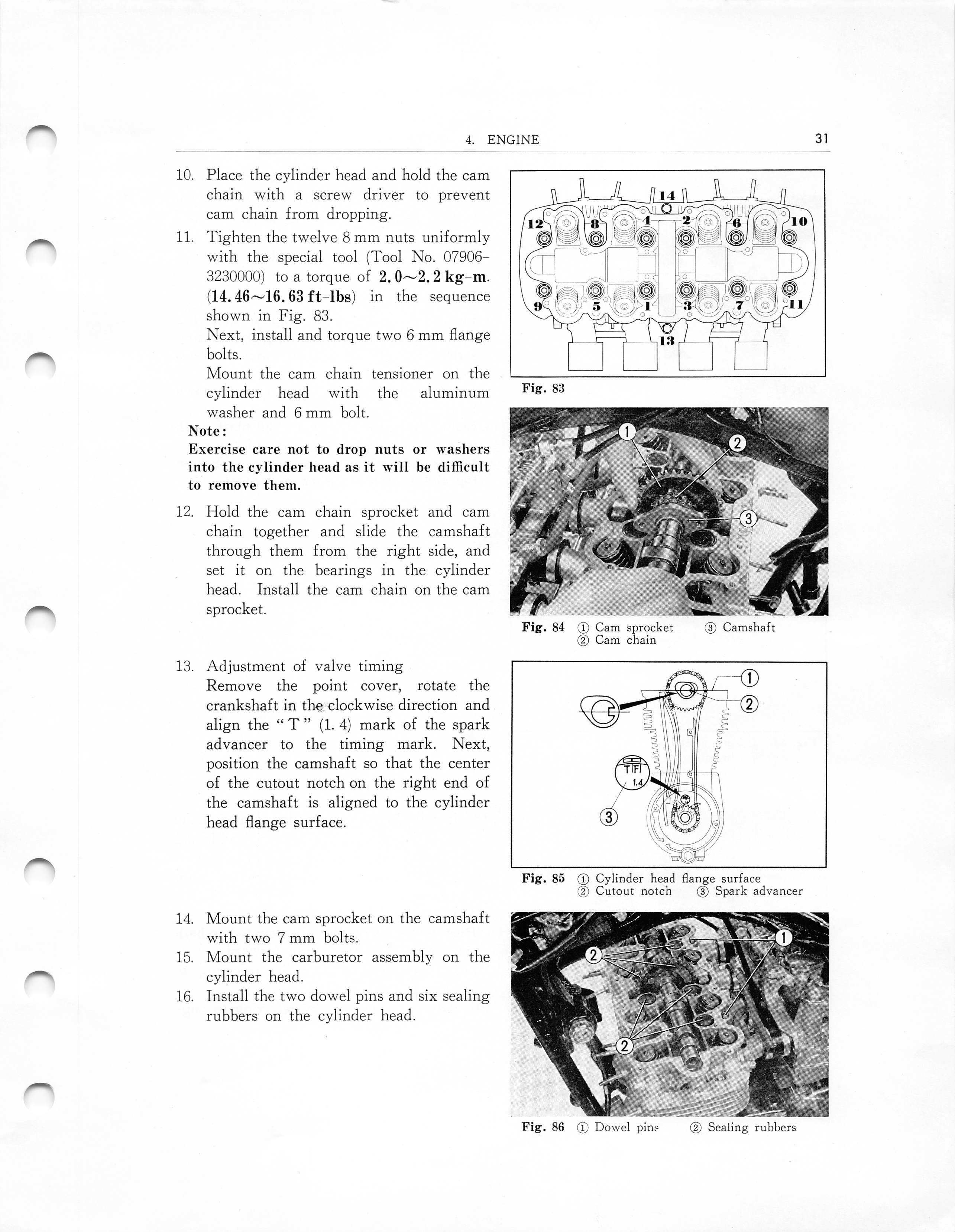

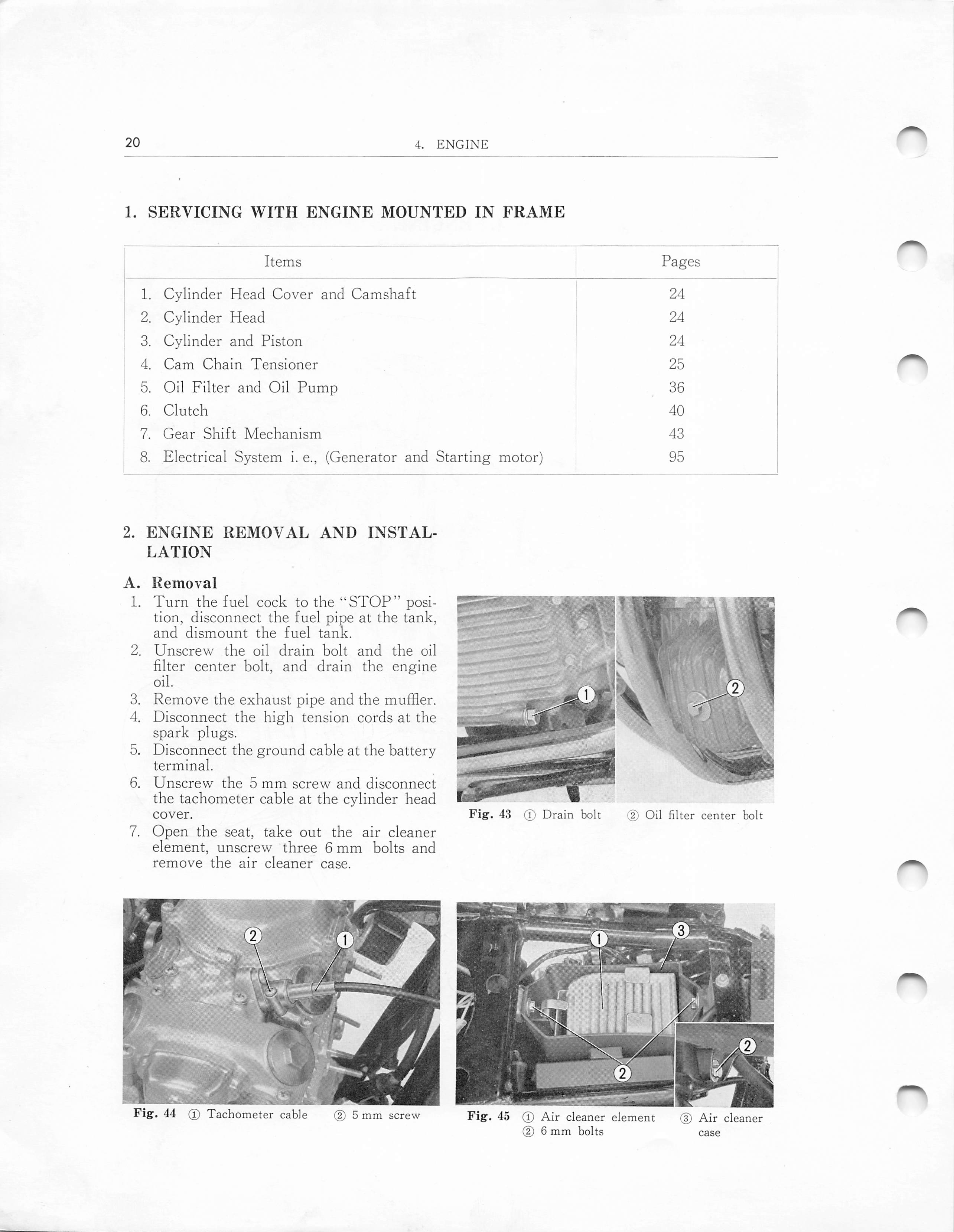

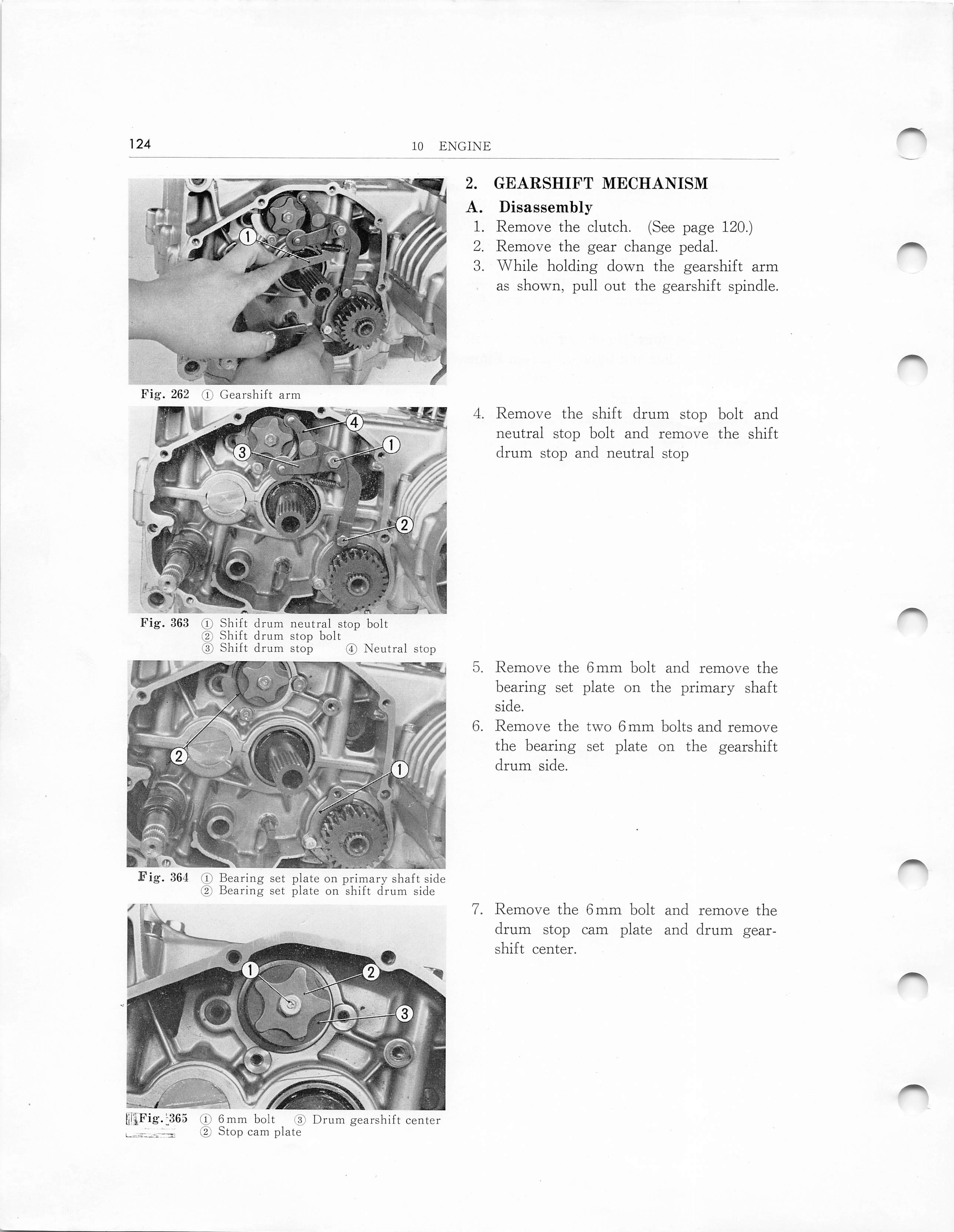

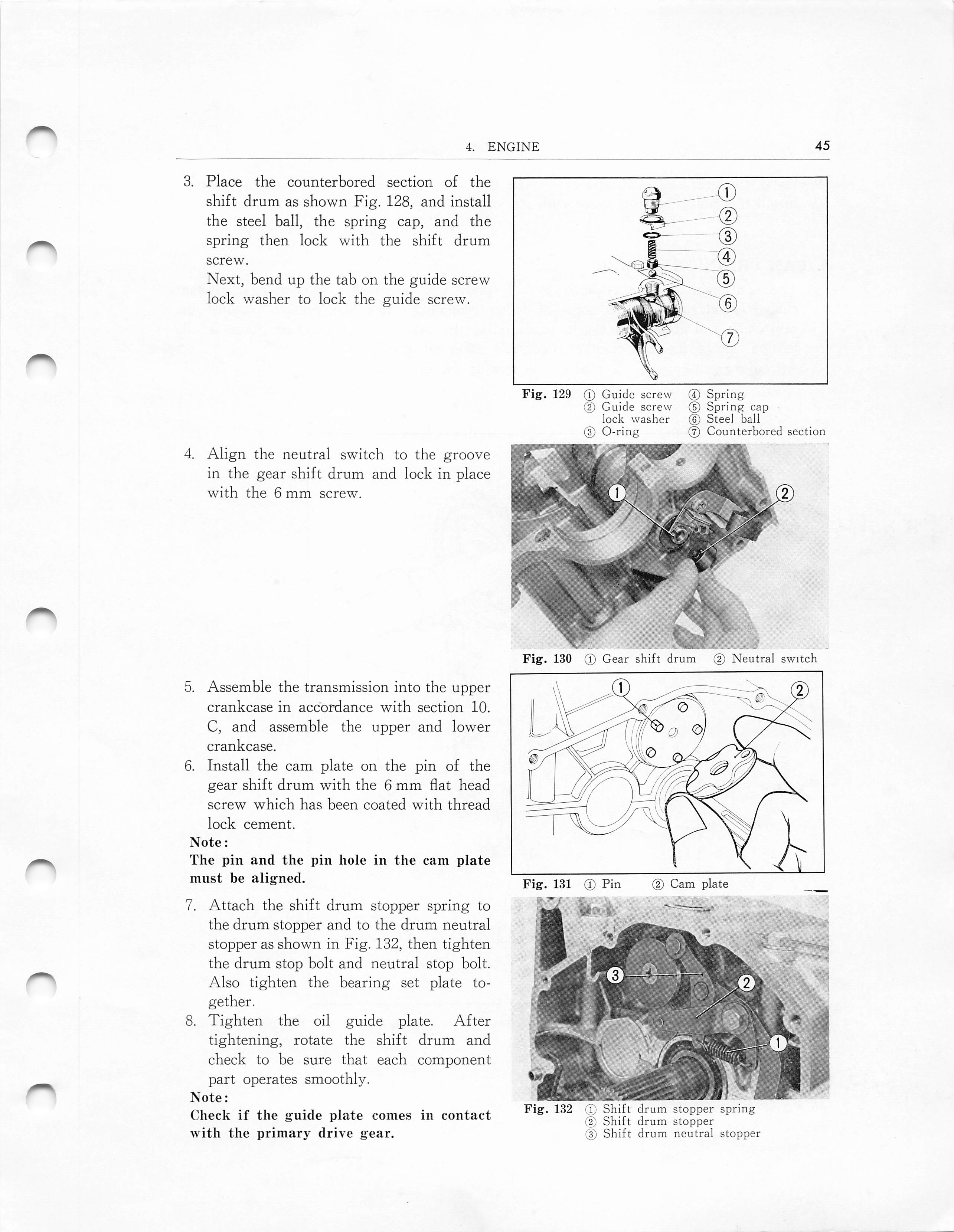

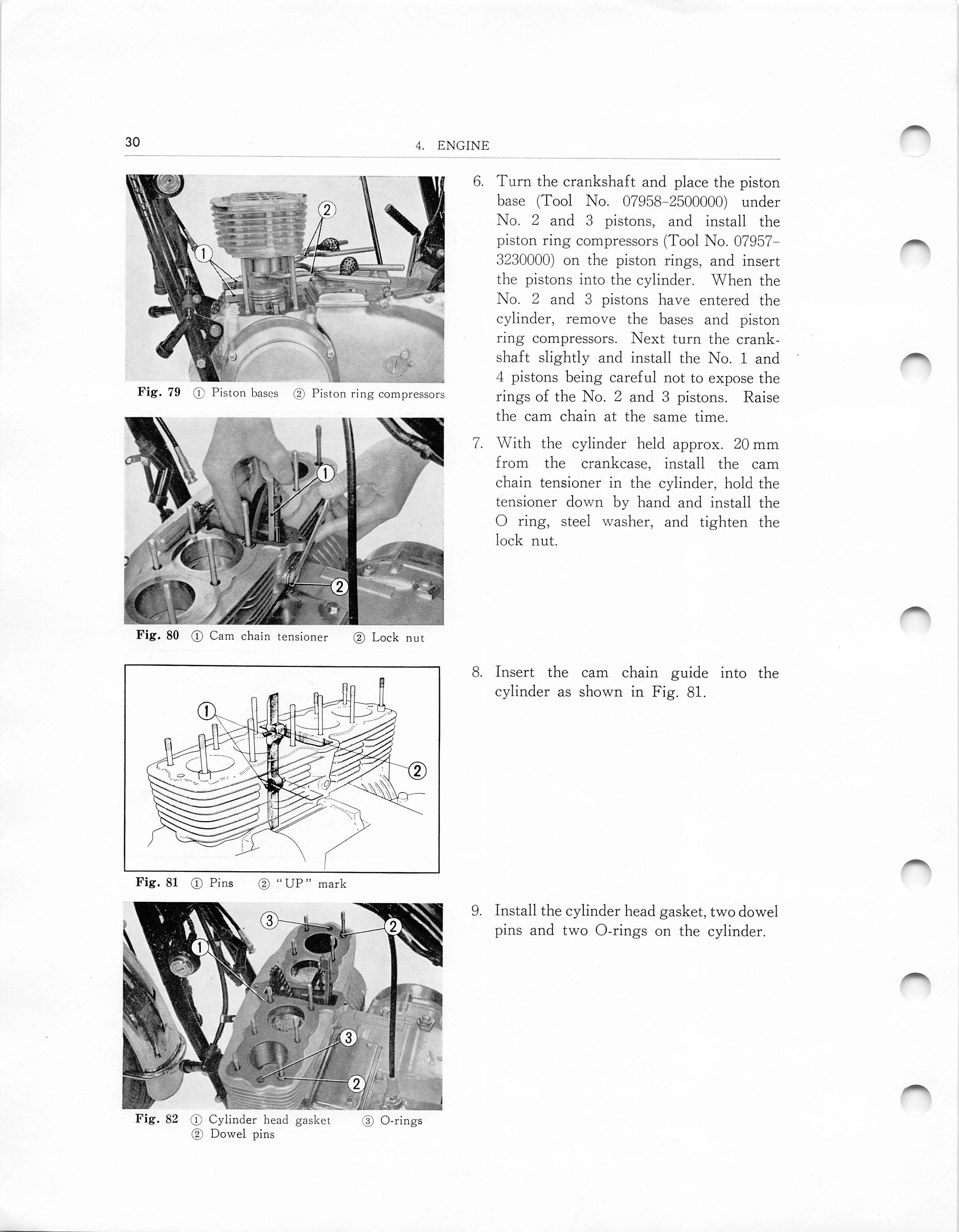

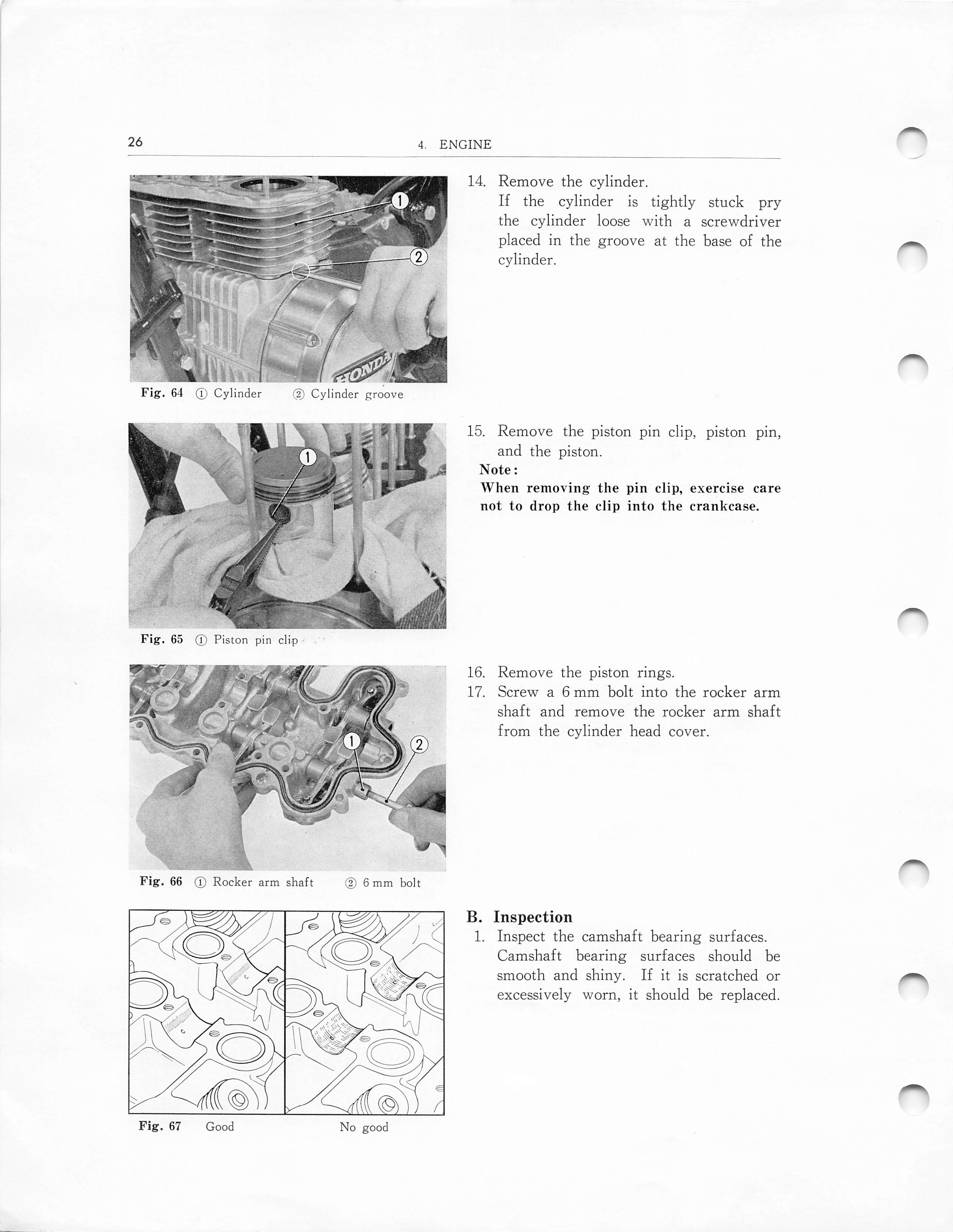

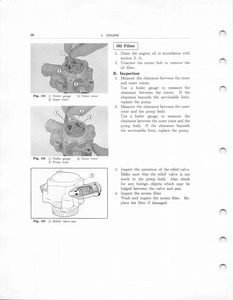

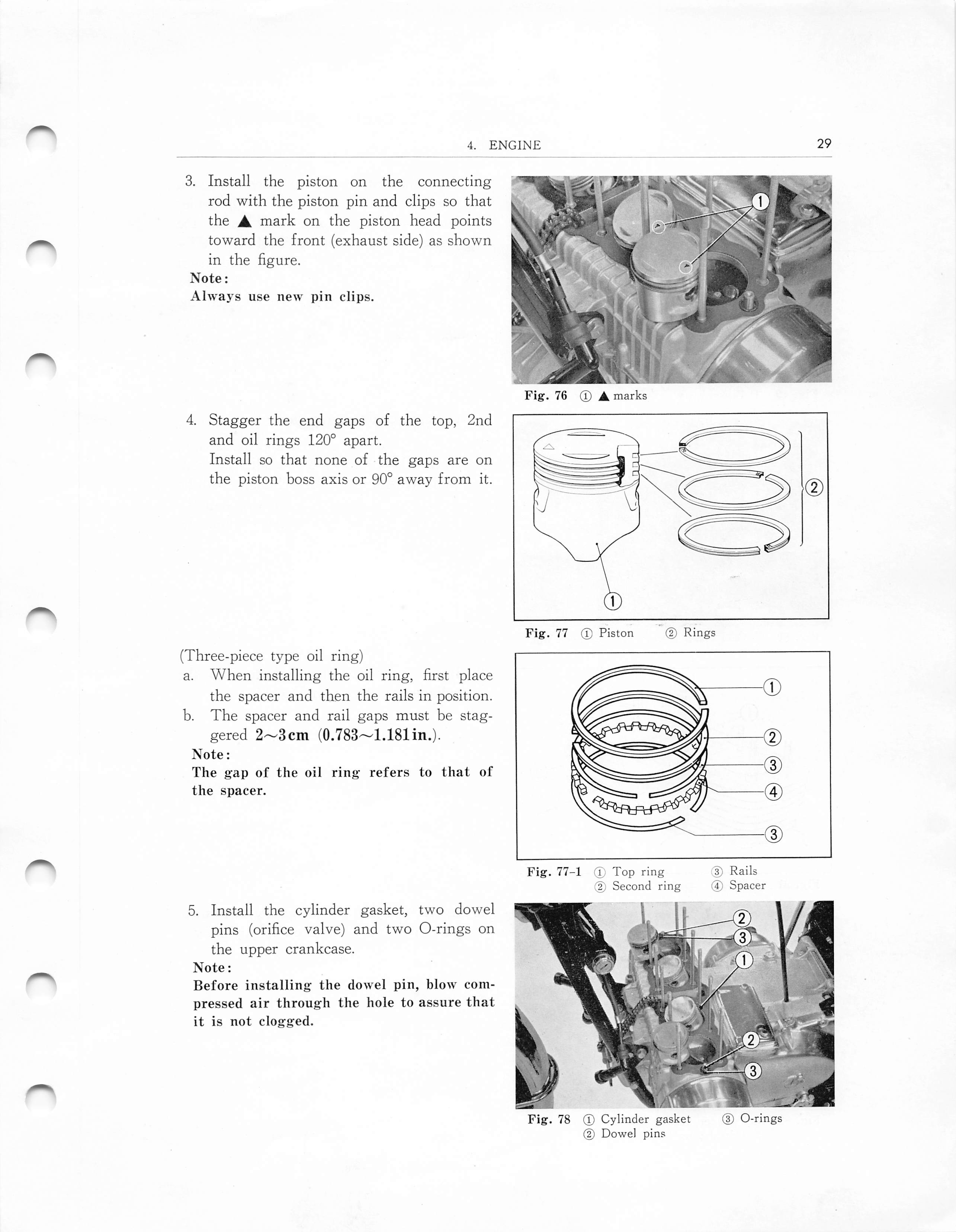

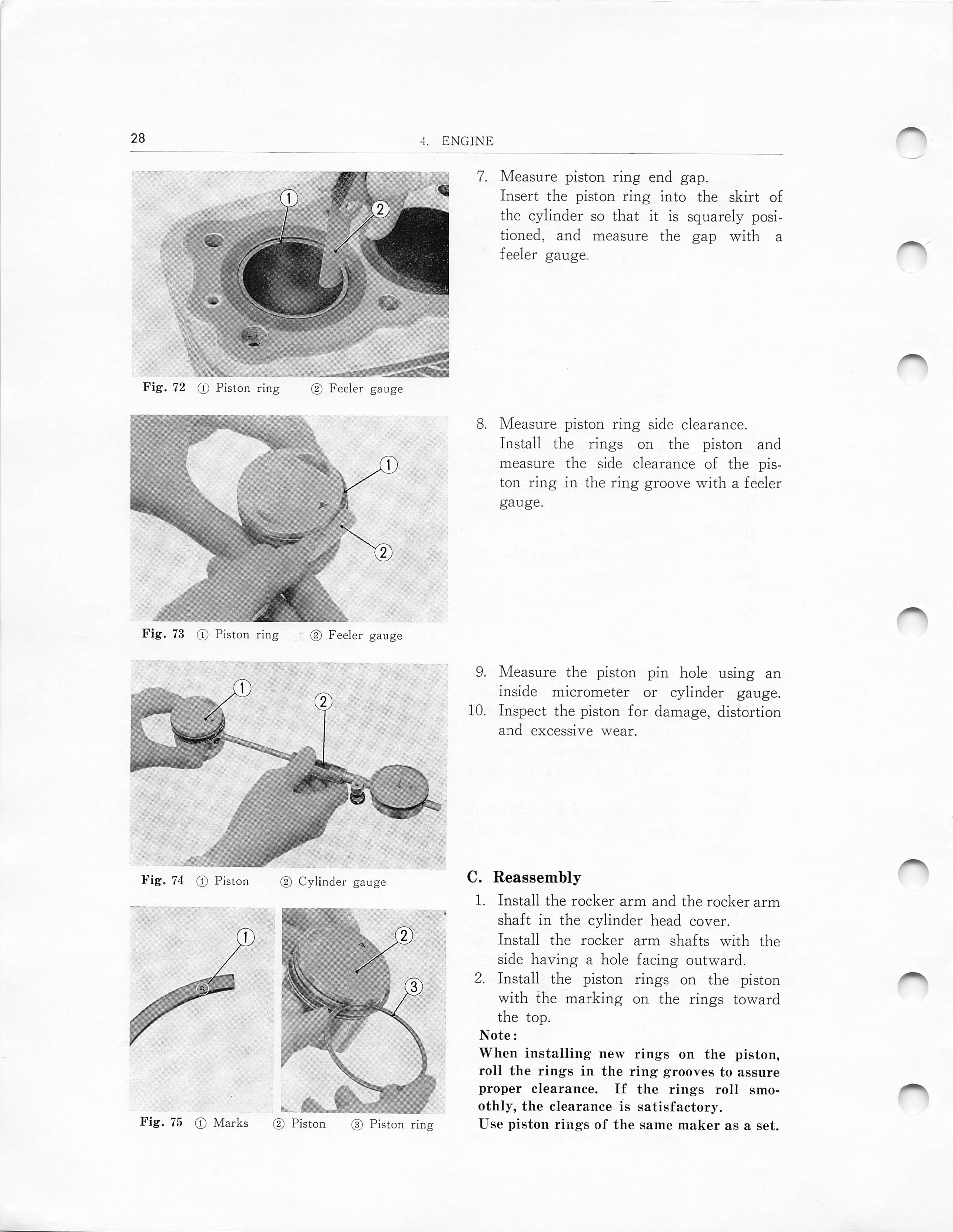

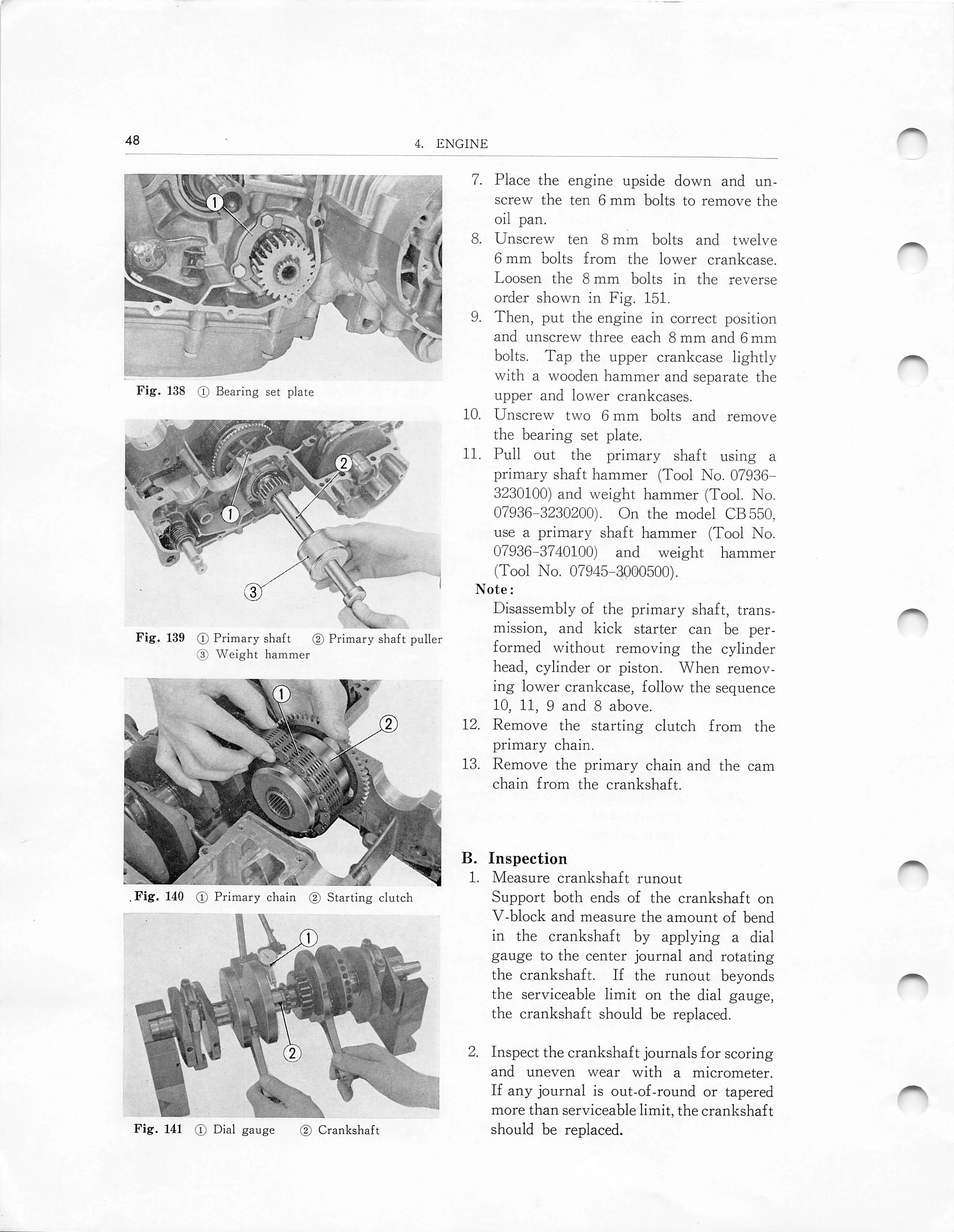

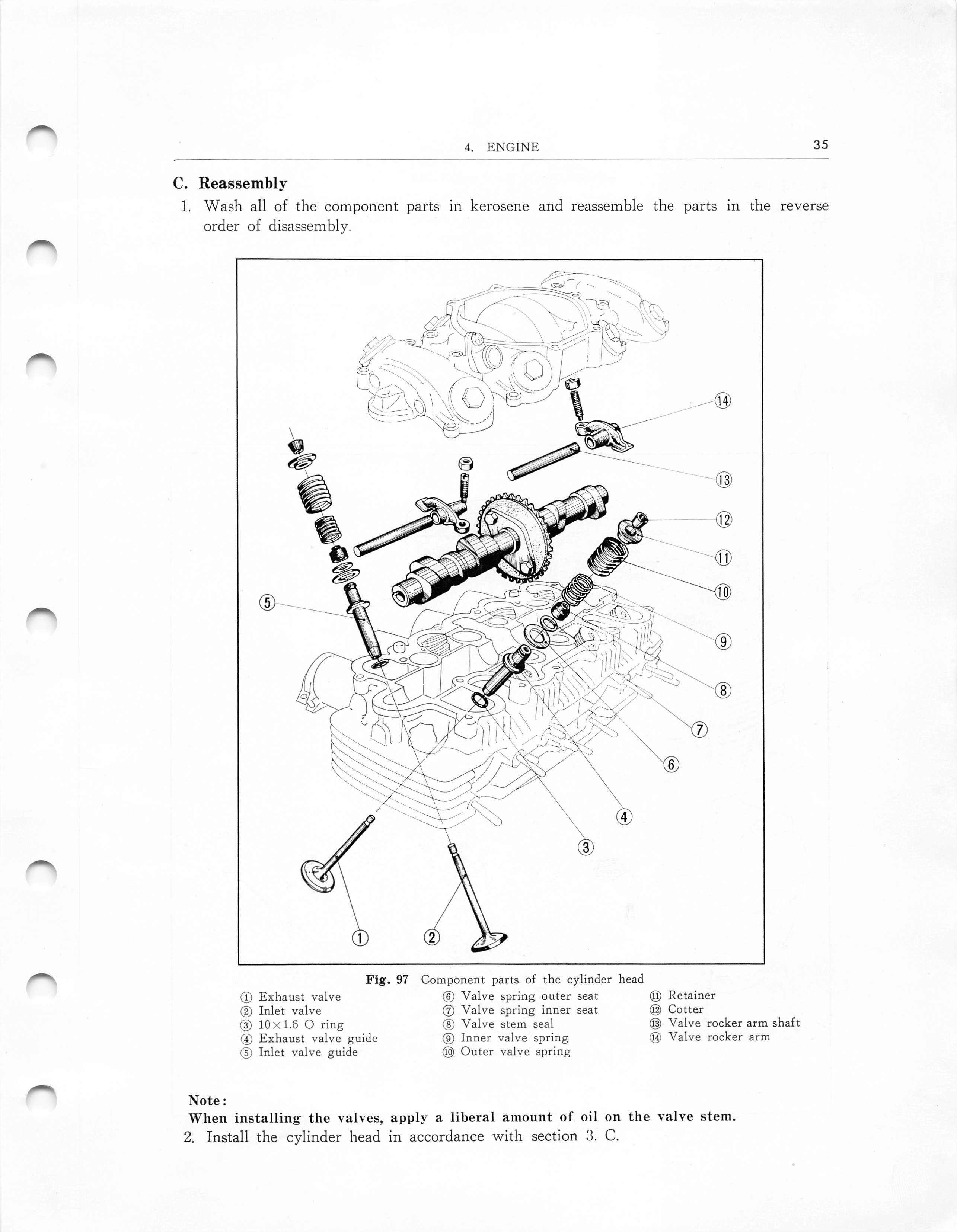

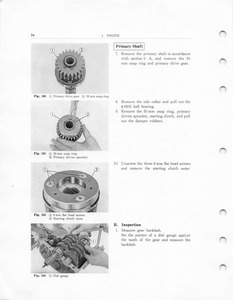

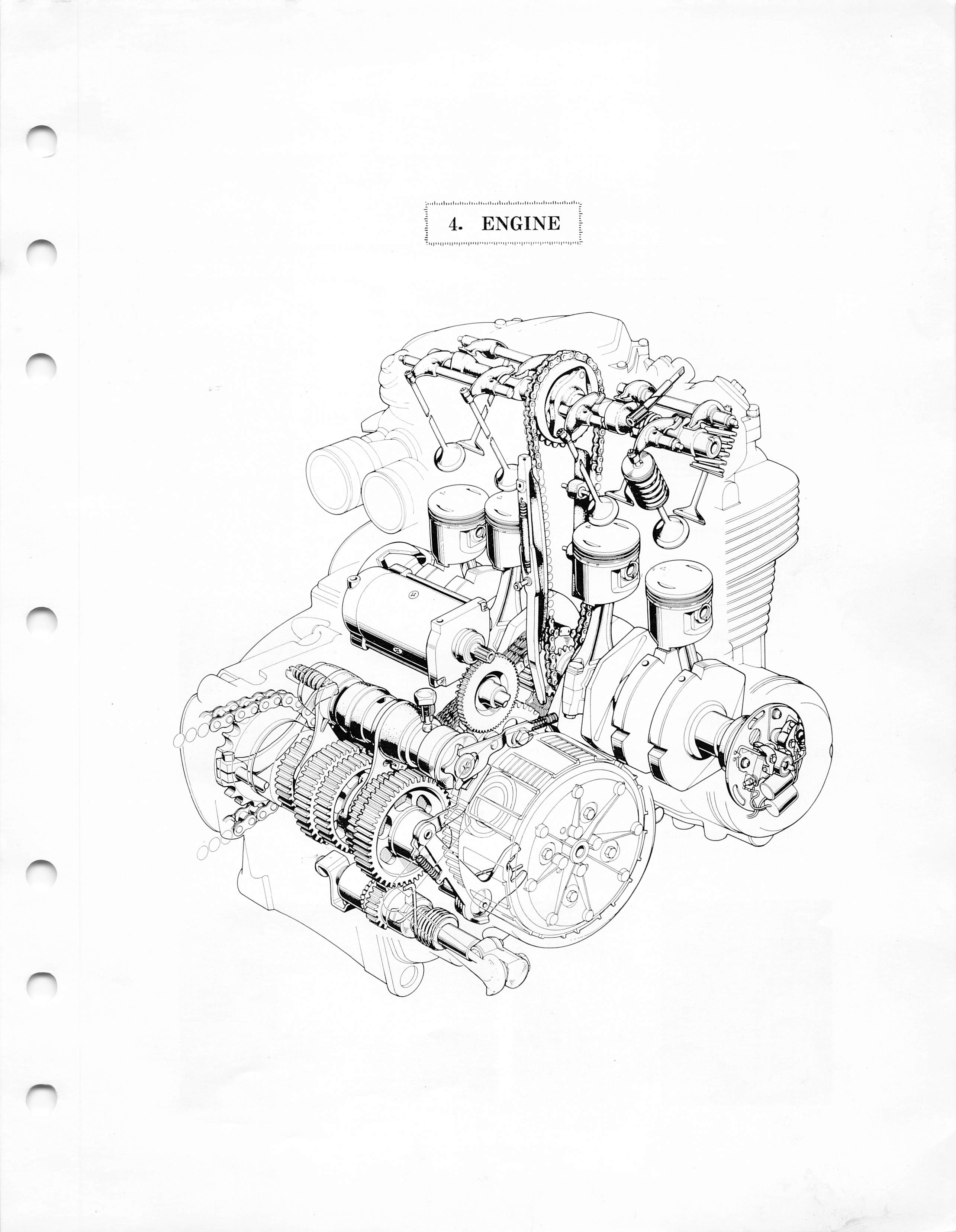

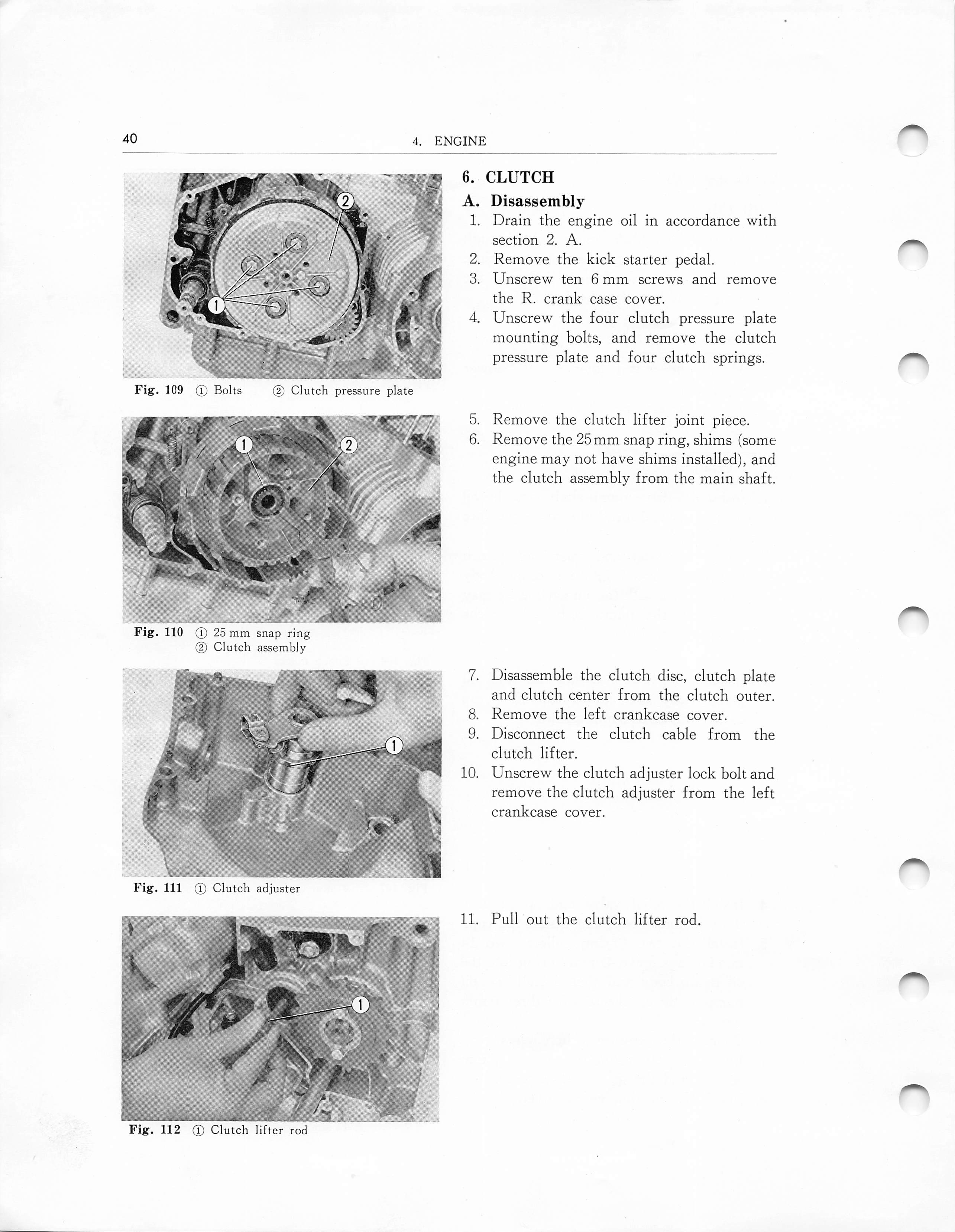

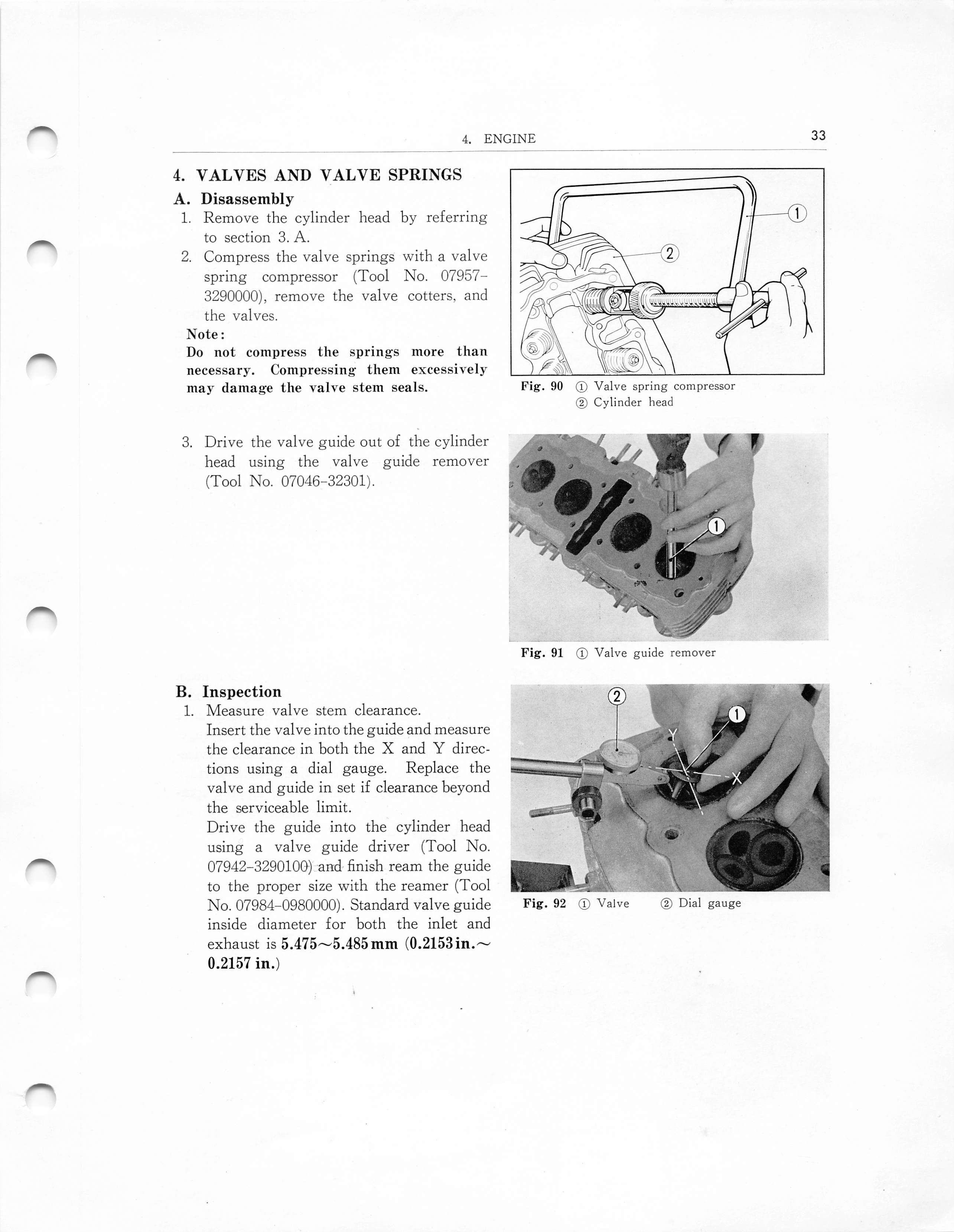

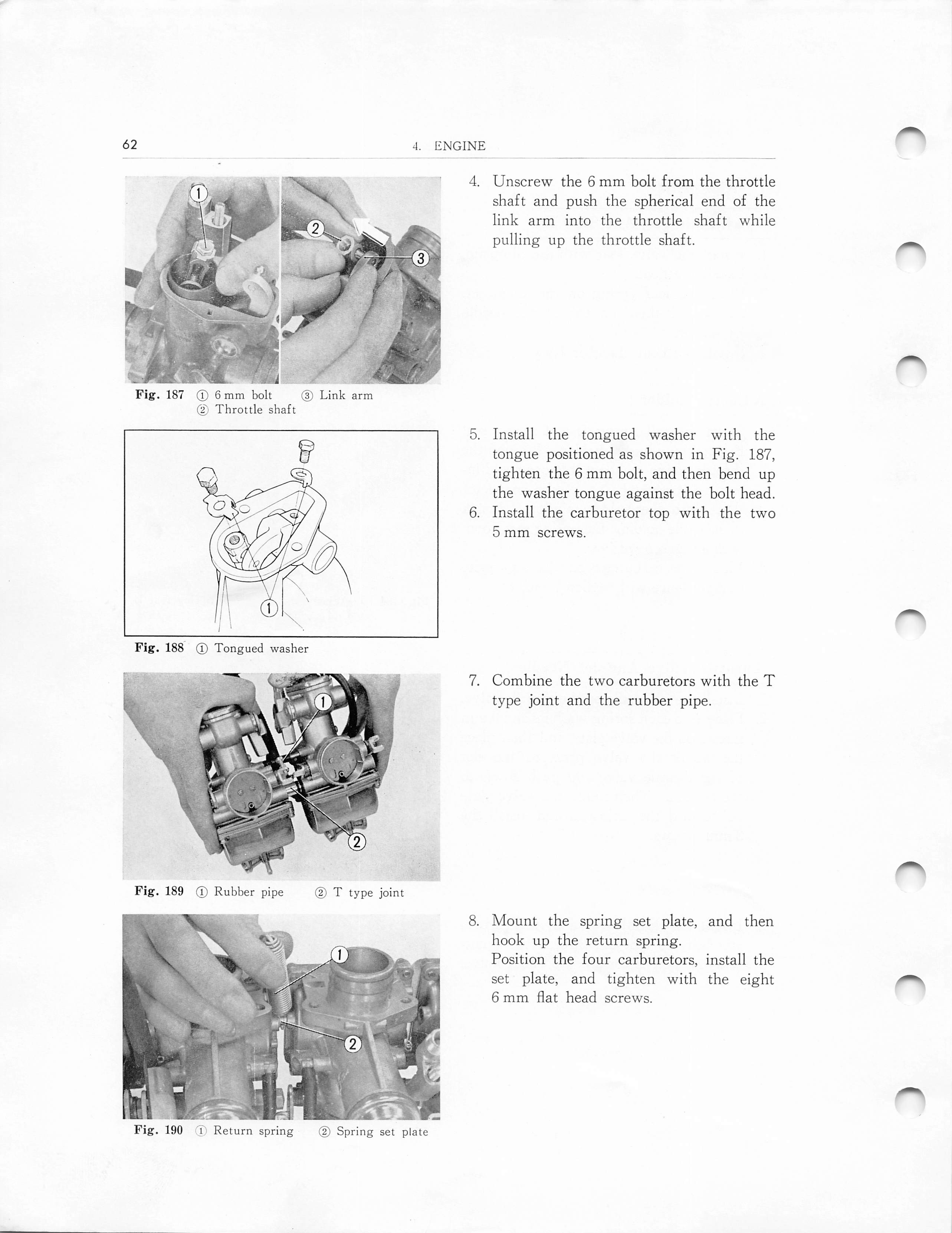

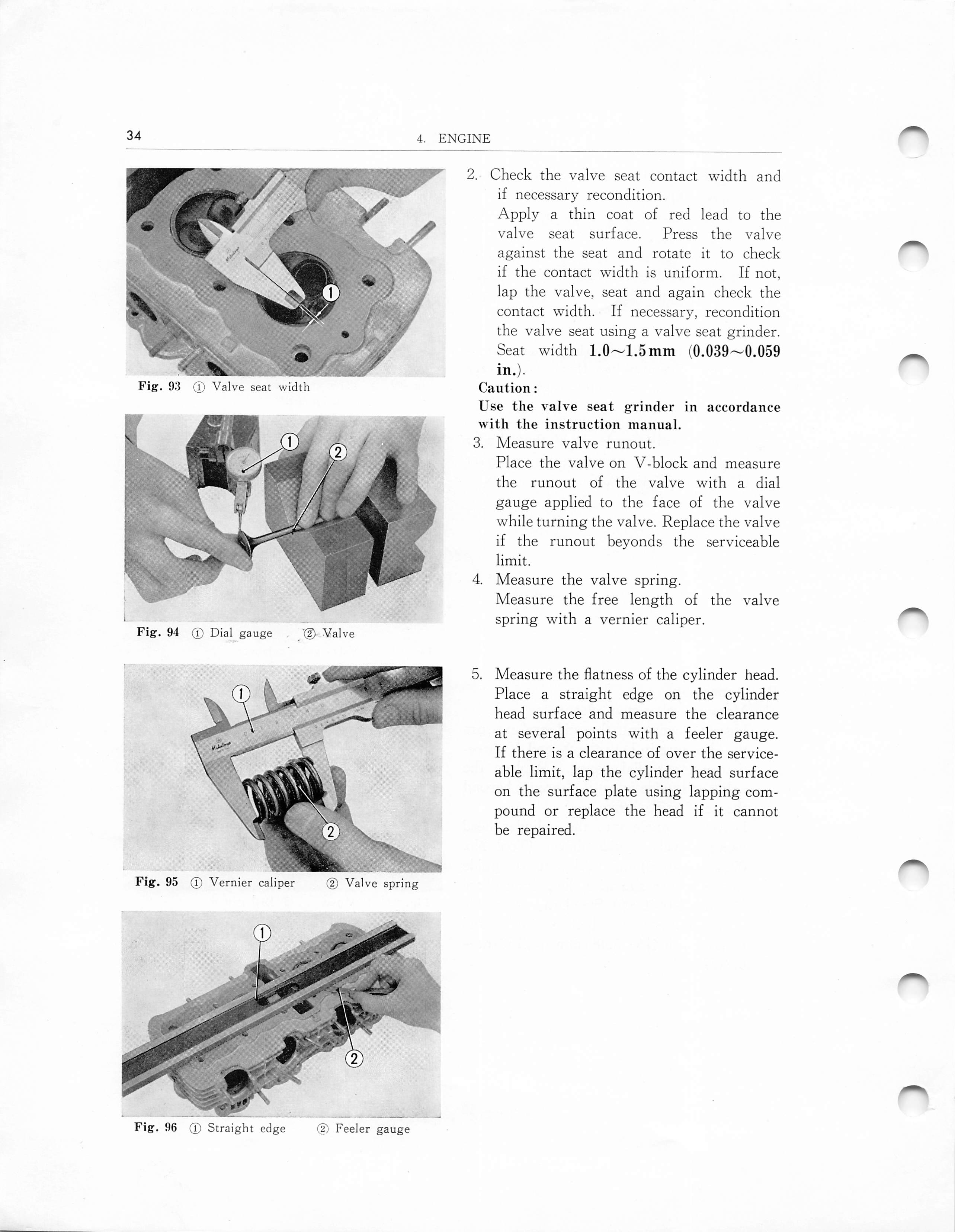

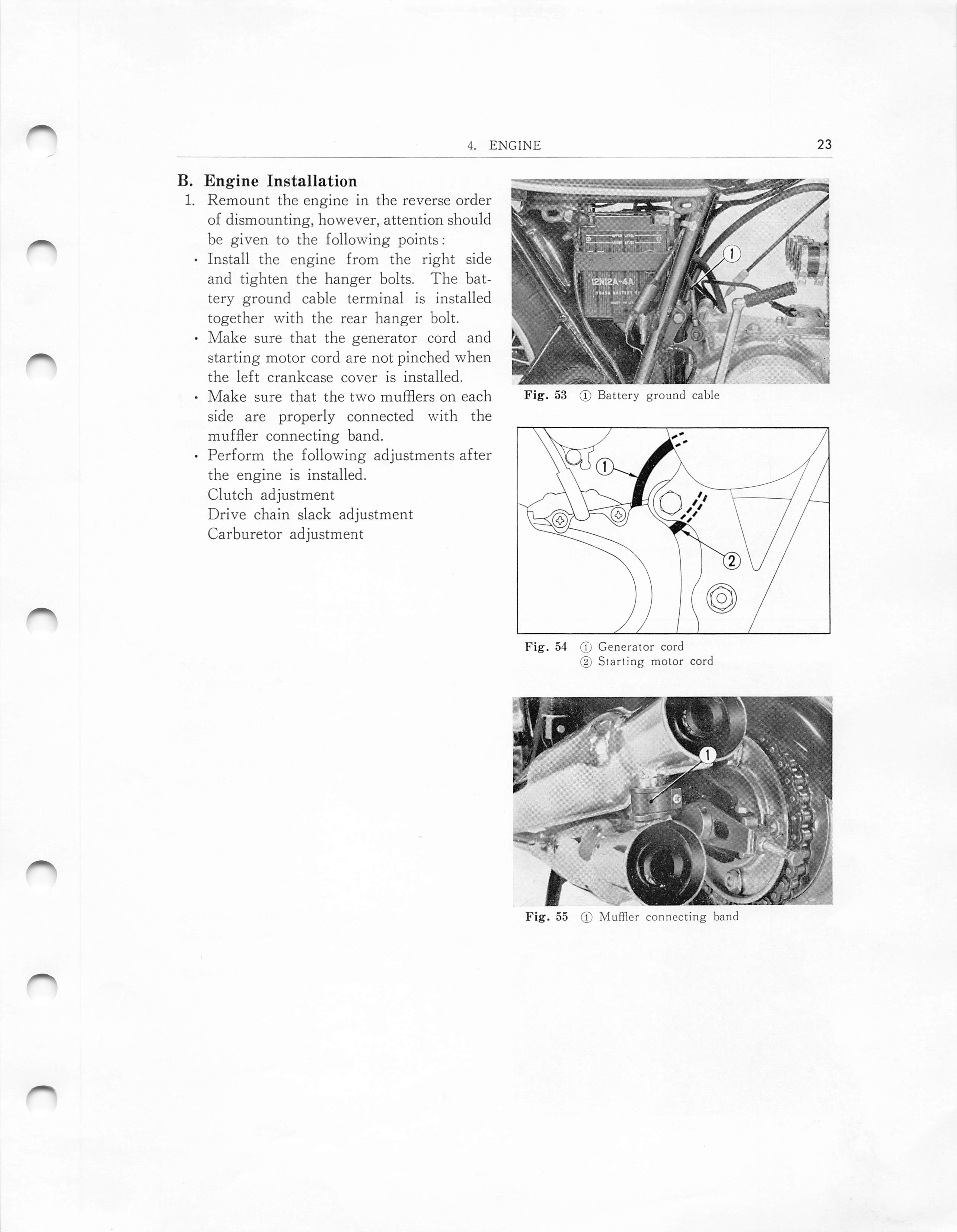

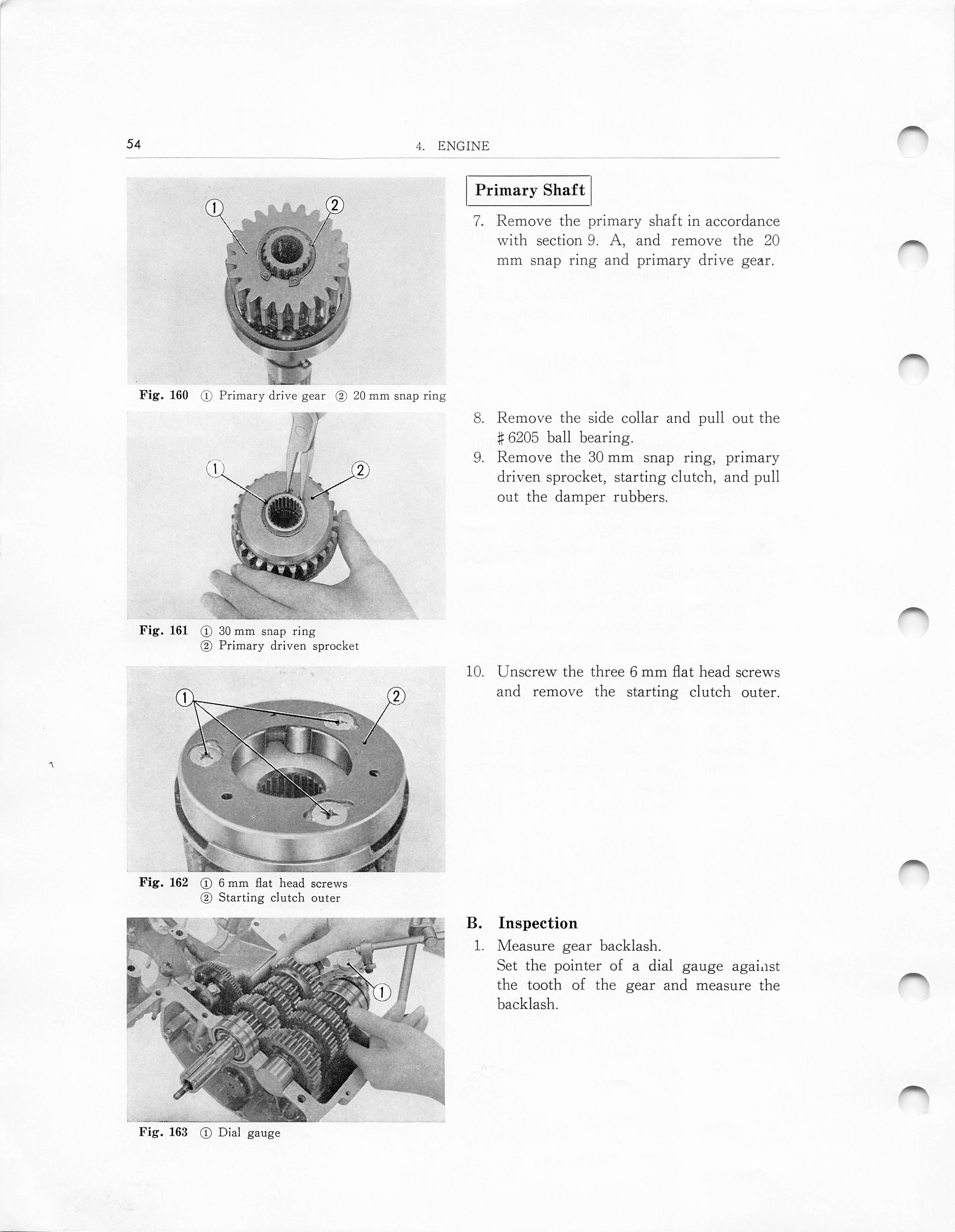

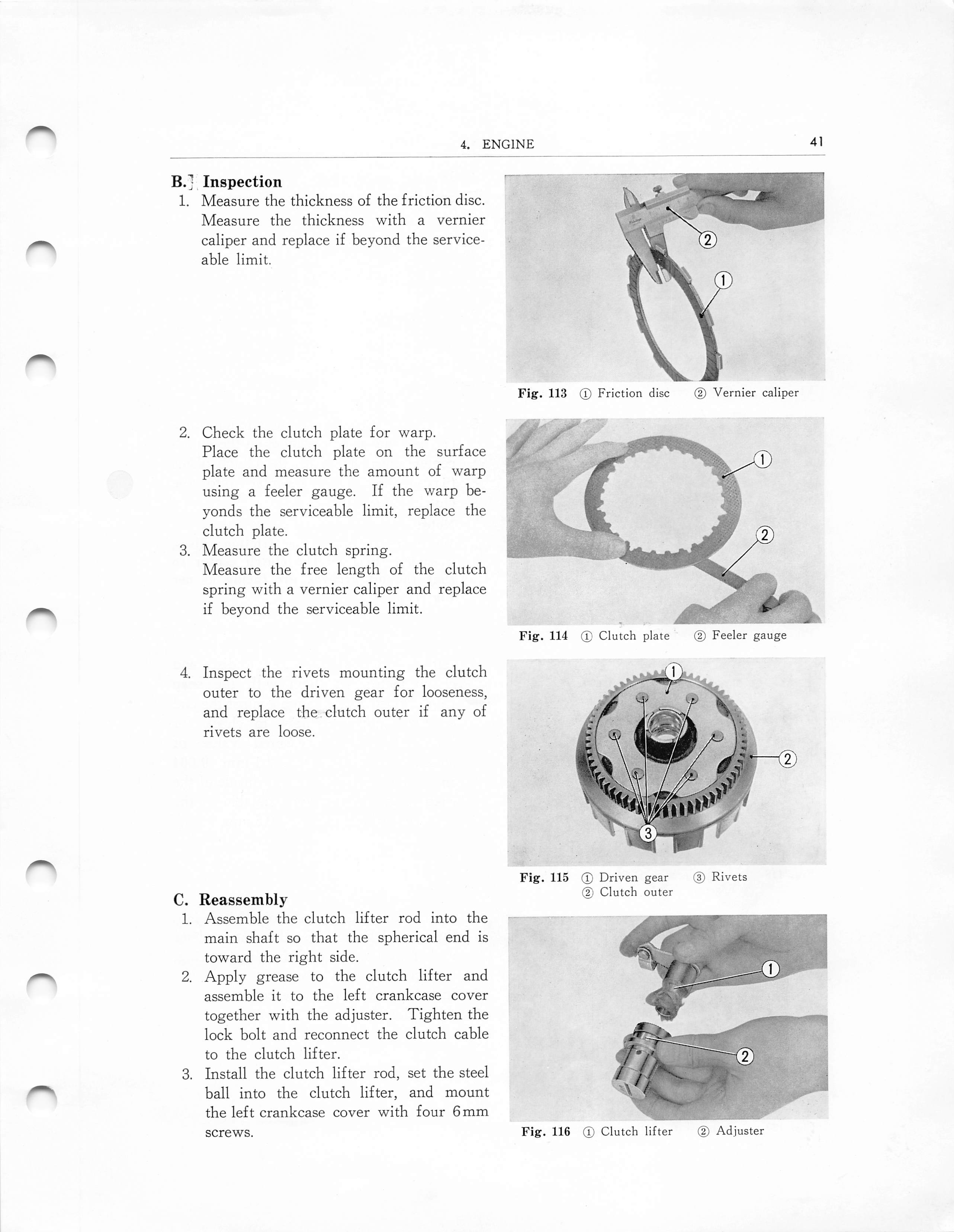

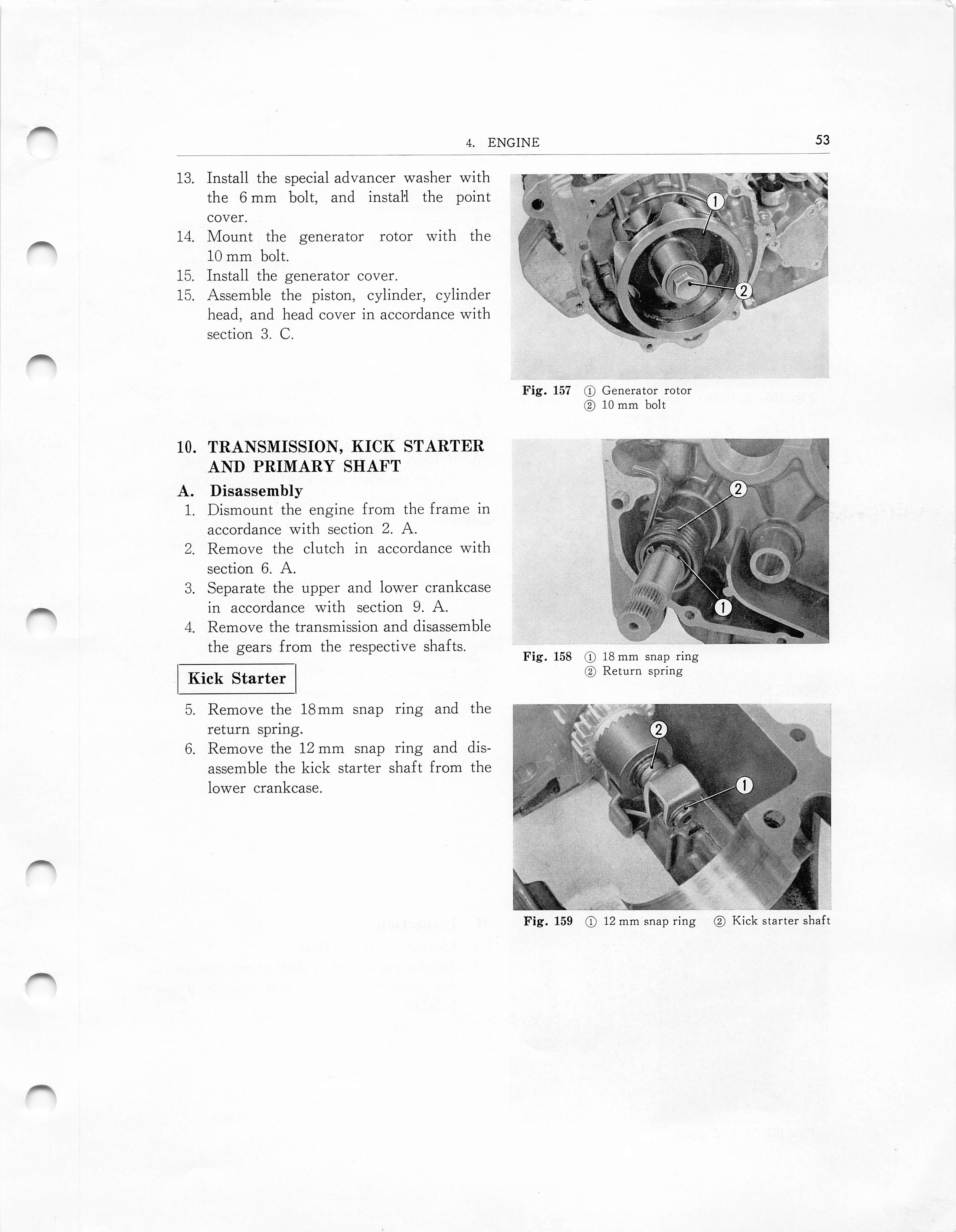

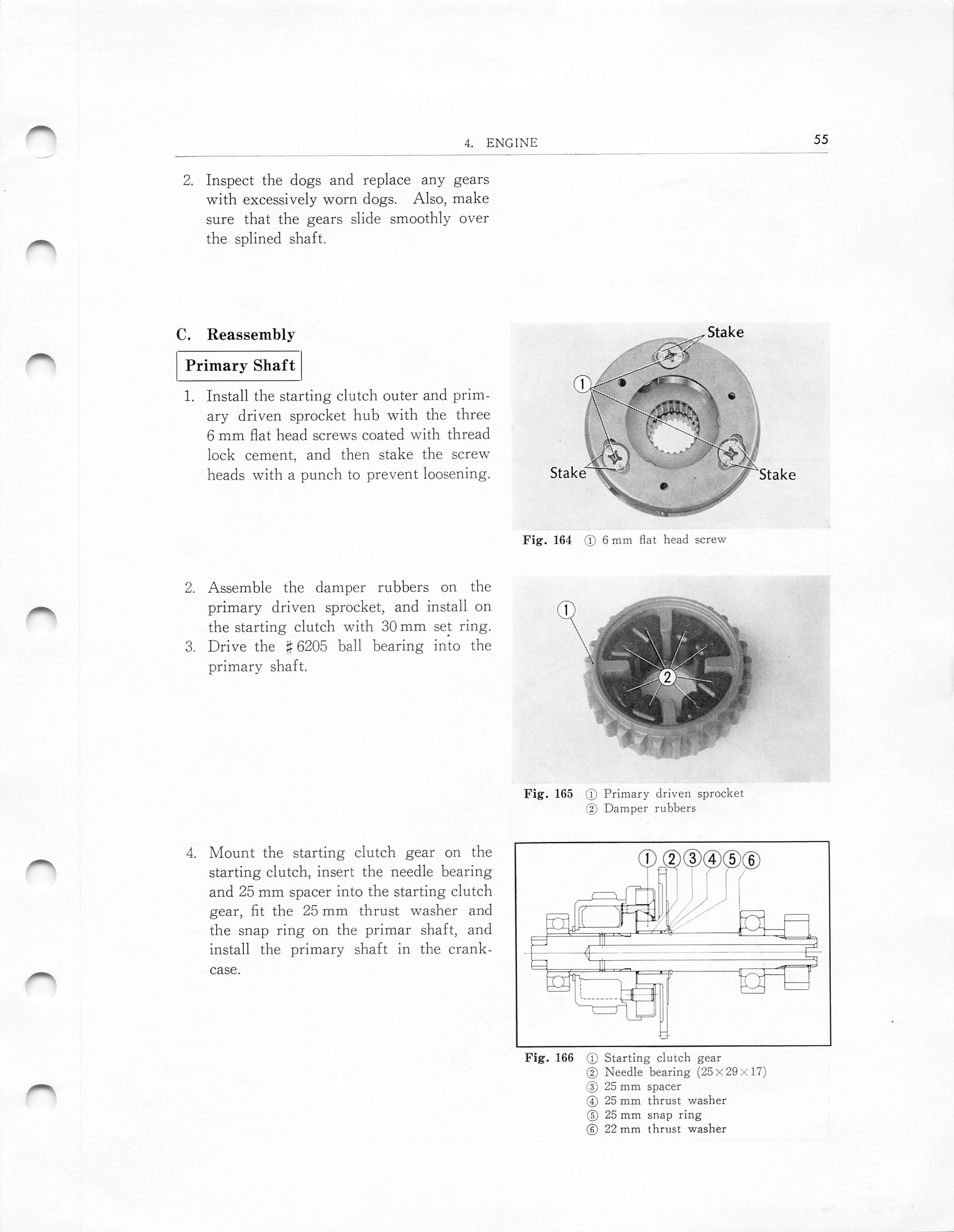

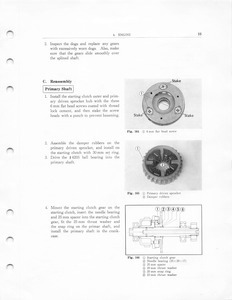

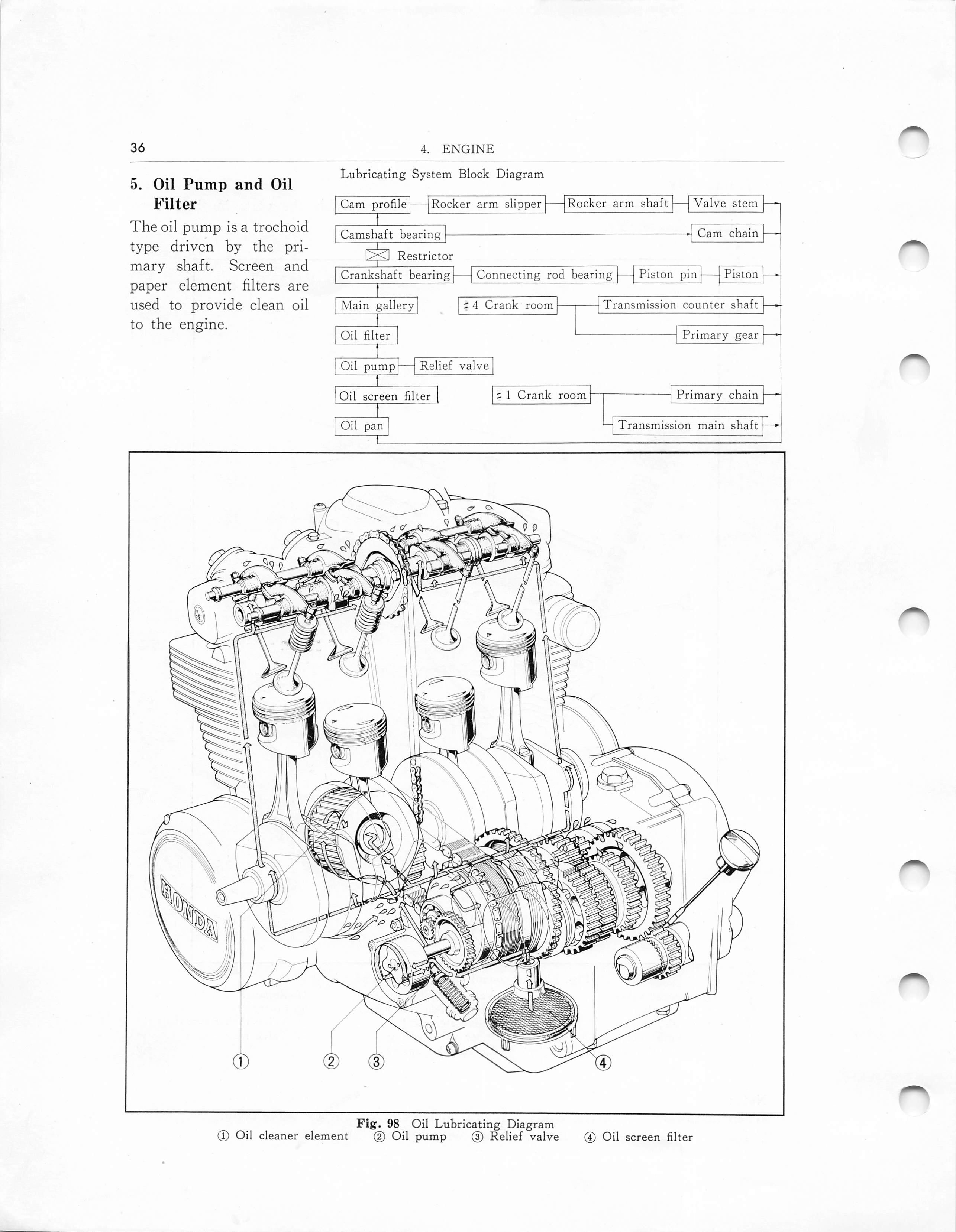

Engine

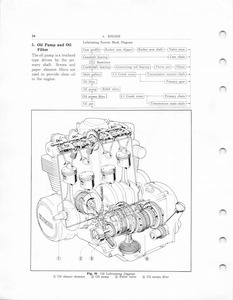

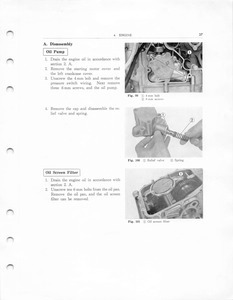

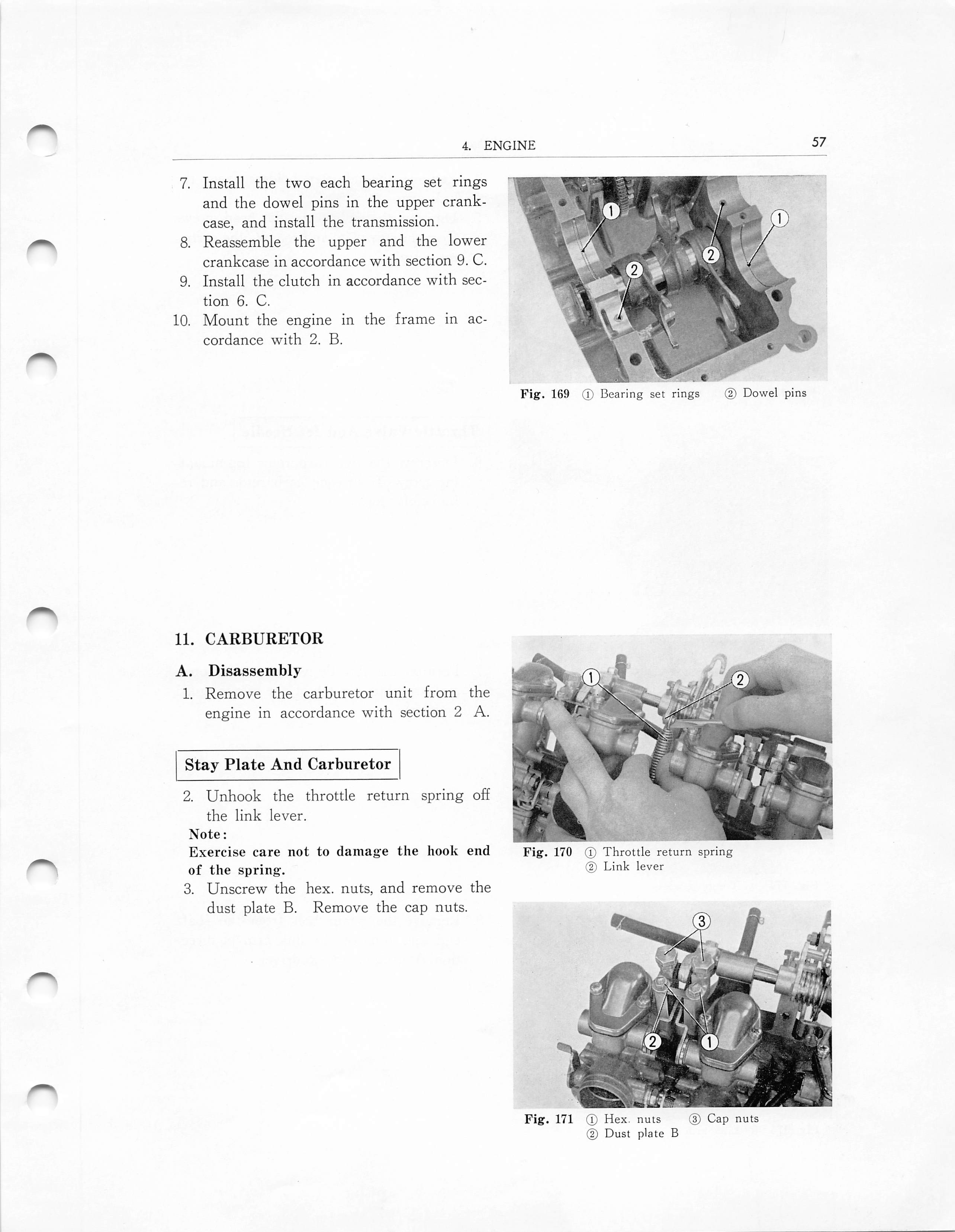

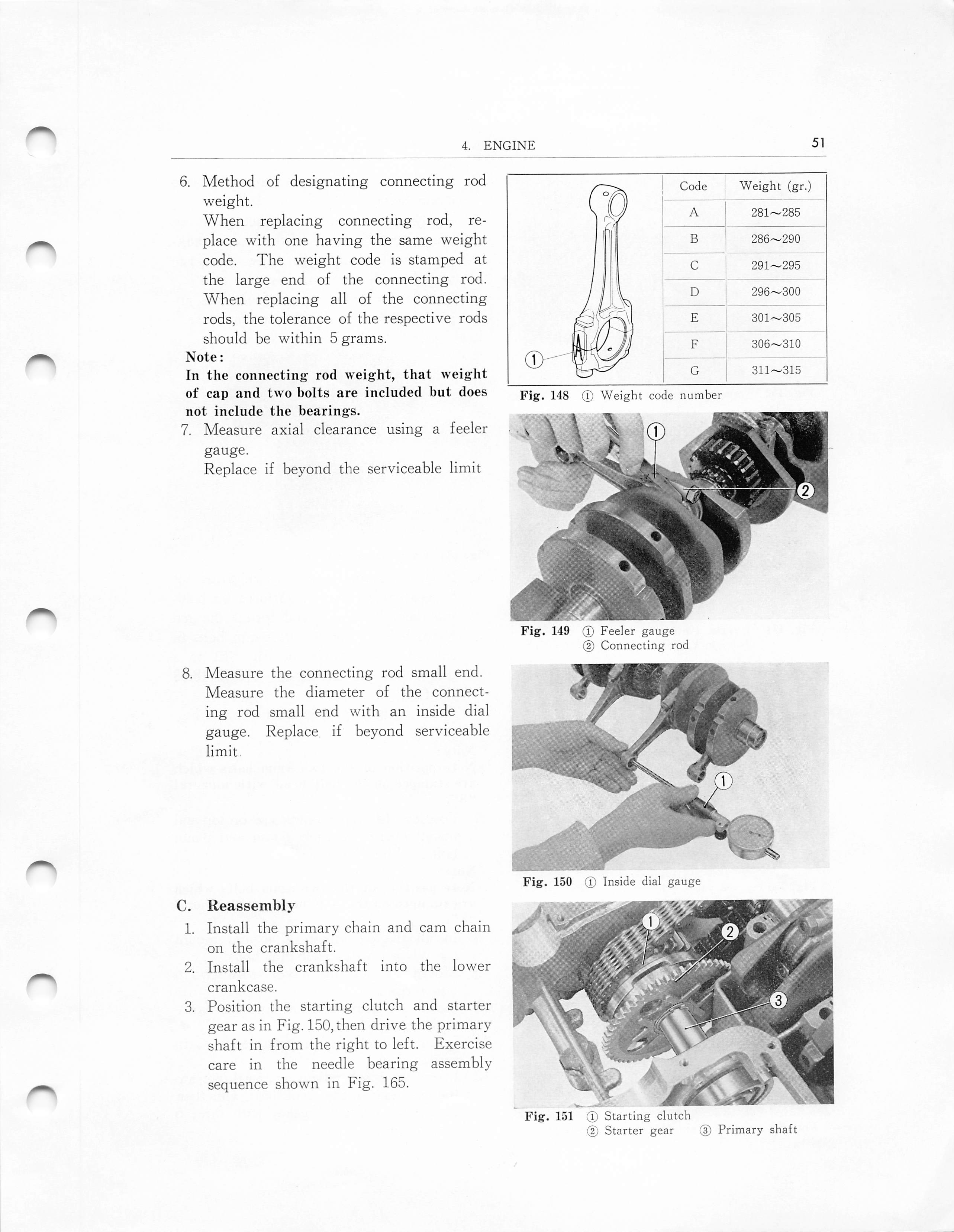

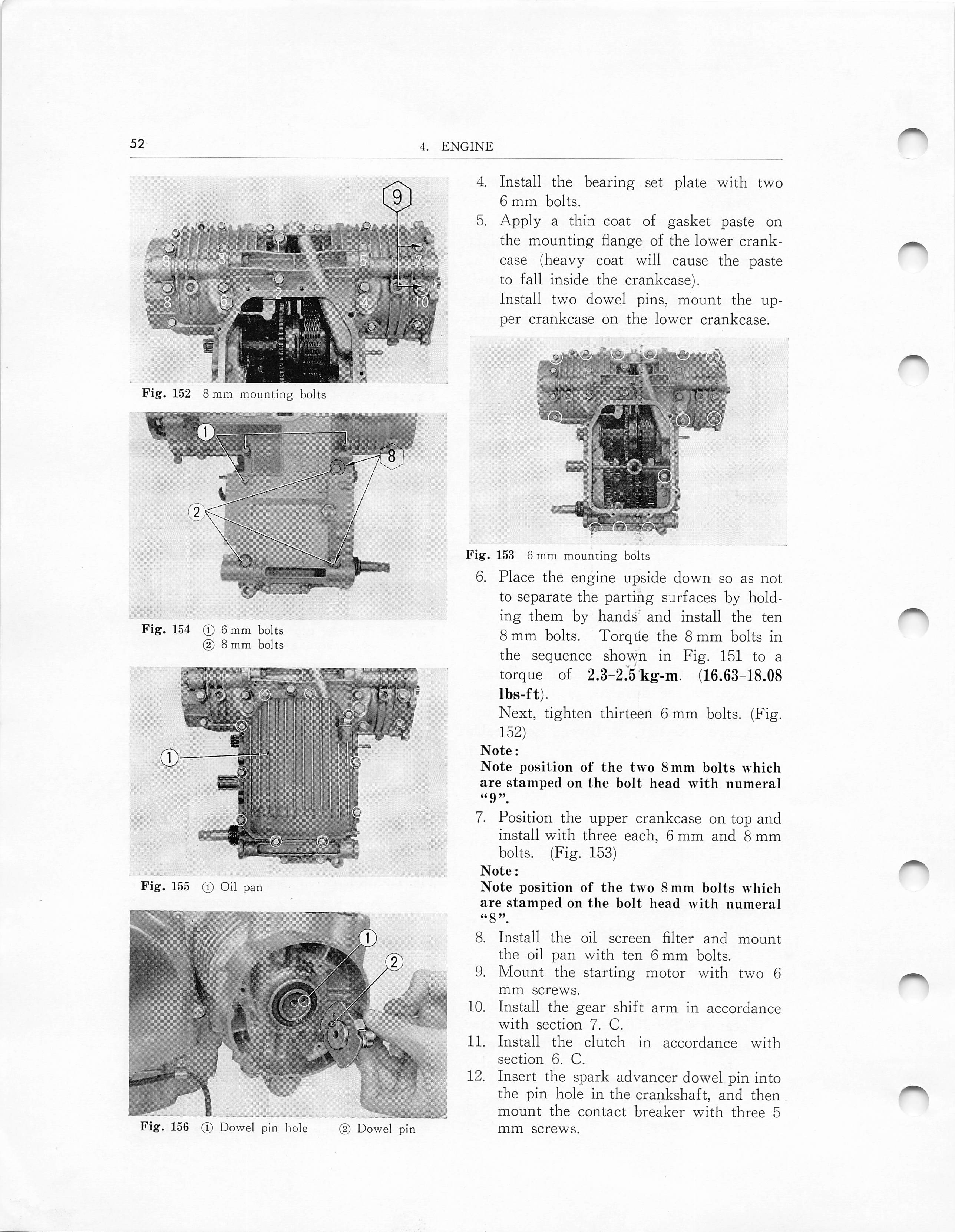

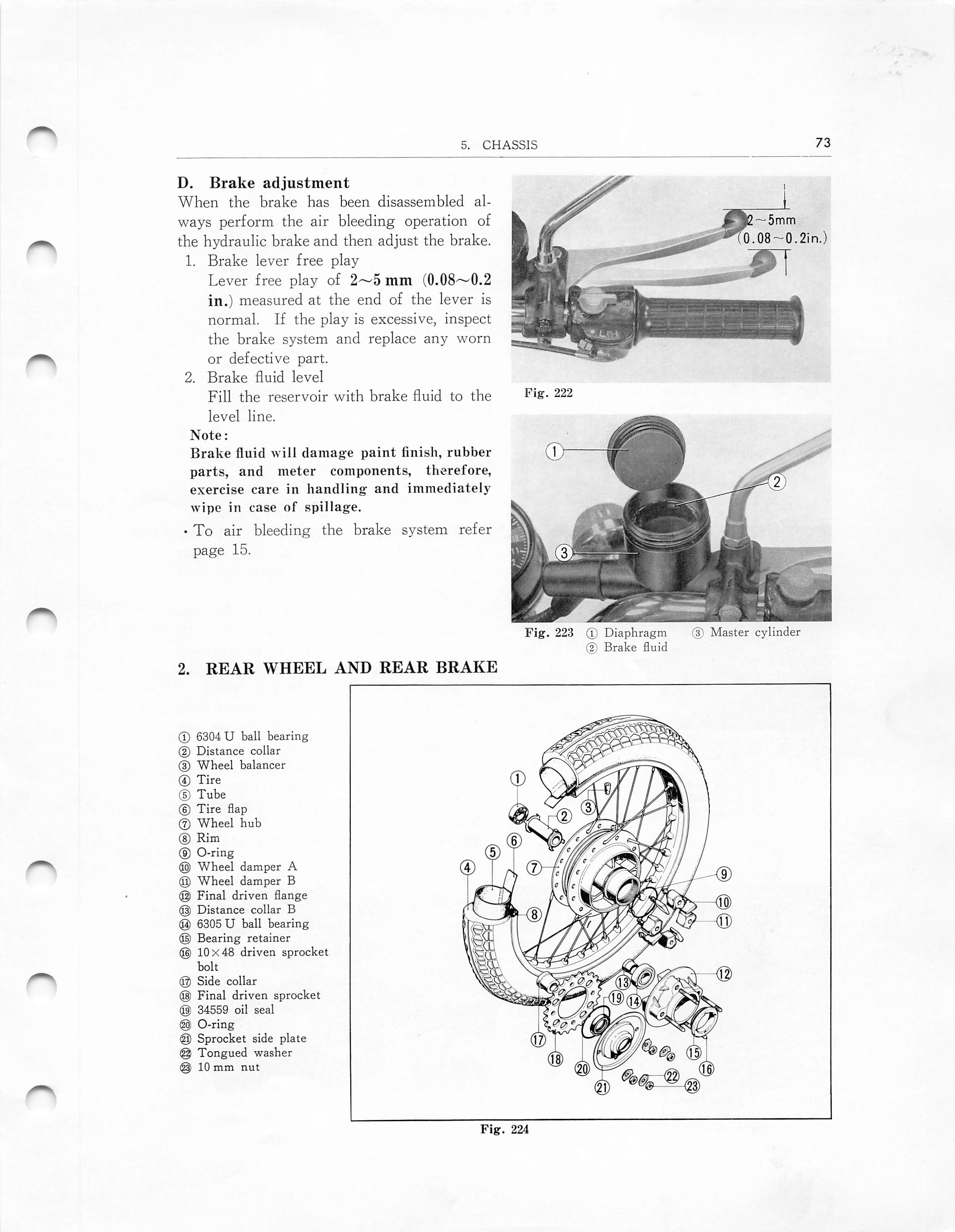

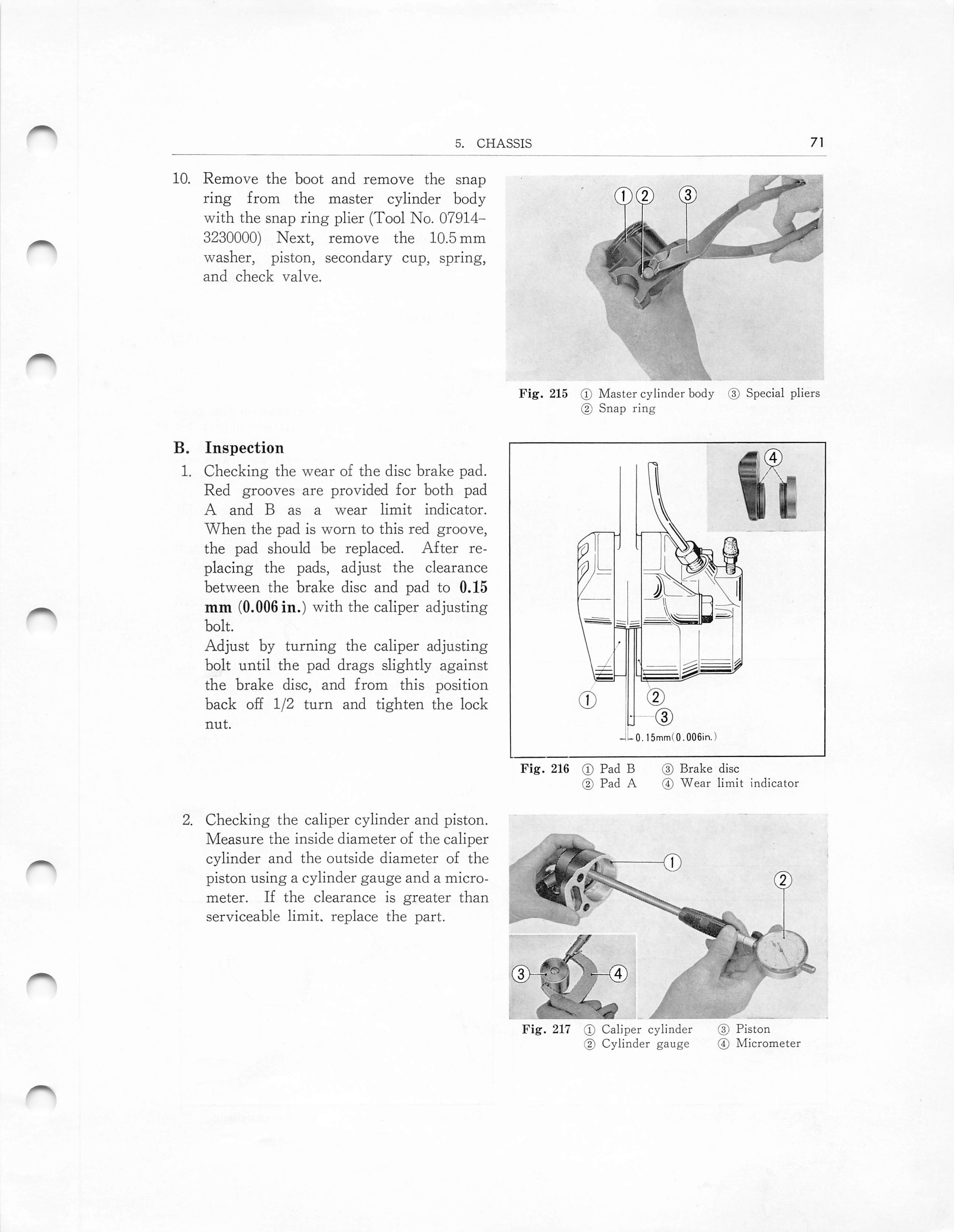

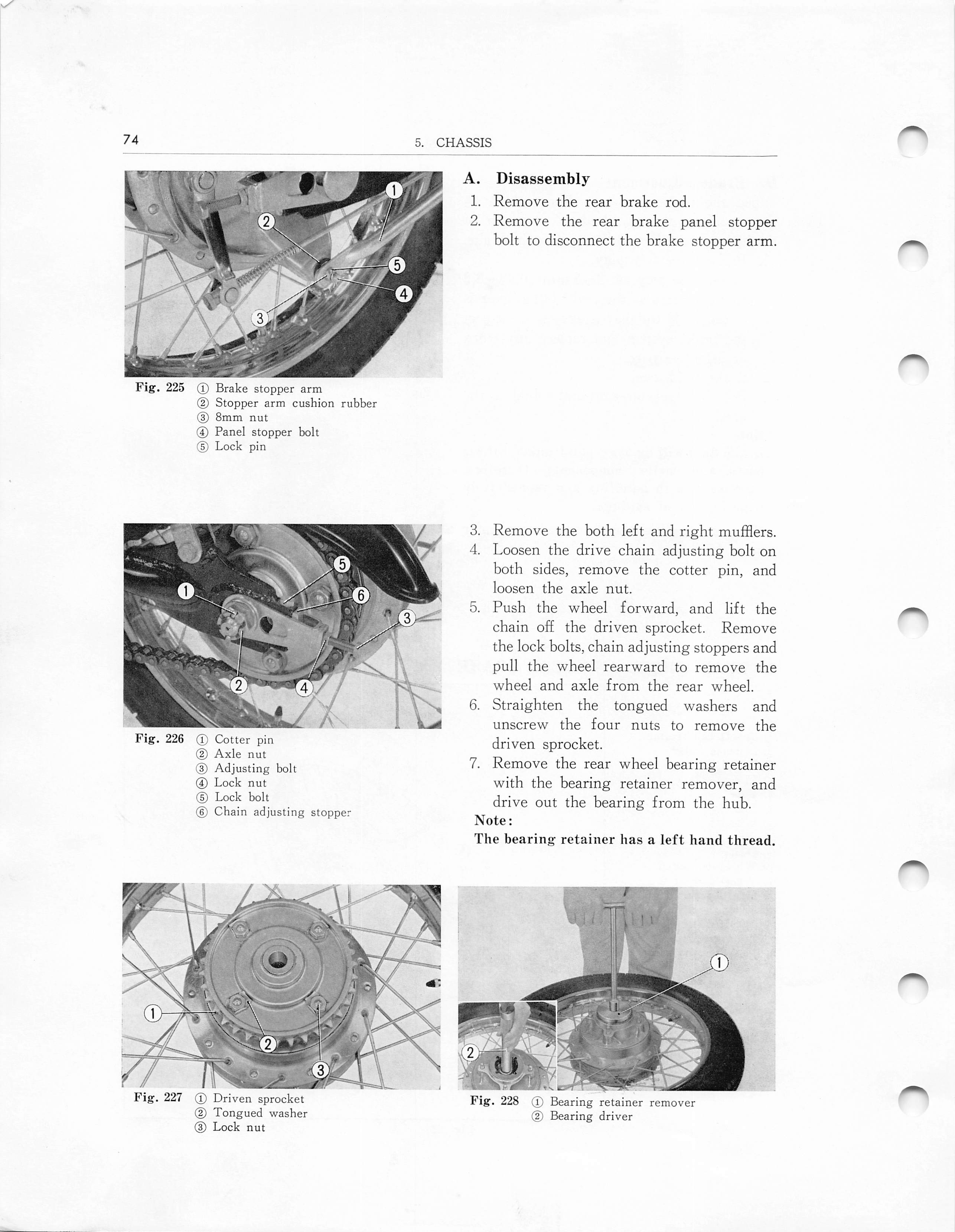

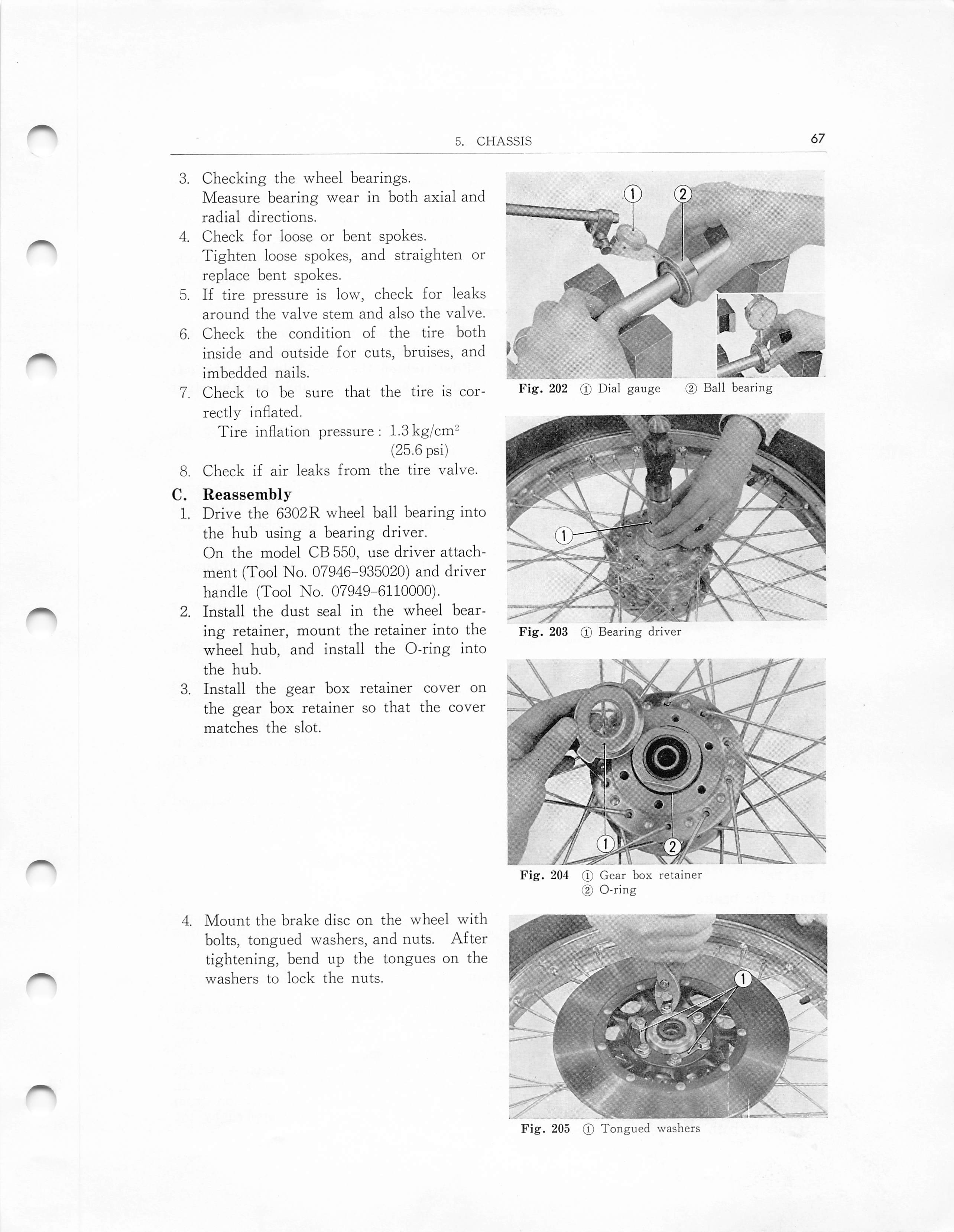

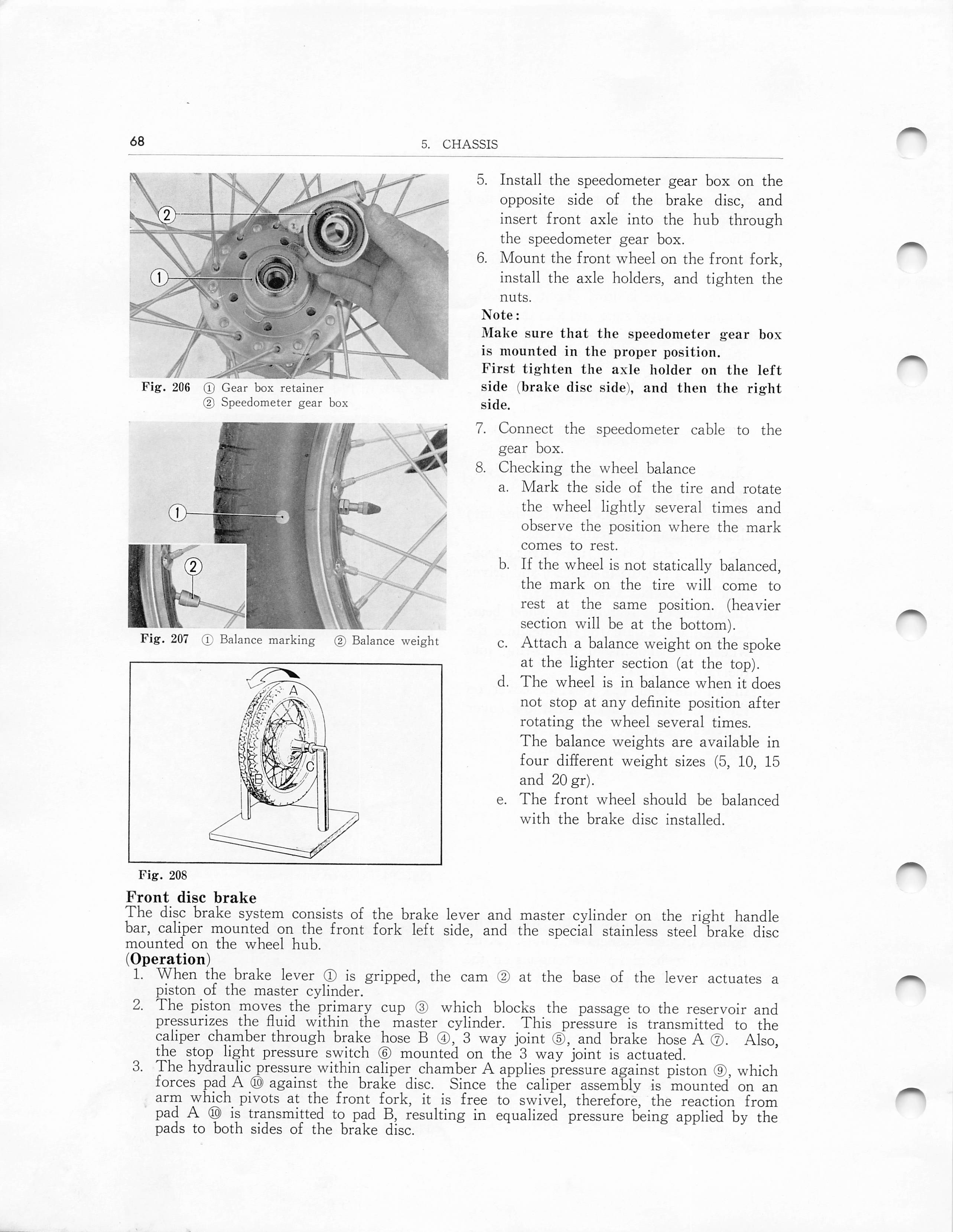

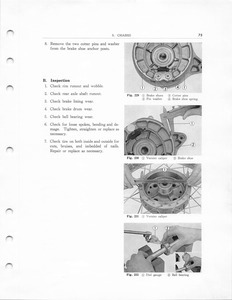

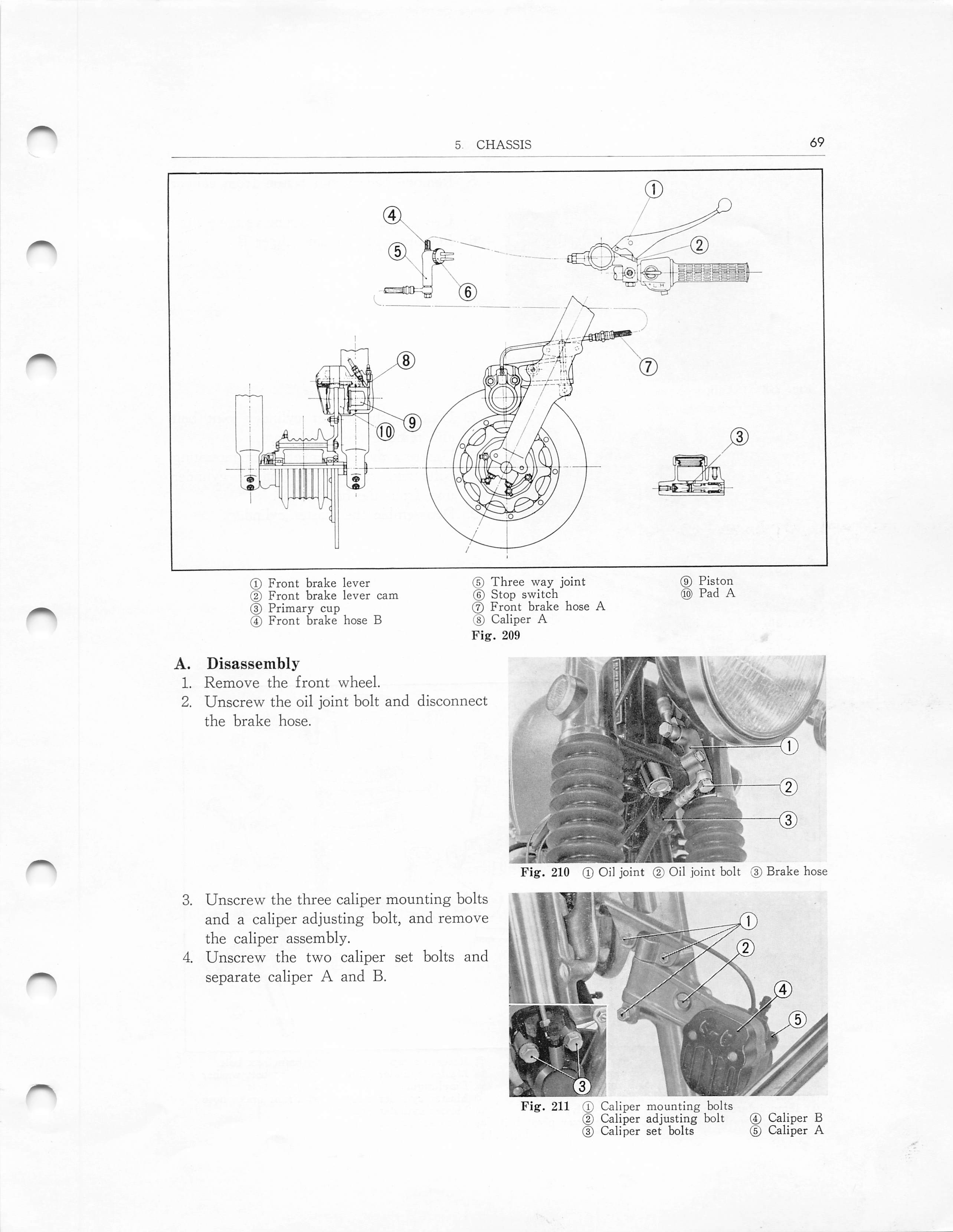

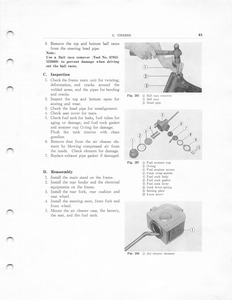

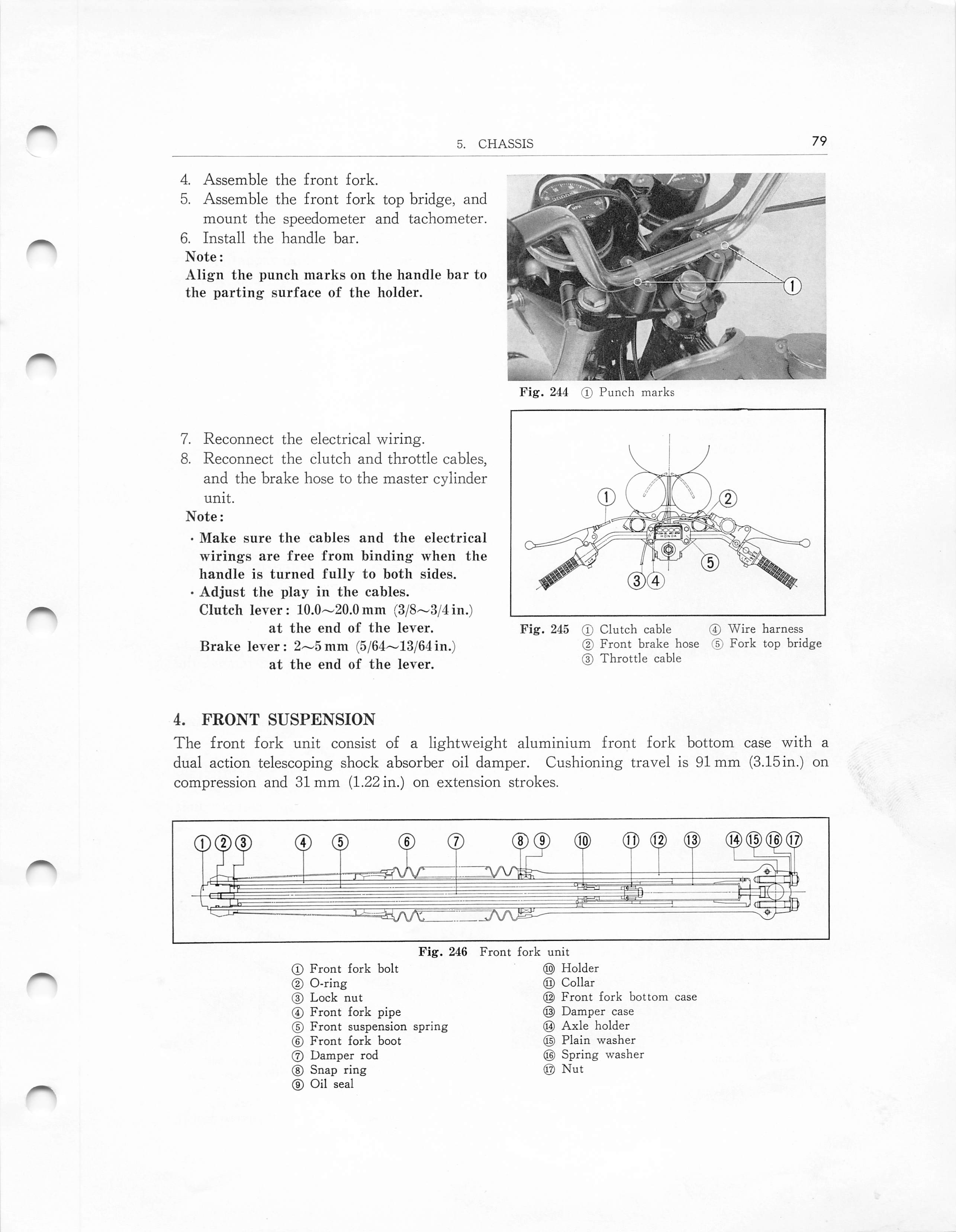

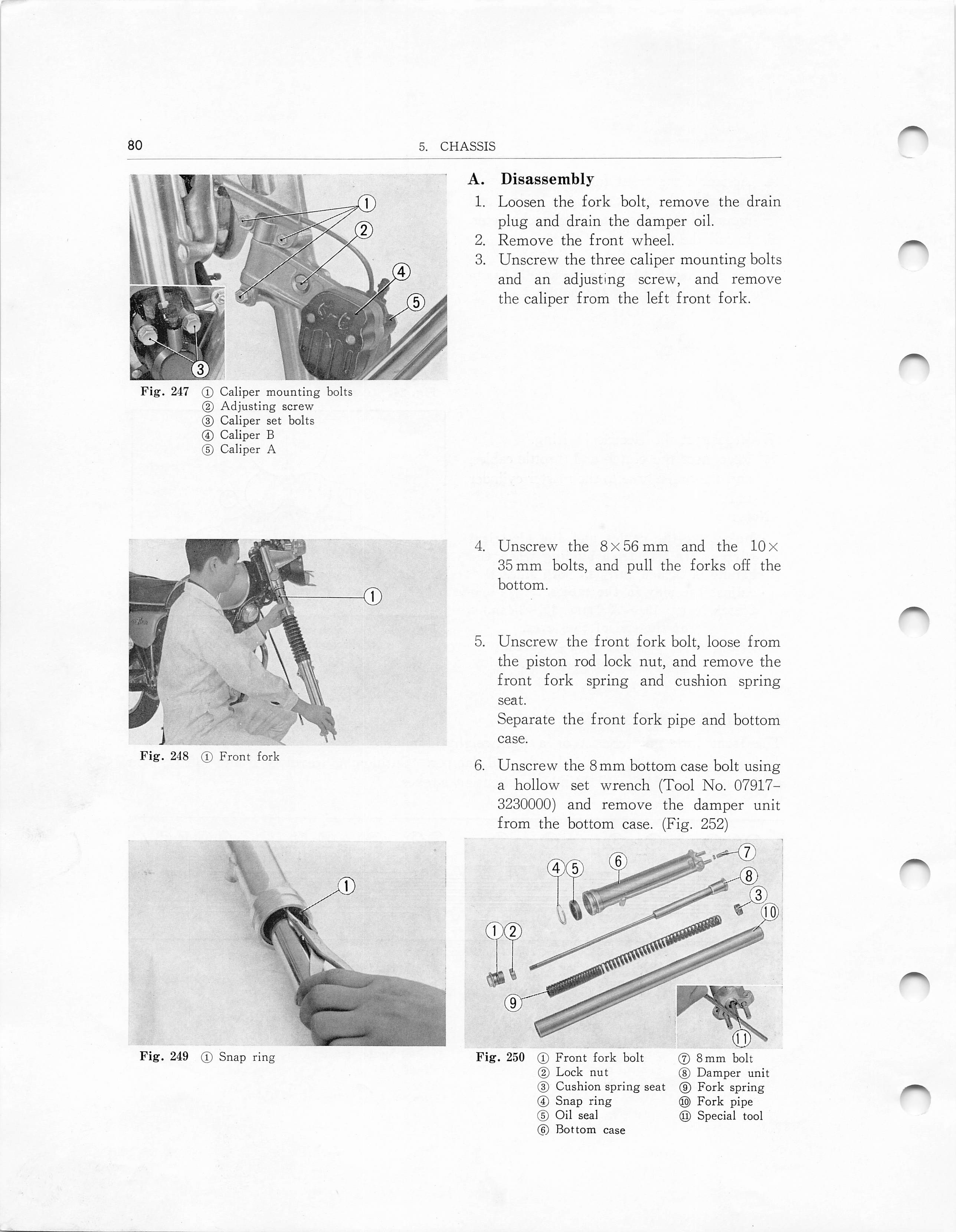

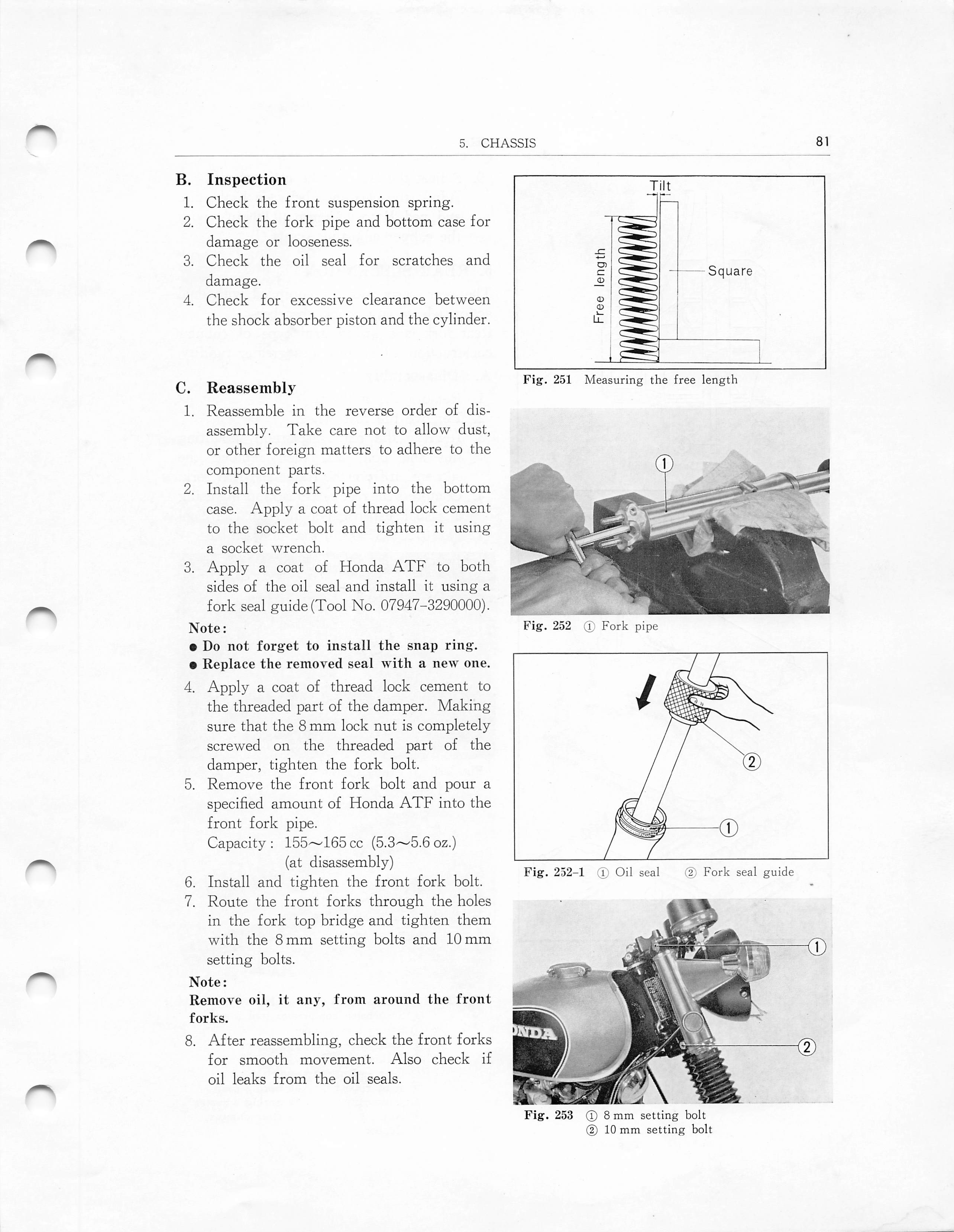

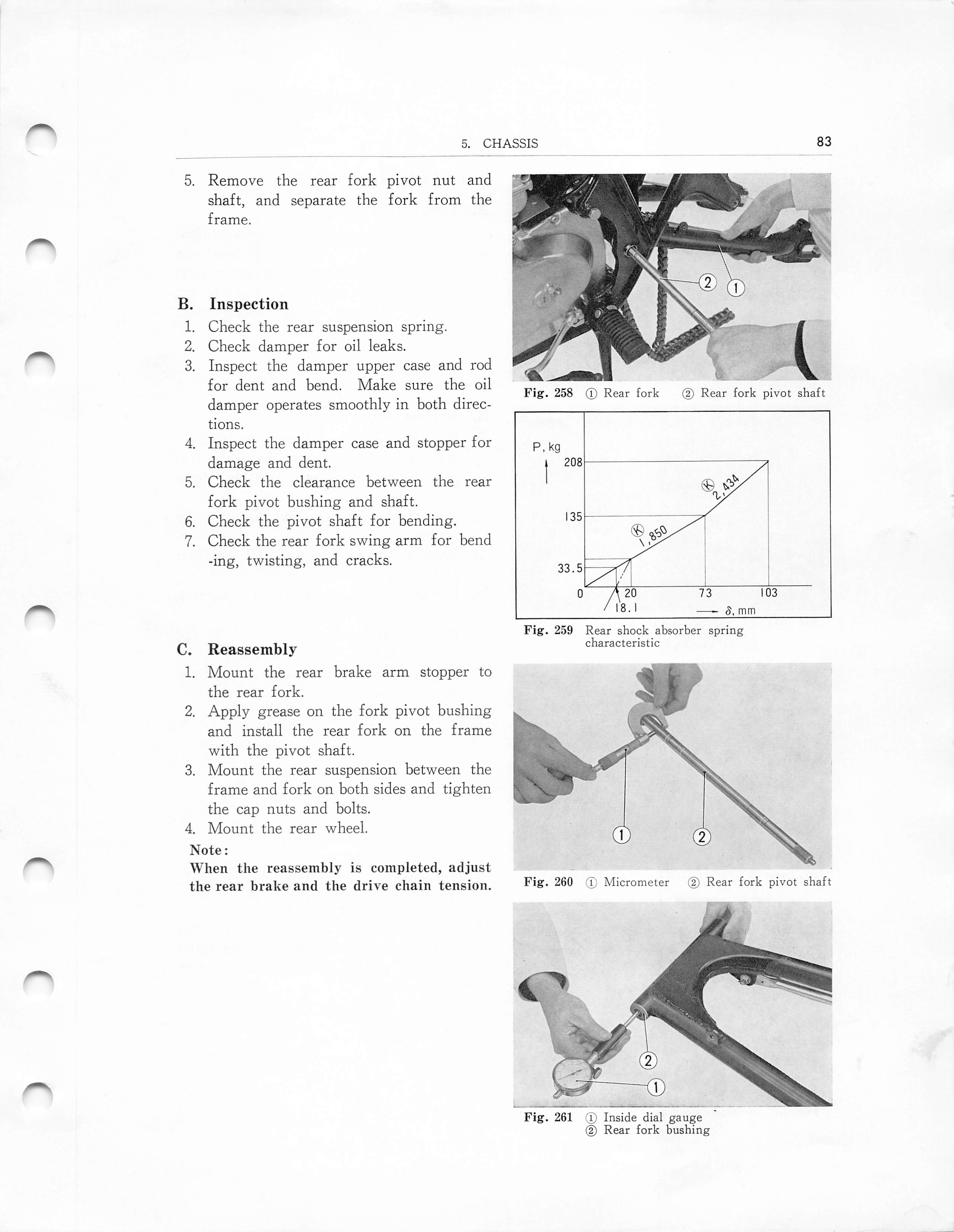

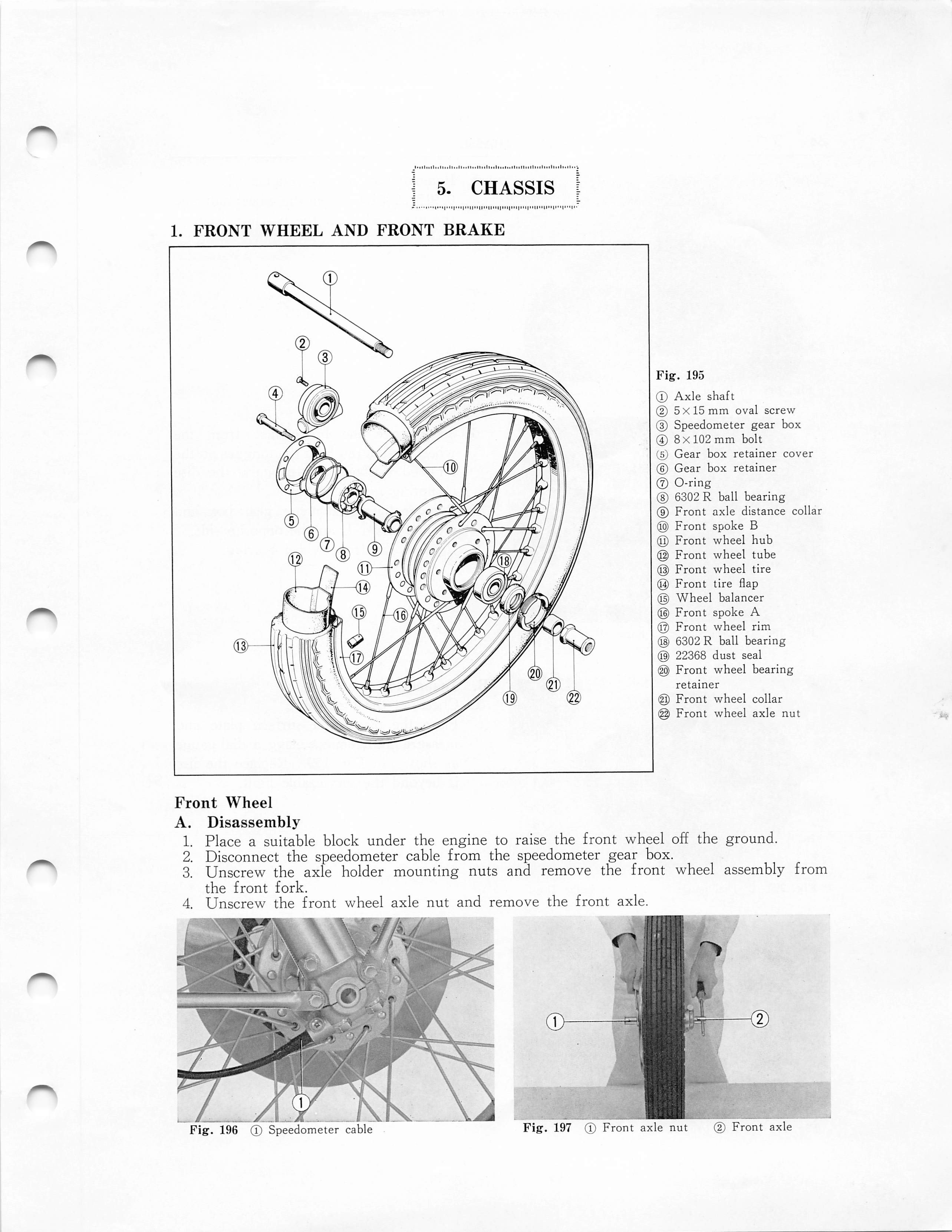

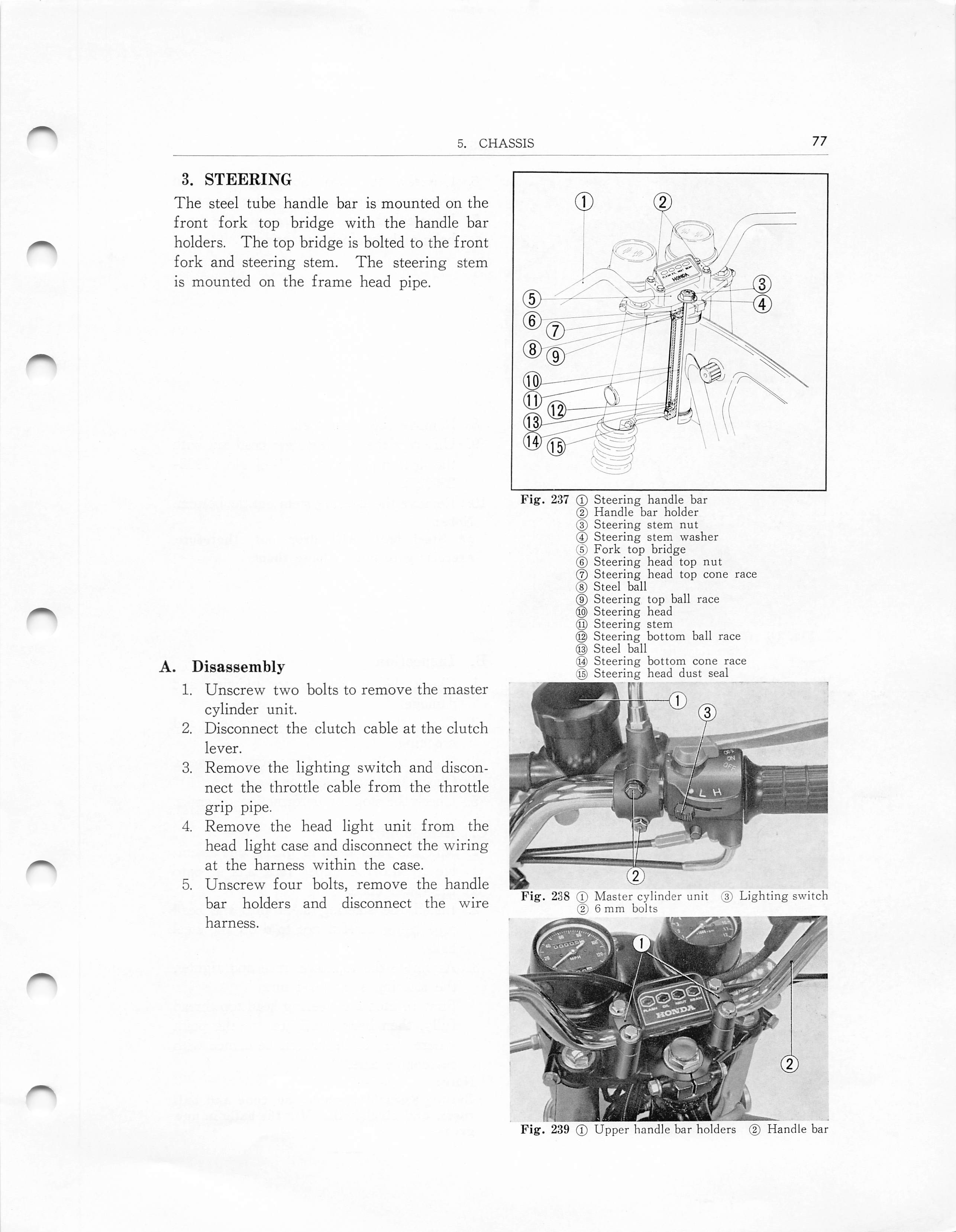

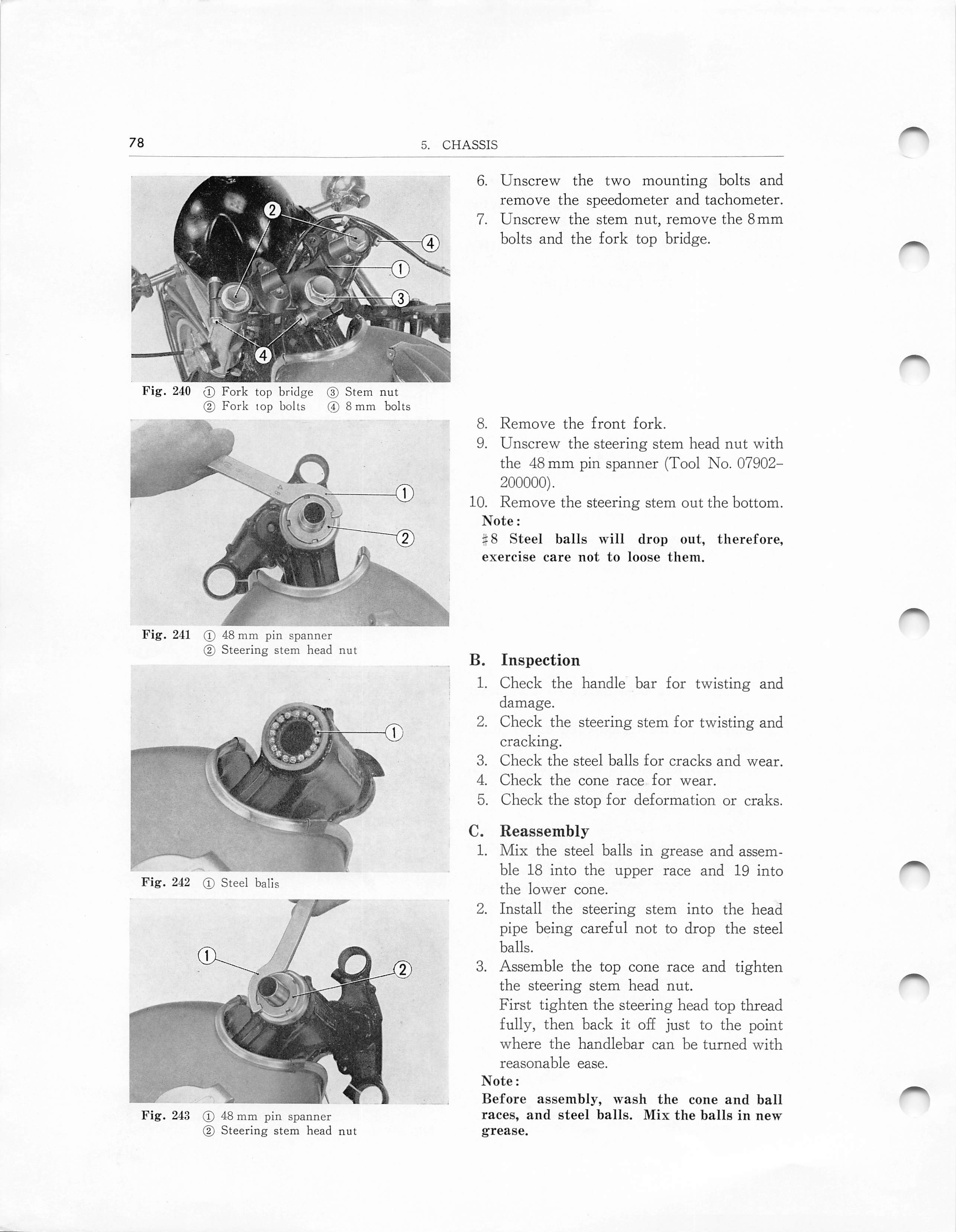

Chassis

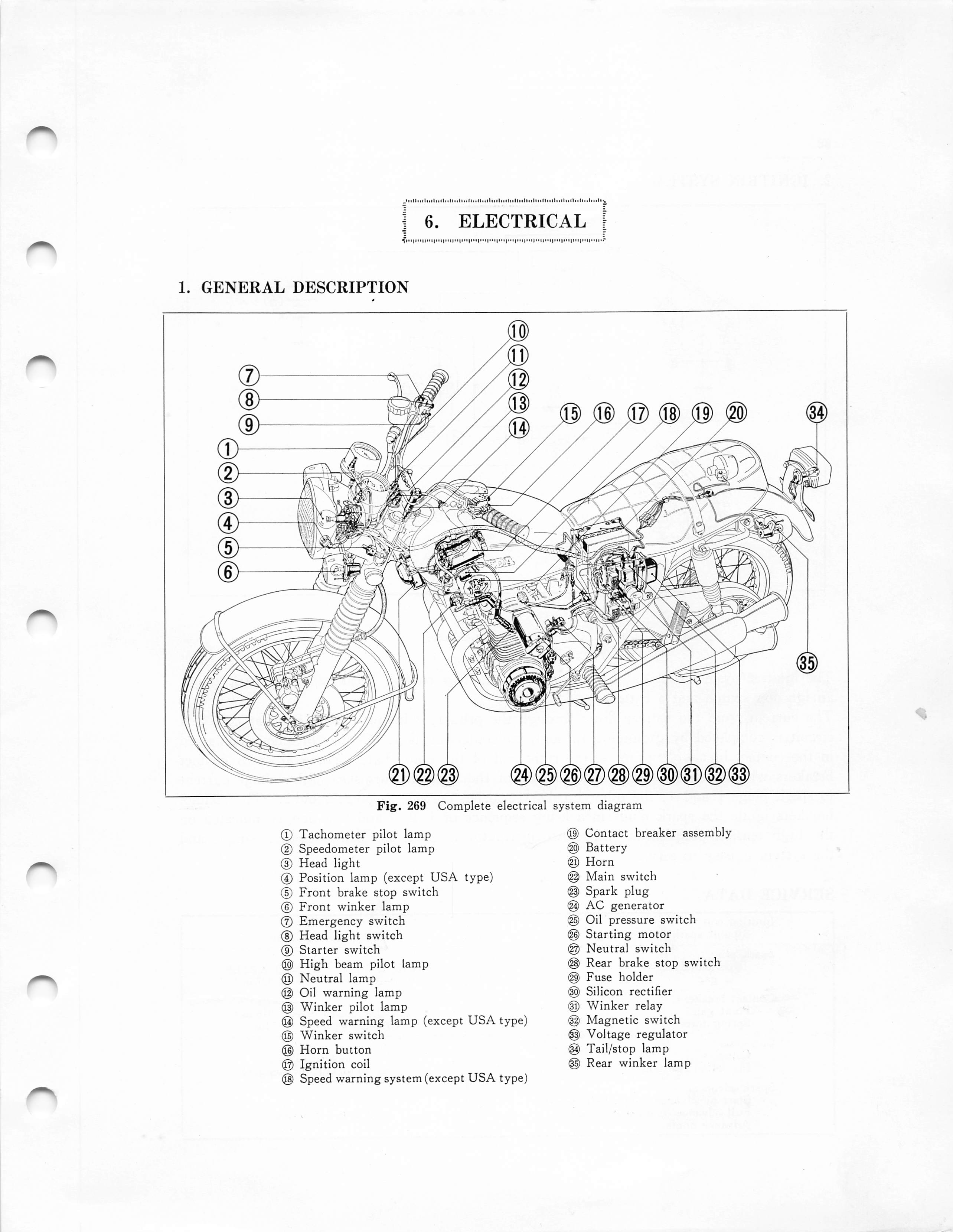

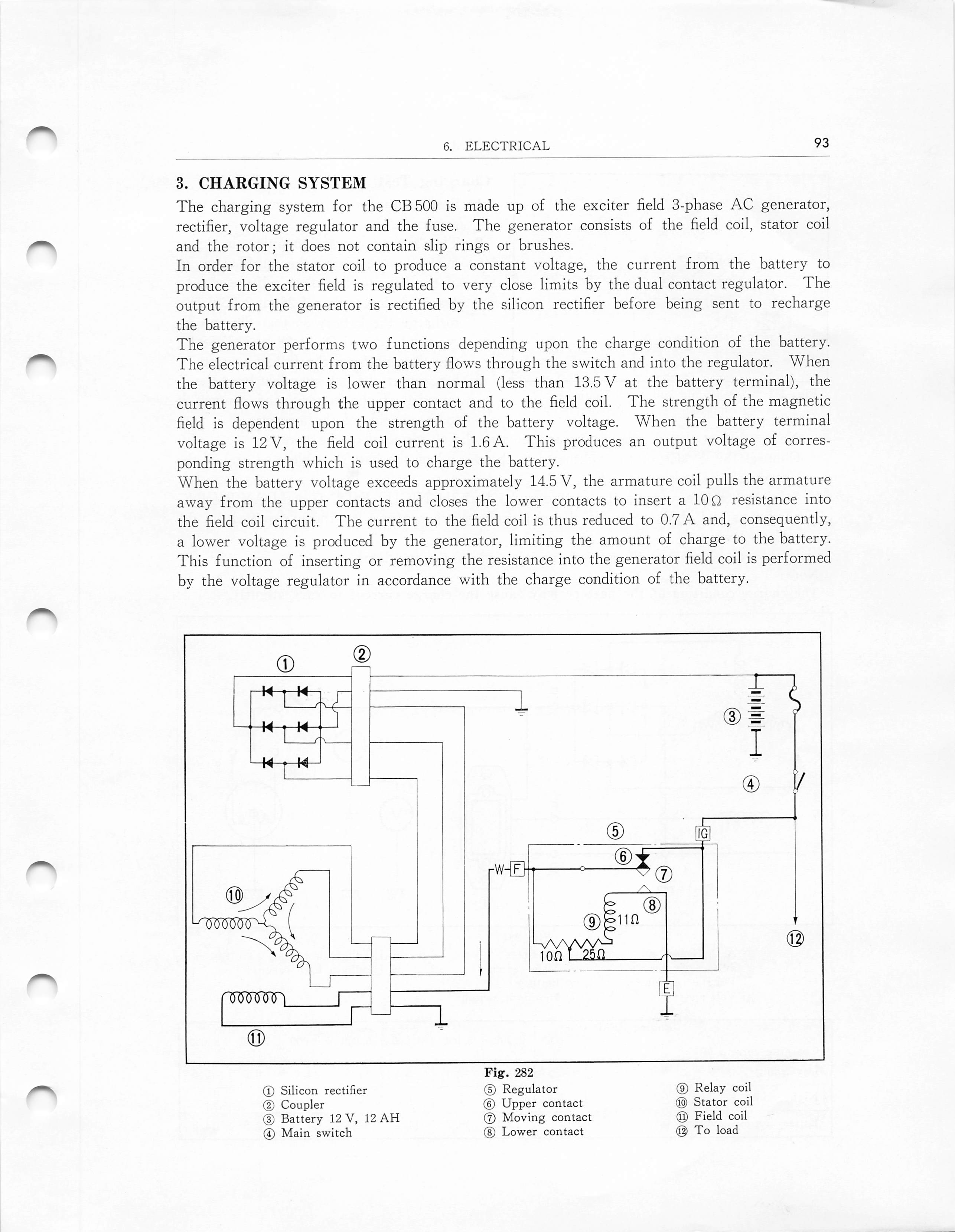

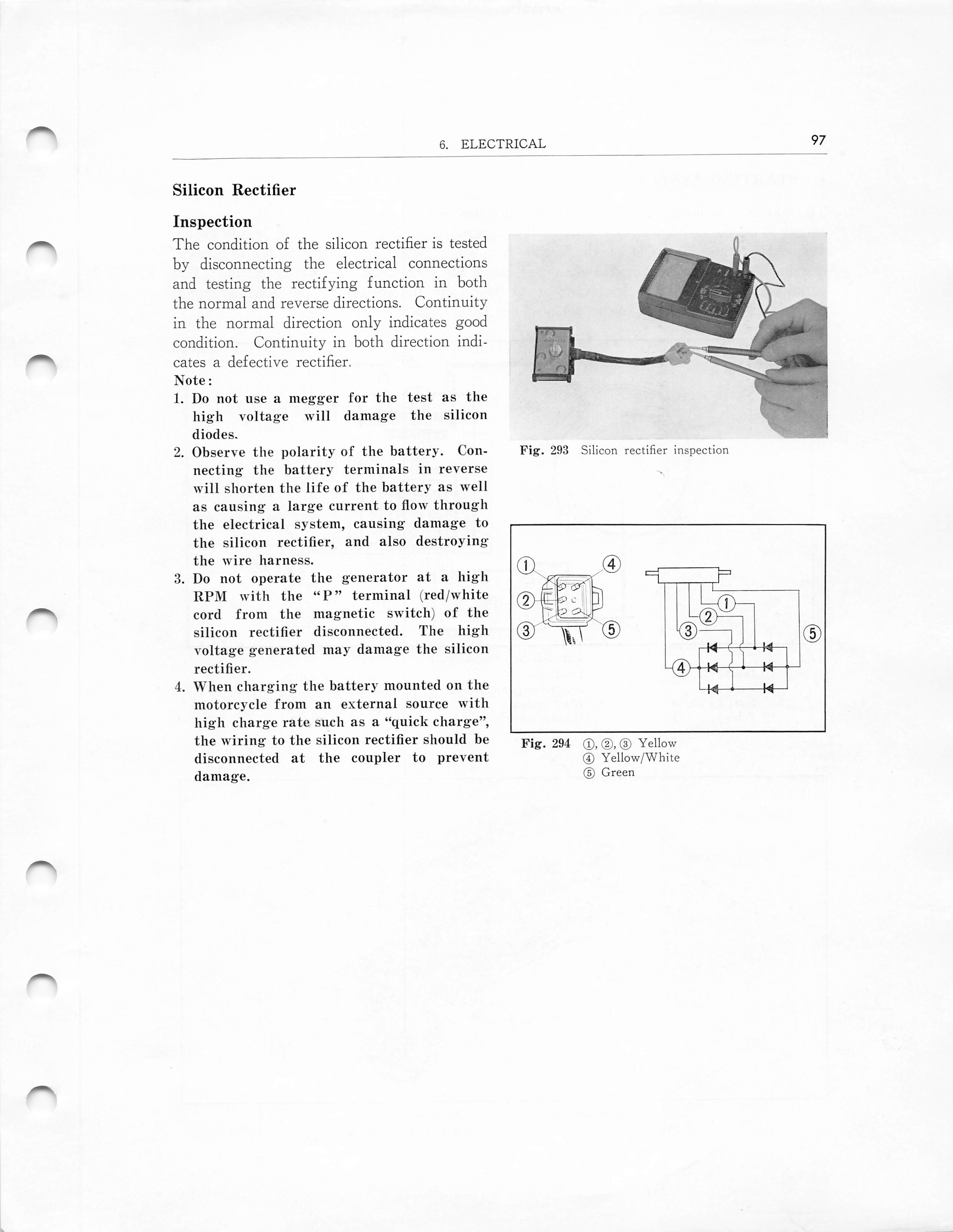

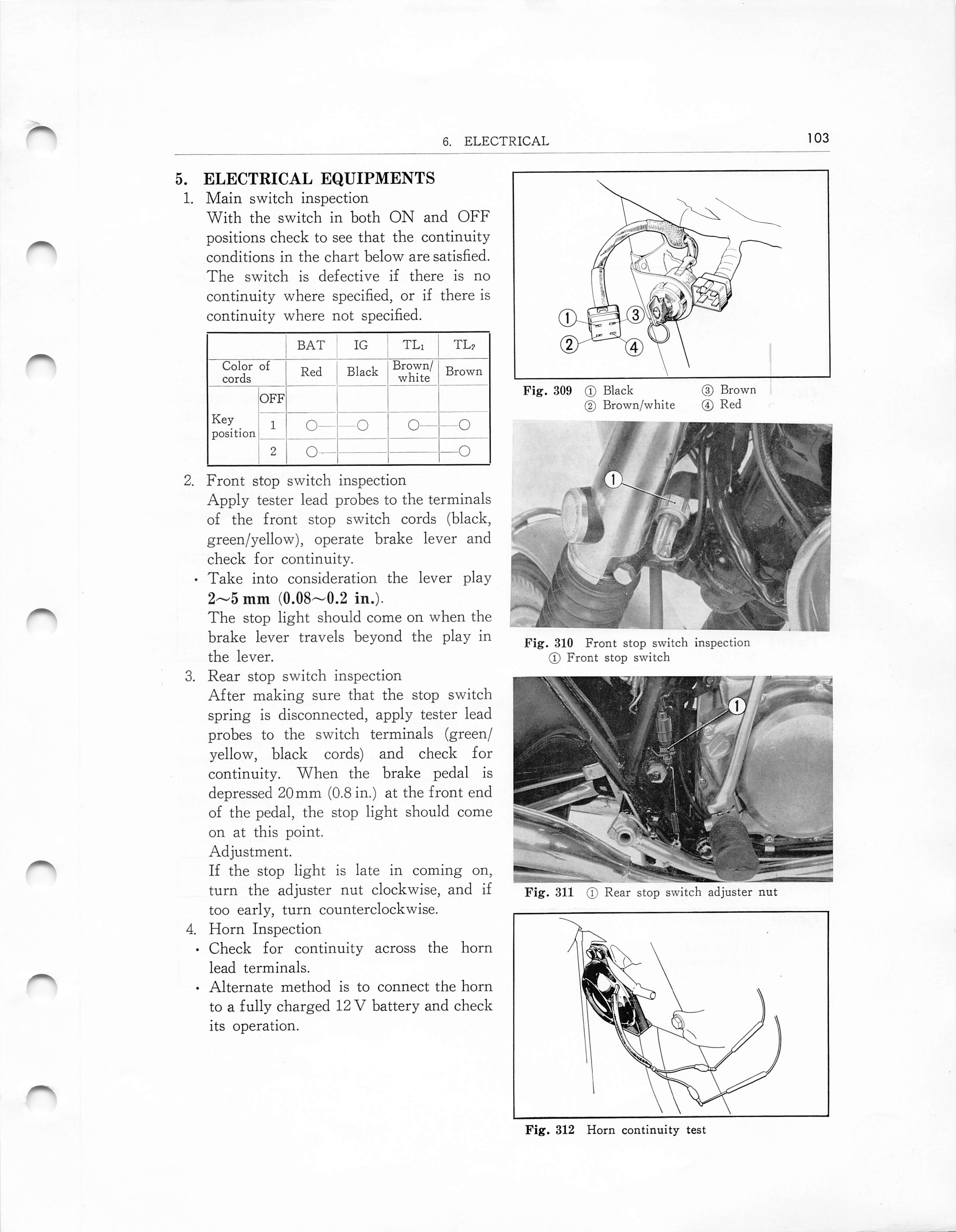

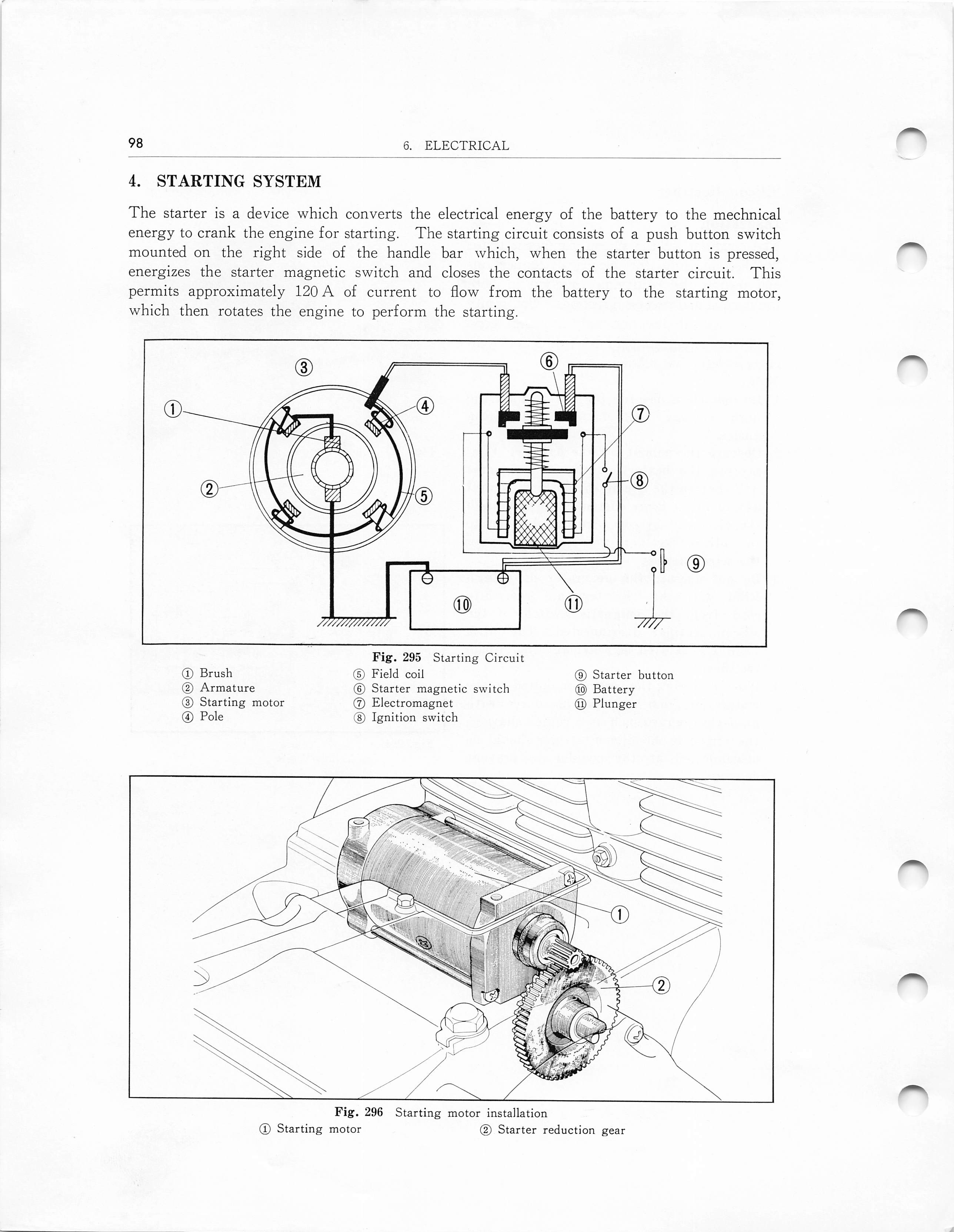

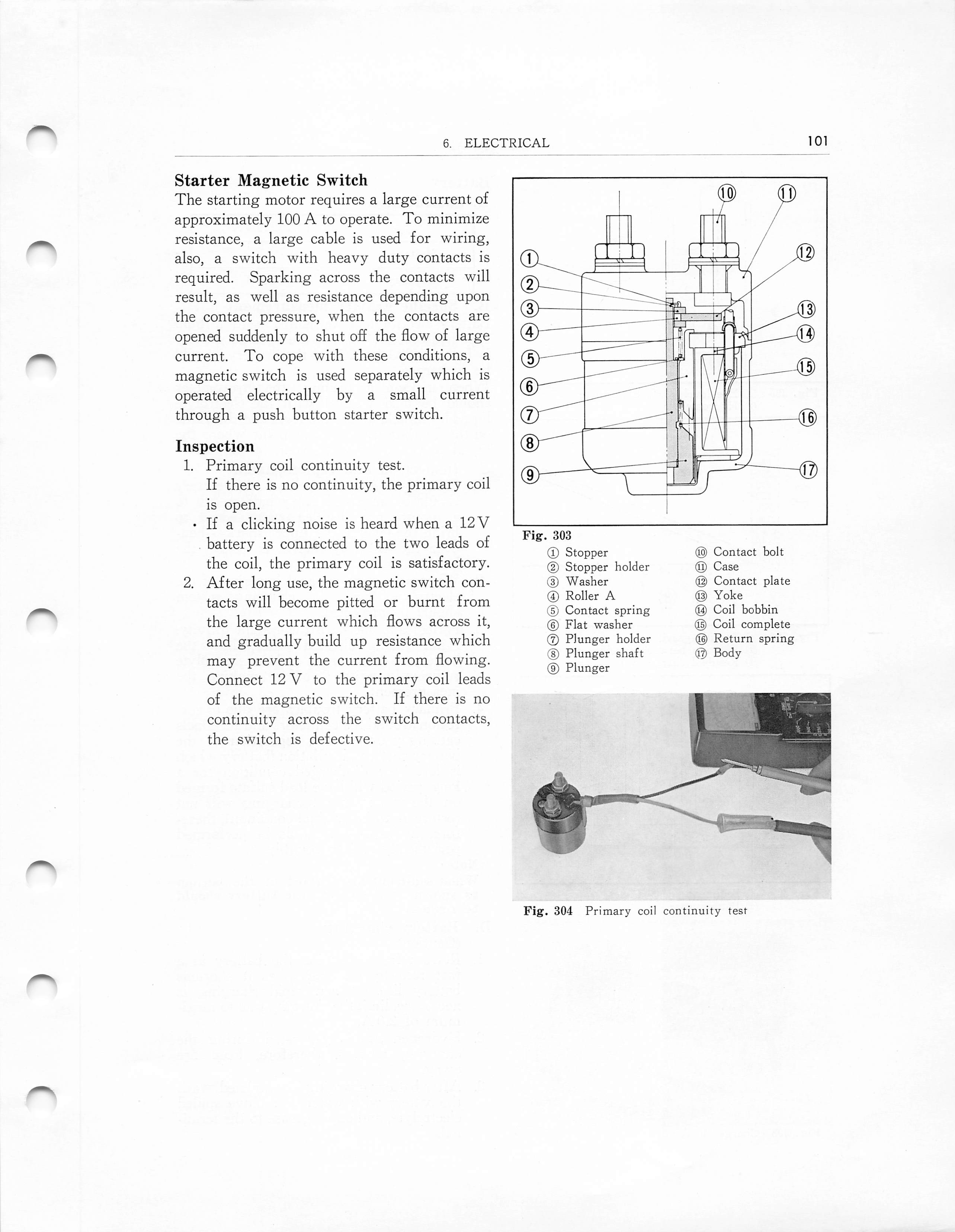

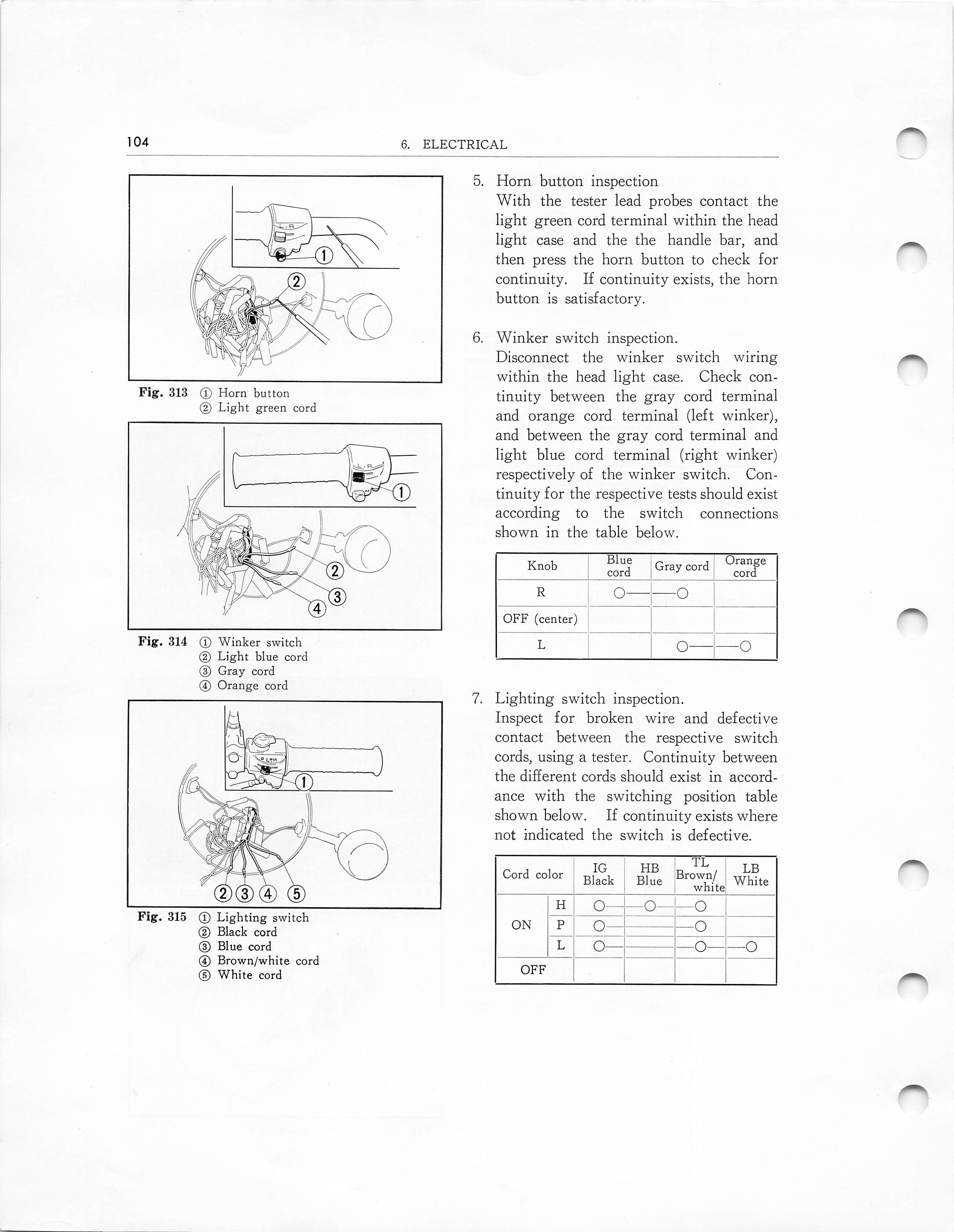

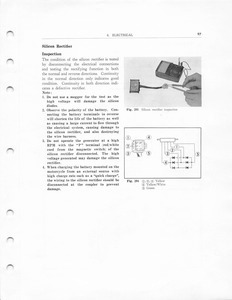

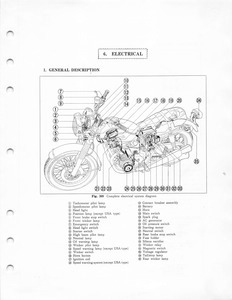

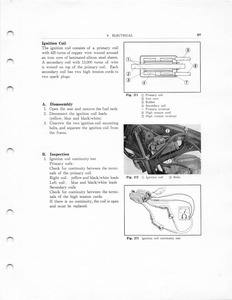

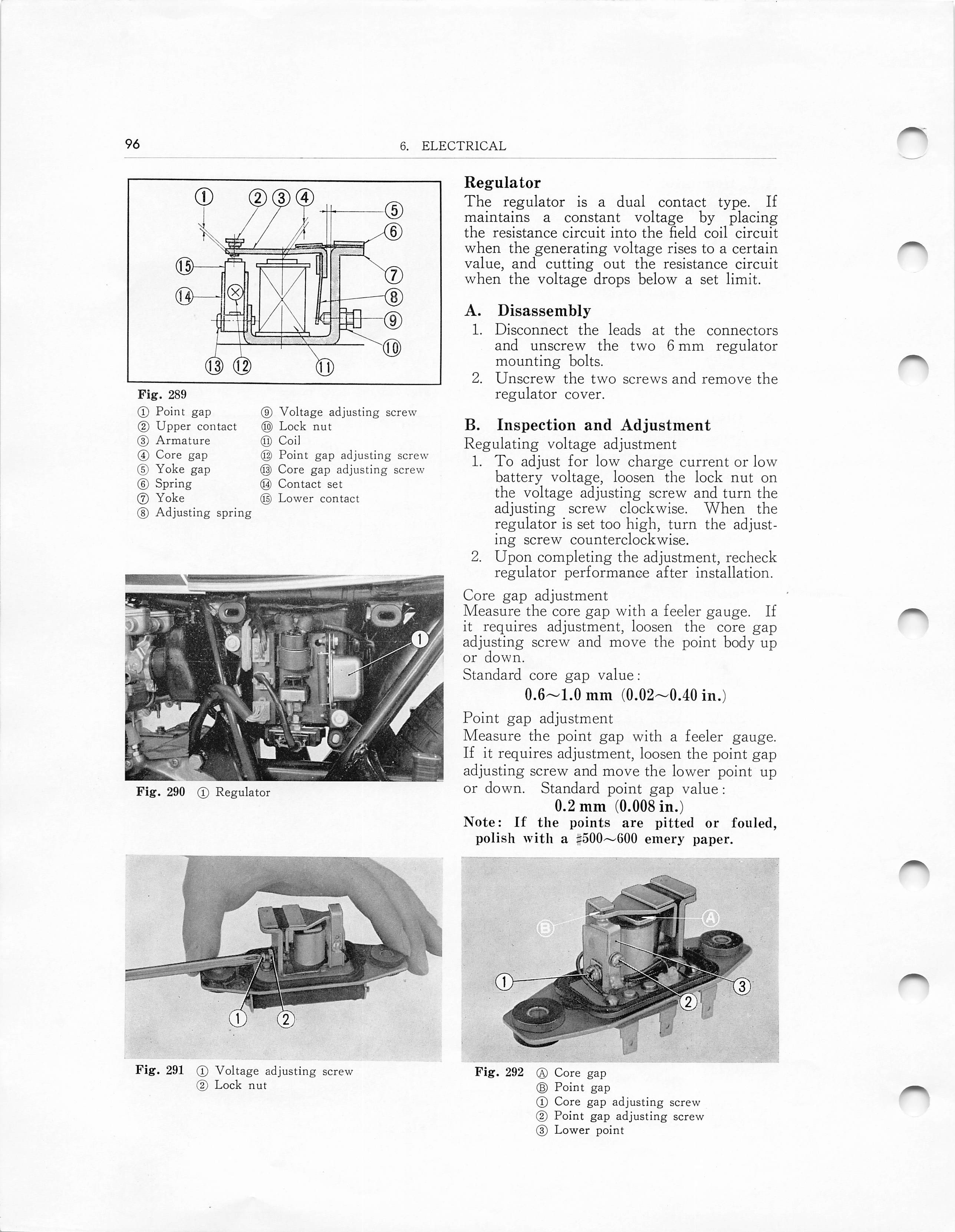

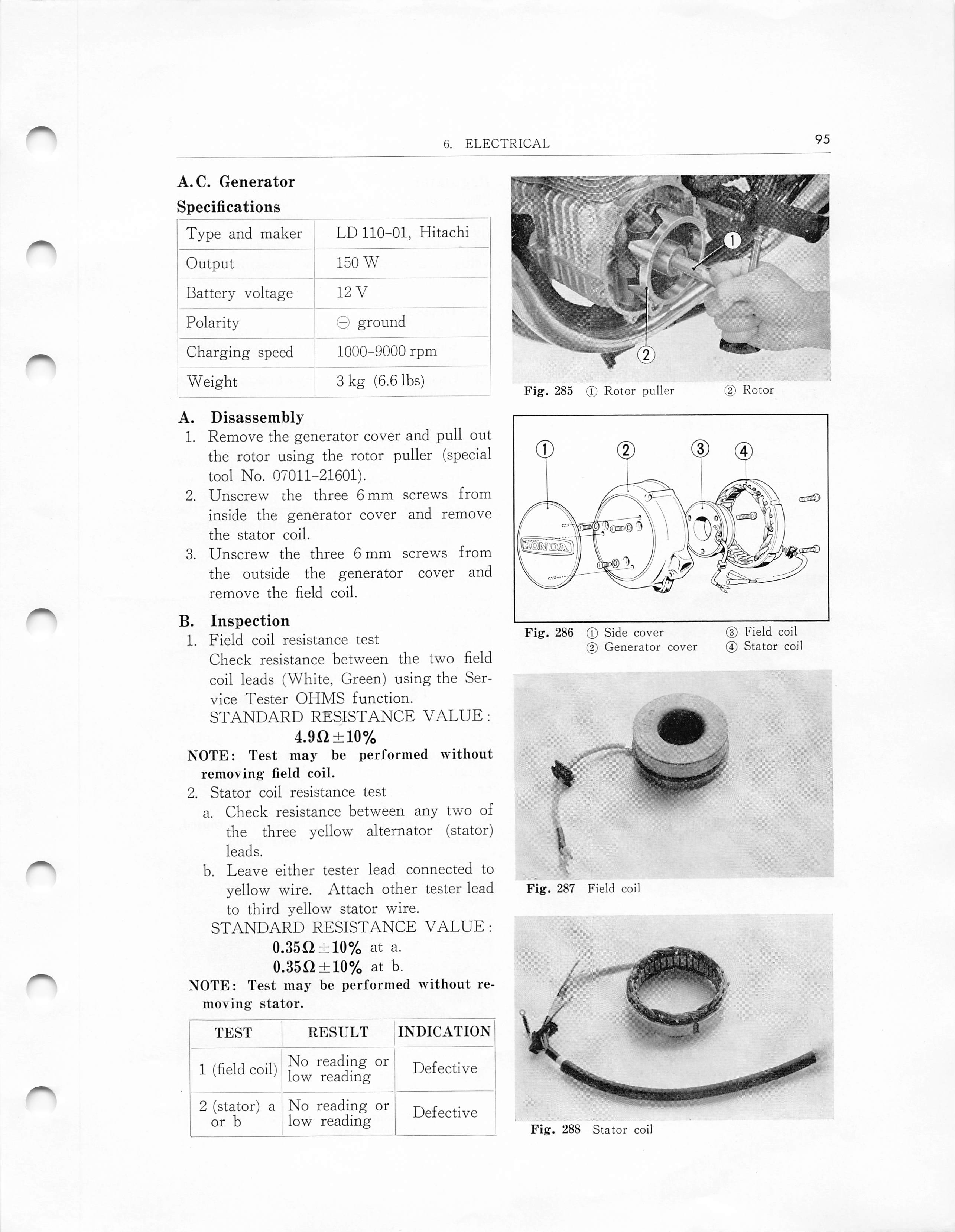

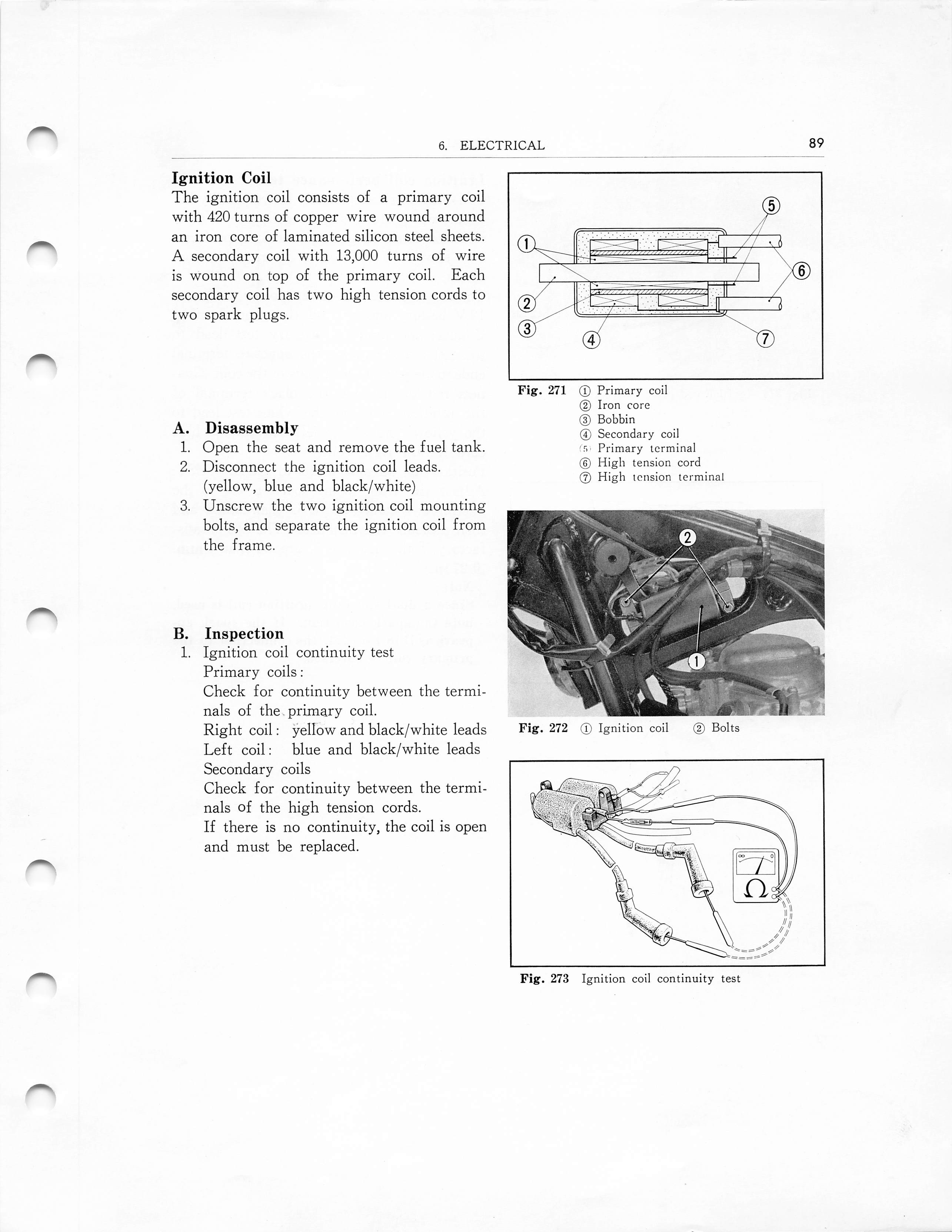

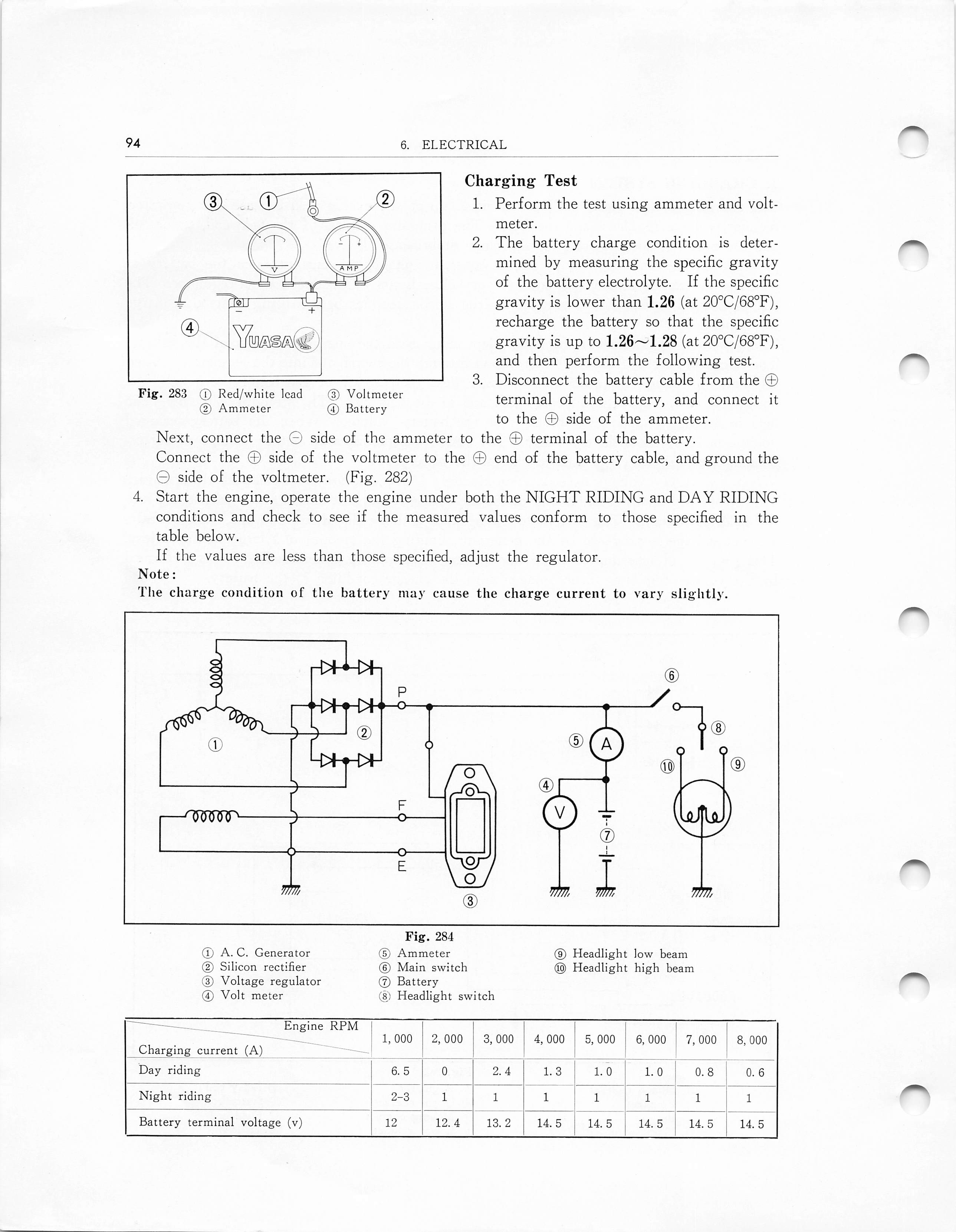

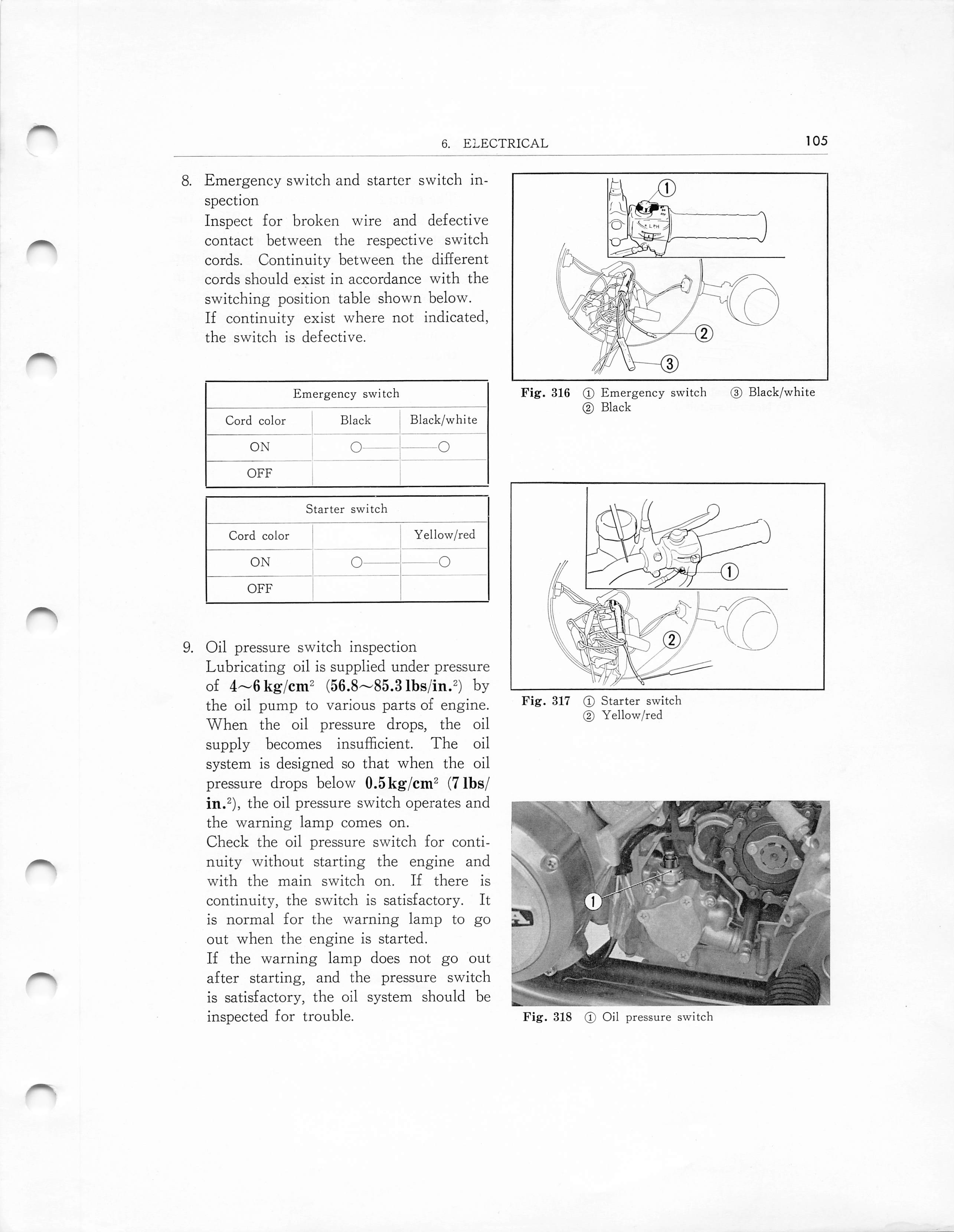

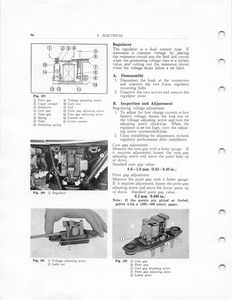

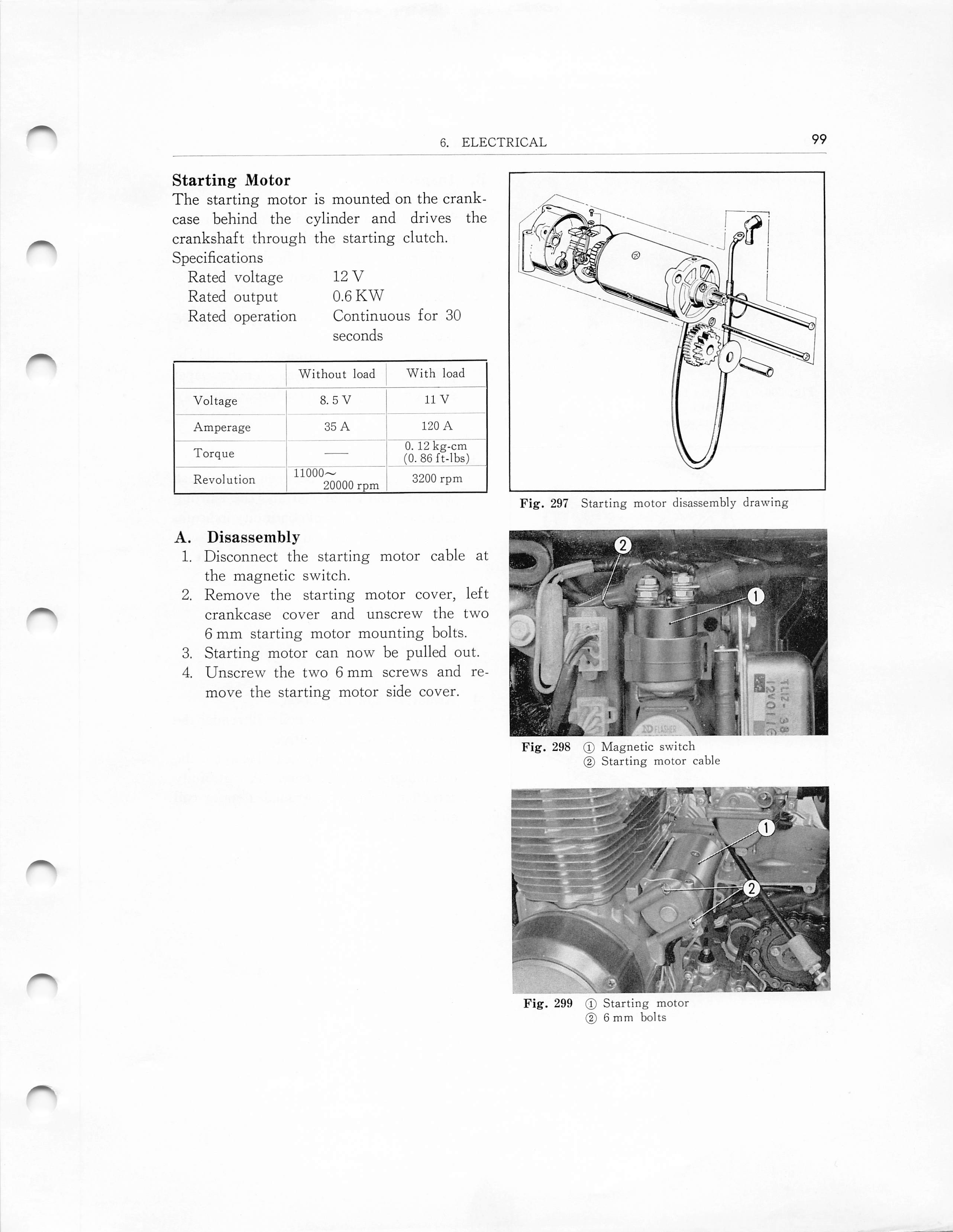

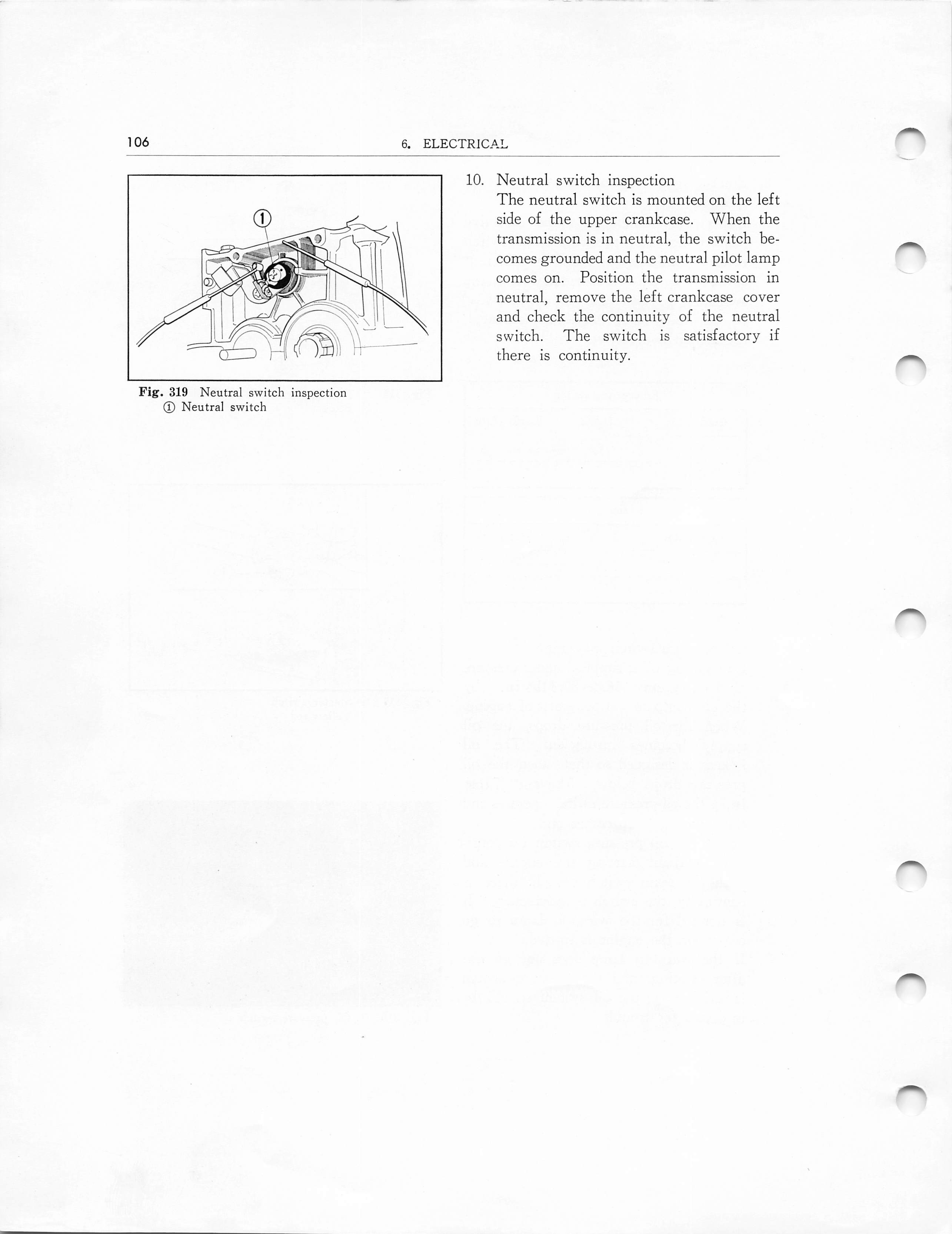

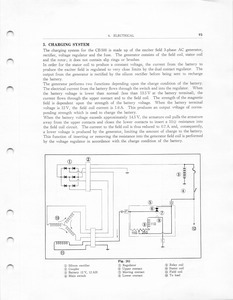

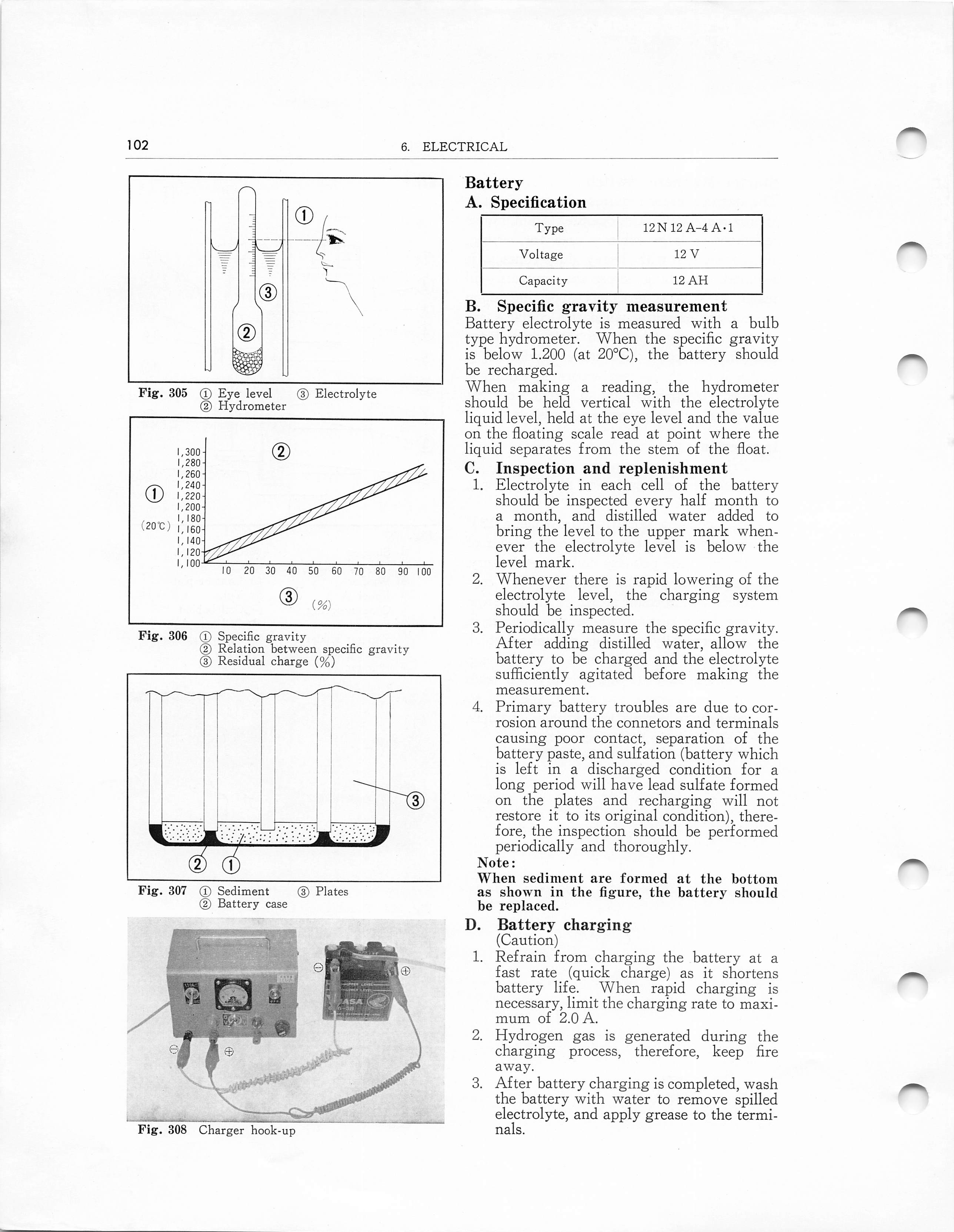

Electrical

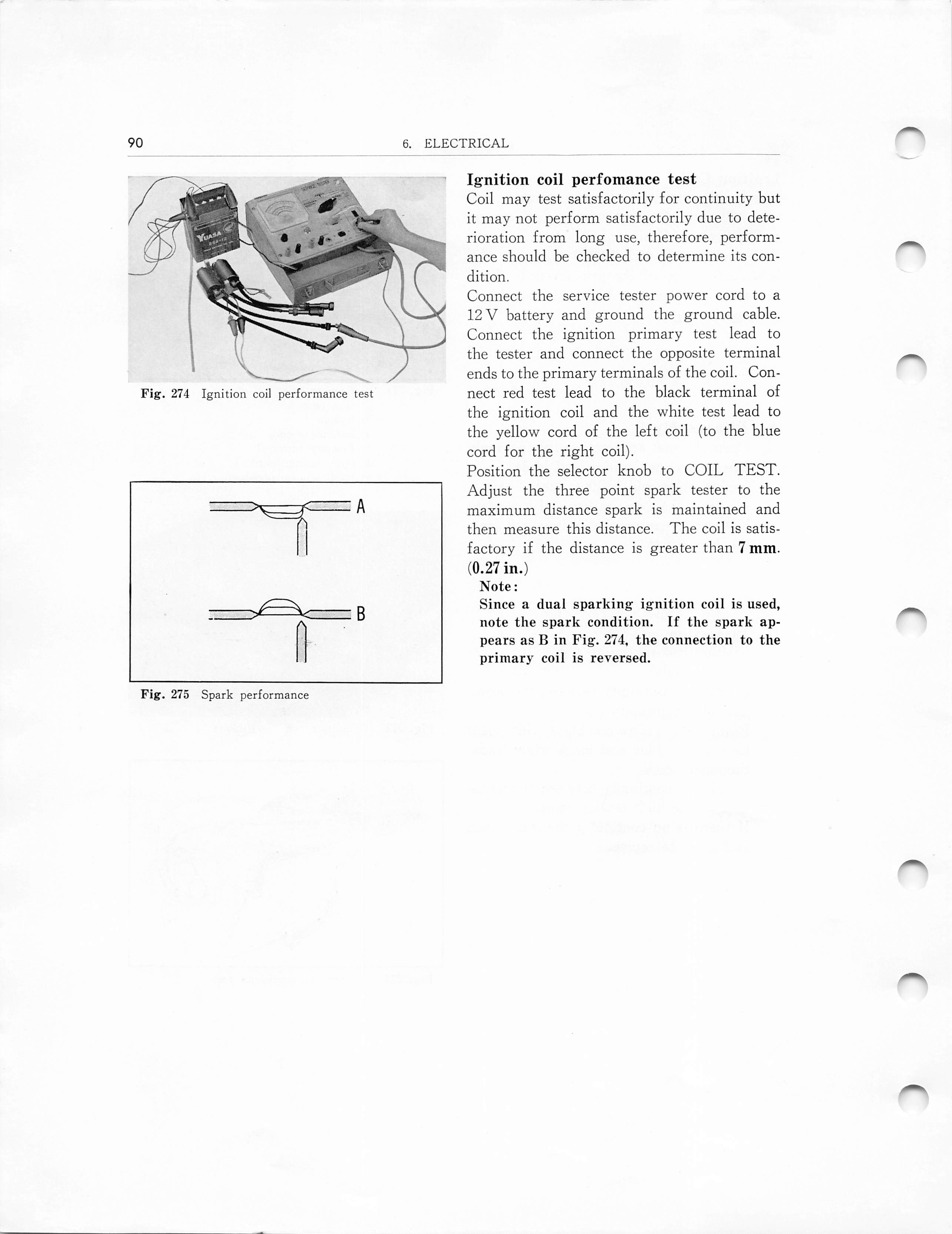

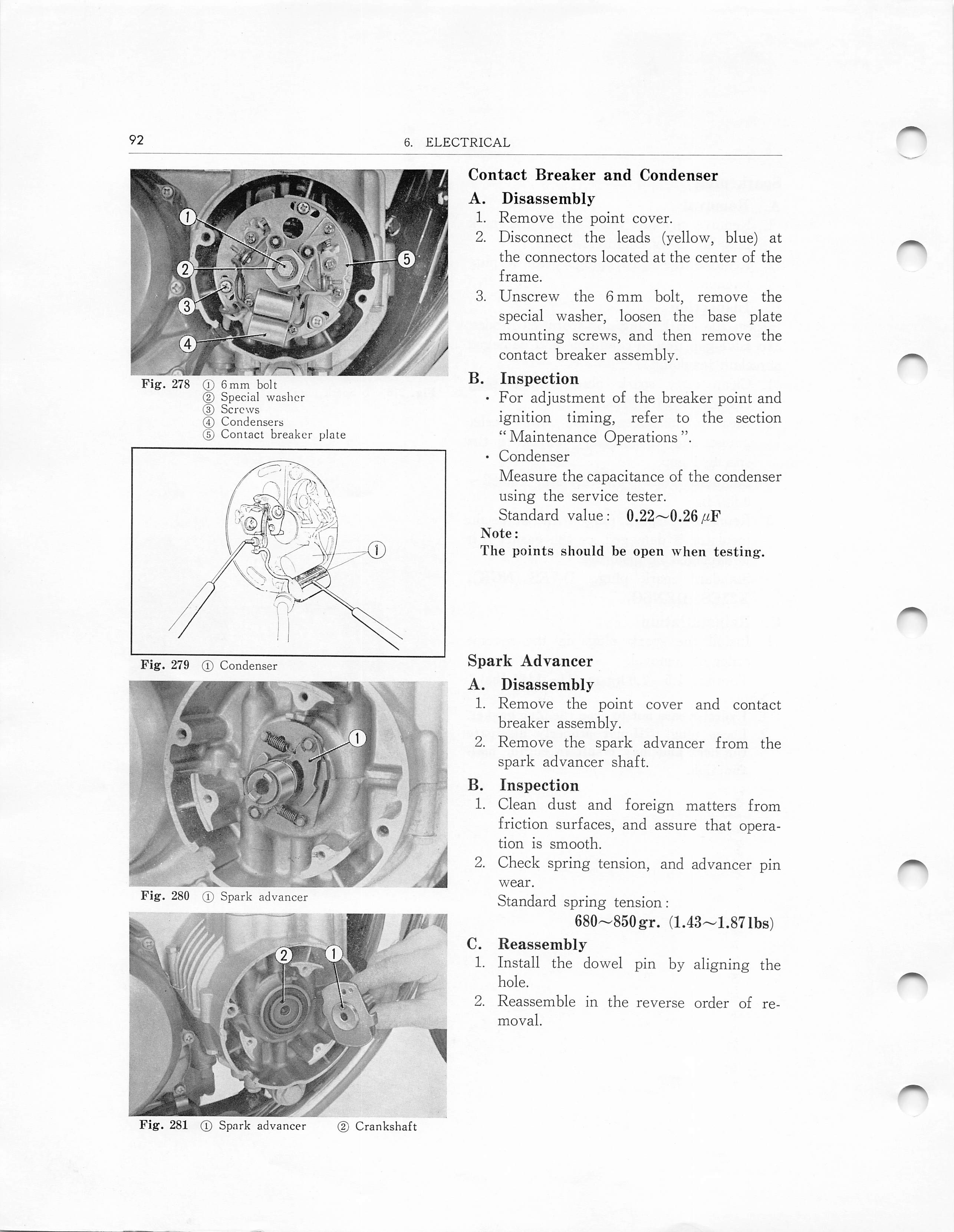

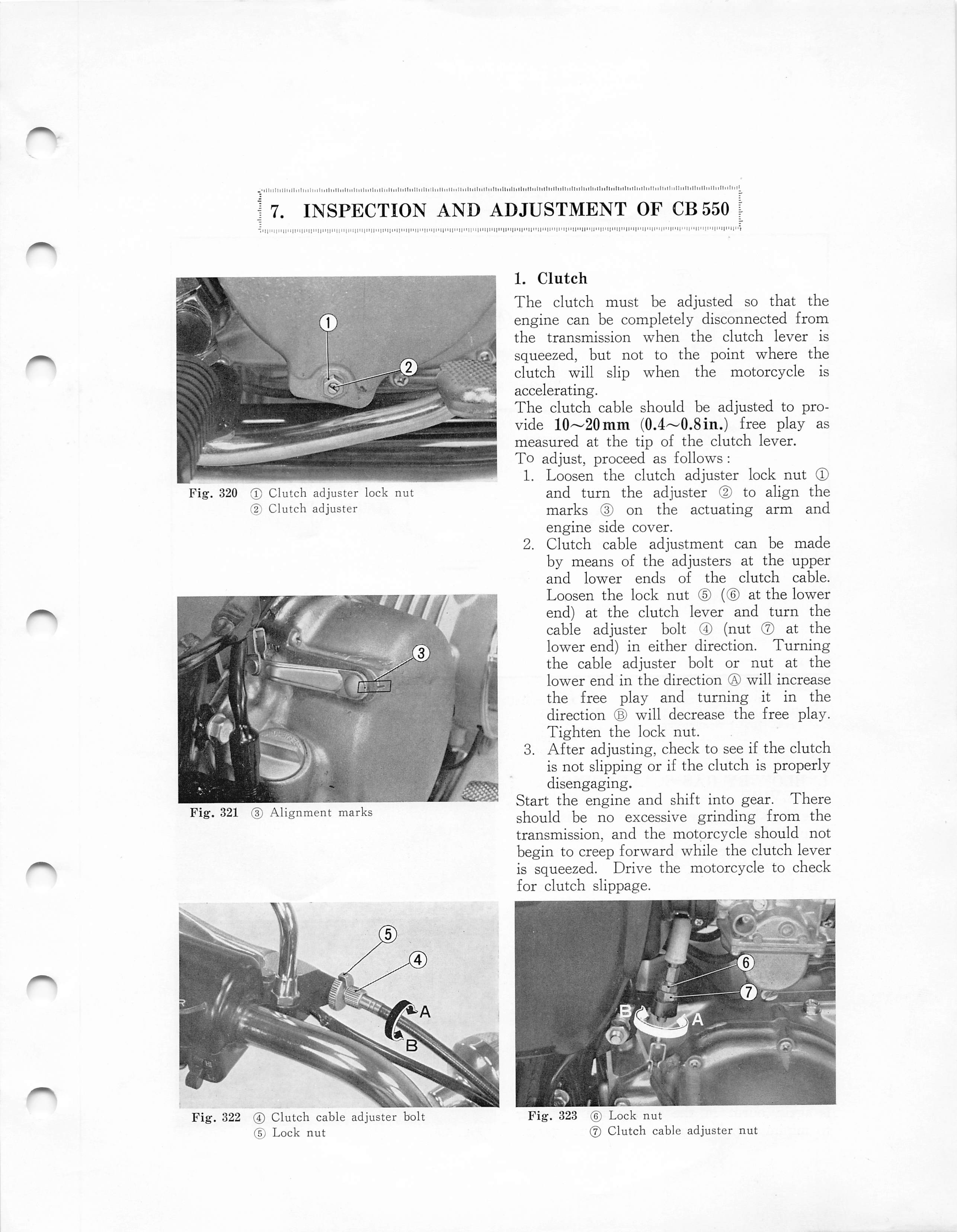

Inspection and Adjustment of CB550

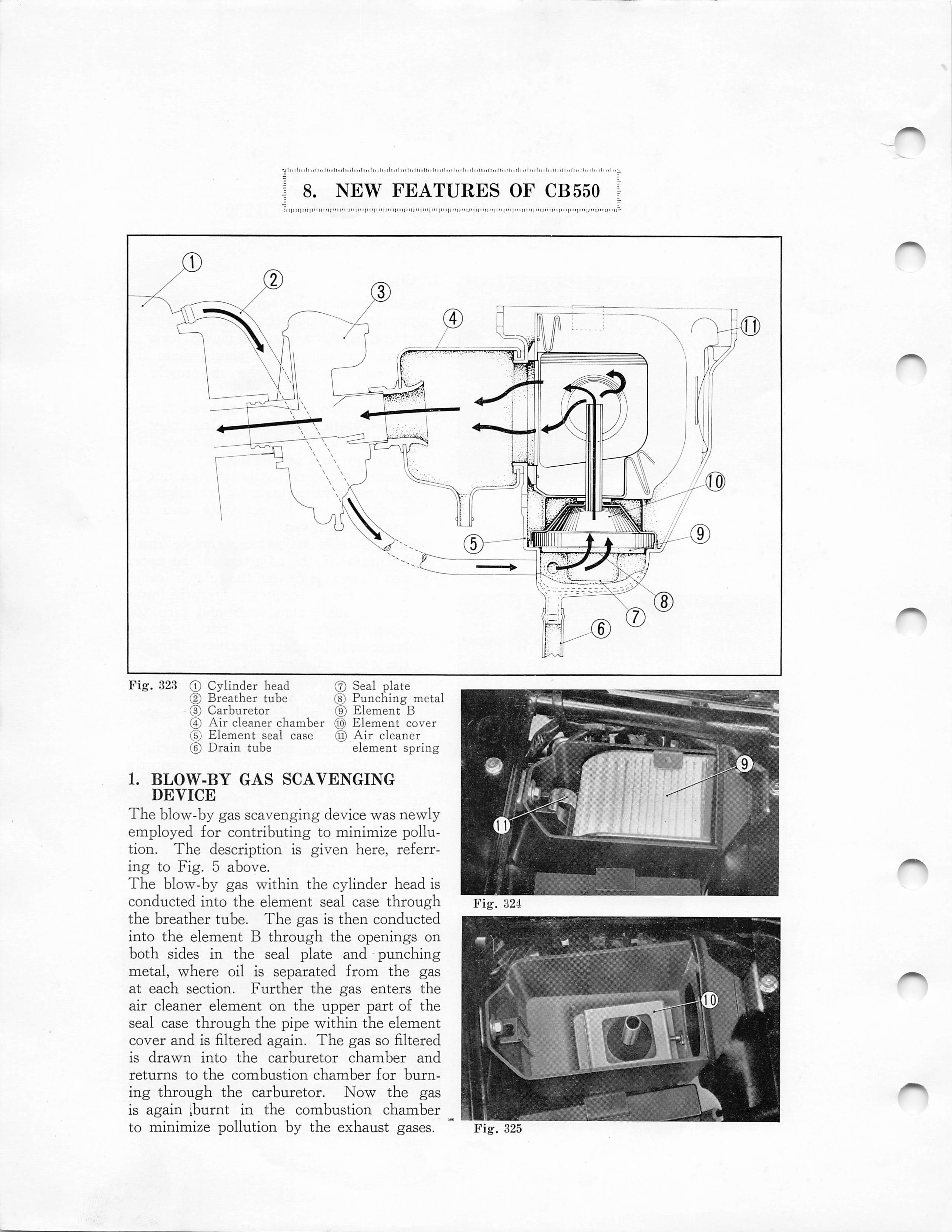

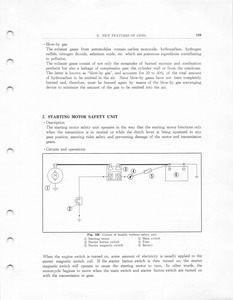

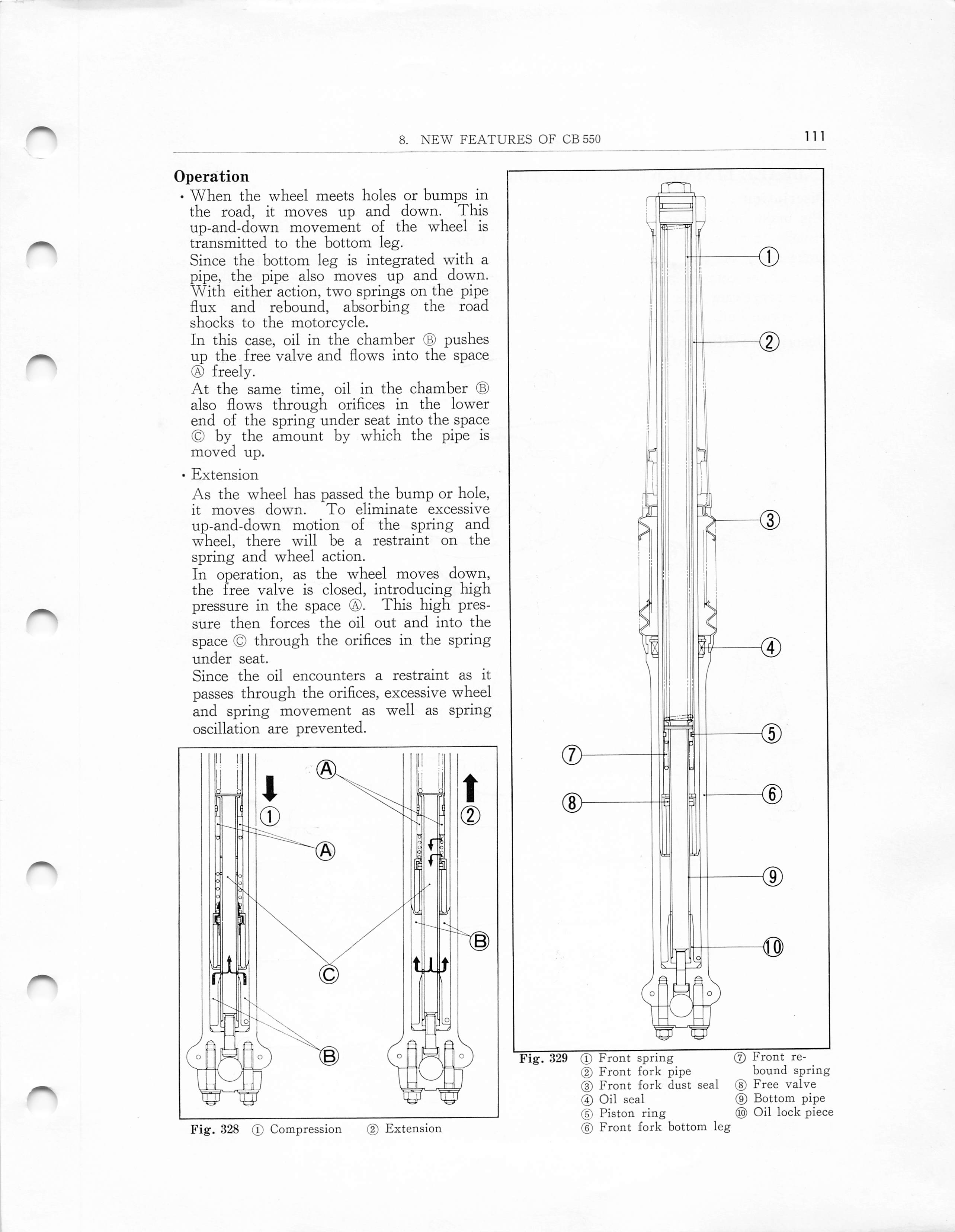

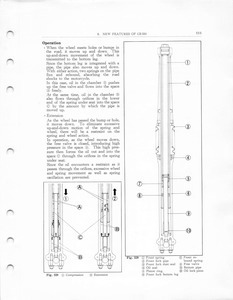

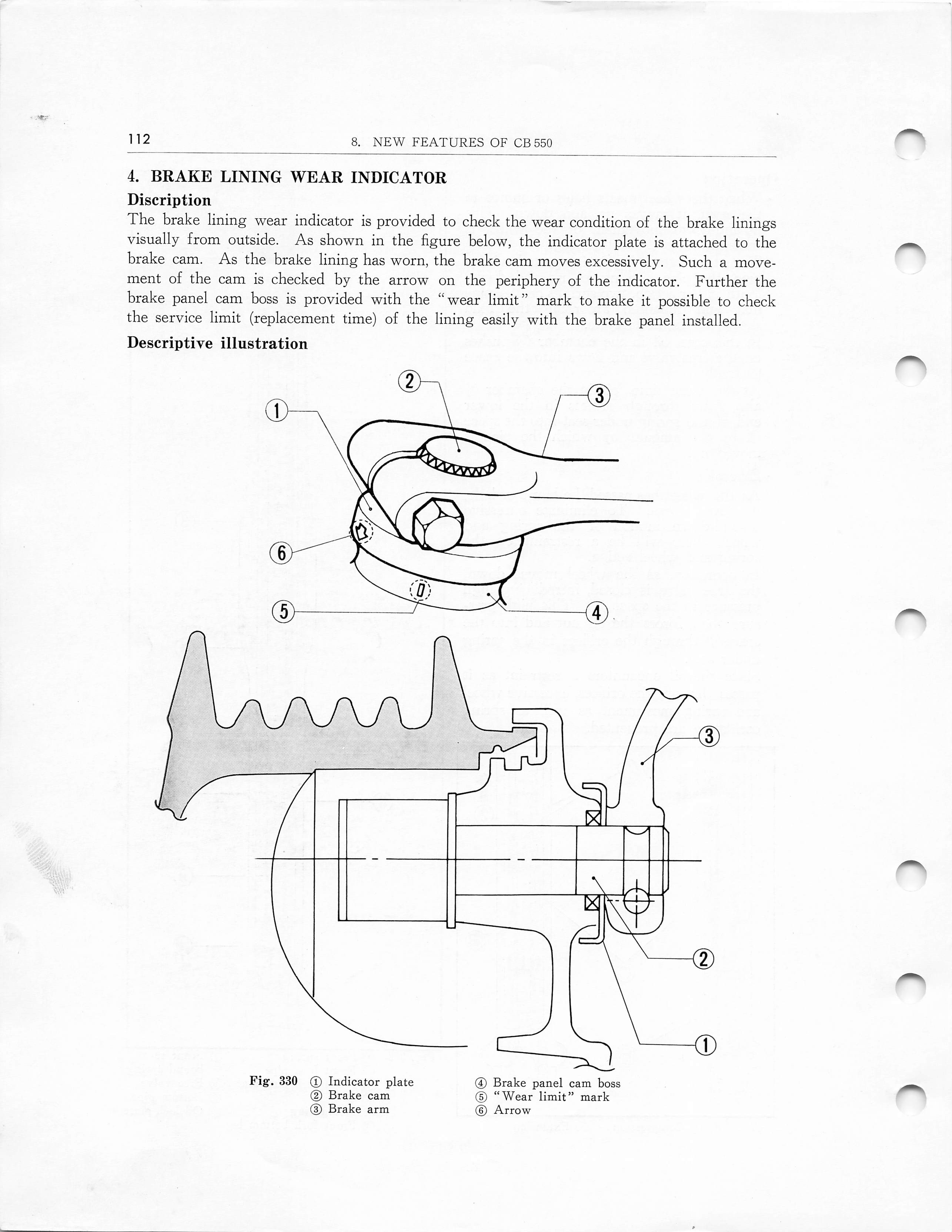

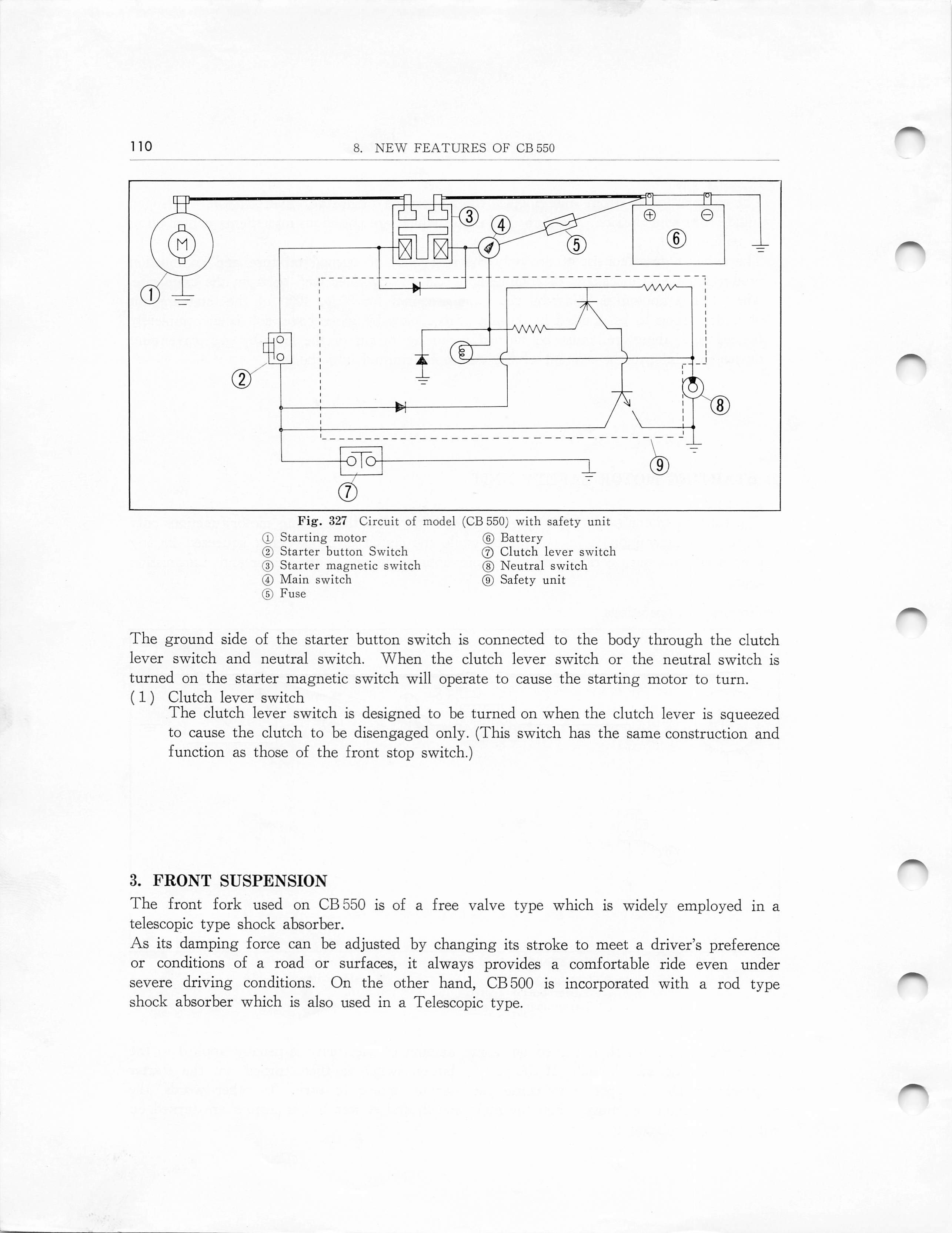

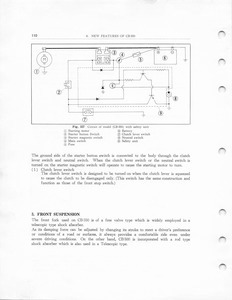

New Features of CB550

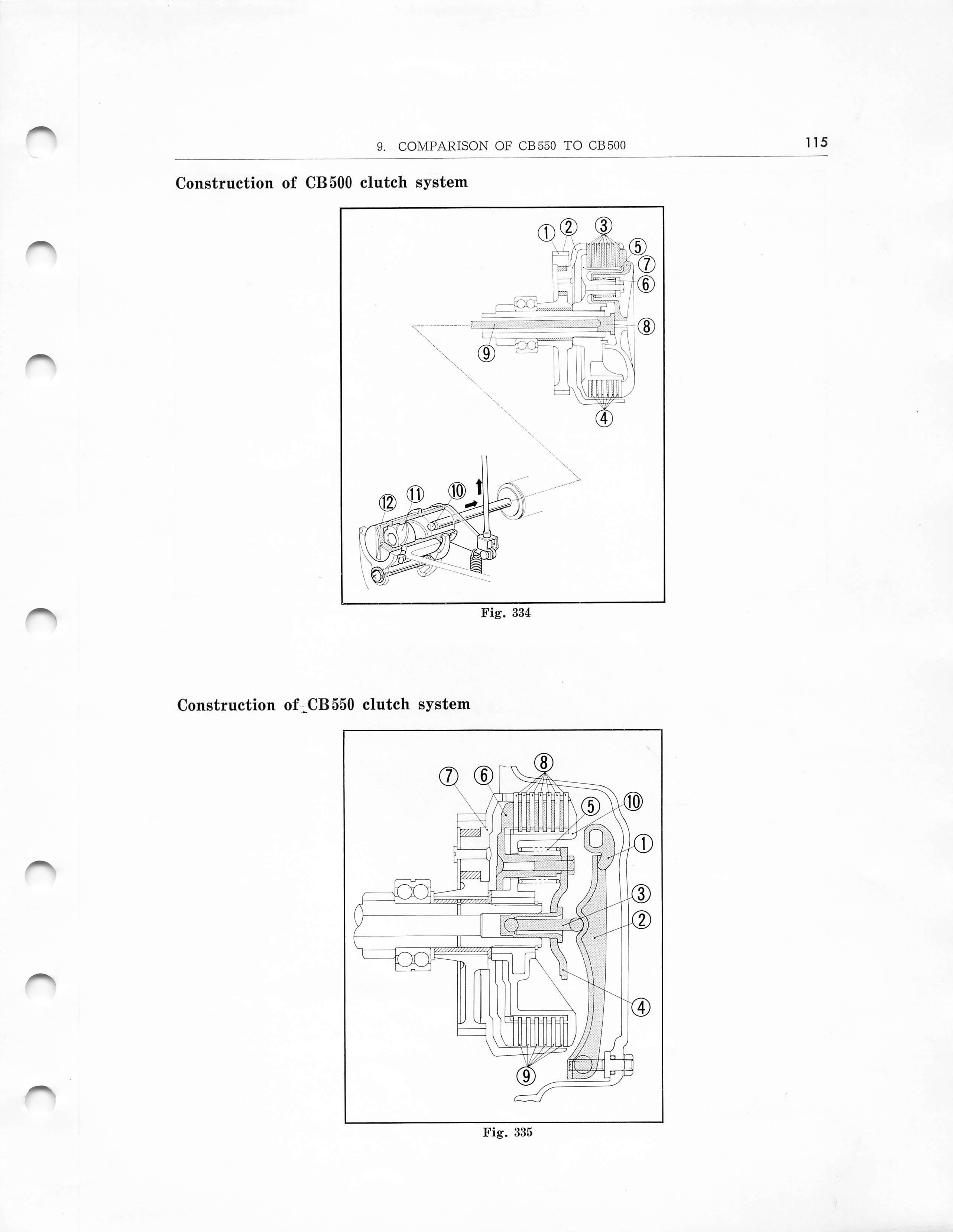

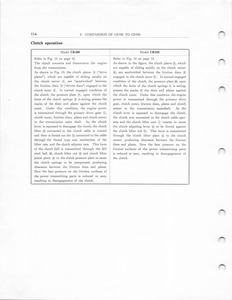

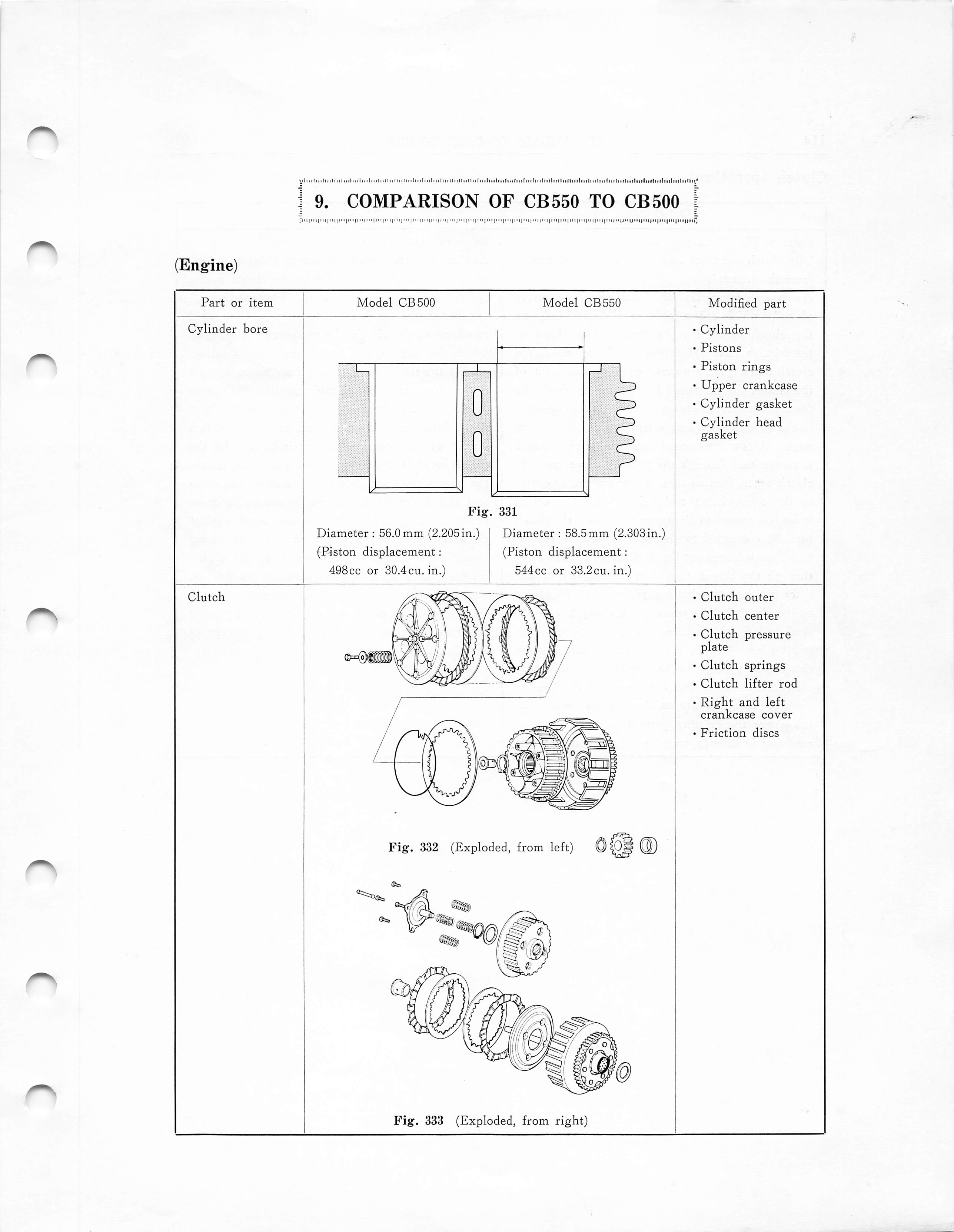

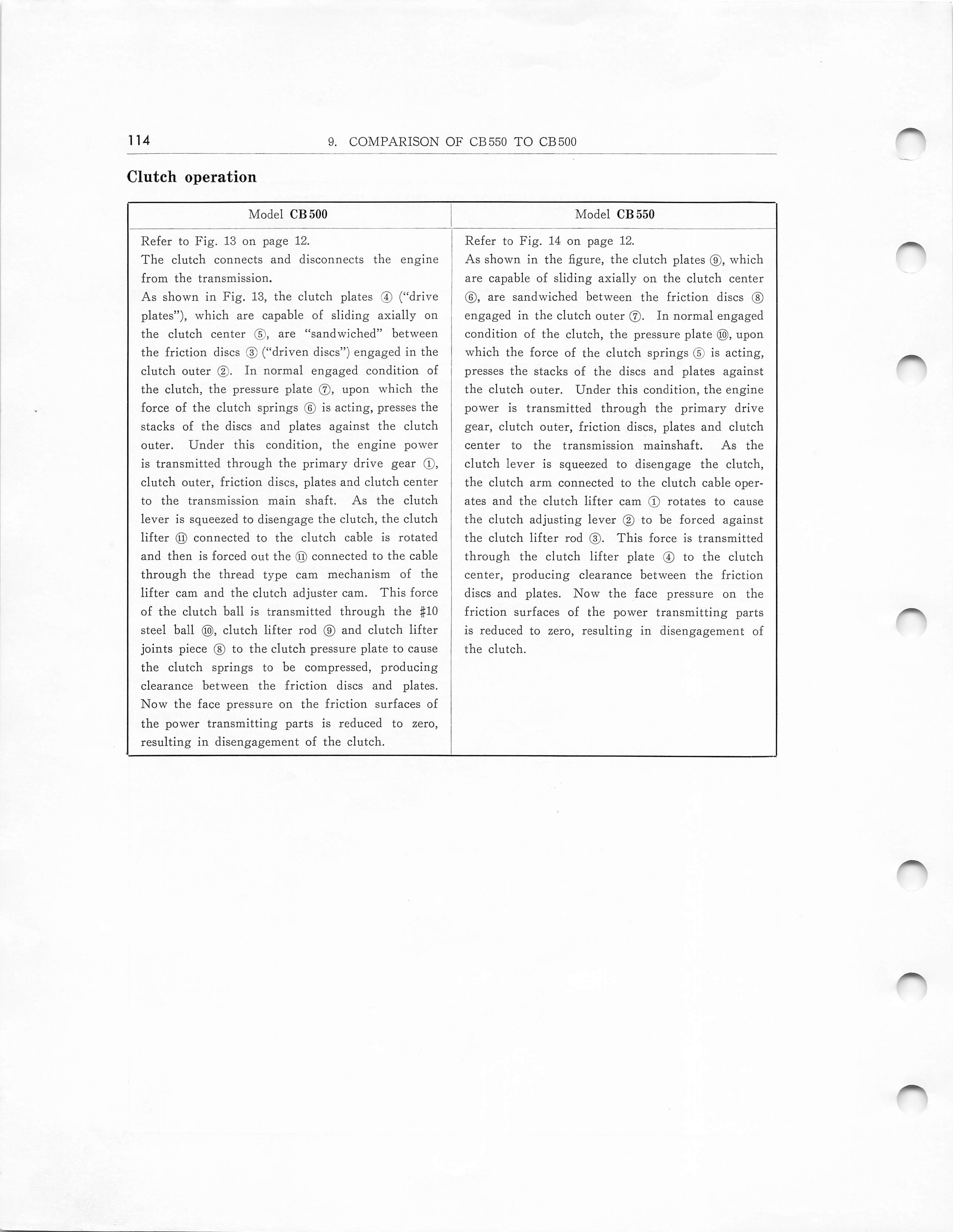

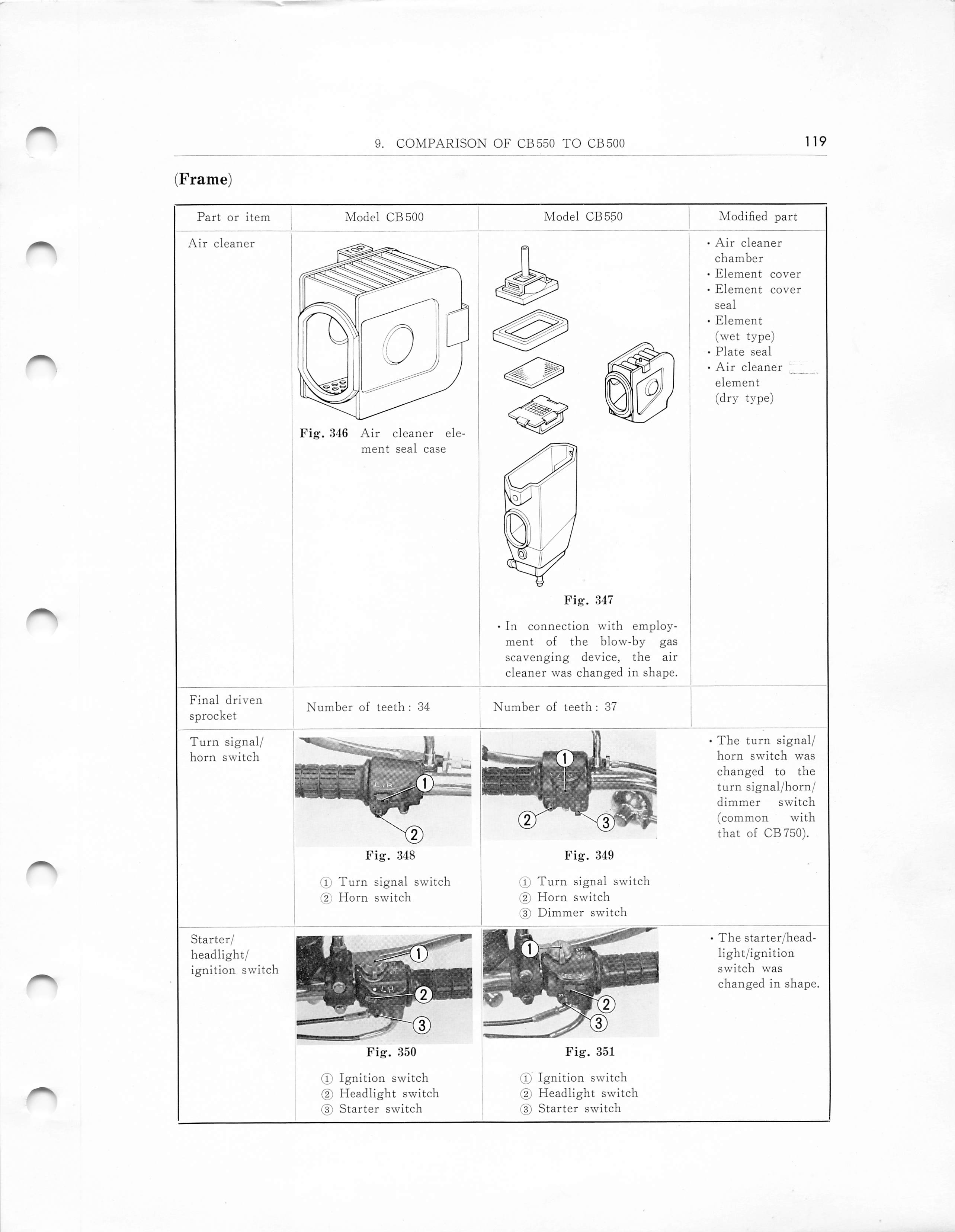

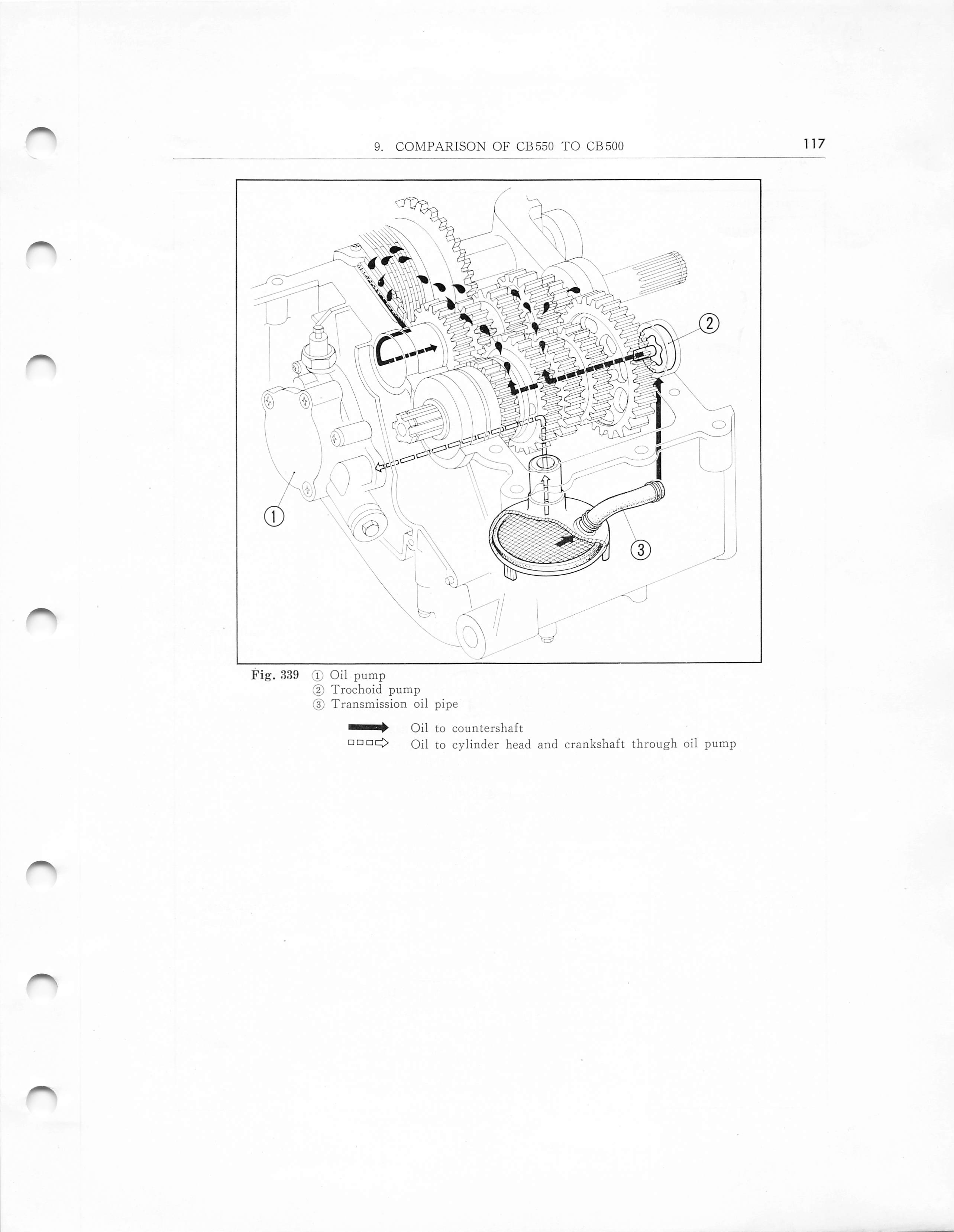

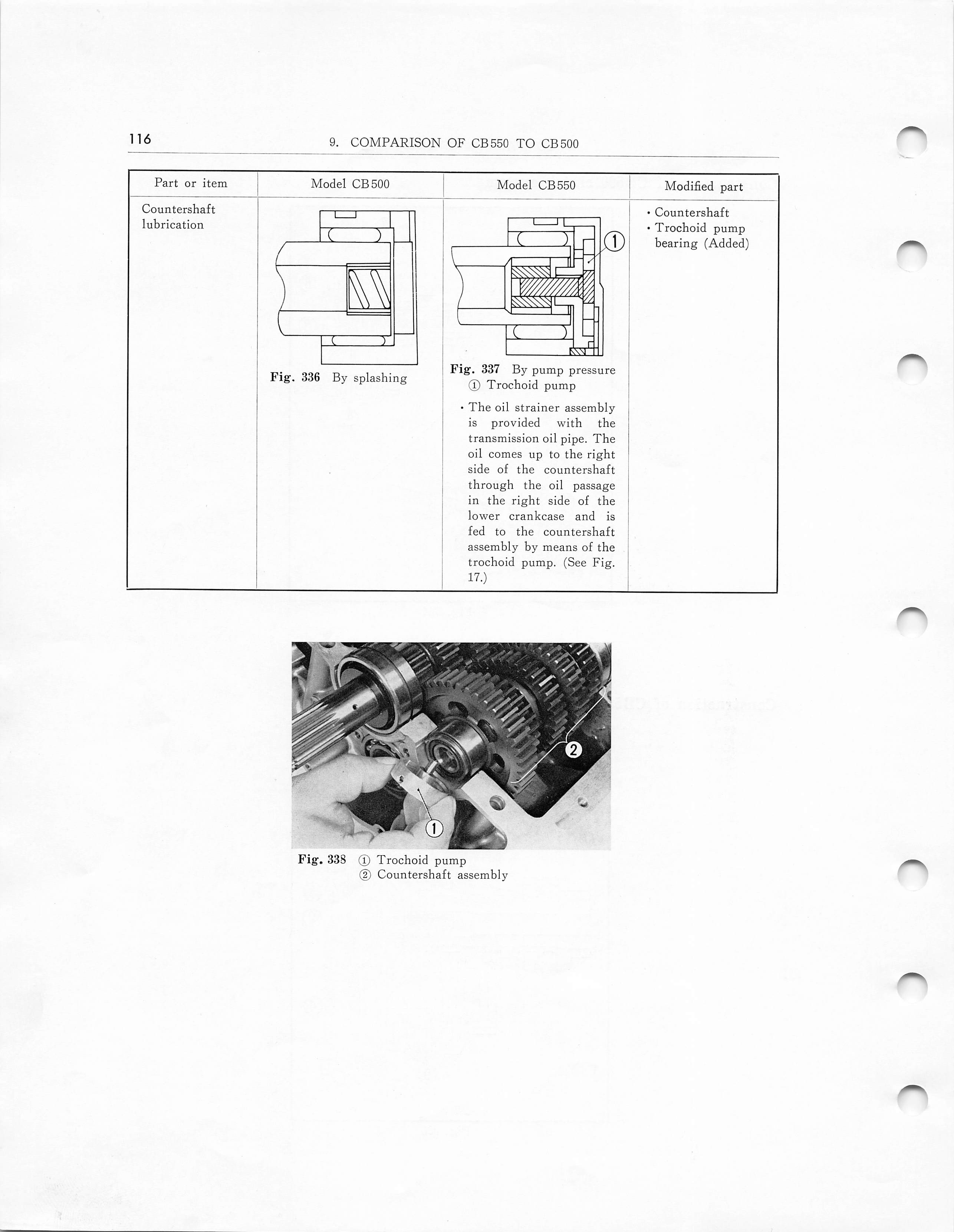

Comparison of CB550 to CB500

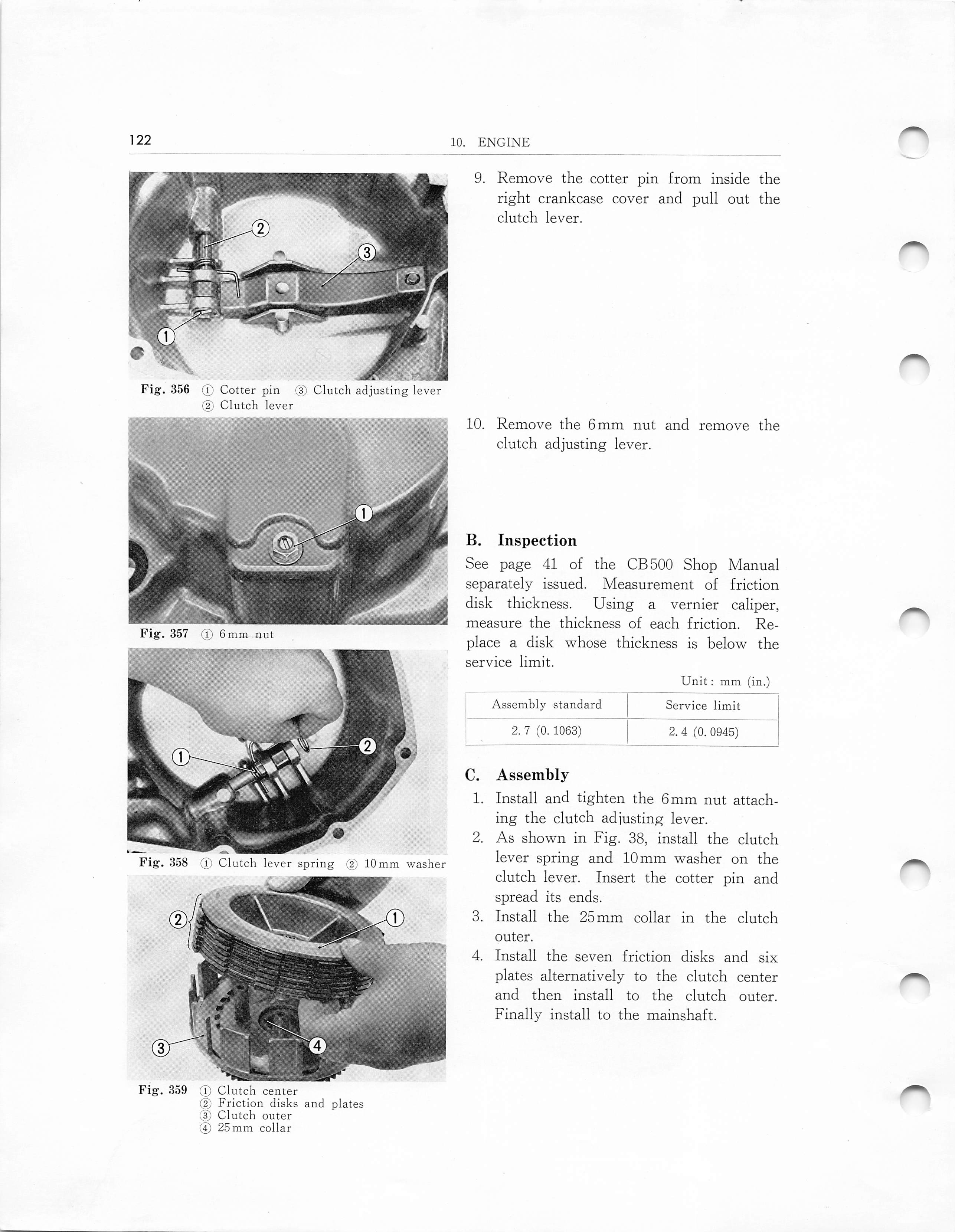

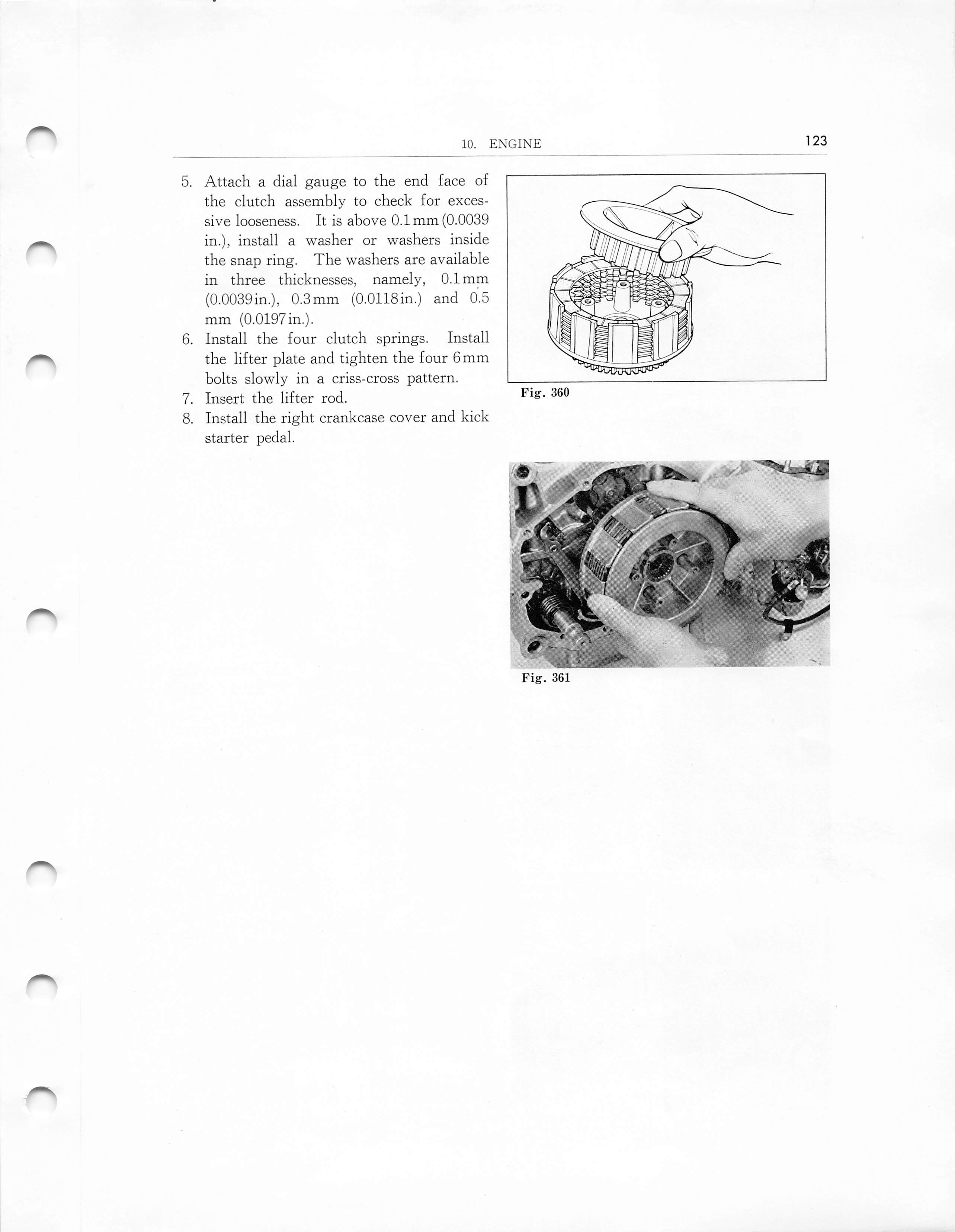

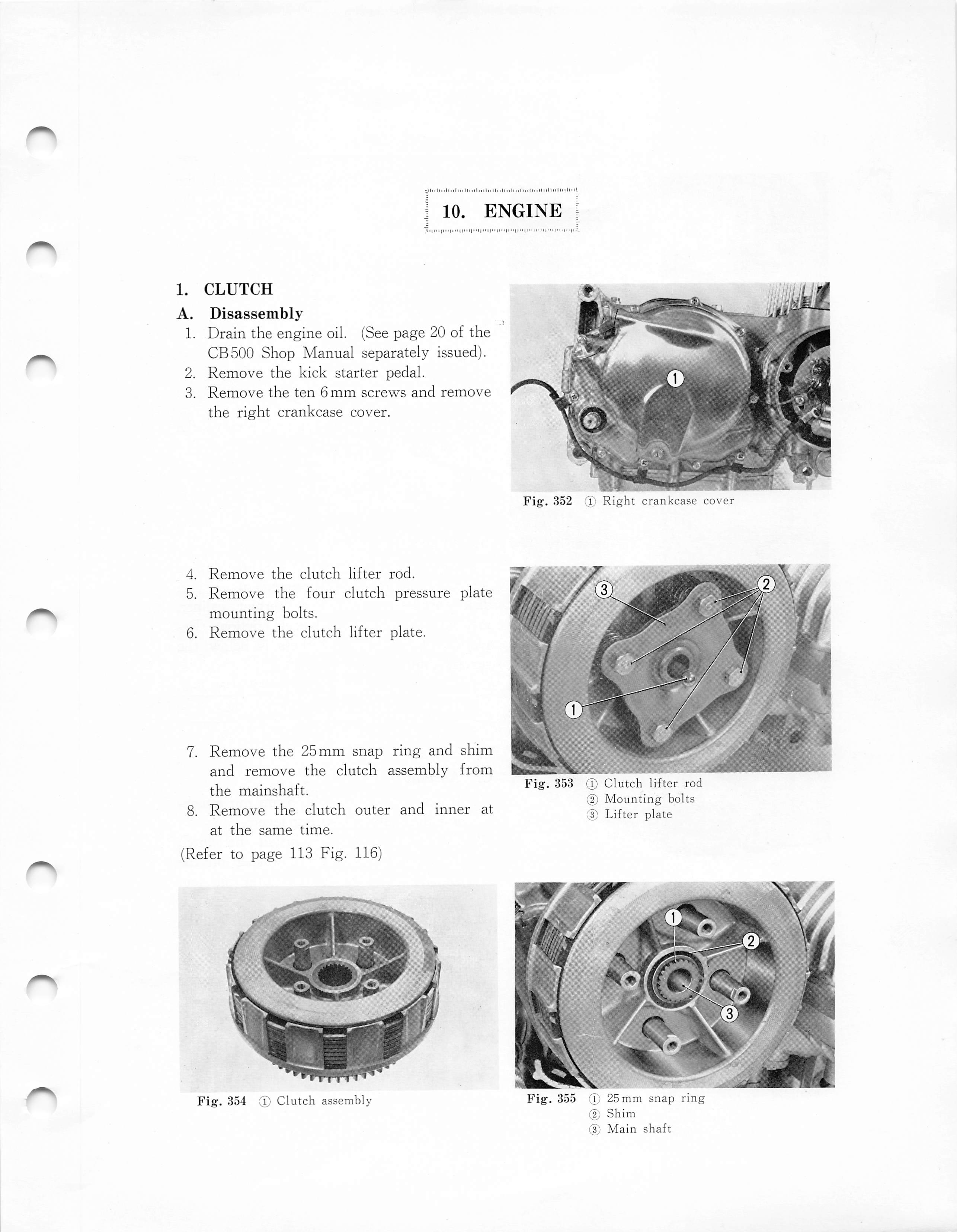

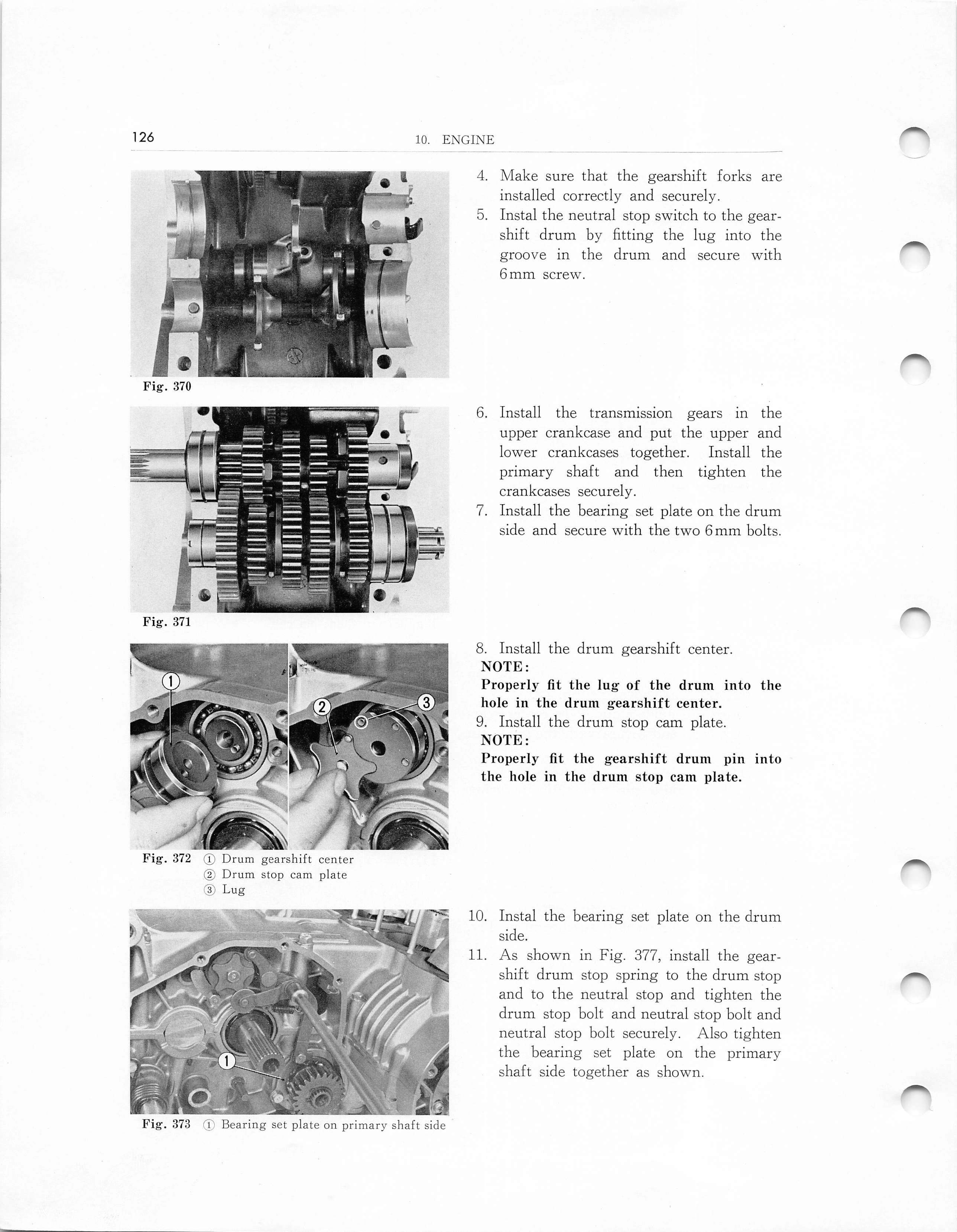

Engine

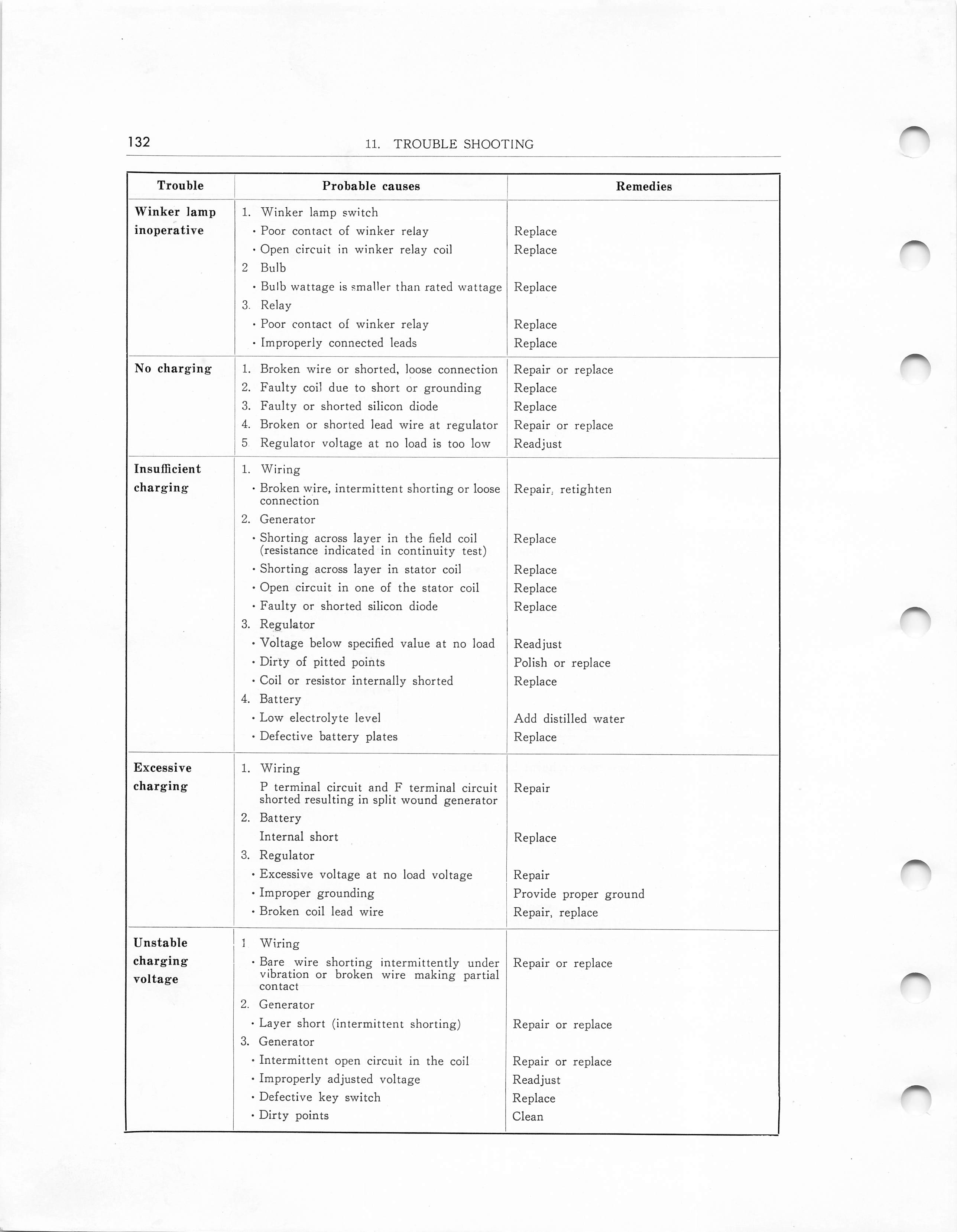

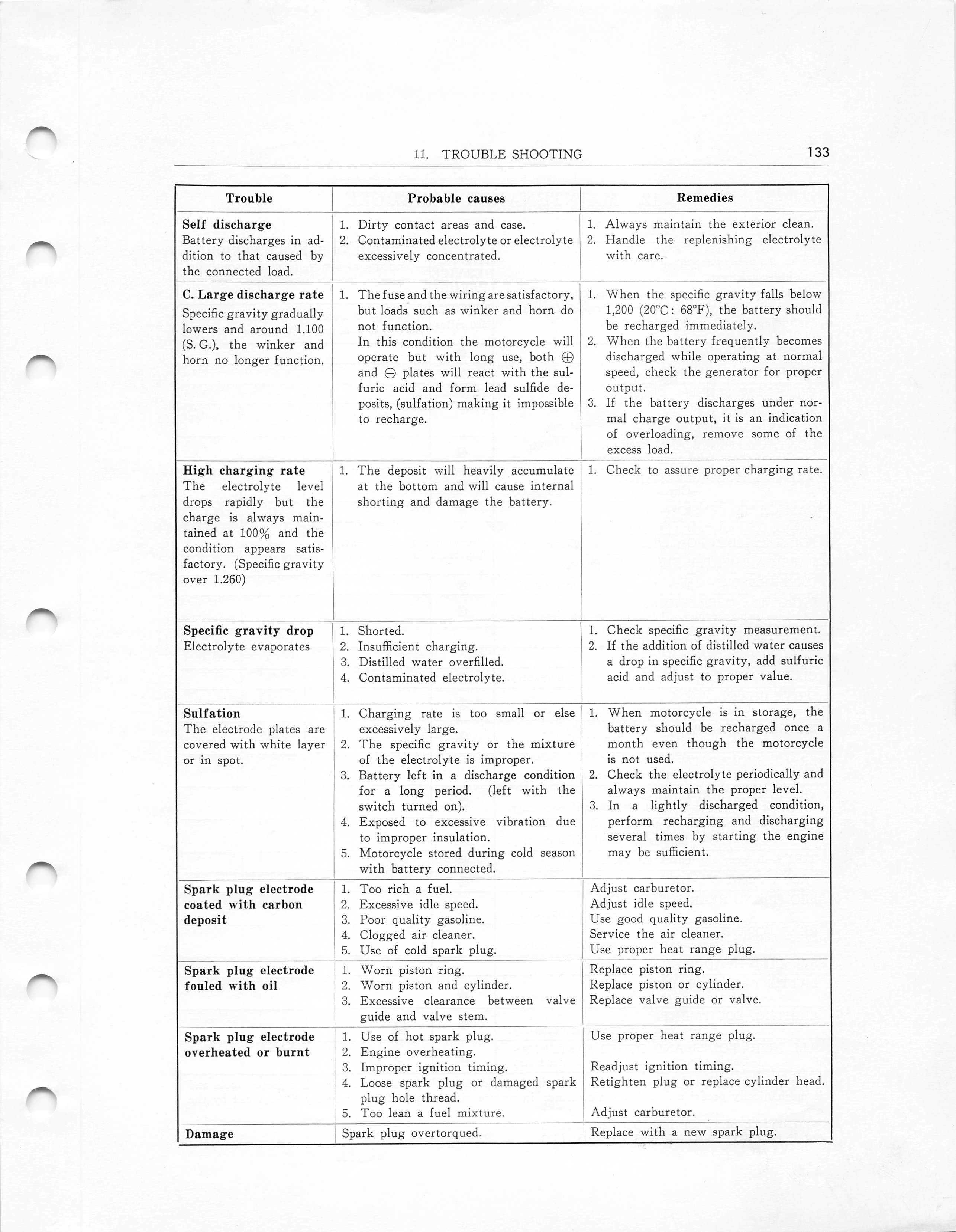

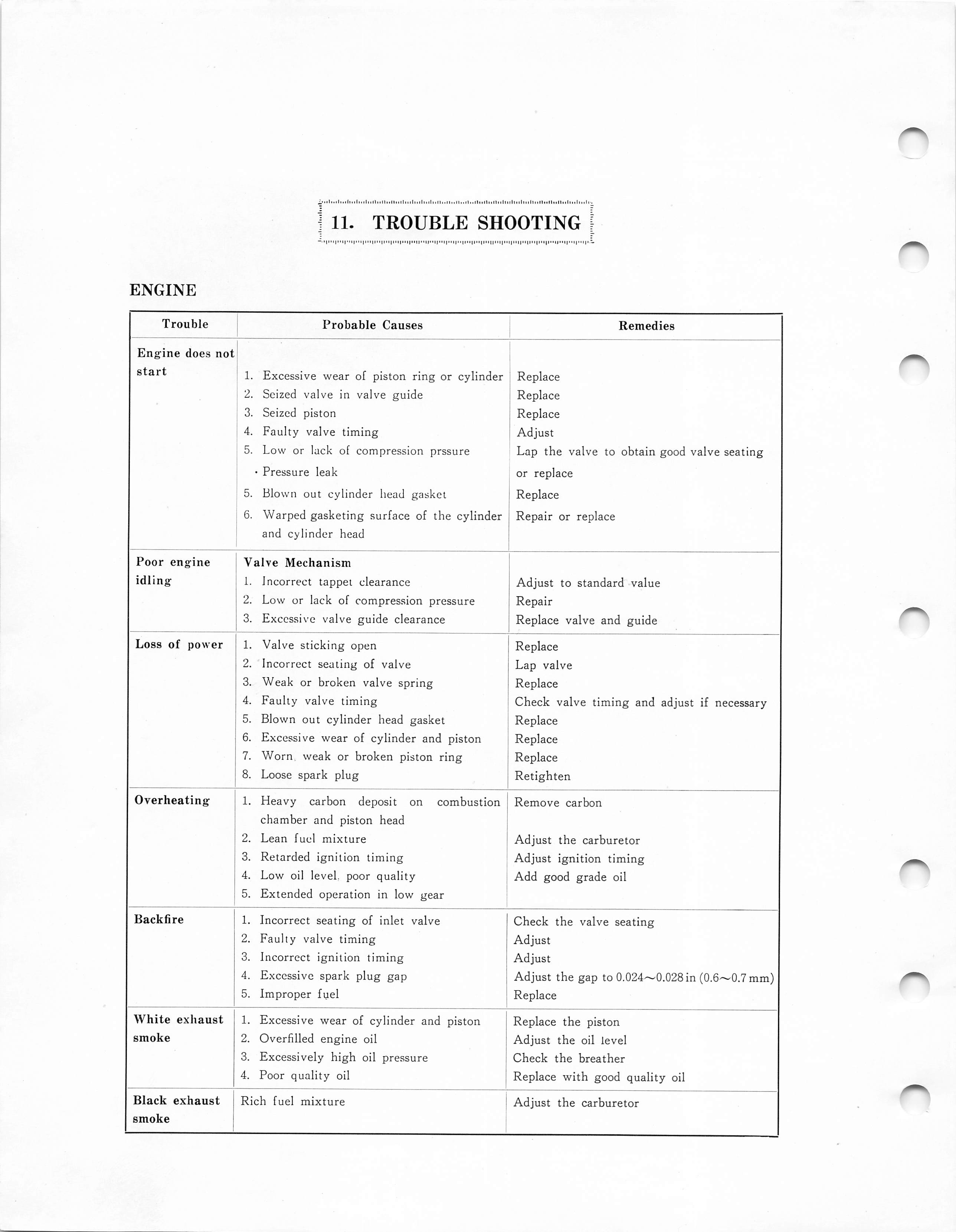

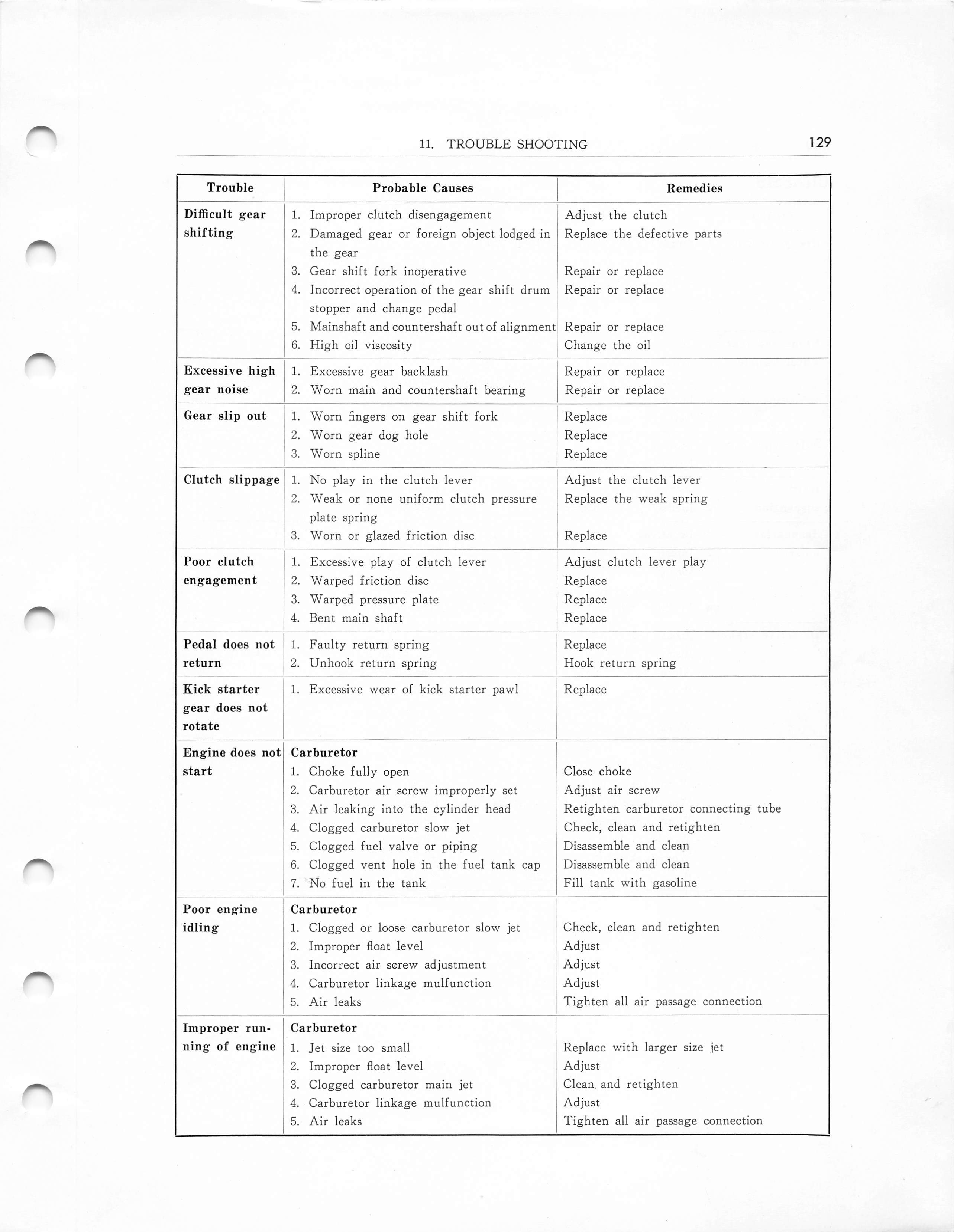

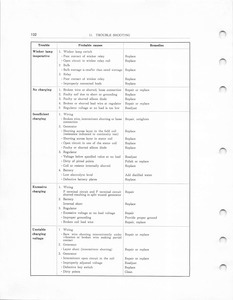

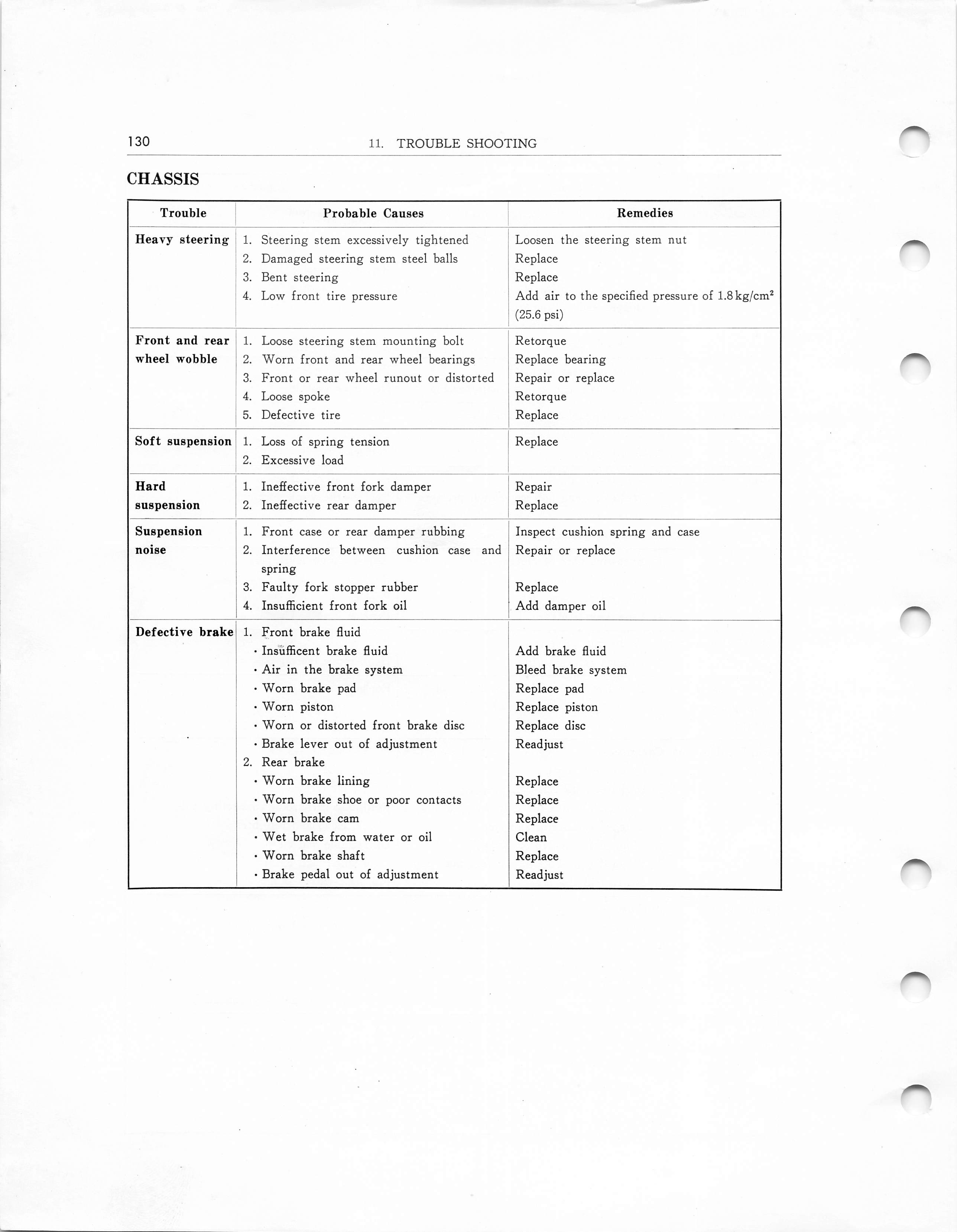

Trouble Shooting

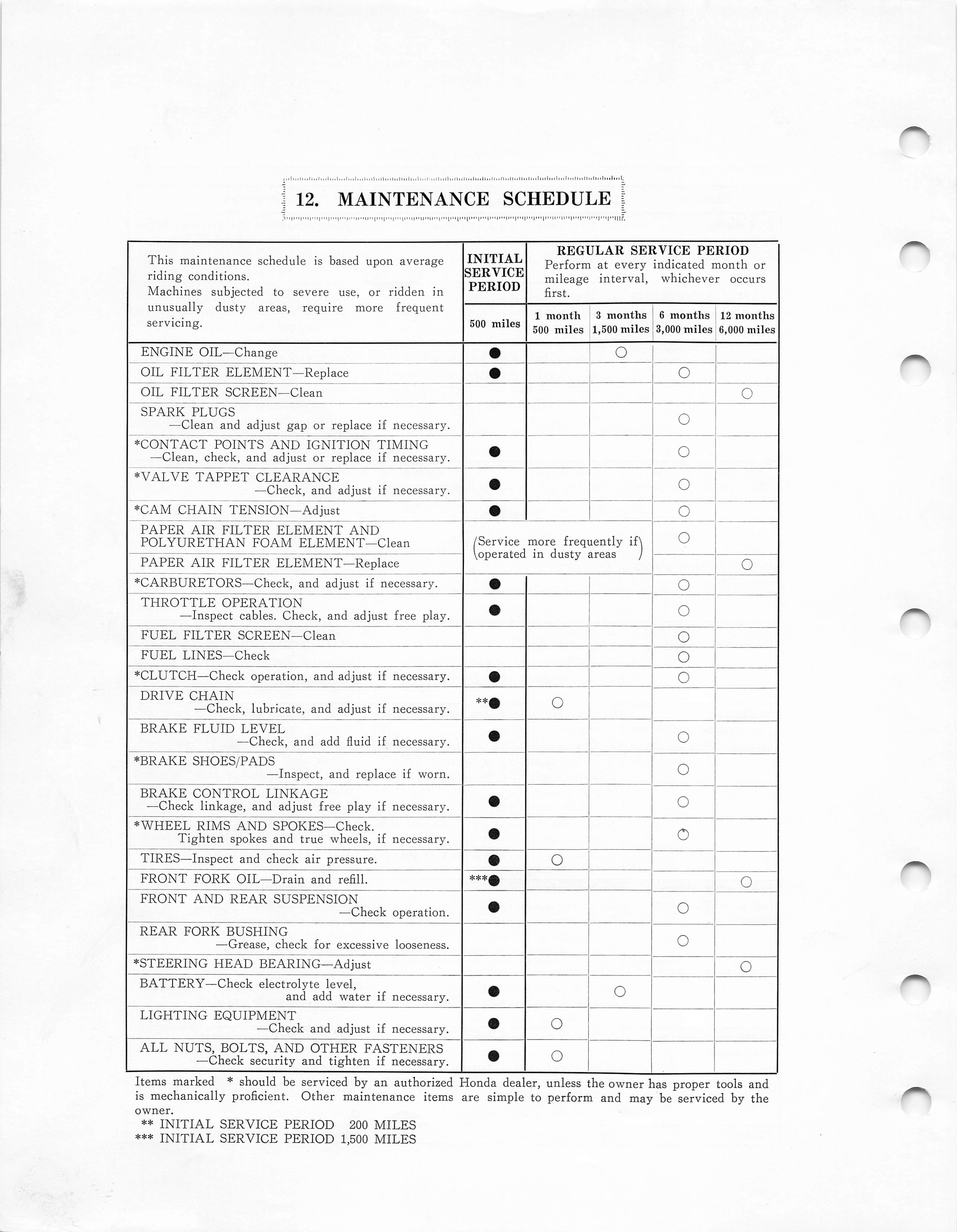

Maintenance Schedule
Technical Data

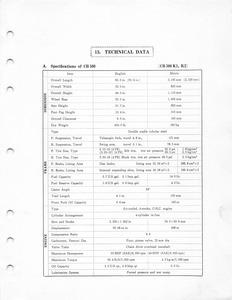

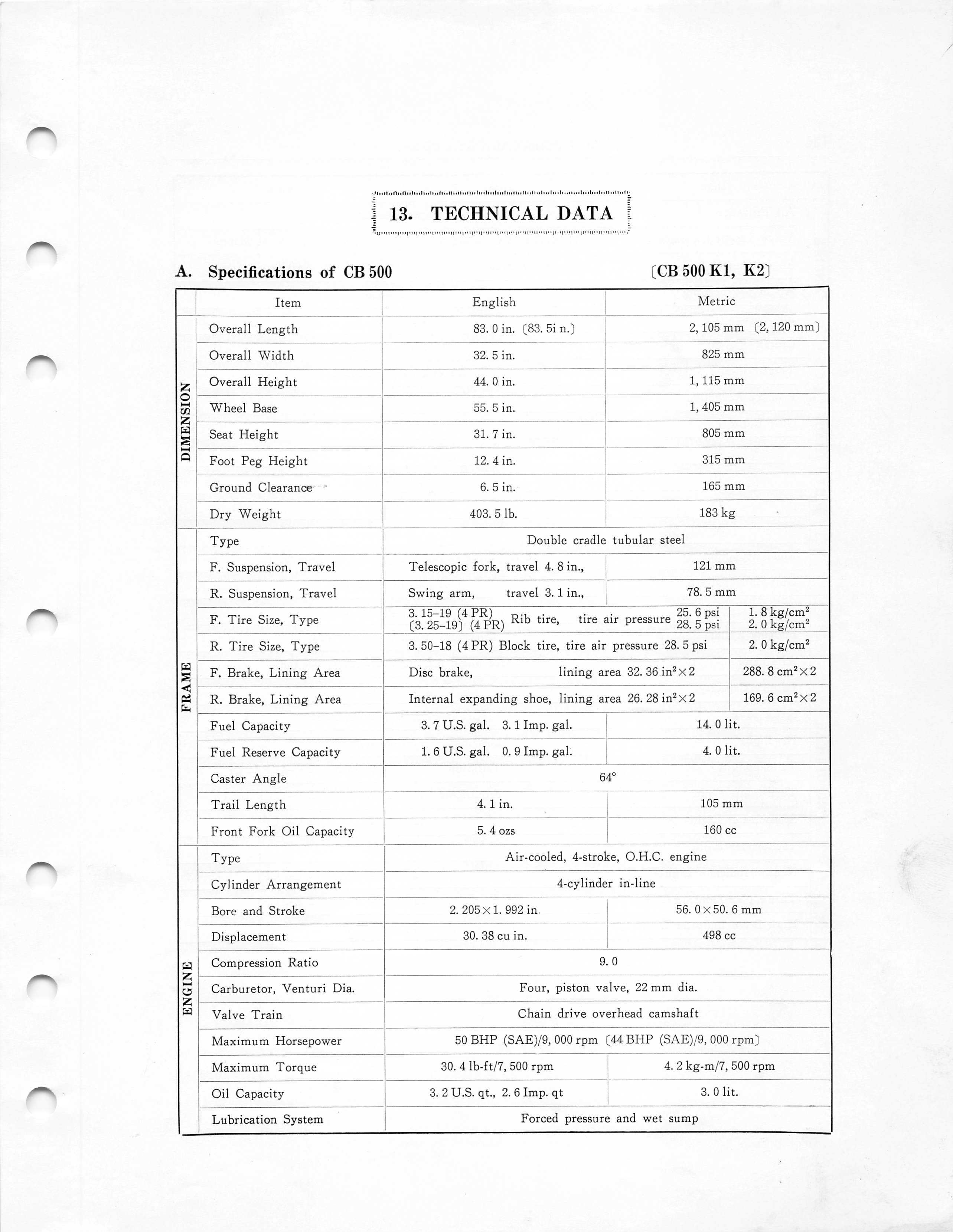

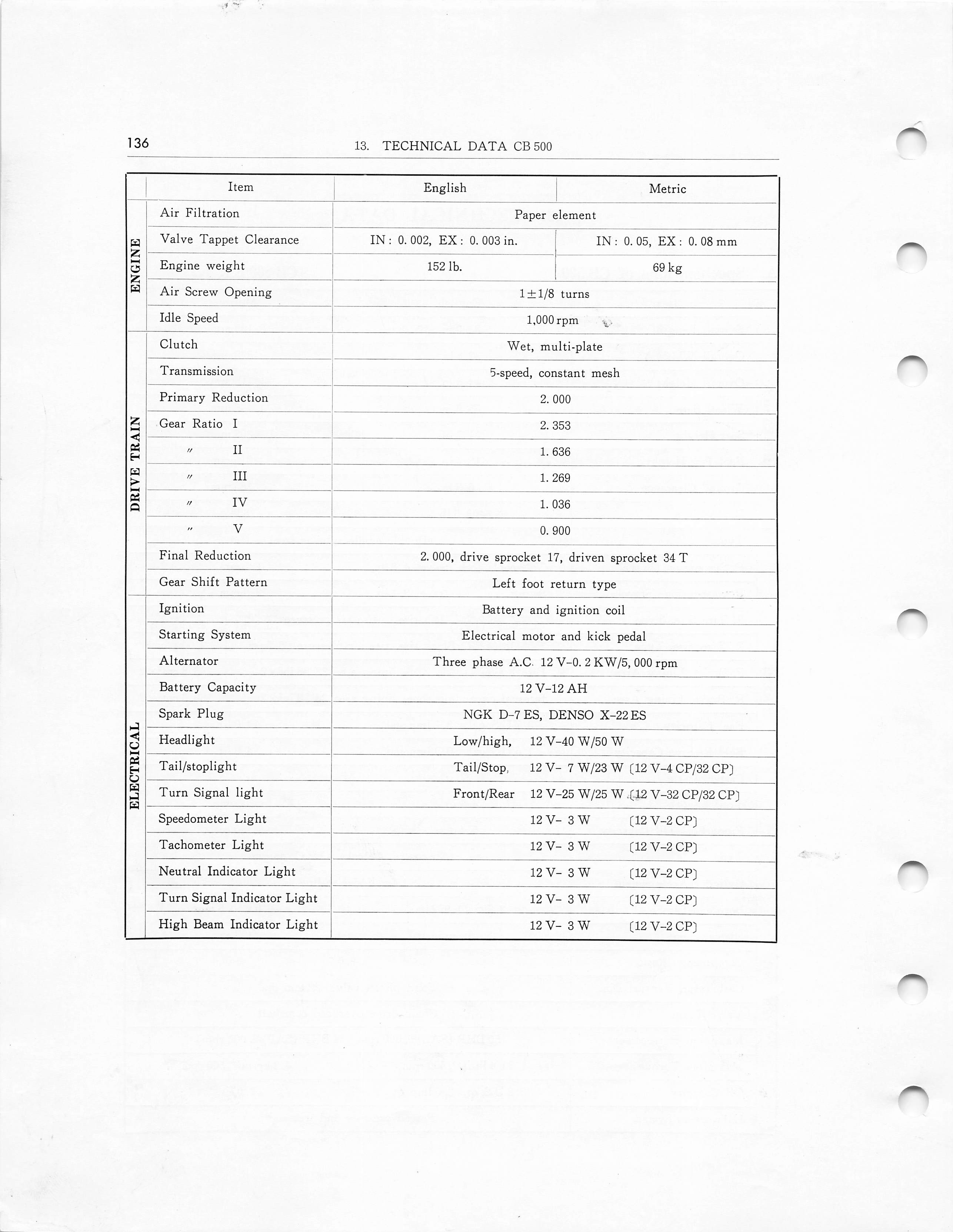

Specifications of CB500

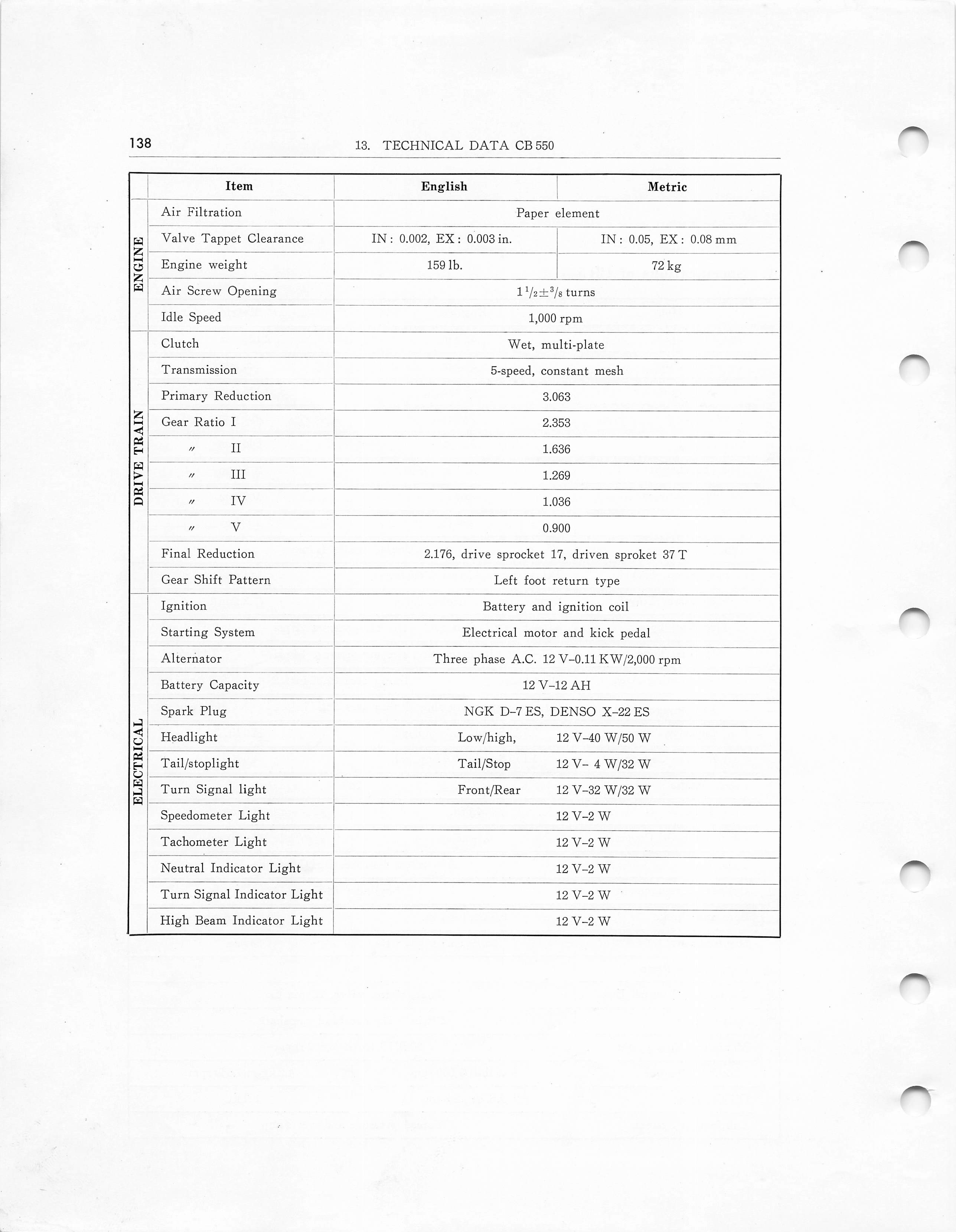

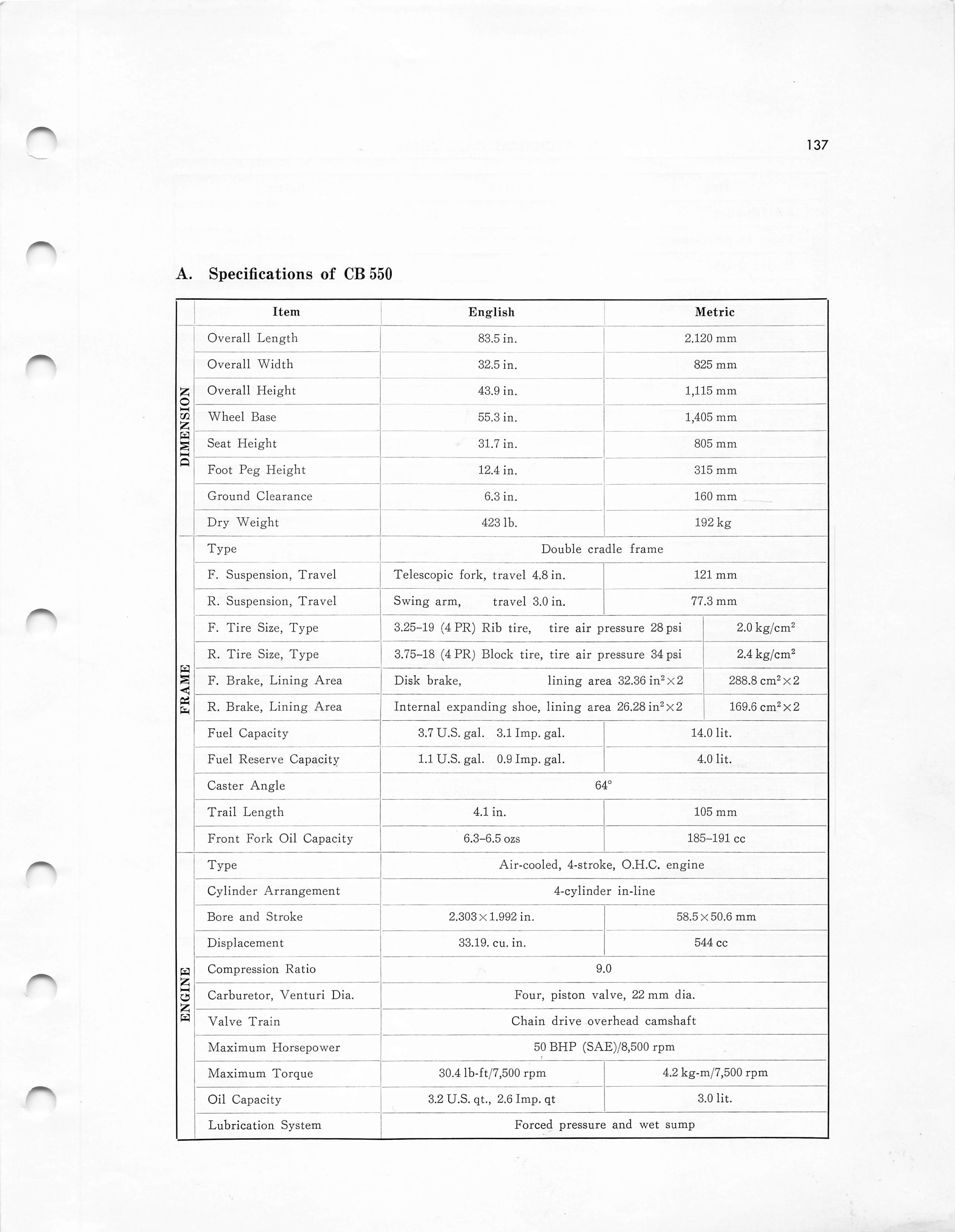

Specifications of CB550

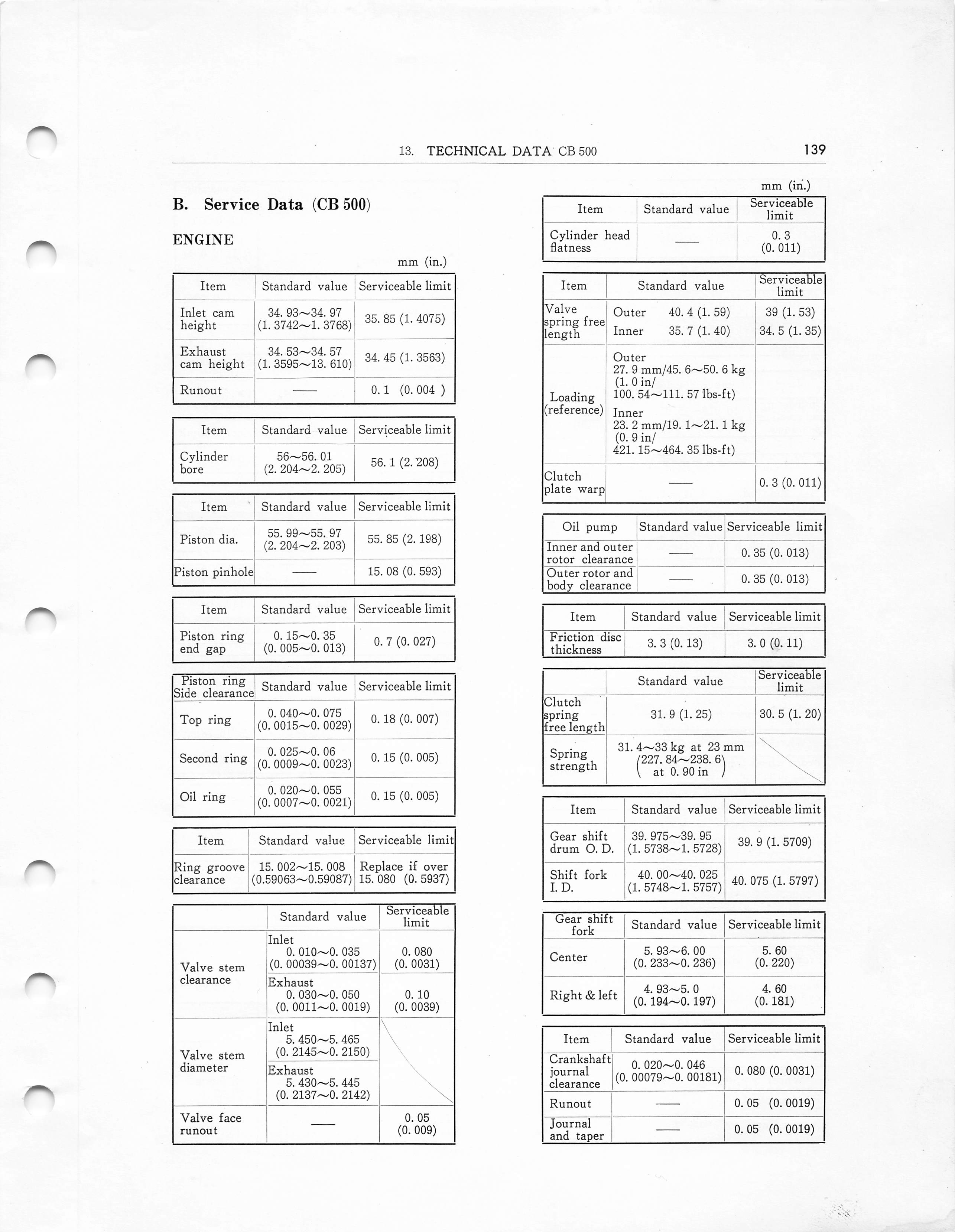

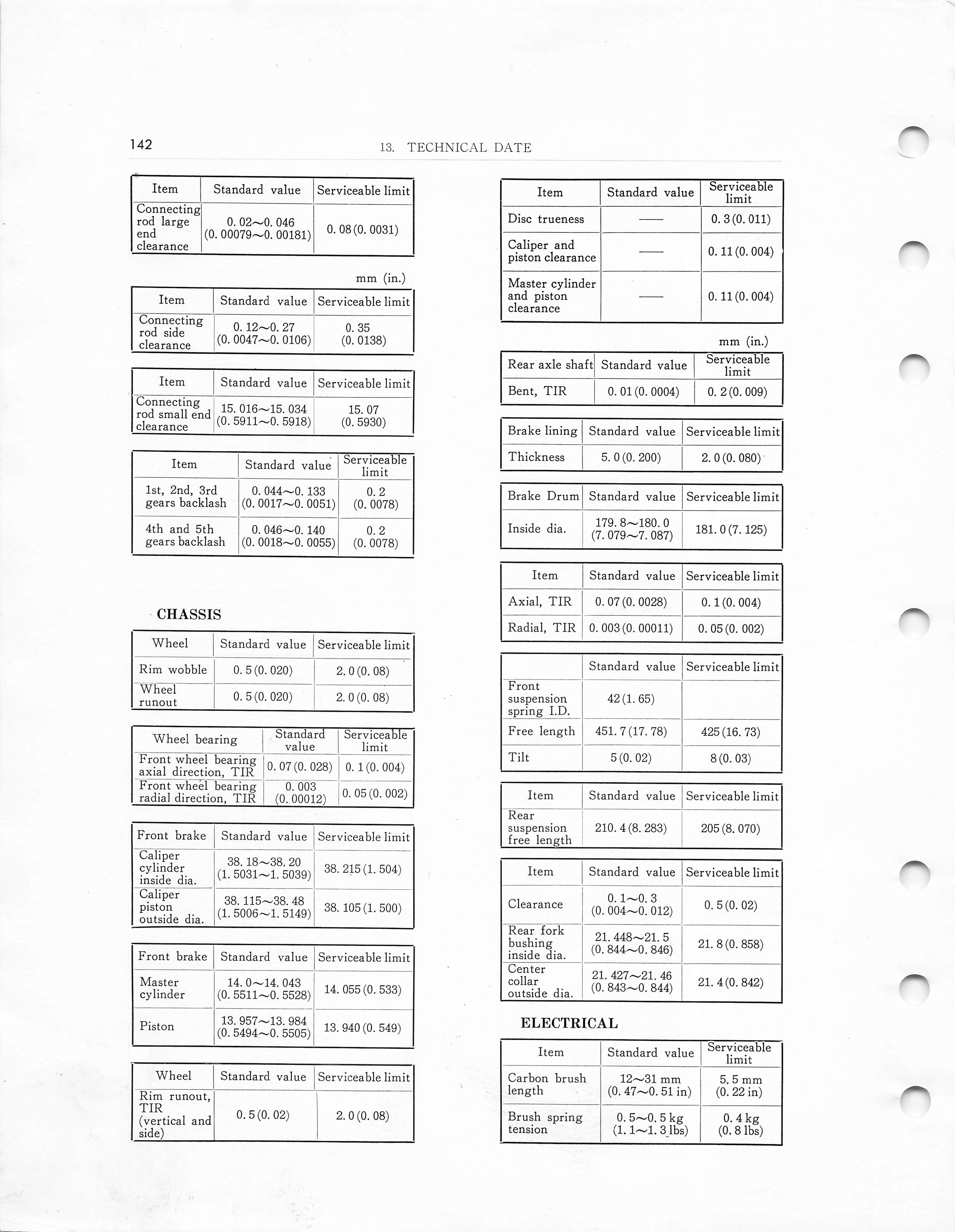

Service Data (CB500)

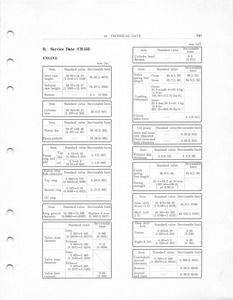

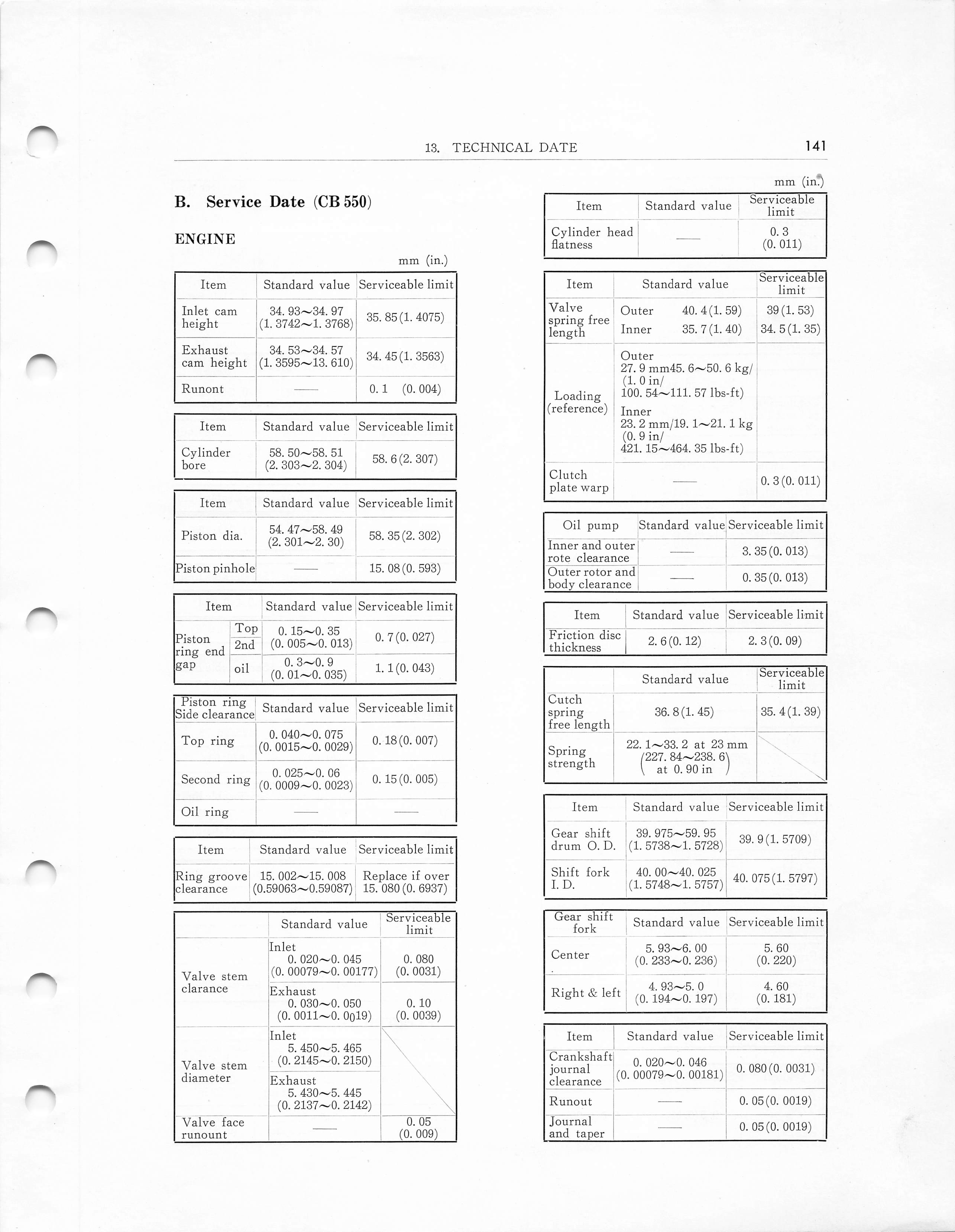

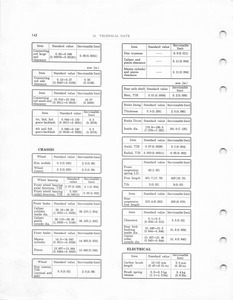

Service Data (CB550)
Engine
Item |
Standard Value |
Serviceable Limit |
Inlet cam height | 34.93-34.97 | 35.85 |
Exhaust cam height | 34.53-34.57 | 34.45 |
Runout | - | 0.1 |
Cylinder bore | 58.50-58.51 | 58.6 |
Piston diameter | 54.47-58.49 | 58.35 |
Piston pinhole | - | 15.08 |
Piston ring end gap | top, 2nd | 0.15-0.35 | 0.7 |
Piston ring end gap | oil | 0.3-0.9 | 1.1 |
Piston ring side clearance | top ring | 0.040-0.075 | 0.18 |
Piston ring side clearance | second ring | 0.025-0.06 | 0.15 |
Piston ring side clearance | oil ring | - | - |
Ring groove clearance | 15.002-15.008 | 15.080 |
Valve stem clearance | inlet | 0.020-0.045 | 0.080 |
Valve stem clearance | exhaust | 0.030-0.050 | 0.10 |
Valve stem diameter | inlet | 5.450-5.465 | - |
Valve stem diameter | exhaust | 5.430-5.445 | - |
Valve face runout | - | 0.05 |
Cylinder head flatness | - | 0.3 |
Valve spring free length | outer | 40.4 | 39 |
Valve spring free length | inner | 35.7 | 34.5 |
Loading (reference) | outer | 27.9 45.6-50.6 kg | - |
Loading (reference) | inner | 23.2 1-21.1 kg | - |
Clutch plate warp | - | 0.3 |

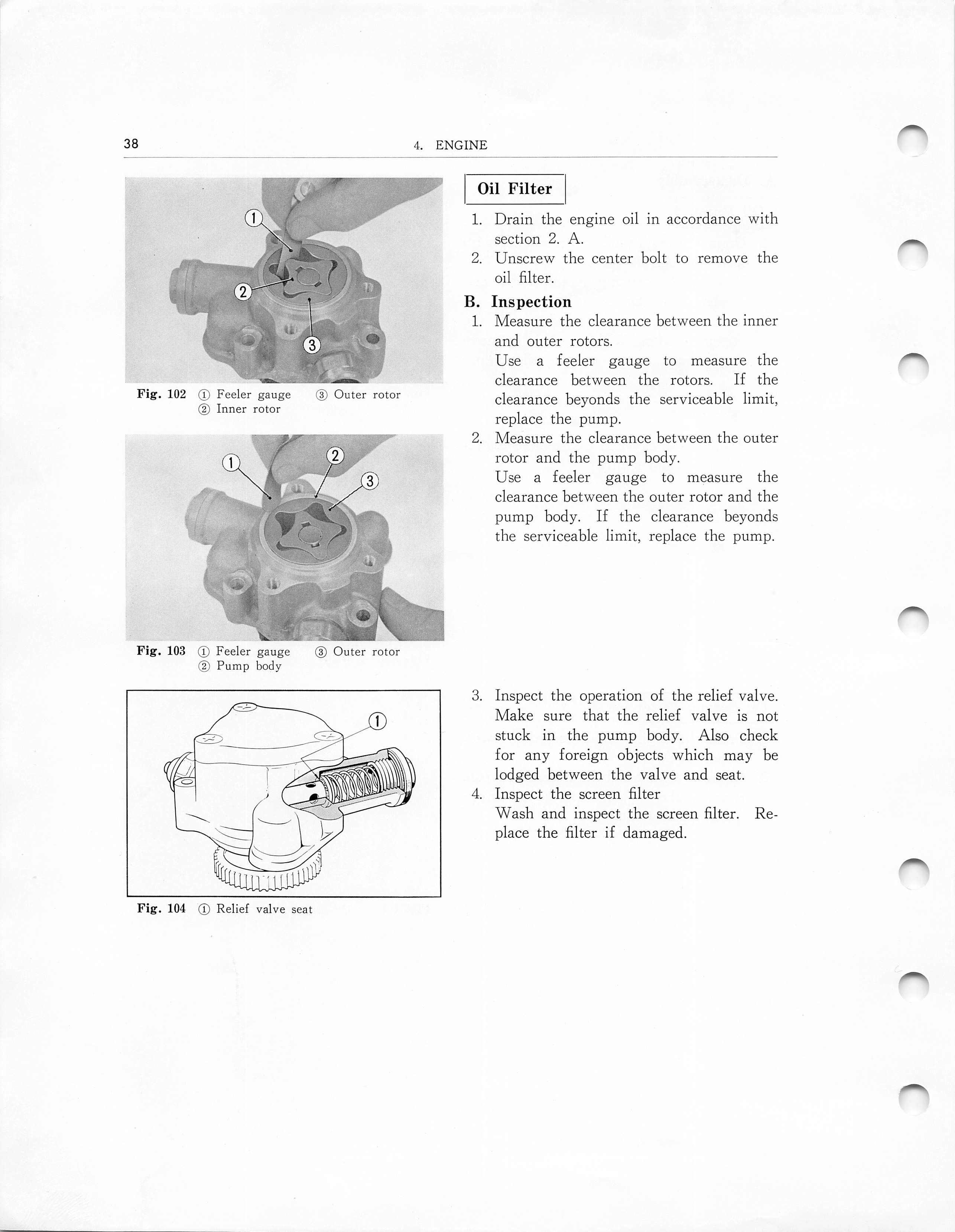

Oil pump inner and outer rotor clearance | - | 3.35 |
Oil pump outer and body clearance | - | 0.35 |
Friction disc thickness | 2.6 | 2.3 |
Clutch spring free length | 36.8 | 35.4 |
Spring strength | 22.1-33.2 at 23 | - |

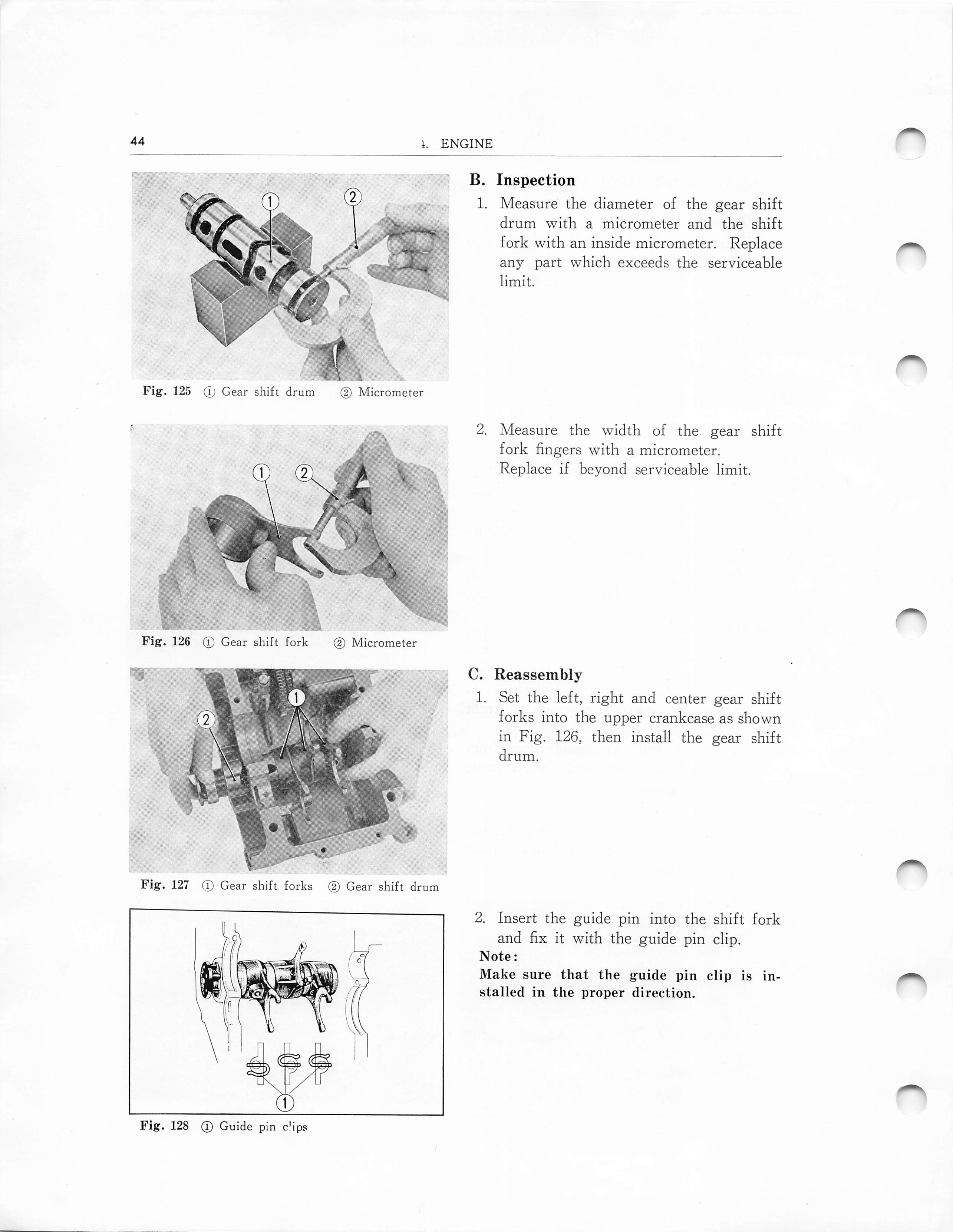

Great shift drum outside diameter | 39.975-59.95 | 39.9 |
Shift fork inside diameter | 40.00-40.025 | 40.075 |

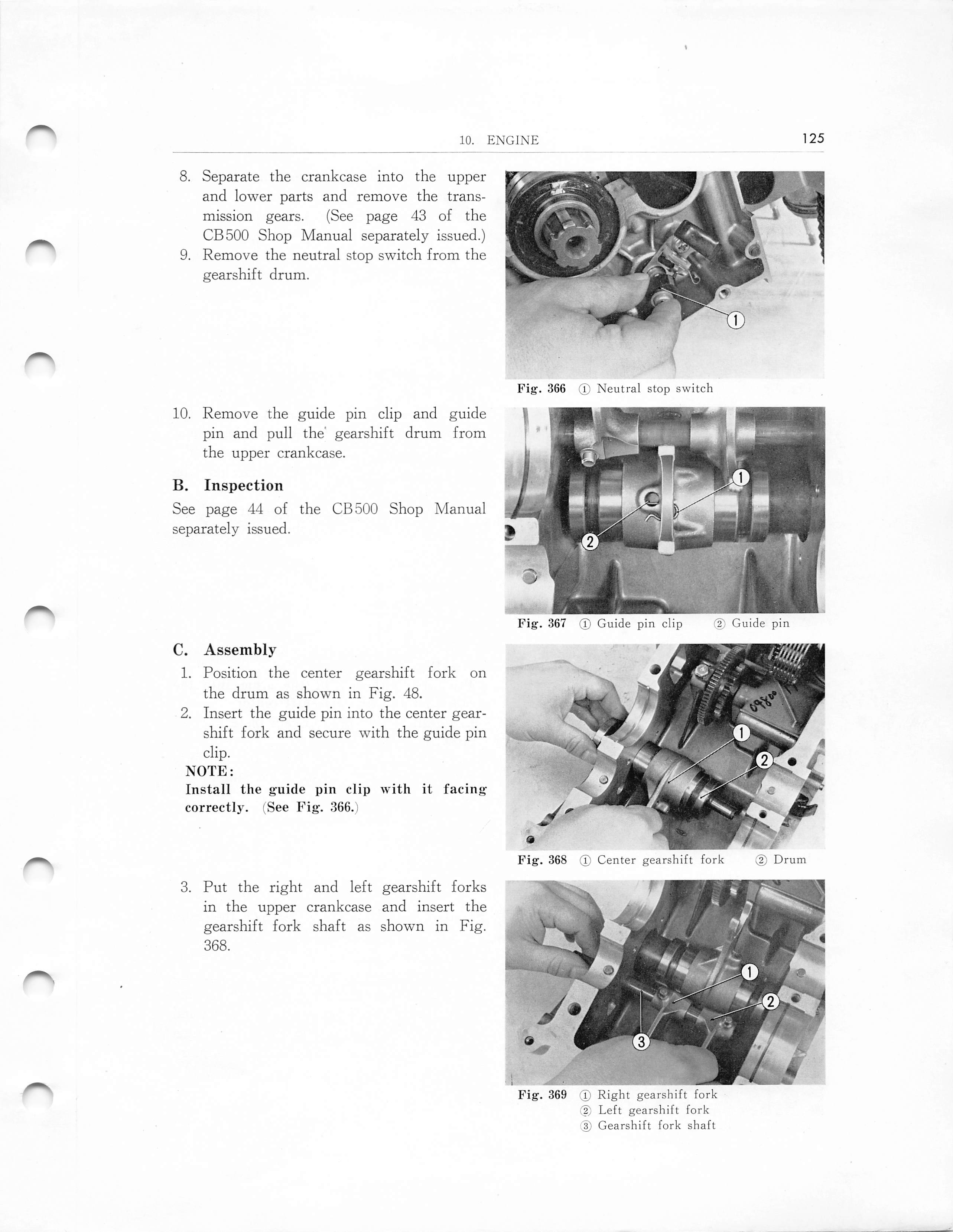

Gear shift fork | center | 5.93-6.00 | 5.60 |
Gear shift fork | right and left | 4.93-5.0 | 4.60 |
Crankshaft journal clearance | 0.020-0.046 | 0.080 |
Runout | - | 0.05 |
Journal and taper | - | 0.05 |
Connecting rod large end clearance | 0.02-0.046 | 0.08 |
Connecting rod side clearance | 0.12-0.27 | 0.35 |
Connecting rod small end clearance | 15.016-15.034 | 15.07 |
1st, 2nd, 3rd gears backlash | 0.044-0.133 | 0.2 |
4th and 5th gears backlash | 0.046-0.140 | 0.2 |

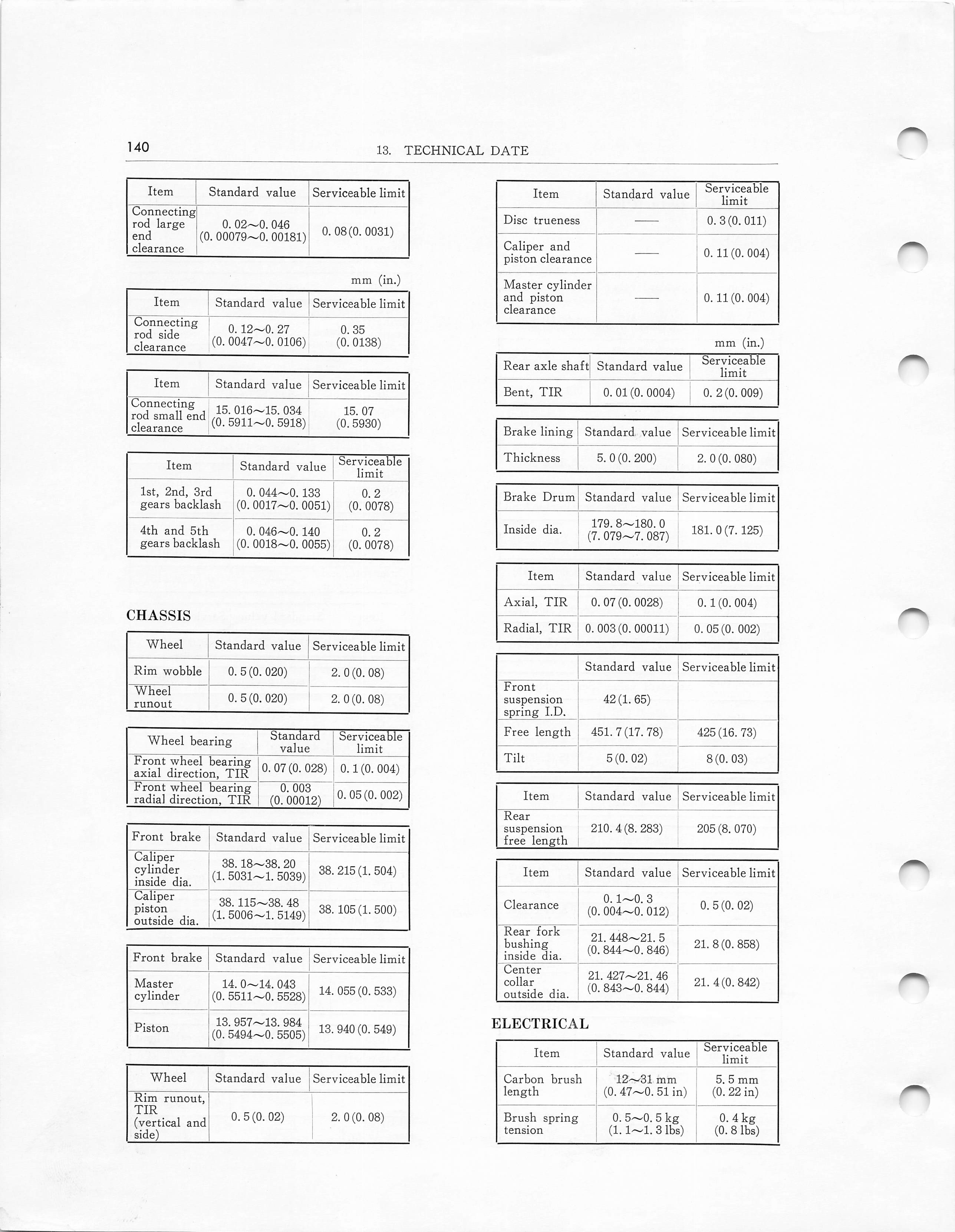

Chassis
Item |
Standard Value |
Serviceable Limit |

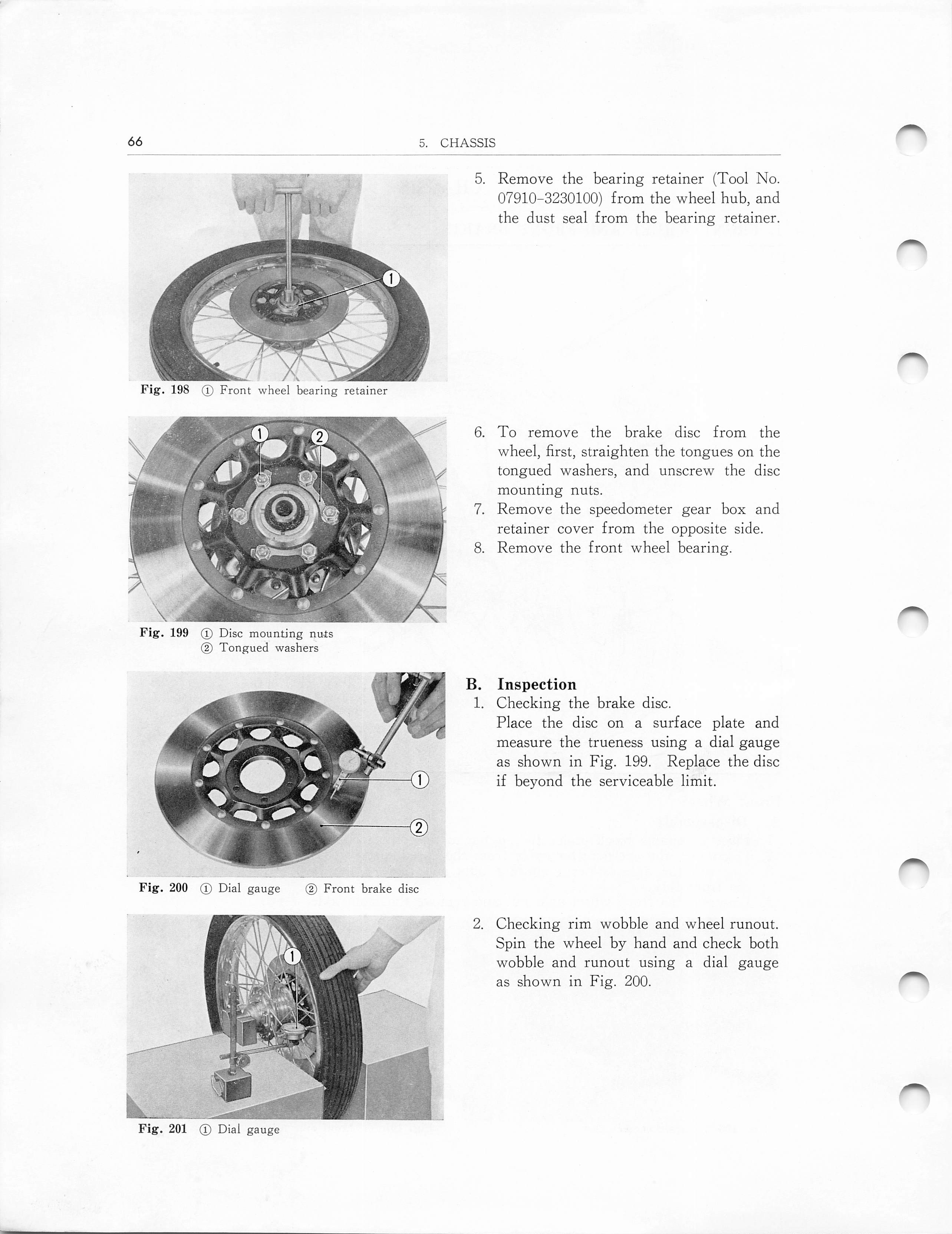

Rim wobble | 0.5 | 2.0 |
Wheel runout | 0.5 | 2.0 |
Front wheel bearing axial direction, total indicator reading | 0.07 | 0.1 |
Front wheel bearing radial direction, total indicator reading | 0.003 | 0.05 |
Caliper cylinder inside diameter | 38.18-38.20 | 38.215 |
Caliper cylinder outside diameter | 38.115-38.48 | 38.105 |

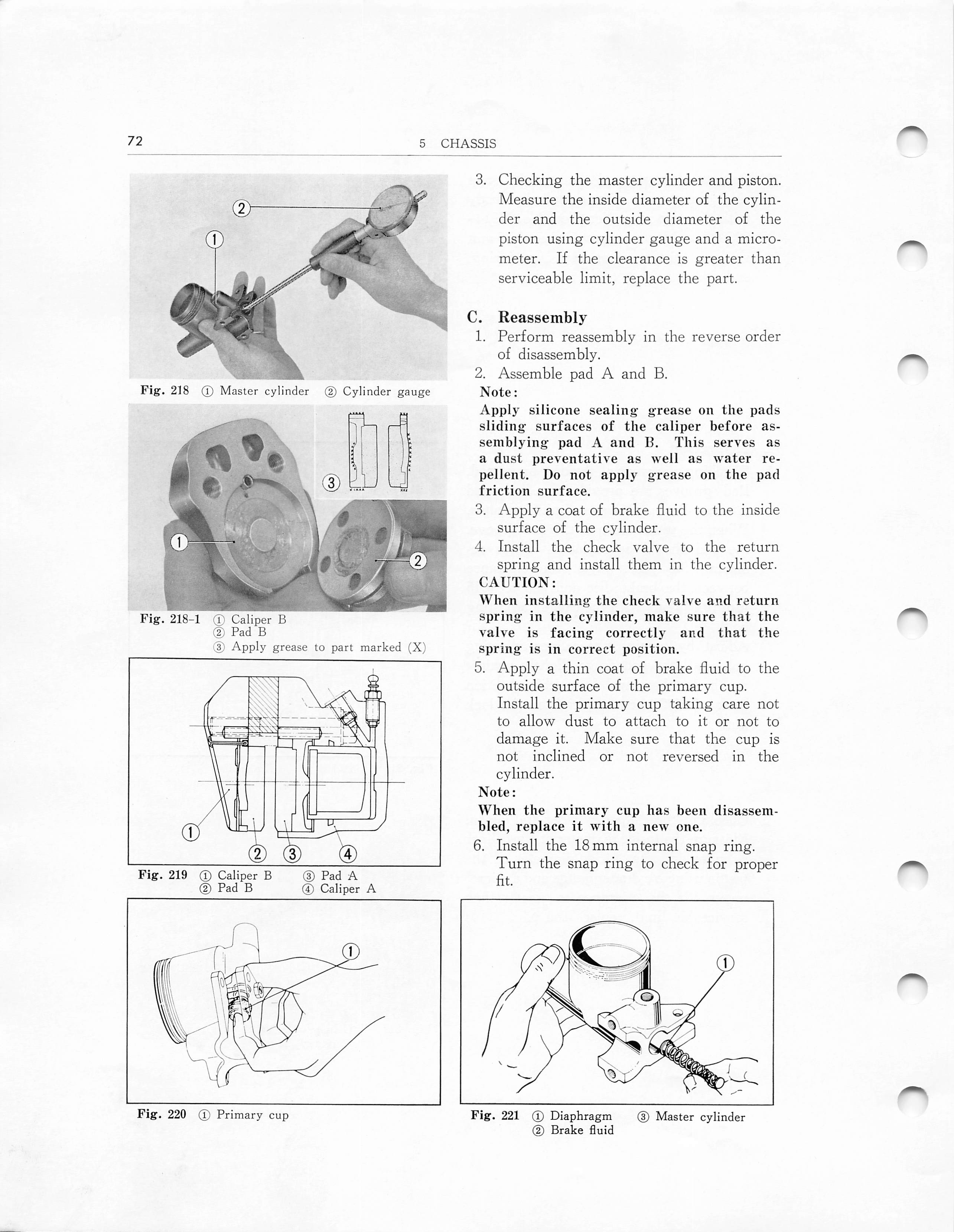

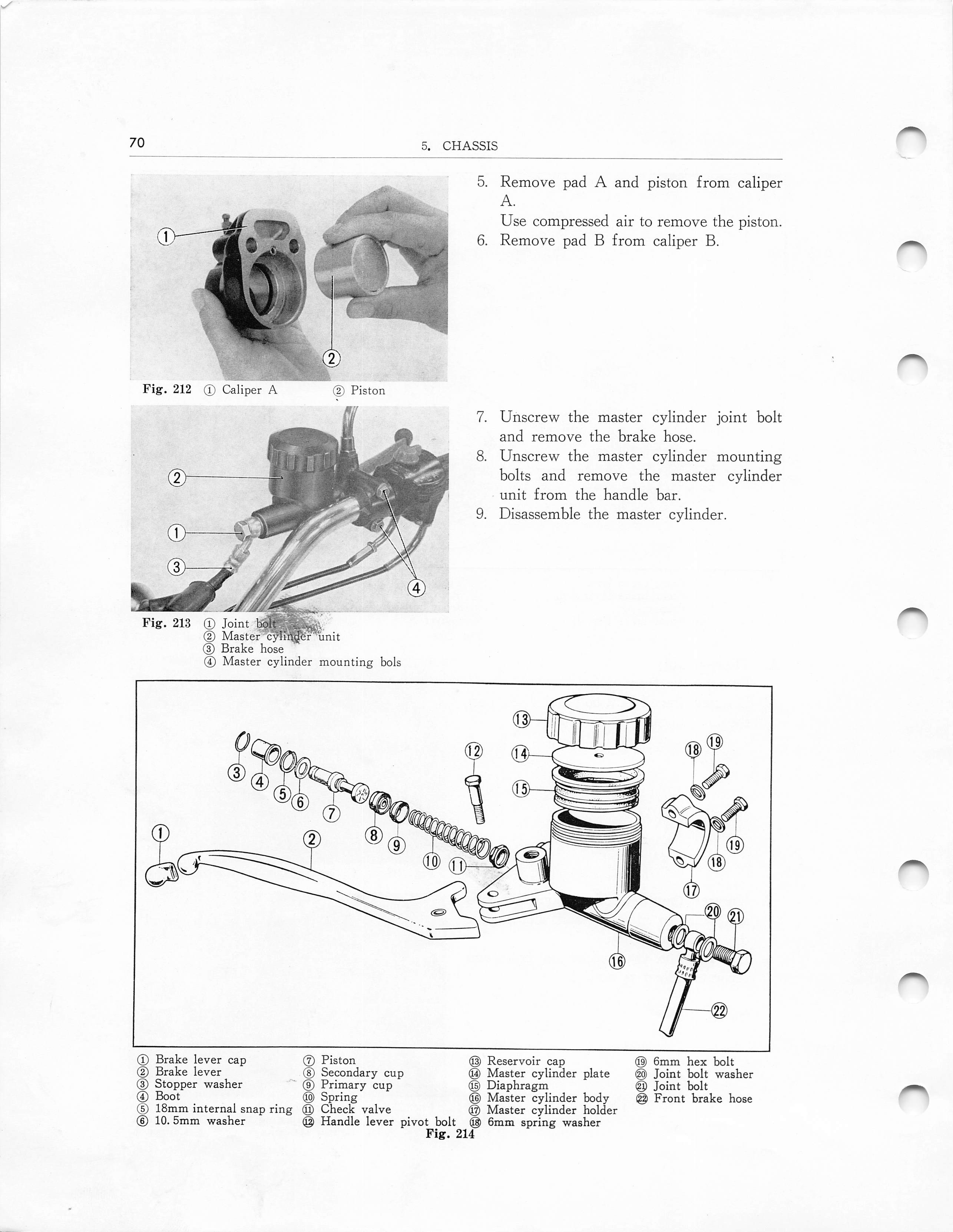

Front Brake | Master cylinder | 14.0-14.043 | 14.055 |
Front Brake | Piston | 13.957-13.984 | 13.940 |

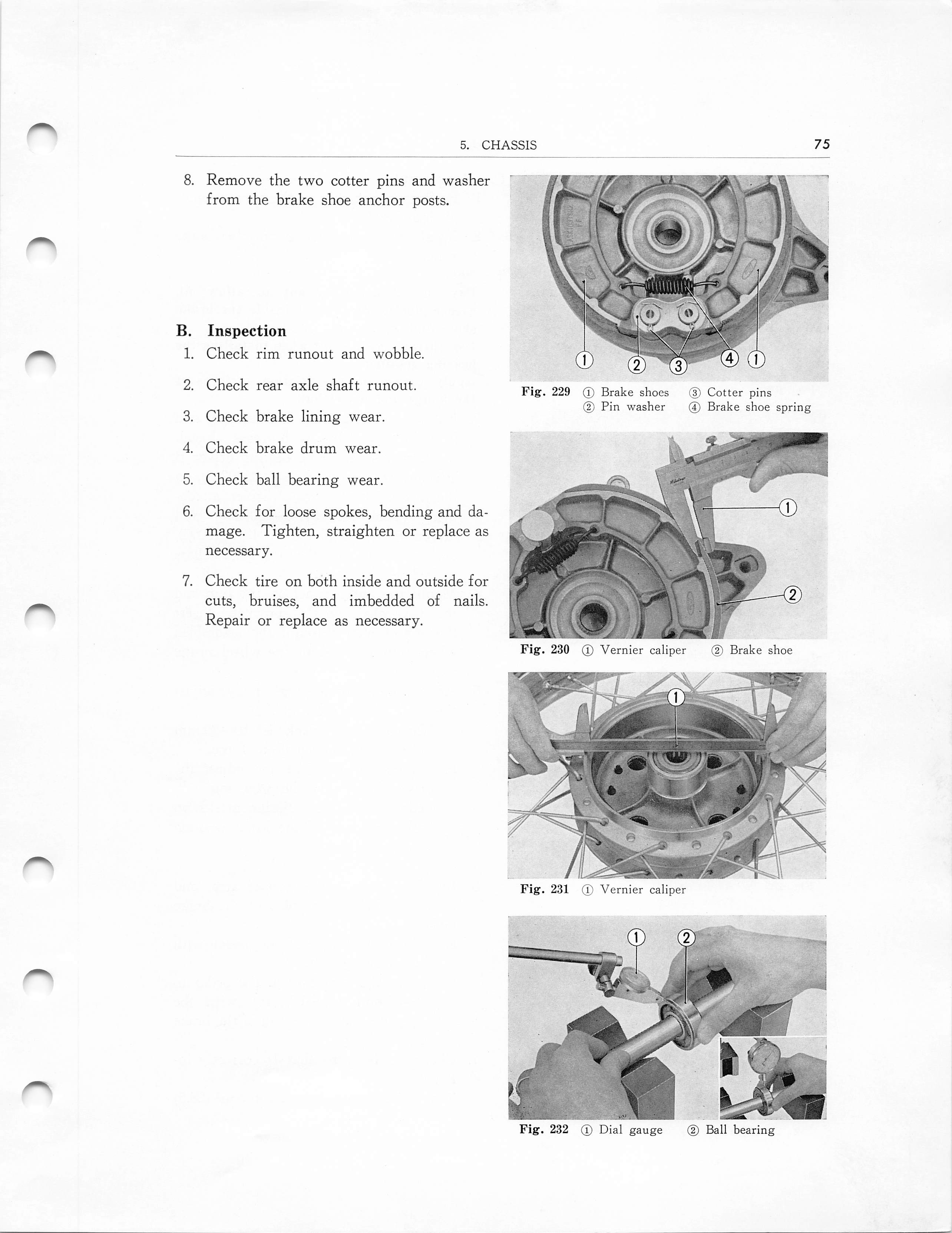

Wheel | Rim runout, total indicator reading (vertical and side) | 0.5 | 2.0 |
Wheel | Disc trueness | - | 0.3 |
Wheel | Caliper and piston clearance | - | 0.11 |
Wheel | Master cylinder and piston clearance | - | 0.11 |
Rear axle shaft | Bent, total indicator reading | 0.01 | 0.2 |
Brake lining | Thickness | 5.0 | 2.0 |
Brake Drum | Inside diameter | 179.8-180.0 | 181.0 |
Axial, total indicator reading | 0.07 | 0.1 |
Radial, total indicator reading | 0.003 | 0.05 |
Front suspension spring inside diameter | 42 | - |
Free length | 451.7 | 425 |
Tilt | 5 | 8 |
Rear suspension free length | 0.1-0.3 | 0.5 |
Clearance | 0.1-0.3 | 0.5 |
Rear fork bushing inside diameter | 21.448-21.5 | 21.8 |
Center collar outside diameter | 21.427-21.46 | 21.4 |
Electrical
Item |
Standard Value |
Serviceable Limit |
Carbon bush length | 21-31 | 5.5 |
Brush spring tension | 0.5-0.5kg | 0.4kg |

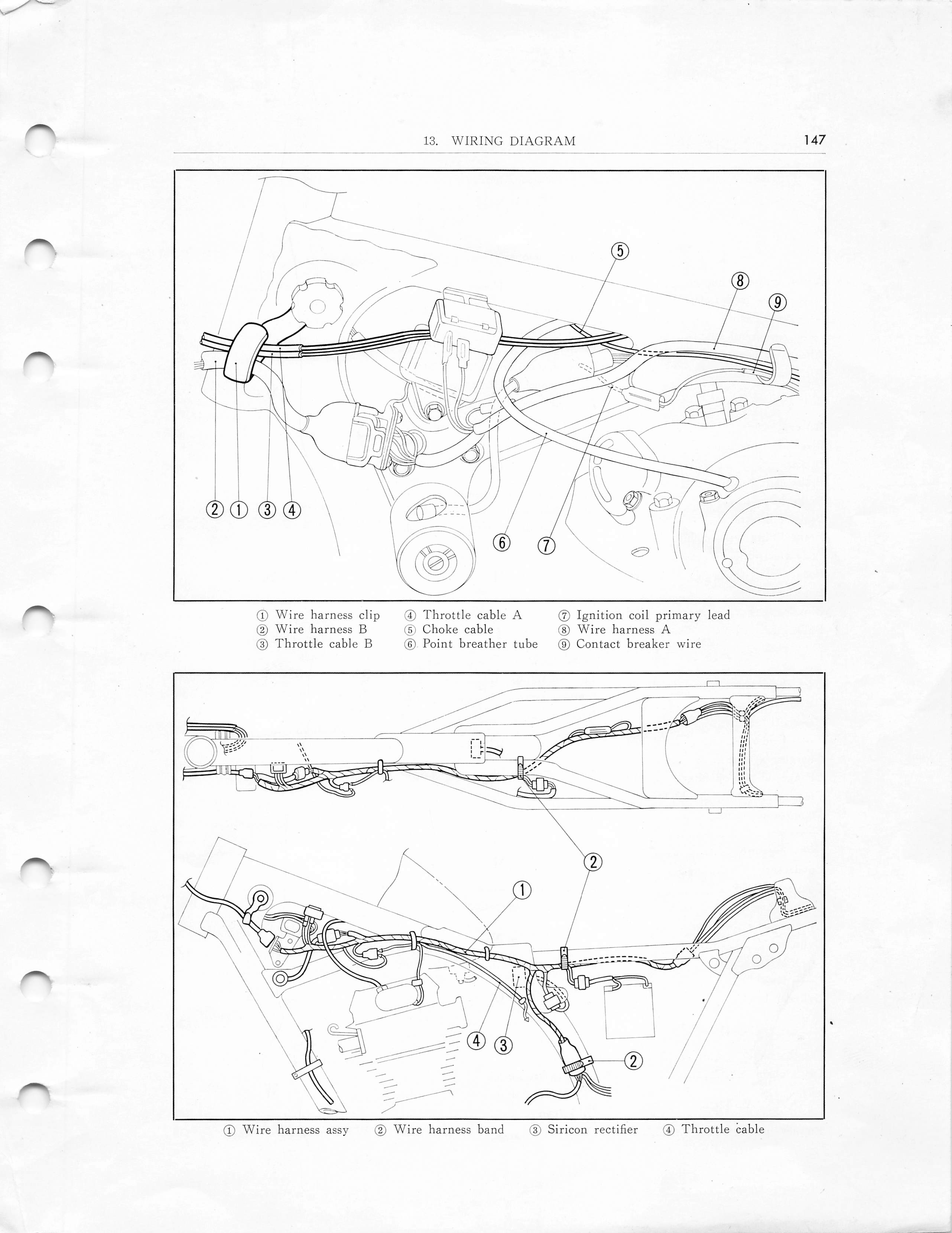

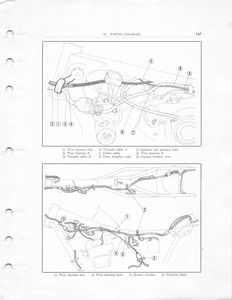

Wiring Diagram

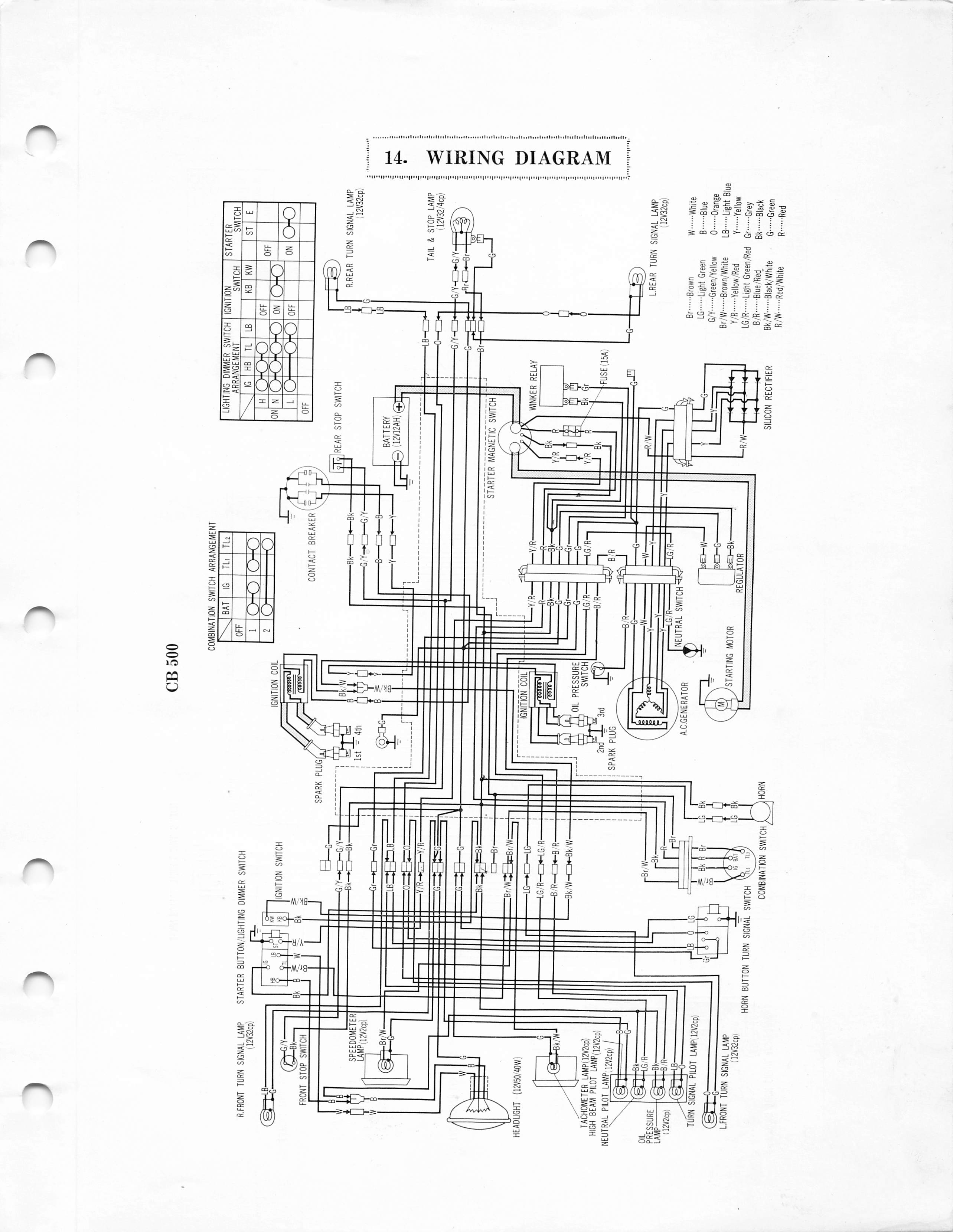

CB500

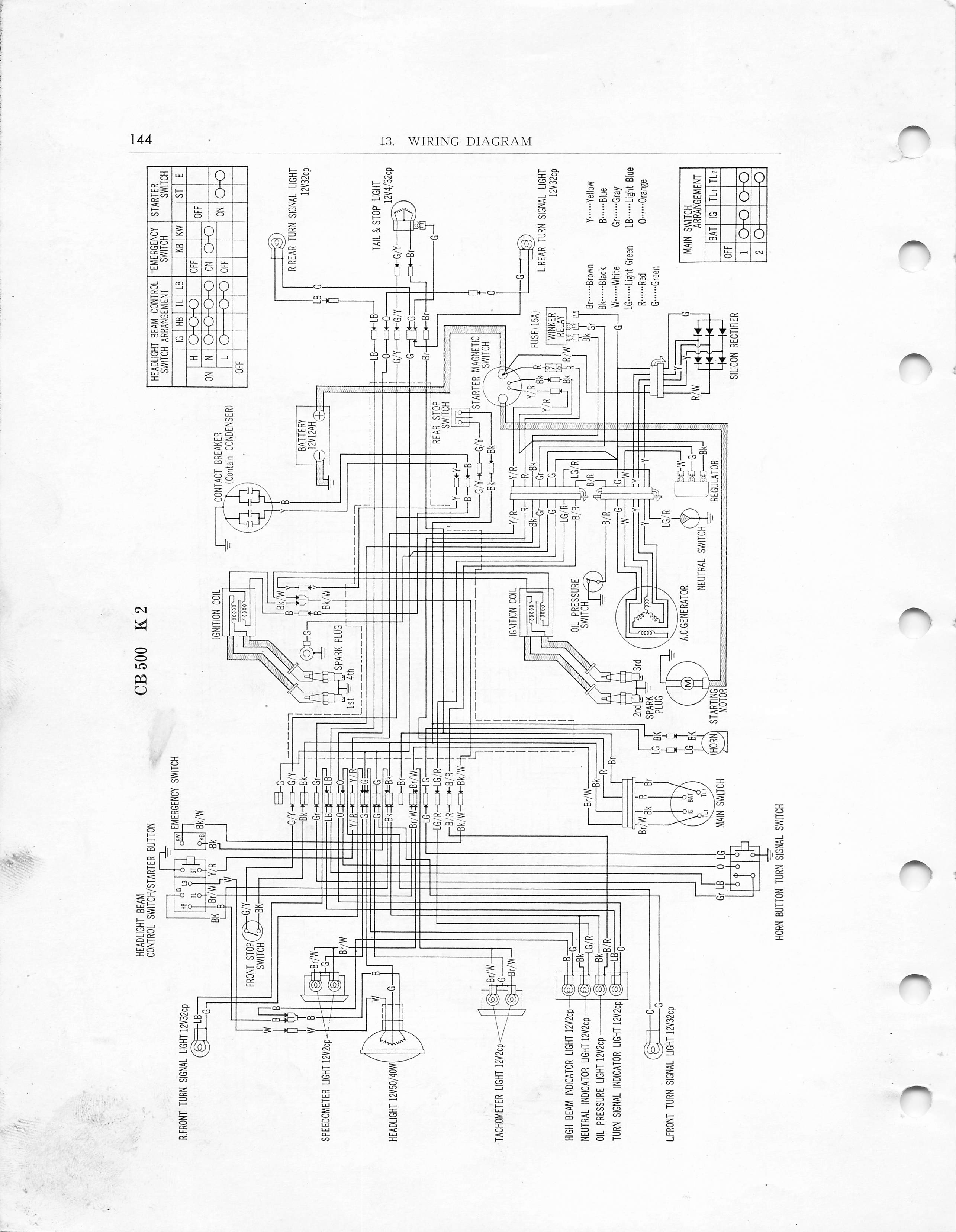

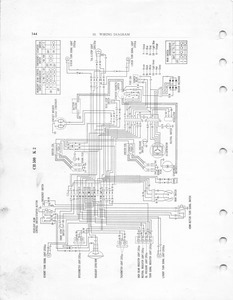

CB500K2

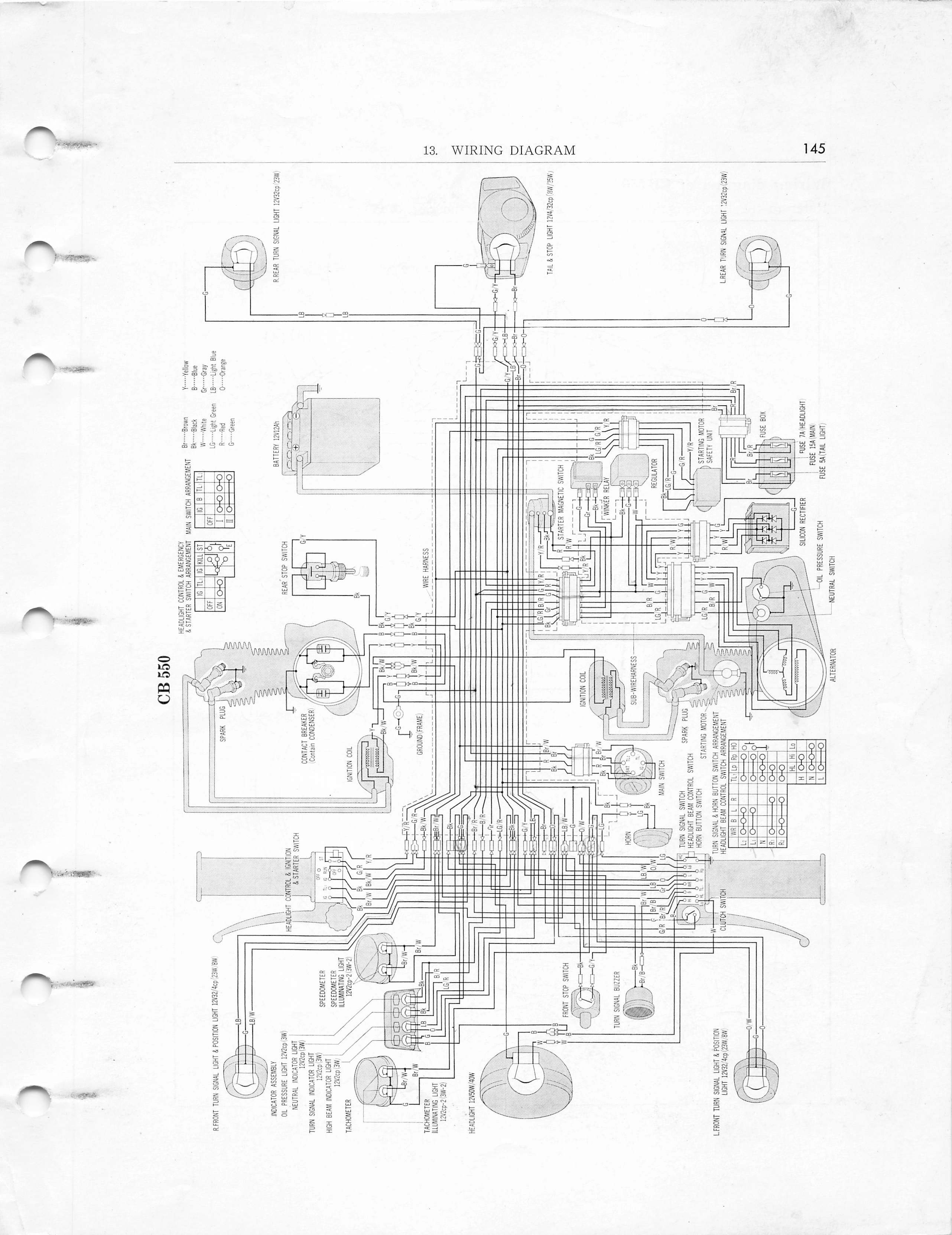

CB550

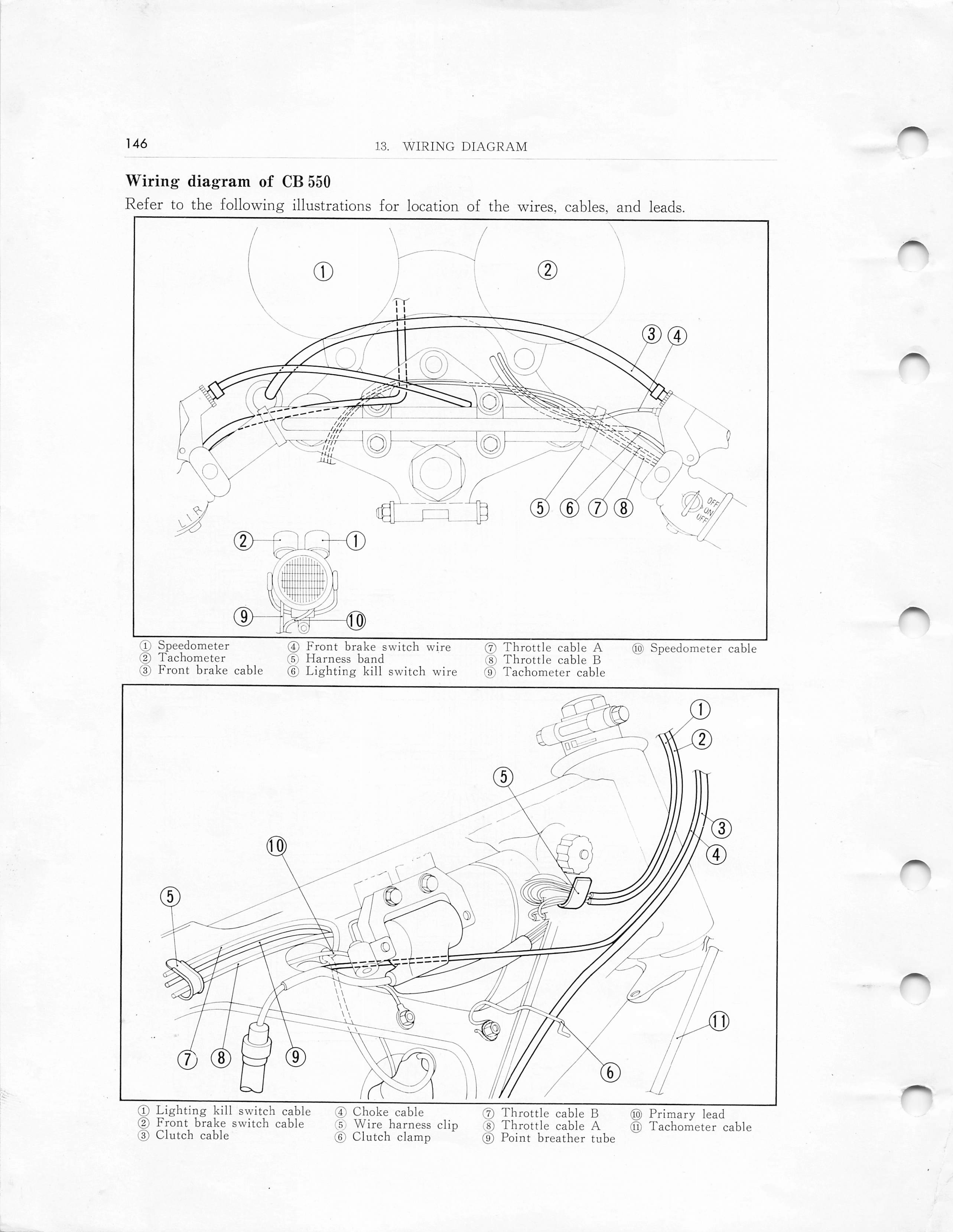

Wiring Diagram of CB550

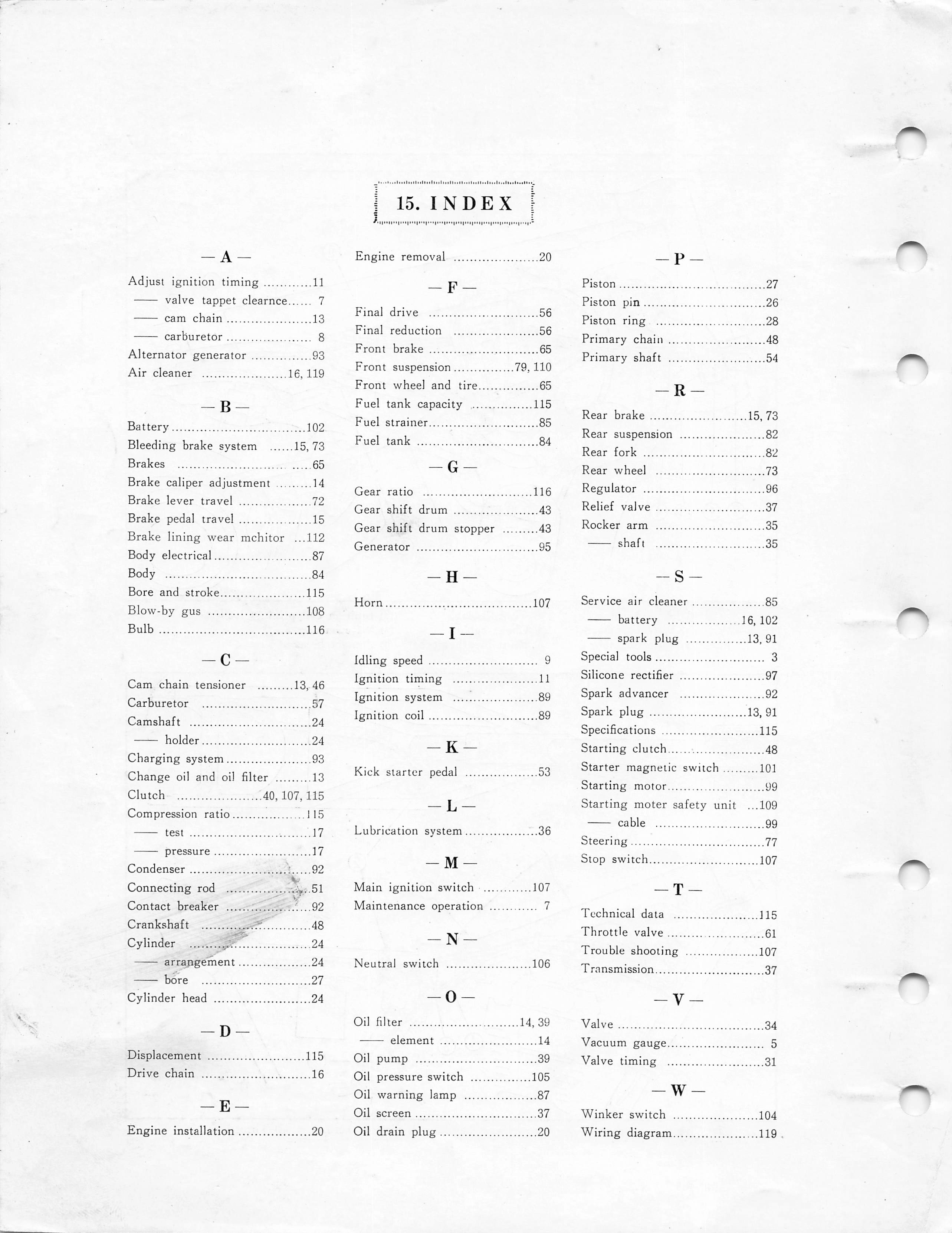

Index
